Dewalt DC925KA Electric Drill & Driver Parts

Dewalt DC925KA Parts

Download Schematic

Time to buy a new tool?

Dewalt DC925KA

Heavy-Duty XRP™...

$288.99

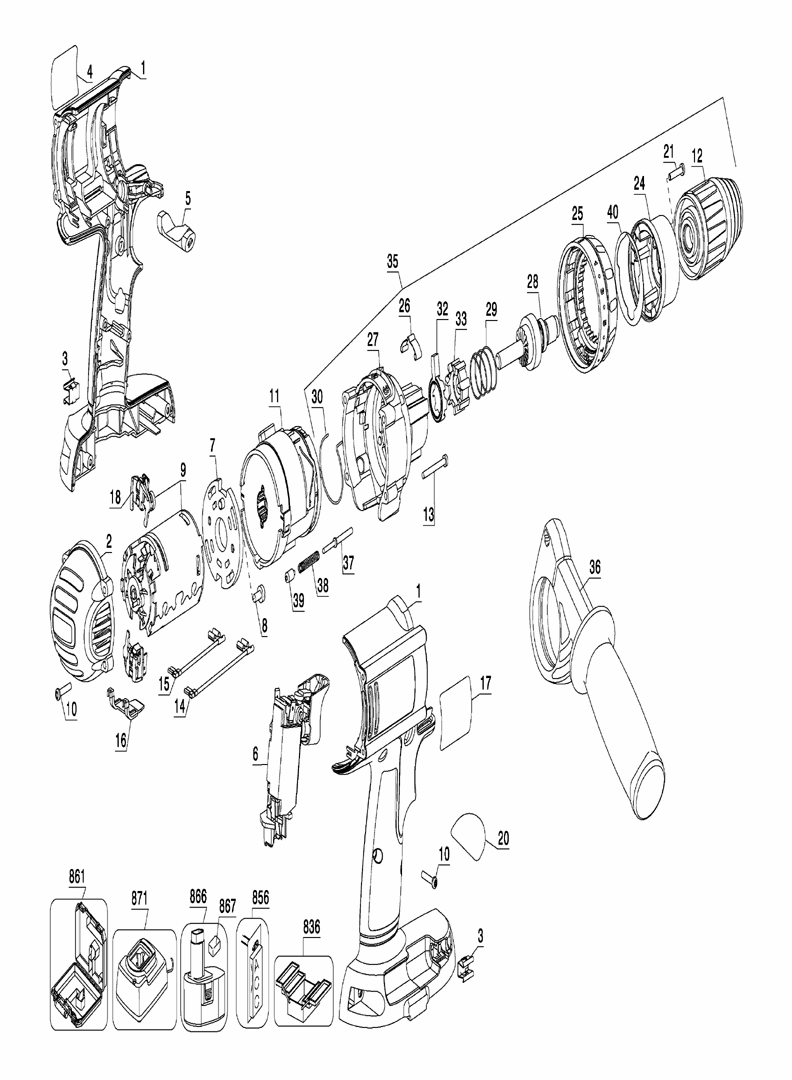

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	650633-00	CLAMSHELL SET	$13.74
1	629820-02	CLAMSHELL SET	$13.14
2	629823-00	END CAP	$4.82
3	148354-03	BIT CLIP	$1.24
4	395657-00	ID LABEL	$1.24
5	633327-02	FWD/REV BUTTON	$1.33
6	152274-25SV	VSR SWITCH	$57.14
7	629172-00	ADAPTER PLATE	$2.09
8	156179-01	SCREW, TAPTITE	$1.10
9	629151-02SV	MOTOR & PINION	$49.51
10	682211-00	SCREW, TORX	$1.24
11	613237-00SV	TRANSMISSION	$36.15
13	330019-62	"SCREW,THD.FORM"	$1.05
14	631282-01	LEADWIRE ASSEMBLY	$1.61
15	631283-01	LEADWIRE ASSY.	$1.44
16	636634-00	MOTOR LEAD WIRE GUIDE	$1.05
17	659506-00	NAMEPLATE	$1.41
18	603754-01	BRUSH BOX	$6.33
20	640421-00	INSTRUCTION LABEL	$1.23
21	330019-00	SCREW	$1.24
24	609133-00	CAP	$3.71
25	629463-00	ADJ.COLLAR	$7.64
26	395460-00	DETENT SPRING	$1.29
27	629829-00	SPINDLE HOUSING ASSY	$16.13
28	638692-00	SPINDLE ASSEMBLY	$13.98
29	394546-00	SPRING	$1.23
30	399059-00	CAM RETURN SPRING	$8.13
32	394545-00	CAM RING	$1.23
33	394542-00	"RATCHET,FIXED"	$2.63
35	629828-00SV	CHUCK & SPINDLE ASSY	$105.09
36	646594-00	SIDE HANDLE	$4.75
37	629827-00	COLLAR PIN	$1.56
38	613217-00	CLUTCH SPRING	$1.44
39	635718-00	CLUTCH PIN	$1.36
40	622929-00	COLLAR WASHER	$1.16
856	607918-41	SCREWDRIVER BIT	$1.03
861	660141-00	KITBOX	$27.93
867	645221-00	BATTERY CAP	$1.18
871	388683-12	1 HOUR CHARGER	$80.53
