DeWalt DC608B Cordless Nailer & Stapler Parts

DeWalt DC608B Cordless Nailer & Stapler Parts Image

DeWalt DC608B Parts

Download Schematic

Time to buy a new tool?

DeWalt DC608B

18V Cordless 2 Inch ...

$239.99

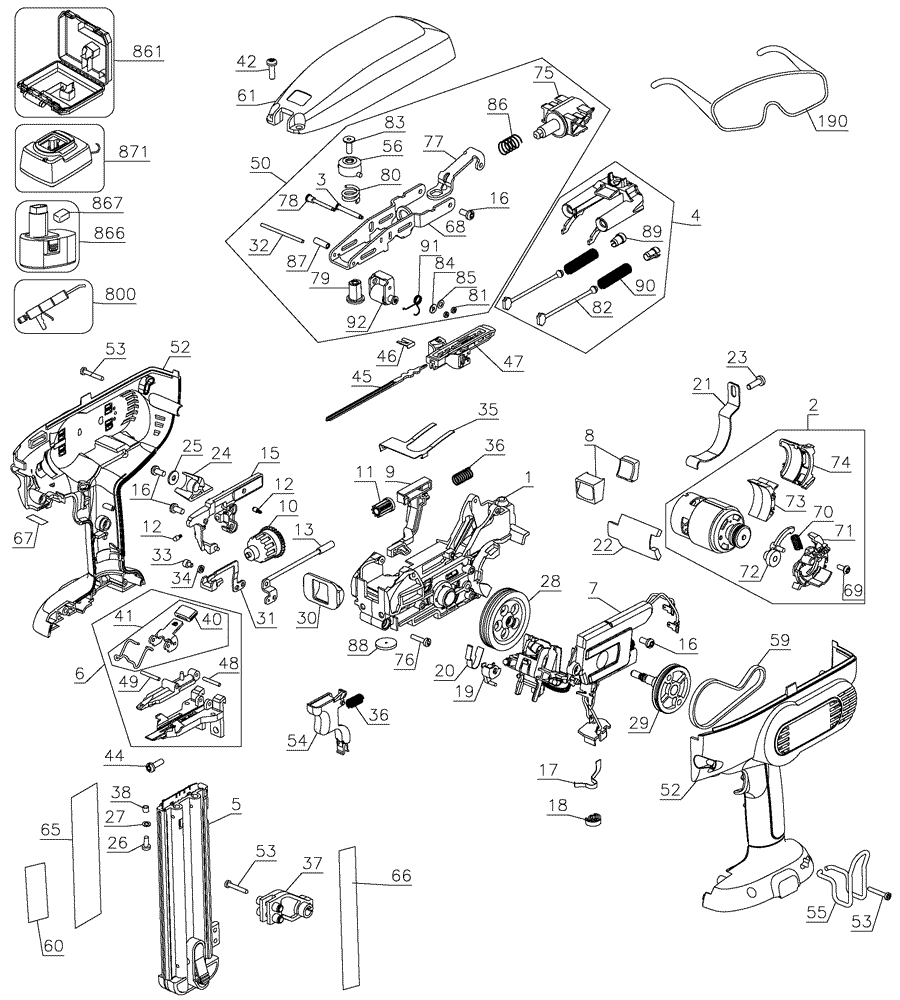

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	631990-00	BACKBONE ASSEMBLY	$43.62
2	647712-00SV	MOTOR & PINION ASSY	$39.28
3	633207-00	PIN	$1.28
4	648024-00SV	RETURN DEVICE	$11.27
5	646665-00	MAGAZINE ASSEMBLY	$52.08
6	646666-00	NOSEPIECE ASSEMBLY	$39.94
7	N010050	CONTROL MODULE	$108.14
8	613869-00SV	BUMPER	$15.64
9	637597-00	CONTACT TRIP	$3.06
10	637596-00	DEPTH ADJUST KNOB	$1.84
11	637599-00	PINION	$2.20
12	326467-00	DETENT	$1.24
13	639284-00	CONTACT TRIP	$9.85
15	637601-00	COVER	$2.99
16	613619-03	THREAD FORMING SCREW	$1.28
17	638317-00	LINKAGE	$1.28
18	639070-00	HUB	$1.28
19	639246-00	LINKAGE	$1.28
20	639247-00	SPRING	$1.28
21	638678-00	MOTOR STRAP	$1.28
22	640432-00	PAD	$1.28
23	609932-01	SCREW	$1.12
24	641296-00	PADDLE	$1.98
25	651644-00	WASHER	$1.12
26	330045-69	THREAD FORMING SCREW	$1.21
27	398218-00	WASHER	$1.23
28	631987-00	FLYWHEEL	$24.83
29	631995-00	SPINDLE PULLEY ASSY	$8.41
30	638469-00	BUMPER	$6.42
31	646254-00	CONTACT TRIP	$2.76
32	330041-61	ROLLER PIN	$1.28
33	330045-68	THREAD FORMING SCREW	$1.28
34	98197-03	WASHER	$1.23
35	650225-00	LIFTER	$1.41
36	653099-00	COMPRESSION SPRING	$1.62
37	639696-00	CONNECTOR	$1.98
38	395505-00	BUSHING	$2.04
40	395093-00	COVER/LATCH	$1.48
41	607178-00	LATCH ASSEMBLY	$11.21
42	609932-01	SCREW	$1.12
44	613619-02	THREAD FORMING SCREW	$1.28
45	635241-00	DRIVER BLADE	$15.20
46	392206-00	CLIP	$1.12
47	632232-00	PROFILE	$36.62
48	330036-24	ROLL PIN	$1.23
49	330036-22	ROLL PIN	$1.23
50	633204-00SV	POWER TAKE-OFF ASSEMBLY	$51.49
52	648060-00	CLAMSHELL SET	$25.91
53	330019-05	SCREW, PLASTITE	$1.24
54	640344-00	TRIGGER	$1.28
55	632382-00	BELT HOOK	$5.83
56	644209-00	SPRING	$5.22
59	650935-00	DRIVE BELT	$7.04
60	648236-00	NAME PLATE	$1.12
61	639123-00	COVER	$14.41
65	648237-00	WARNING LABEL	$1.28
66	623351-00	INFORMATION LABEL	$1.28
67	632383-00	LABEL	$1.28
68	633206-00	CARRIAGE	$9.13
69	330045-05	LOCK SCREW	$1.24
70	639189-00	COMPRESSION SPRING	$1.62
71	639186-00	TRANSMISSION PLATE	$1.92
72	647713-00SV	IDLER ASSEMBLY	$6.14
73	640444-00	RUBBER WIRE TRAP	$1.56
74	640455-00	MTR LWIRE GUIDE	$1.28
75	633021-00	SOLENOID	$14.83
76	613619-00	SCREW, THD.FORM	$1.12
77	644206-00	SPRING	$1.77
78	638872-00	PIN	$1.28
79	644205-00	SPRING KEEPER	$2.13
80	644213-00	COMPRESSION SPRING	$1.28
81	391814-00	GROMMET	$1.89
82	392243-00	BAND	$3.87
83	N001440	SCREW	$2.58
84	330016-26	WASHER, PLAIN	$0.22
85	330016-25	PLAIN WASHER	$1.12
86	644210-00	COMPRESSION SPRING	$1.62
87	645151-00	SLEEVE	$1.28
88	624913-00	DISC	$1.21
89	392242-00	STOP	$1.21
90	392236-02	SPRING	$1.21
91	N009845	TORSION SPRING	$5.23
92	647895-00	CARRIER ASSEMBLY	$14.82
190	629042-01	SAFETY GLASSES	$9.73
800	5140024-25	GREASE	$112.95
861	650354-00	KIT BOX	$46.88
867	645221-00	BATTERY CAP	$1.18
871	388683-12	1 HOUR CHARGER	$80.53
