DeWalt DC547K-Type-1 Caulking & Grease Gun Parts

DeWalt DC547K-Type-1 Parts

Download Schematic

Time to buy a new tool?

DeWalt DC547K-Type-1

18V - 600ml Cordless...

$301.93

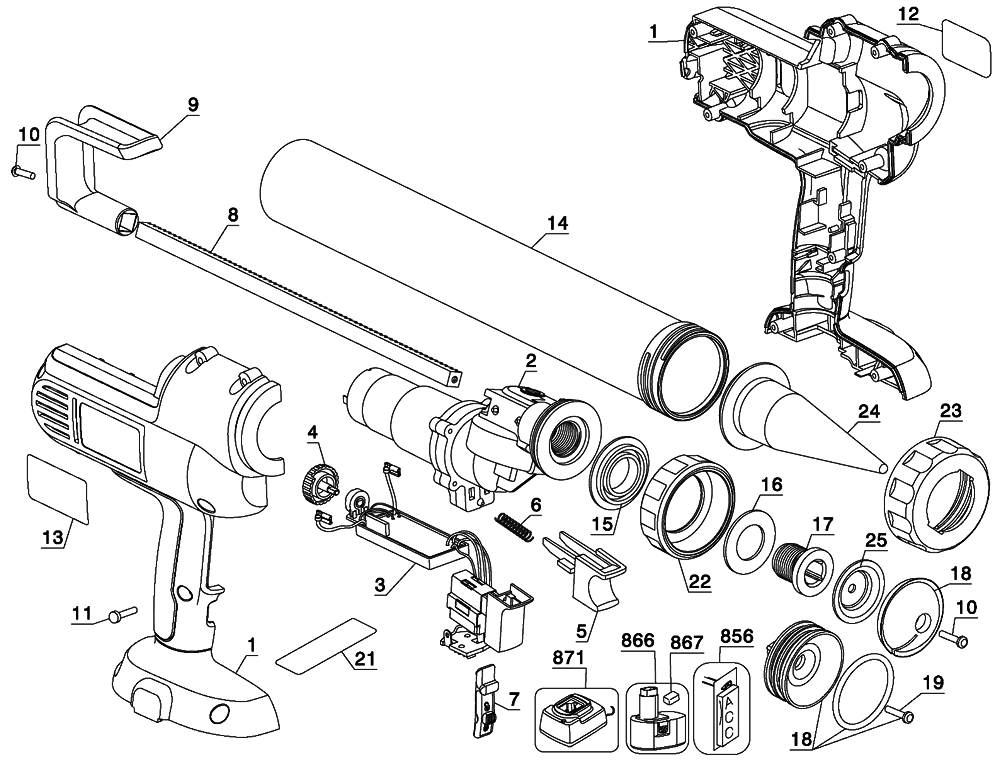

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	636610-02	CLAMSHELL SET	$30.94
1	N082380	CONVERSION KIT	$27.62
2	639717-00	MOTOR & GEARBOX	$139.71
3	N082380	CONVERSION KIT	$27.62
3	N082217	"SWITCH,MODULE "	$108.12
4	639011-00	SPEED DIAL	$2.09
5	636615-00	TRIGGER	$2.09
6	642413-00	SPRING, TRIGGER	$1.50
7	N082380	CONVERSION KIT	$27.62
7	636614-00	TRIGGER LOCK	$1.72
8	642408-00	ROD PLUNGER	$75.55
9	639061-00	HANDLE	$15.20
10	642474-00	SCREW	$1.33
11	330019-04	SCREW, PLASTITE	$1.23
12	642732-00	IDENT. LABEL	$1.18
13	647248-00	NAME PLATE	$0.95
14	637898-00	BARREL	$19.03
15	640340-00	SPACER	$1.62
16	640827-00	WASHER	$1.18
17	641739-00	BARREL SCREW	$3.96
18	659569-00	KIT PLUNGER	$12.38
19	642414-00	SCREW	$1.33
21	634677-00	INFORMATION LABEL	$1.05
22	637649-00	END CAP	$4.20
23	637651-00	CAP	$2.85
24	637653-00	NOZZLE	$2.45
25	659569-00	KIT PLUNGER	$12.38
856	5140061-72	CONVERSION KIT	$67.23
867	645221-00	BATTERY CAP	$1.18
871	388683-12	1 HOUR CHARGER	$80.53
