DeWalt DC520KA Cordless Screwdriver Parts

DeWalt DC520KA Parts

Download Schematic

Time to buy a new tool?

DeWalt DC520KA

Heavy-Duty 18-Volt C...

$261.09

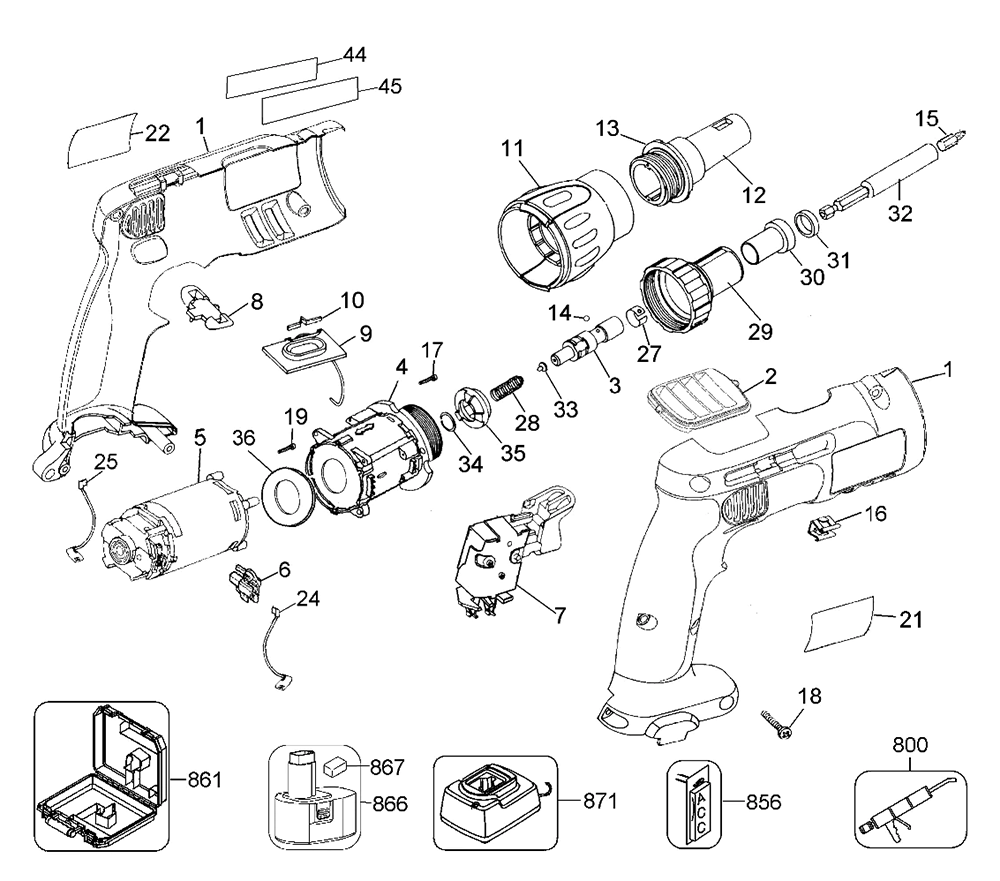

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	151791-20	CLAMSHELL SET	$30.98
2	151681-00	VENT, AIR	$3.35
3	96540-01	SPINDLE	$26.18
4	152576-00SV	TRANSMISSION	$53.77
5	606004-11SV	MOTOR & PINION	$38.38
6	603754-01	BRUSH BOX	$6.33
7	152274-19SV	SWITCH- V.S.R.	$57.14
8	151678-00	BUTTON, FWD/REV	$1.40
9	150939-01	SHIFTER	$3.81
10	144658-00	SPRING	$1.24
11	151225-00	COLLAR ADJUST	$5.94
12	450770-01	LOCATOR	$13.24
12	448862-00	LOCATOR	$8.18
13	449890-00	SEAL, DUST	$5.49
14	696631-00	BALL	$1.80
15	607904-22	BIT, SCREWDRIVER	$1.12
16	148354-03	BIT CLIP	$1.24
17	330019-00	SCREW	$1.24
18	330013-04	SCREW	$1.17
19	098091-10	SCREW	$1.24
21	624824-00	NAME PLATE	$1.12
22	395657-00	ID LABEL	$1.24
24	389042-00	LEADWIRE, RED	$1.24
25	389041-00	LEADWIRE, BLACK	$1.40
27	094518-00	RETAINER	$3.01
28	86211-00	SPRING	$1.40
29	448859-05	CLUTCH HOUSING	$15.85
30	450907-00	BEARING, SLEEVE	$5.78
31	696534-00	SEAL	$6.14
32	619773-02	BIT TIP HOLDER	$6.88
33	021287-00	GUIDE	$4.47
34	089210-00	RET RING	$1.80
35	603478-00	CLUTCH	$7.33
36	152482-00	SEAL, FOAM	$1.24
44	625597-00	WARNING LABEL	$0.71
45	625598-00	WARNING LABEL	$1.10
800	284778-00	GREASE, MOLYKOTE	$50.09
856	364262-04	MAGNETIC NUTSETTER, 5/16IN	$4.46
861	660141-00	KITBOX	$27.93
867	645221-00	BATTERY CAP	$1.18
871	388683-12	1 HOUR CHARGER	$80.53
