DeWalt DC490KA Cordless Shear & Nibbler Parts

DeWalt DC490KA Parts

Download Schematic

Time to buy a new tool?

DeWalt DC490KA

18-Volt Cordless 18 ...

$360.54

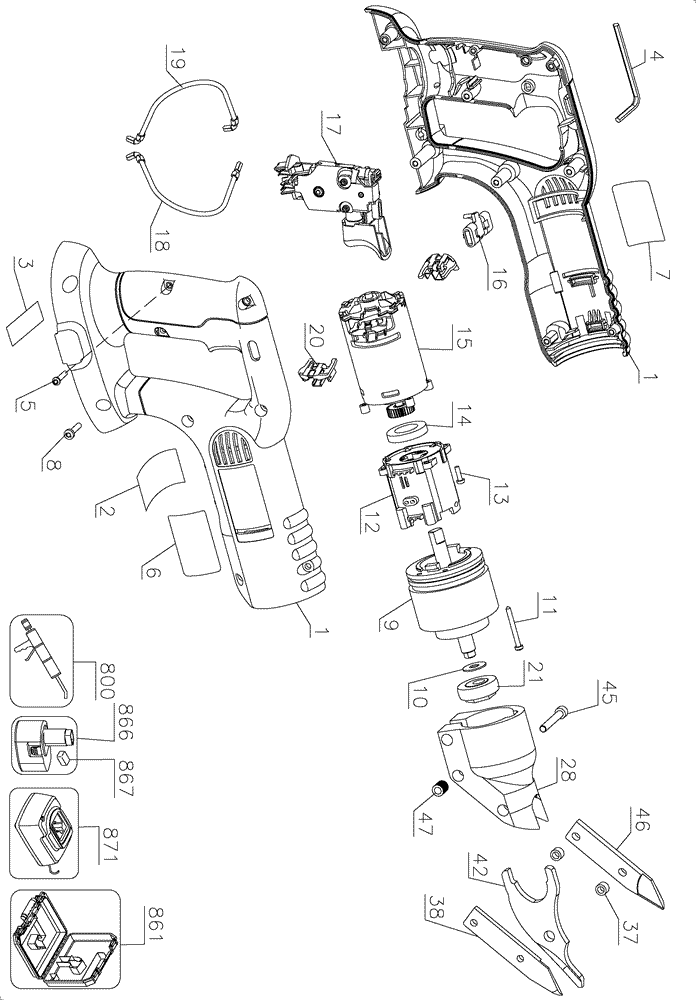

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	623778-00	CLAMSHELL SET	$30.73
2	625598-00	WARNING LABEL	$1.10
3	625912-00	WARNING LABEL	$1.12
4	99056-06	WRENCH	$2.18
5	682211-00	SCREW, TORX	$1.24
6	623775-00	NAME PLATE	$1.04
7	395657-00	ID LABEL	$1.24
8	330019-04	SCREW, PLASTITE	$1.23
9	388822-00SV	HOUSING-BEARING	$89.96
10	091975-00	WASHER	$4.92
11	330019-39	SCREW	$1.24
12	388821-00SV	TRANSMISSION	$29.42
13	098091-10	SCREW	$1.24
14	152482-00	SEAL, FOAM	$1.24
15	606004-10SV	MOTOR & PINION	$38.38
16	607100-00	LOCK-OFF BUTTON	$1.95
17	152274-15	SWITCH, VSR	$58.67
18	626176-00	LEADWIRE, BLACK	$0.93
19	626177-00	LEADWIRE, RED	$0.38
20	603754-01	BRUSH BOX	$6.33
21	448393-01	ECCENTRIC	$55.66
28	91971-00	HOUSING	$69.08
37	91968-00	SPACER	$4.66
38	91969-00	LEFT KNIFE	$45.94
42	91970-00	BLADE	$42.74
45	679889-00	SCREW, SPECIAL	$3.35
46	91967-00	RIGHT KNIFE	$34.20
47	91966-00	INSERT	$4.66
800	286436-00	GREASE	$87.14
861	625469-00	KIT BOX	$35.30
867	645221-00	BATTERY CAP	$1.18
871	388683-12	1 HOUR CHARGER	$80.53
