DeWalt DC022 Flashlight Parts

DeWalt DC022 Parts

Download Schematic

Time to buy a new tool?

DeWalt DC022

Heavy-Duty Cordless/...

$164.99

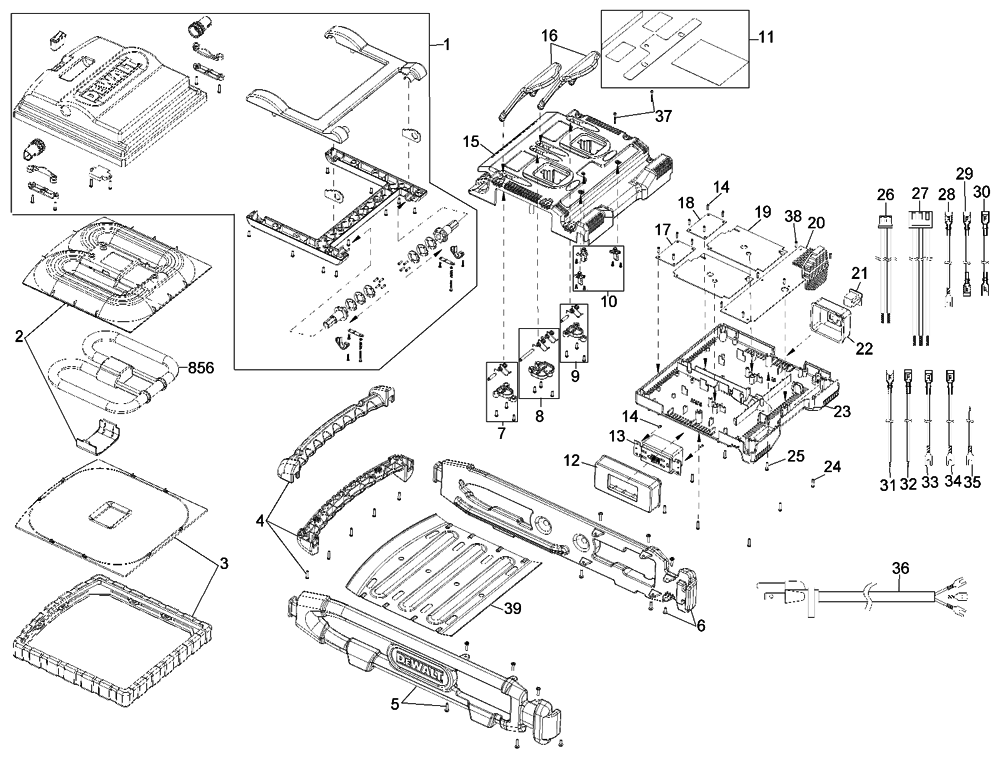

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	5140046-51	LAMP ASSEMBLY	$49.11
2	5140046-52	REFLECTOR ASSY	$20.18
3	5140046-53	LENS	$22.76
4	5140046-54	HANDLE ASSEMBLY	$12.24
5	5140046-55	SIDE RAIL	$15.28
6	5140046-56	SIDE RAIL	$15.28
7	5140046-57	LEFT SPRING	$1.62
8	5140046-58	SPRING & COVER	$2.09
9	5140046-59	RIGHT SPRING	$1.72
10	5140046-60	LIGHT PIPE	$1.72
11	5140046-61	LABEL SET	$3.96
12	5140046-62	COVER HOUSING	$4.73
13	5140046-63	RECEPTACLE GFCI 120V	$27.43
14	5140046-64	SCREW	$1.18
15	5140046-65	TOP HOUSING ASSY	$31.65
16	5140046-66	GUARD	$2.98
17	5140046-67	CIRCUIT BOARD	$16.01
18	5140046-68	CIRCUIT BOARD	$3.23
19	5140046-69	CIRCUIT BOARD	$51.56
20	5140061-04	PCB ASSEMBLY	$123.51
21	5140046-71	RECEPTACLE	$3.23
22	5140046-72	HOUSING COVER	$2.85
23	5140046-73	HOUSING, BOTTOM	$5.50
24	5140046-74	SCREW	$1.18
25	5140046-75	SCREW	$1.18
26	5140046-76	CABLE ASSY	$1.72
27	5140046-77	CABLE ASSEMBLY	$2.85
28	5140046-78	LEADWIRE	$1.62
29	5140046-79	LEADWIRE	$1.62
30	5140046-80	LEADWIRE	$1.46
31	5140046-81	LEADWIRE	$1.62
32	5140046-82	LEADWIRE	$1.62
33	5140046-83	LEADWIRE	$1.87
34	5140046-84	LEADWIRE	$1.87
35	5140046-85	LEADWIRE	$1.18
36	5140046-86	POWERCORD	$31.65
37	5140046-87	SCREW	$1.18
38	5140046-88	SCREW	$1.18
39	5140046-89	BOTTOM COVER	$17.53
