DeWalt D55684 Compressor Parts

DeWalt D55684 Parts

Download Schematic

Time to buy a new tool?

DeWalt D55684

196cc (6.5 HP), 150 ...

$1,067.99

Page-1

Page-2

Page-3

Page-4

Page-5

Page-6

Page-7

Page-8

Page-9

Page-10

Page-11

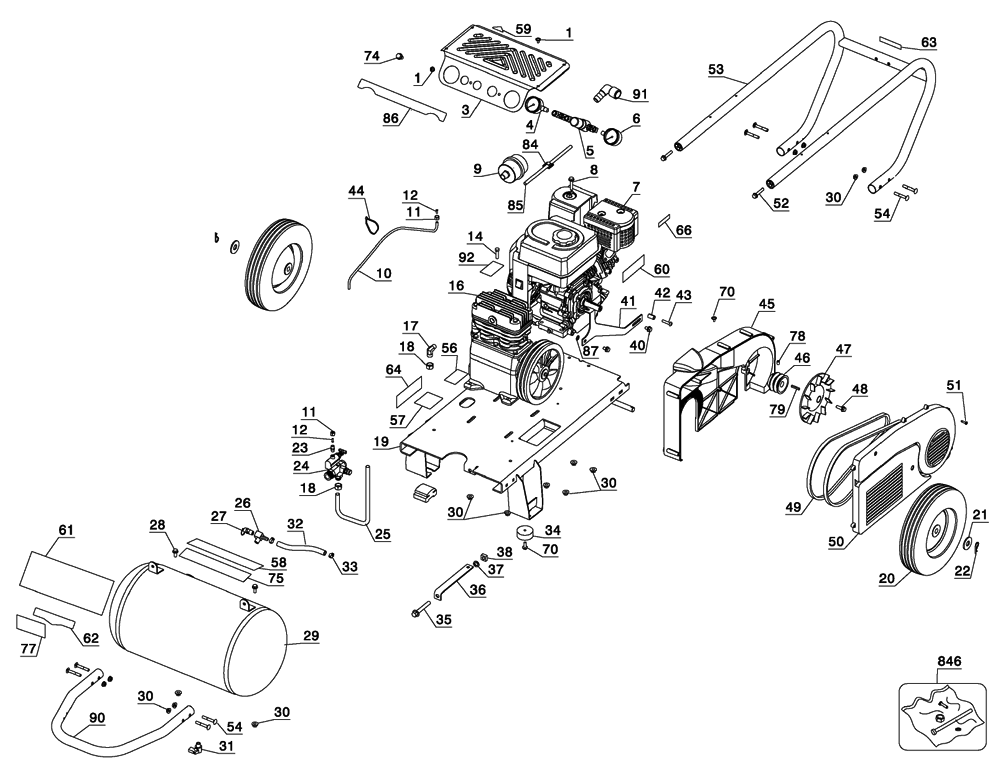

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
3	A14436	BRACKET	$62.35
5	A13686	MANIFOLD	$59.63
5	N008792	REGULATOR RPR KIT	$19.18
7	N005321	ENGINE	$717.46
9	5130147-00	FILTER	$7.93
9	5130147-01	FILTER - 4 PACK	$26.30
9	5131692-00	FILTER ASSEMBLY	$27.62
10	1000002312	TUBE	$5.37
11	SSP-7811	"NUT SLEEVE ASS'Y 1/4"", MAC1200"	$3.62
12	5130039-00	SLEEVE	$1.23
16	N069915	PUMP	$779.27
20	A09528	WHEEL	$36.31
23	SS-8553	CONNECTOR BODY, MAC1200	$4.10
24	A12298	UNLOADER	$138.13
25	A10049	TUBE	$20.83
26	A10689	T-FITTING	$10.05
29	A14438	TANK	$334.58
30	N014126	NUT	$2.44
31	N072023	BALL VALVE	$6.41
33	5136480-00	HOSE CLAMP	$9.07
34	A14785	FOOT PAD	$2.75
35	A09635	SCREW	$8.41
37	A09615	LOCK WASHER	$0.25
38	A09613	SQUARE NUT	$0.94
40	A14867	SCREW	$1.84
42	A13169	SPACER	$2.45
43	A16055	SCREW	$1.95
44	GS-0401	WIRE TIE	$1.21
46	1000000270	PULLEY	$14.35
47	N010668	FAN	$17.88
48	A14434	SCREW	$3.16
49	N016182	V-BELT	$22.64
54	A10622	CARRIAGE BOLT	$2.09
58	A14945	WARNING LABEL	$8.36
60	A16611	DECAL	$1.55
61	N000231	LABEL	$3.41
62	A14947	LABEL	$5.44
70	91895680	SCREW 1/4-20.75, MAC2200	$2.76
74	A17233	SELF TAPPING SCREW	$2.71
79	5130192-00	KEY	$1.94
84	N007312	CLIP CABLE MOUNT	$7.00
91	A10011	ELBOW	$8.21
92	N040004	LABEL	$3.58

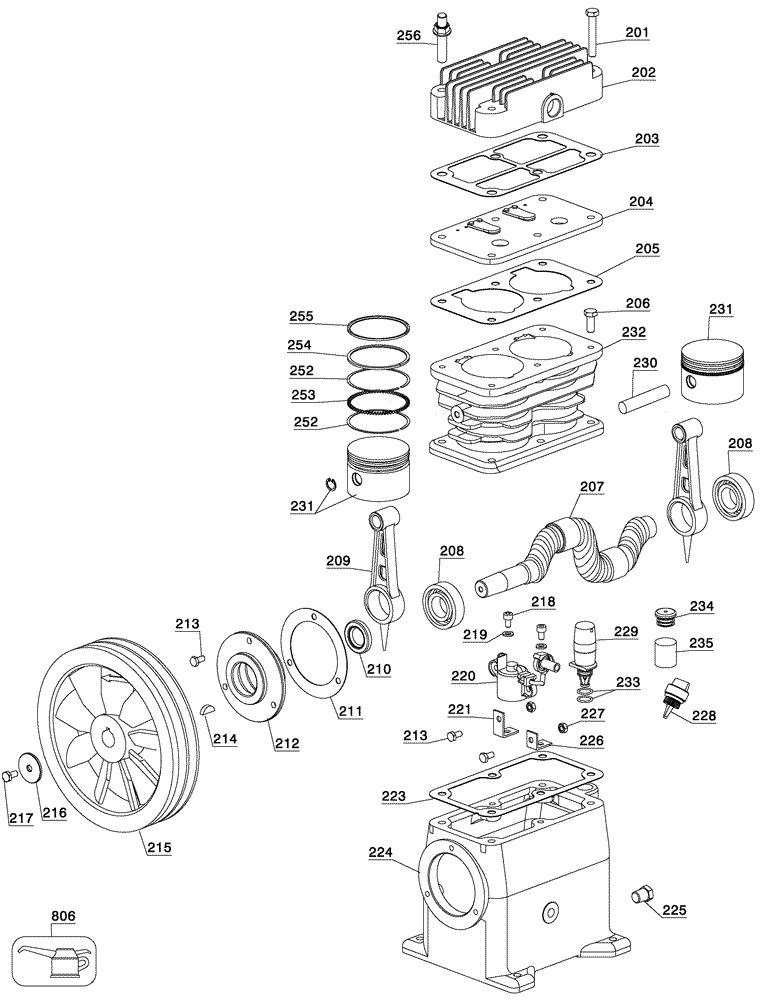

201	5140097-57	BOLT	$12.28
202	A12266	HEAD	$49.90
203	A12235	GASKET	$13.02
204	A12261	VALVE PLATE ASSY	$98.21
205	A12234	GASKET	$13.02
206	A12220	BOLT	$1.21
207	A12241	CRANKSHAFT	$96.94
208	A12271	BALL BEARING	$18.08
209	A12264	CONNECTING ROD	$18.39
210	A12247	SEAL	$3.95
211	A12236	GASKET	$8.97
212	A12267	COVER	$19.11
213	A12218	BOLT	$1.21
214	A12223	WOODRUFF KEY	$1.77
215	A12245	FLYWHEEL	$138.74
216	621451-00	WASHER	$1.12
217	A12222	BOLT	$2.71
218	A12225	BOLT	$1.21
219	330016-02	WASHER, PLAIN	$1.24
220	A12260	SENSOR	$49.40
221	A12249	BRACKET	$44.90
223	A12237	GASKET	$13.02
224	A12239	CRANKCASE	$137.23
225	A12231	PLUG	$1.99
226	A12250	BRACKET	$1.21
227	330015-02	NUT, HEX	$1.23
230	A12233	WRIST PIN	$8.78
231	A12270	PISTON ASSEMBLY	$47.65
232	A12243	CYLINDER	$124.61
233	5140117-58	O-RING	$1.24
234	5140076-58	VENT PLUG	$1.28
235	5140076-58	VENT PLUG	$1.28
252	A12256	OIL RING	$6.46
253	A12257	RING	$9.34
254	A12255	RING	$24.03
255	A12254	COMPRESSION RING	$24.03
256	A19501	BOLT	$5.29

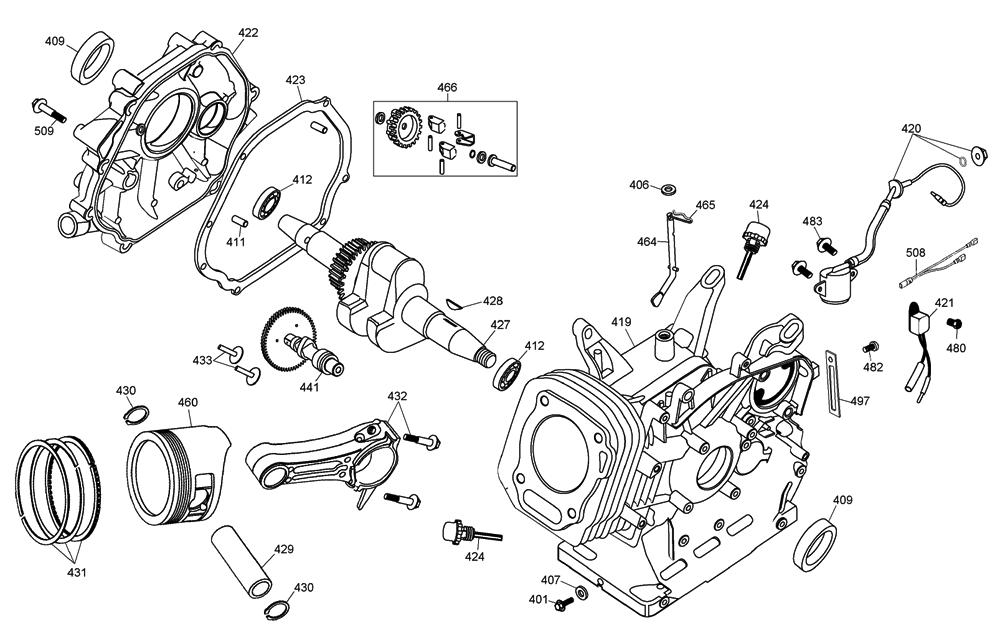

400	285814-00	BOLT	$2.84
401	285814-02	DRAIN PLUG	$4.82
402	285814-03	BOLT	$3.04
404	285814-06	BOLT	$1.99
406	285814-07	WASHER	$1.12
407	285814-09	WASHER	$1.12
408	285814-11	SPECIAL NUT	$2.84
409	285814-15	OIL SEAL	$16.14
410	285814-17	DOWEL PIN	$2.09
411	285814-19	DOWEL PIN	$2.09
412	285814-21	BALL BEARING	$17.34

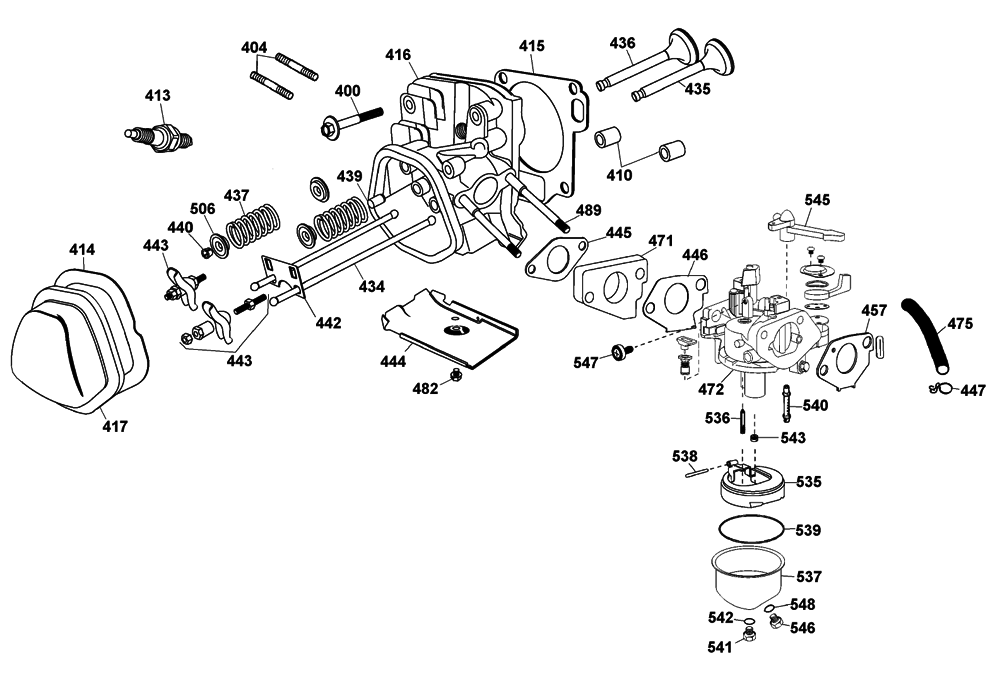

413	285800-98	SPARK PLUG	$4.57
414	285814-24	GASKET	$6.64
415	285814-27	GASKET	$11.60
416	285814-29	CYLINDER HEAD	$109.62
417	285820-77	COVER	$11.97
419	285814-35	CRANK CASE	$113.24
420	285820-65	SWITCH ASSEMBLY	$20.48
421	285814-40	OIL ALERT UNIT	$55.71
422	285814-41	CASE COVER	$27.52
423	285814-44	GASKET	$4.56
424	285814-47	CAP ASSEMBLY	$13.97
427	285817-79	CRANKSHAFT	$47.29
428	285817-20	WOODRUFF KEY	$1.50
429	285814-57	PIN	$14.89
430	285814-60	CLIP	$0.83
431	285814-62	RING SET	$39.62
432	285814-65	CONNECTING ROD	$113.69
433	285814-68	LIFTER	$19.45
434	285814-70	PUSH ROD	$8.13
435	285814-73	INTAKE VALVE	$30.36
436	285814-76	VALVE	$49.73
437	285814-79	VALVE SPRING	$4.68
439	285814-84	SEAL	$6.44
440	285814-86	ROTATOR VALVE	$5.17
441	285814-89	CAMSHAFT	$150.89
442	285814-92	PLATE ASSEMBLY	$3.78
443	285814-94	ARM	$25.21
444	285814-99	SHROUD	$17.69
445	285815-02	GASKET	$3.13
446	285815-06	GASKET	$1.60
447	285815-09	CLIP	$1.34
450	285815-14	FAN	$19.78
451	285815-17	PULLEY	$17.55
452	285815-20	FLYWHEEL	$51.23
455	285815-25	IGNITION COIL	$26.55
457	285815-29	GASKET	$3.38
460	285814-54	PISTON	$74.00
461	285817-40	SPRING	$1.48
462	285817-71	SPRING	$0.89
463	N041178	ARM	$19.06
464	285815-46	SHAFT	$6.44
465	285815-49	LOCK PIN	$0.98
466	285815-51	GOVERNOR ASSEMBLY	$26.66
470	285817-51	STARTER ASSEMBLY	$44.35
471	285817-34	INSULATOR	$3.61
472	285817-66	CARBURETOR	$54.73
473	285817-67	AIR FILTER	$39.86
474	285817-72	THROTTLE CONTROL	$15.64
475	285817-45	HOSE	$5.47
476	285815-73	NUT	$1.62
477	285815-74	NUT	$1.62
479	285815-84	BOLT	$1.62
480	285815-85	BOLT	$1.62
482	285815-86	BOLT	$1.62
483	285815-88	BOLT	$1.62
484	285815-90	BOLT	$1.62
486	285815-89	BOLT	$1.62
488	285817-61	HOUSING COVER	$29.91
489	285817-50	STUD	$1.39
491	285818-44	BLOWER HOUSING	$53.99

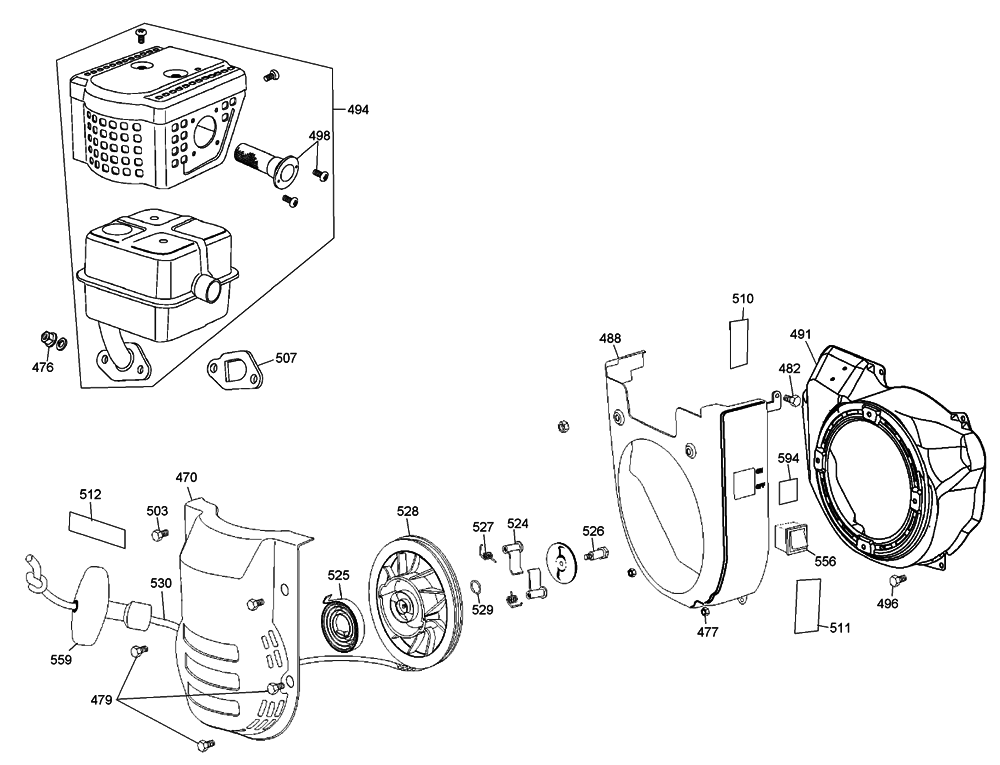

494	285817-69	MUFFLER	$58.91
495	285817-70	ROD	$1.48
496	285816-24	STUD	$2.36
497	285816-67	BOLT	$1.84
498	285818-83	SPARK ARRESTER	$12.44
503	285816-36	BOLT	$1.62
506	285814-82	RETAINER	$8.96
507	285815-32	GASKET	$4.88
508	285816-40	CONNECTING WIRE	$6.26
509	285815-92	BOLT	$1.99
510	285817-82	LABEL	$2.42
511	285816-43	LABEL	$1.41
512	285816-53	ID LABEL	$1.41
515	285817-85	LABEL	$3.16
524	285816-76	RATCHET	$1.98
525	285816-77	SPRING	$13.06
526	285816-78	BOLT	$1.98
527	285816-79	SPRING	$1.98
528	285816-80	PULLEY	$13.06
529	285816-81	SPRING	$4.48
530	285816-82	ROPE	$12.36
531	285816-83	CAP ASSEMBLY	$1.41
535	285817-14	FLOAT	$3.06
536	285817-10	VALVE	$2.85
537	285818-23	BOWL	$3.78
538	285817-09	PIN	$3.06
539	285818-22	O-RING	$2.13
540	285817-15	NOZZLE	$3.06
541	285817-05	BOLT	$1.98
542	285817-06	GASKET	$1.56
543	285818-73	MAIN JET	$6.33
545	285817-13	LEVER	$1.98
546	285817-07	BOLT	$1.56
547	285817-12	SCREW	$1.56
548	285817-08	GASKET	$1.62
554	285817-68	TUBE	$1.97
555	285815-61	PLATE	$7.55
556	285817-73	SWITCH	$5.58
559	285818-39	HANDLE	$26.63
560	285817-74	CONNECTING WIRE	$4.96
561	285817-81	BOLT	$1.39
562	285817-80	FUEL FILTER	$7.68
563	285817-37	IDLE CONTROL ASSY	$68.20
564	285817-83	CAUTION LABEL	$4.20
565	285818-15	BRACKET	$3.78
566	285818-29	AIR FILTER	$20.91
567	N025782	WING NUT	$1.48
568	5130235-00	LOCK WASHER	$2.51
590	285817-76	JOINT	$8.05

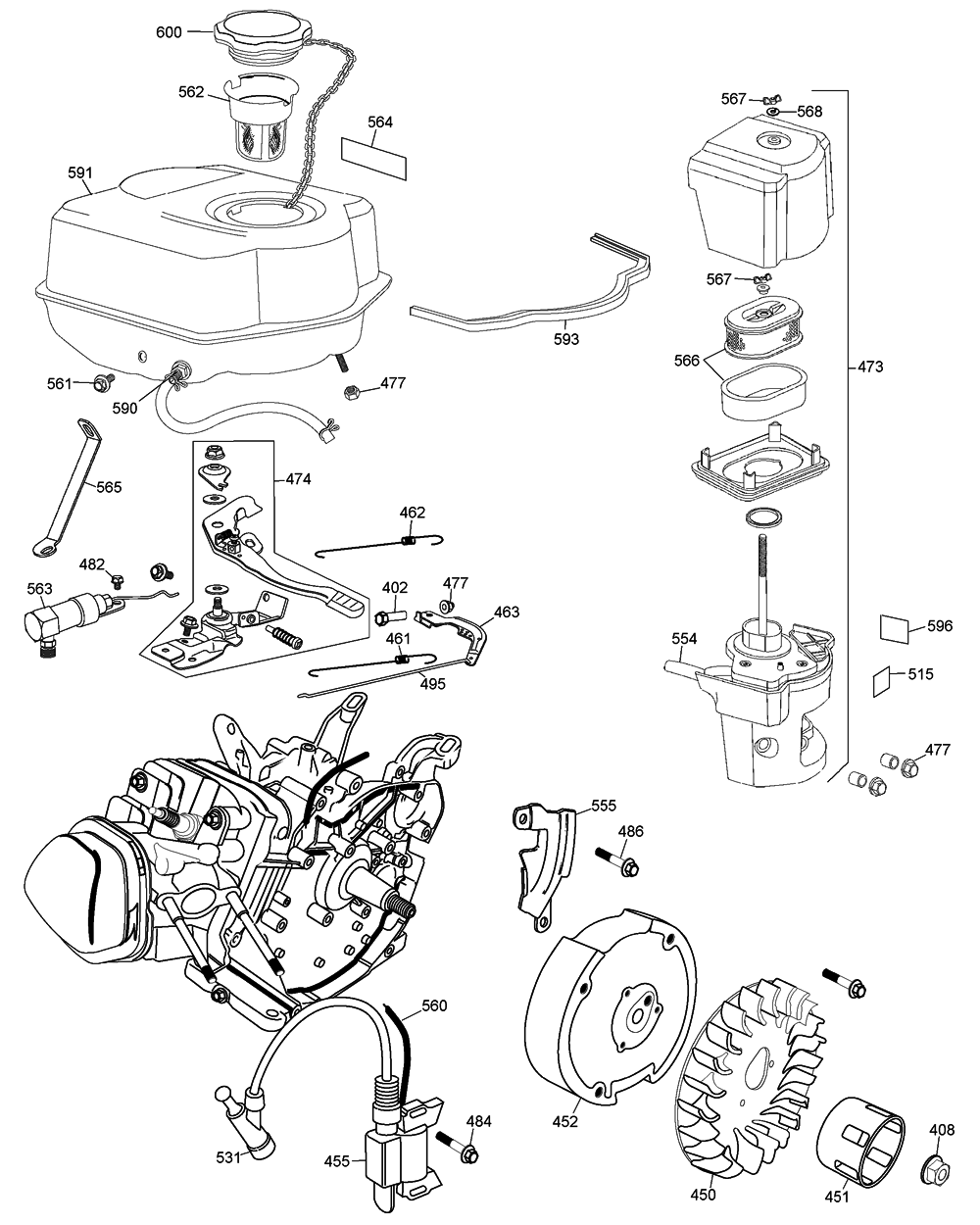

591	285817-75	FUEL TANK	$119.83
593	285817-49	RUBBER STRIP	$3.81
594	285817-86	LABEL	$1.67
596	285817-84	LABEL	$3.16
600	285820-72	FUEL CAP	$8.14
806	5130702-00	OIL	$5.66
806	5130427-00	OIL	$20.95
846	285817-78	SOCKET WRENCH	$6.94
