DeWalt D55250-Type-1 Compressor Parts

DeWalt D55250-Type-1 Compressor Parts Image

DeWalt D55250-Type-1 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Tool Diagram    (Click image to Zoom in) View larger Image

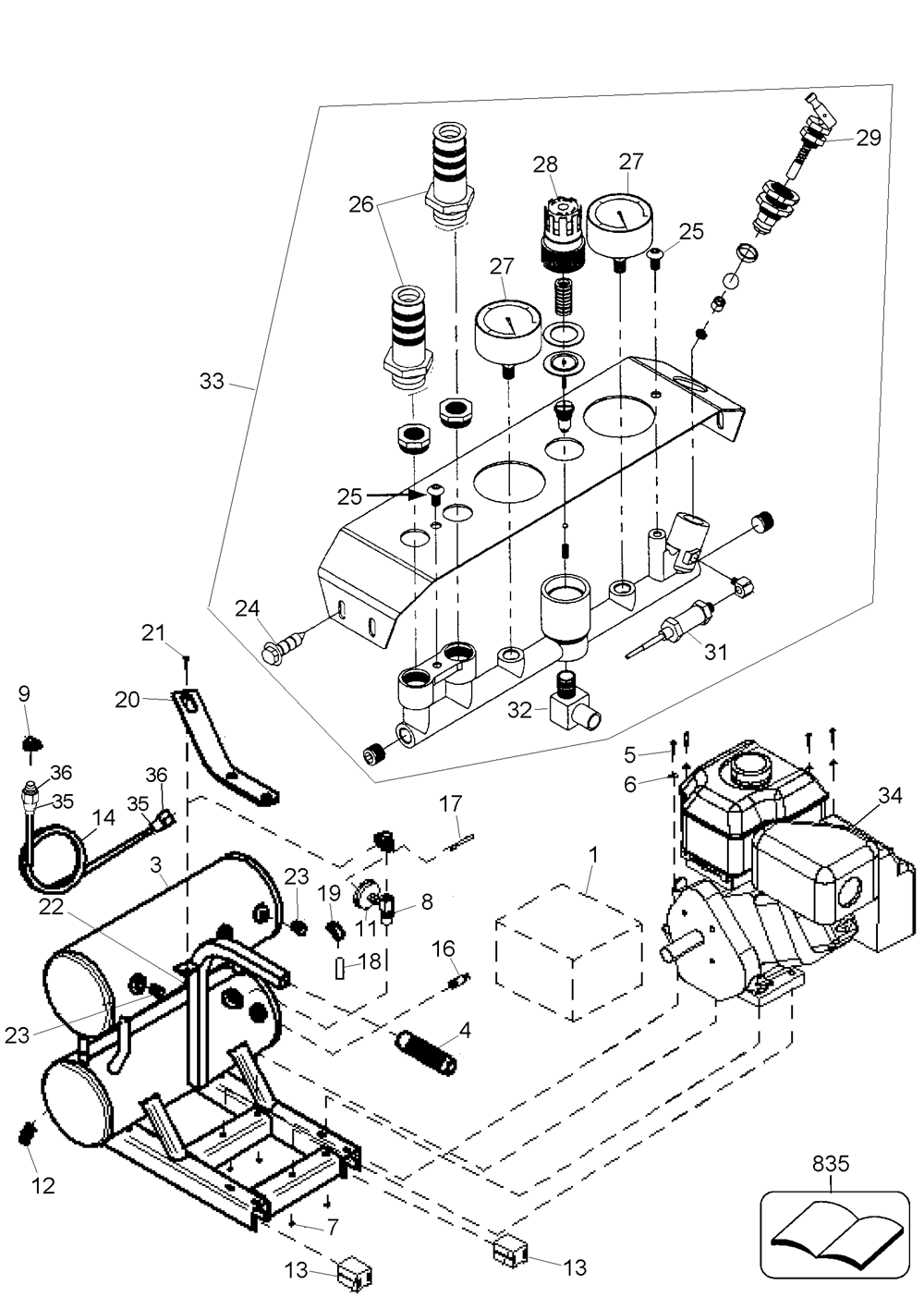

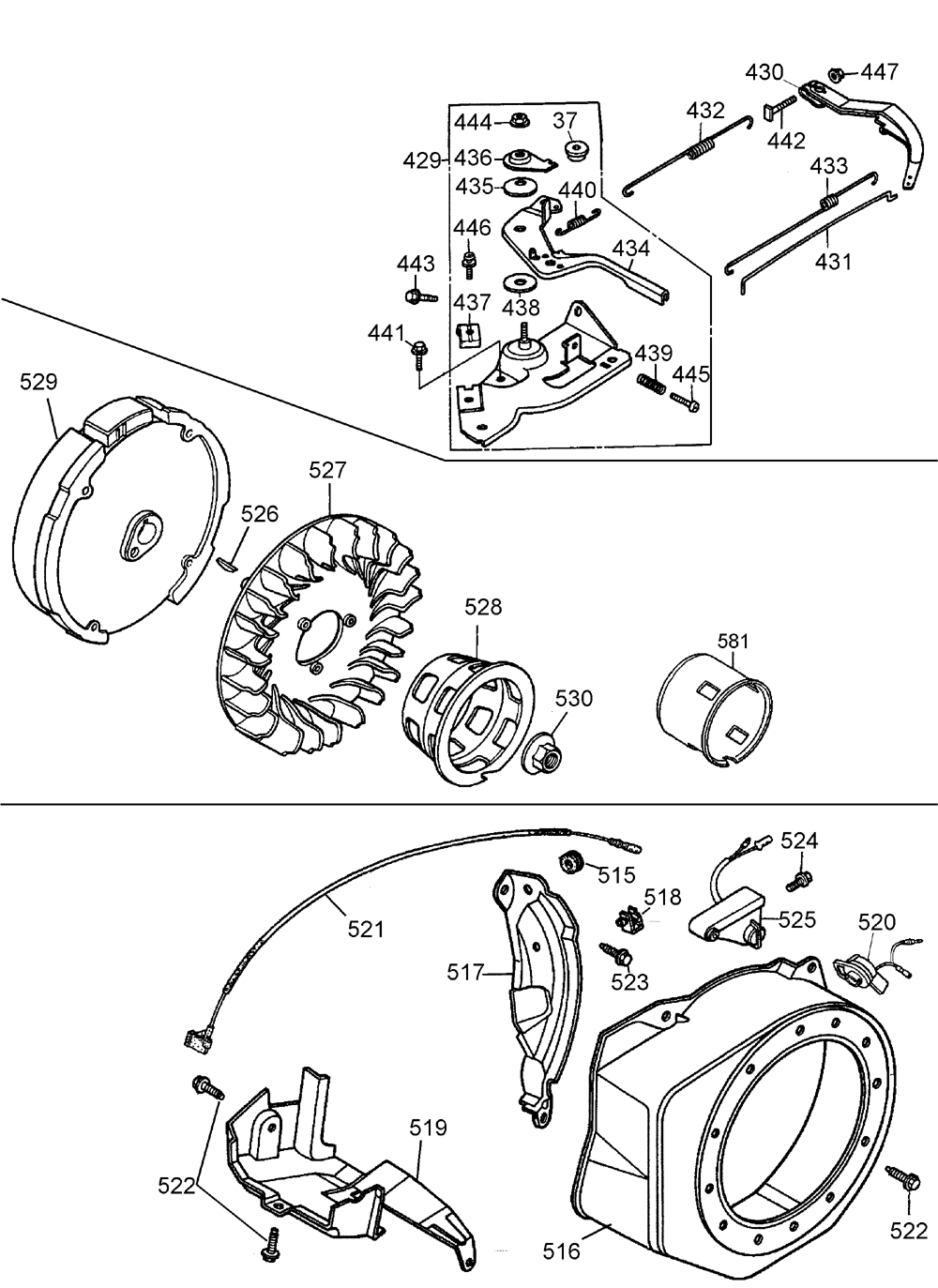

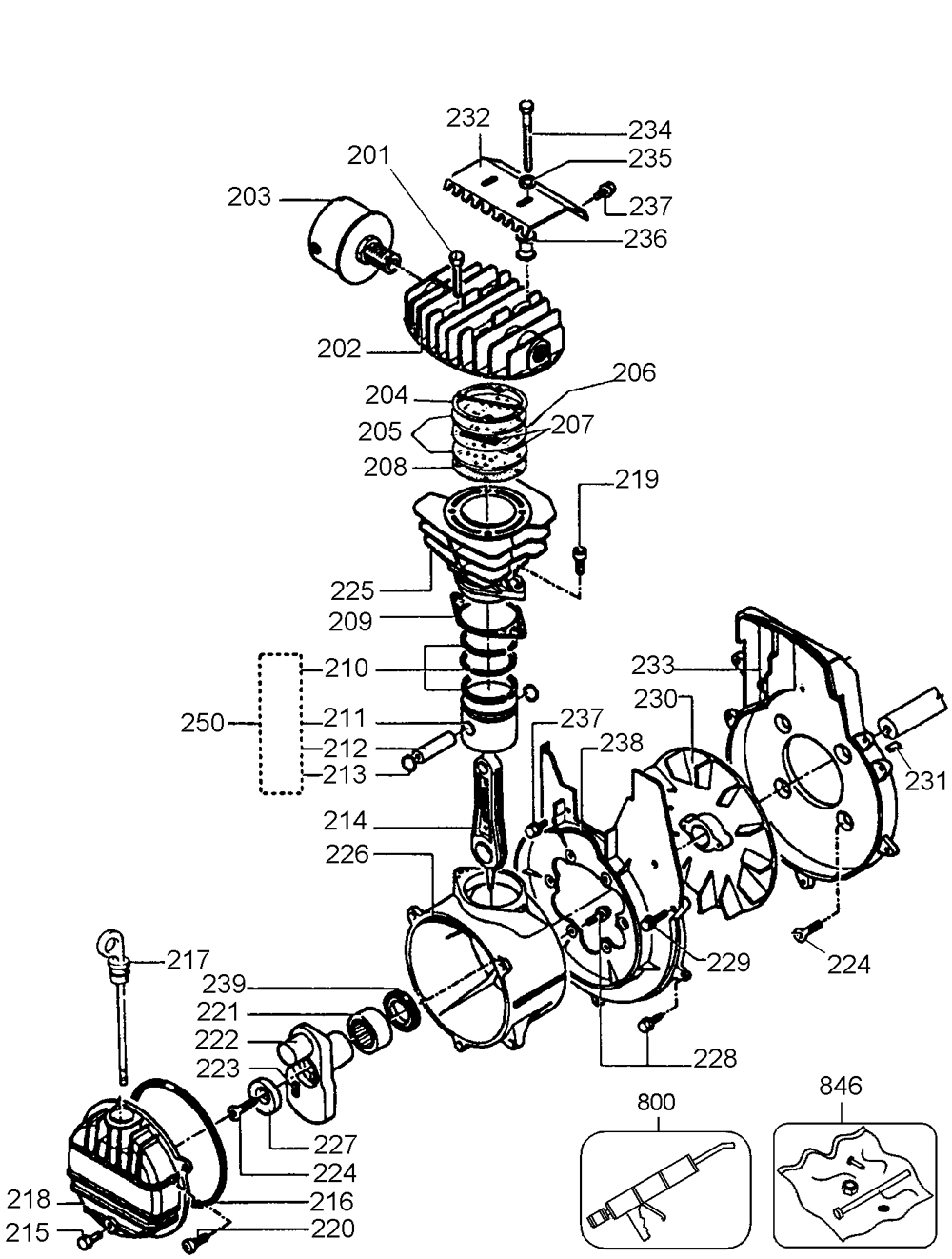

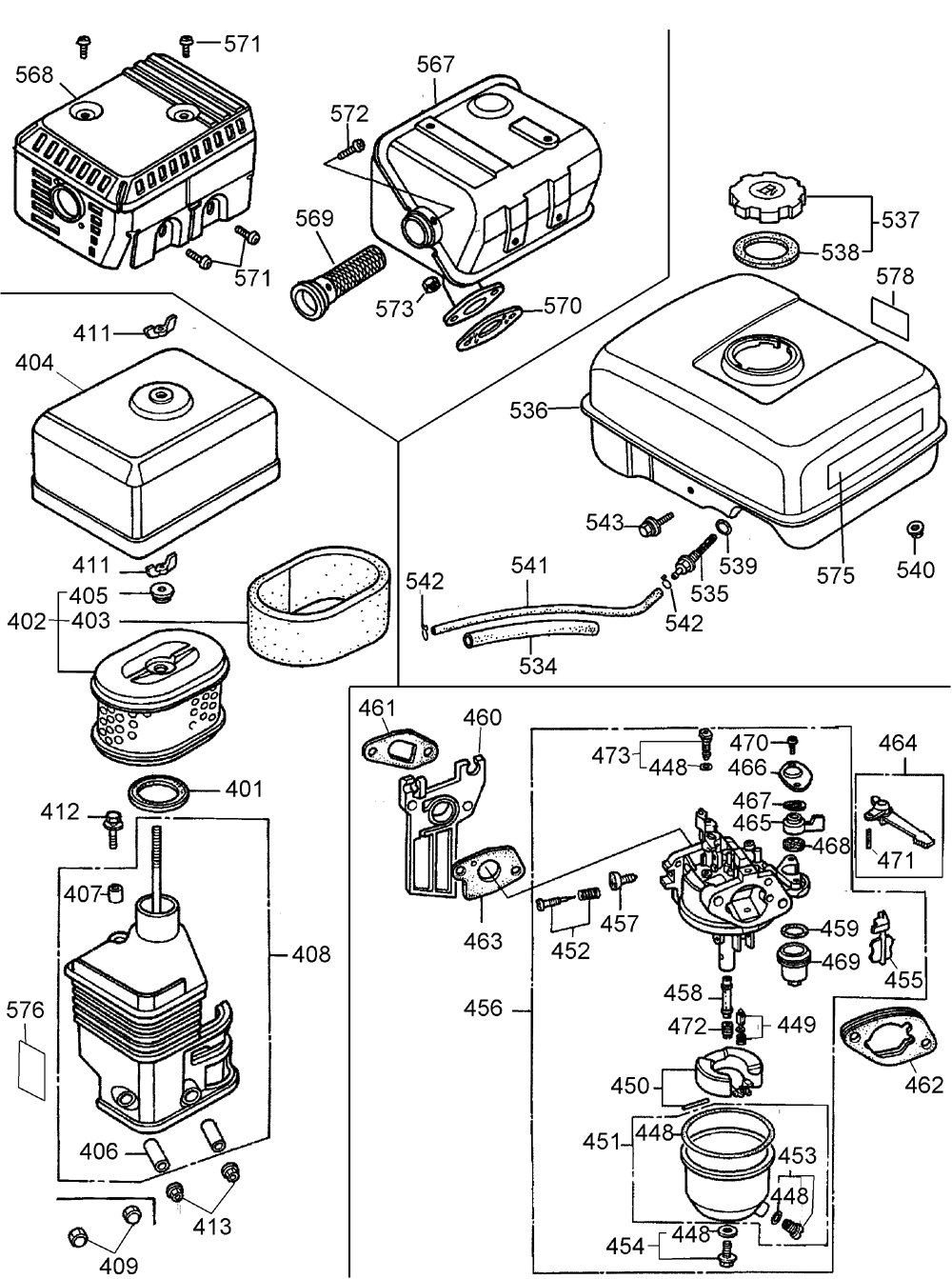

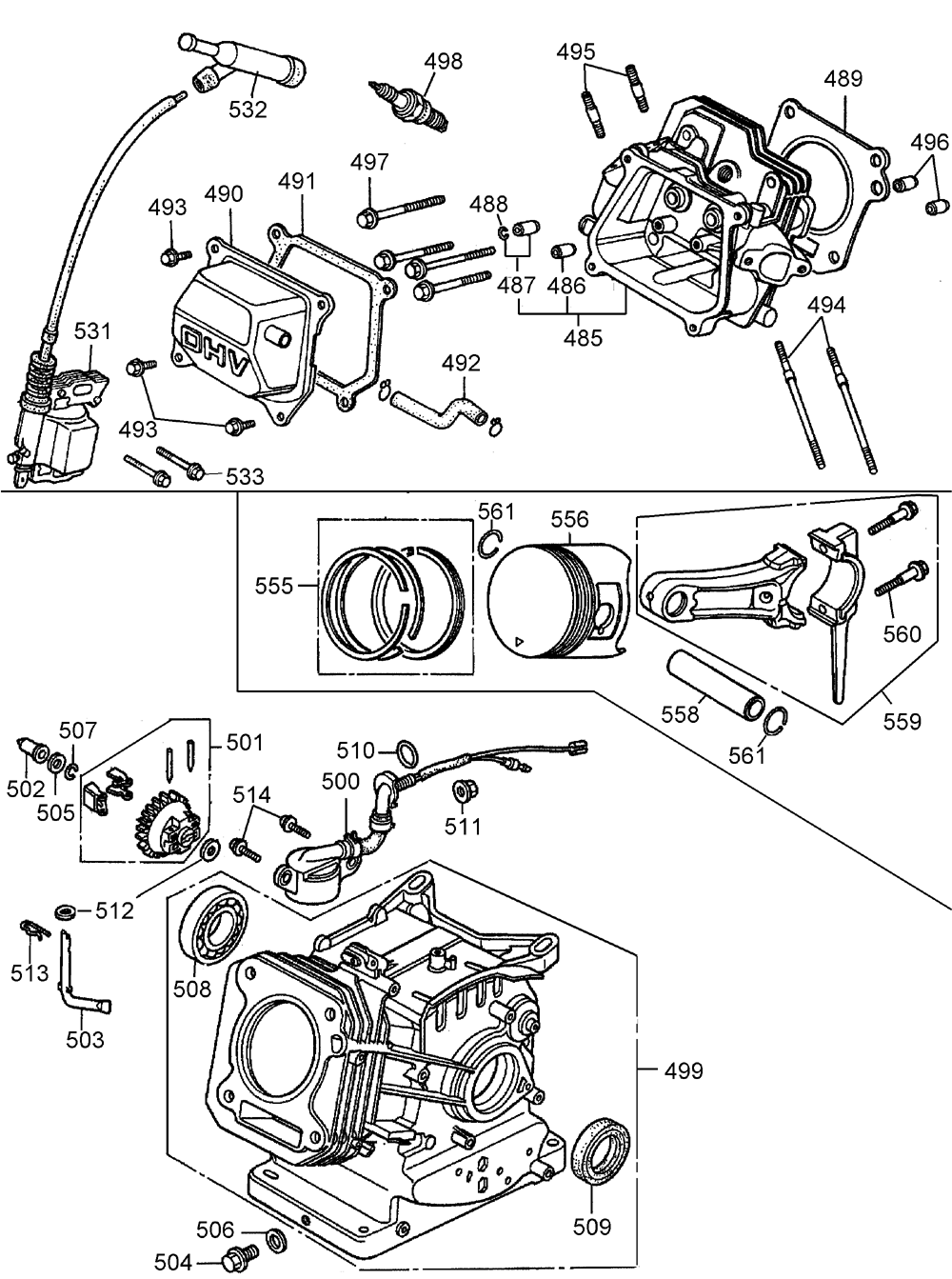

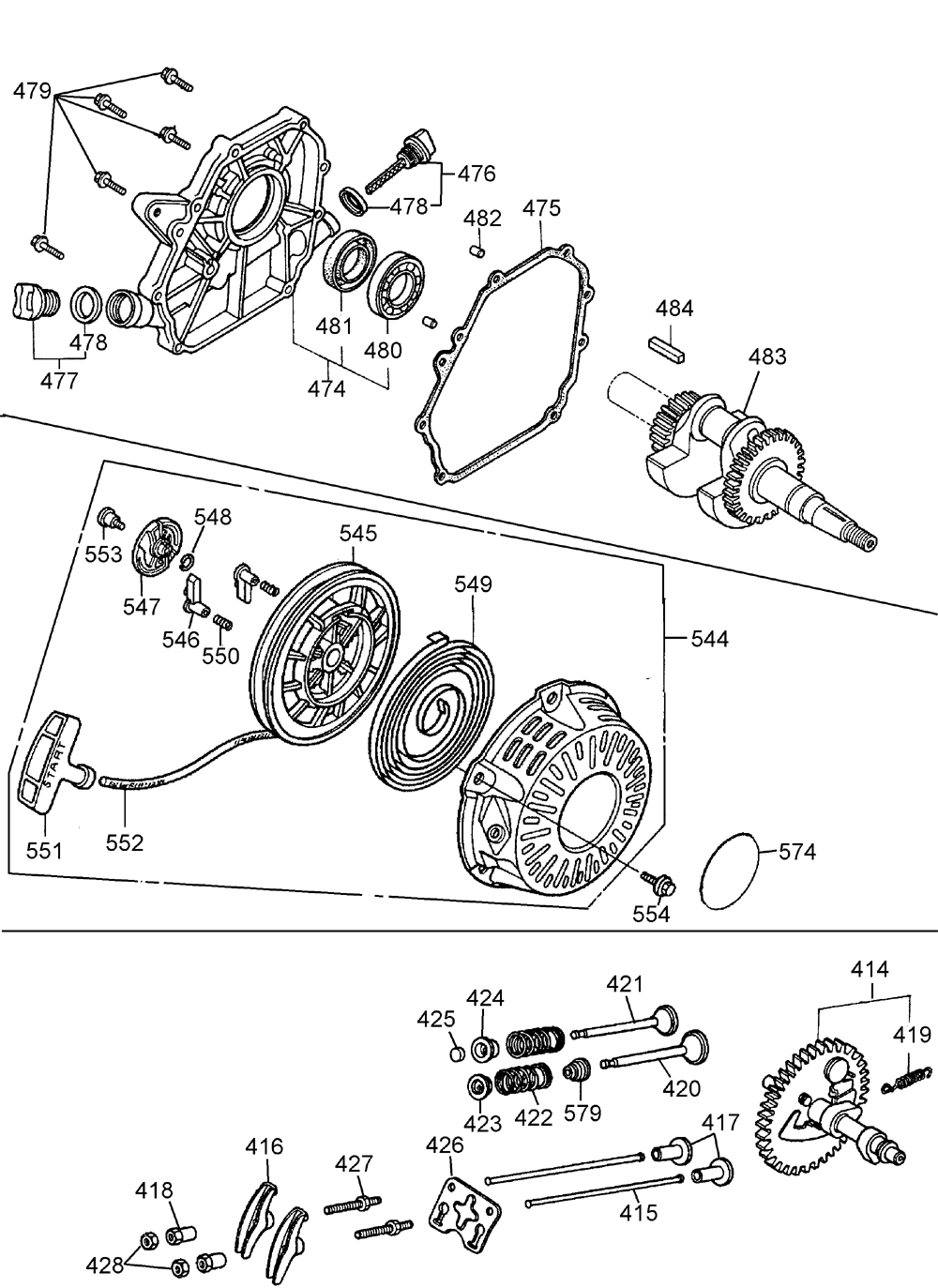

DeWalt D55250-Type-1 Compressor Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 5130264-00 PUMP ASSEMBLY $342.10
3 5130266-01 TANK ASSEMBLY $563.95
4 A17037 GRIP $2.21
5 5130229-00 BOLT $2.39
6 5130198-00 WASHER $0.61
8 5130268-00 CHECK VALVE $19.97
9 5130023-00 ELBOW $8.70
11 5130269-00 UNLOADER $73.15
12 A17038 DRAIN VALVE $3.19
13 5130628-00 FOOT $4.82
14 5133708-00 AFTERCOOLER $43.52
16 5130030-00 VALVE $21.22
17 5130273-00 TUBE $10.51
18 5130022-00 TUBE $4.71
19 5130275-00 ELBOW $17.16
20 5130276-00 BRACKET $6.84
21 5130257-00 LOCK BOLT $1.74
22 5130277-00 NUT $1.12
24 5130280-00 SCREW $0.93
25 5130278-00 SCREW $3.72
26 5130015-00 COUPLER $18.80
27 5130026-00 GAUGE $27.53
27 5130026-00 GAUGE $27.53
28 5130027-00 REGULATOR RPR KIT $29.96
29 5130281-00 PILOT VALVE $46.71
31 5130282-00 IDLE CONTROL $55.09
32 5130037-00 ELBOW $24.63
33 627035-00 SERVICE KIT $261.17
34 5131443-00 ENGINE $905.57
35 5130034-00 SLEEVE $1.23
36 5130035-00 NUT $2.04
37 5130629-00 INSERT $1.84
201 5130077-00 BOLT $1.05
202 5130284-00 HEAD $30.59
203 5140019-80 FILTER $7.81
204 5130078-00 GASKET $2.93
205 5130079-00 VALVE PLATE $69.53
206 5140016-74 VALVE PLATE GASKET $1.12
207 5140016-73 VALVE BLADE $5.43
208 5130305-00 GASKET SET $22.46
209 5130305-00 GASKET SET $22.46
210 5130084-00 PISTON RING SET $47.29
211 5130085-00 PISTON $47.03
212 5130086-00 PIN $8.40
213 5130087-00 RETAINING RING $0.89
214 5130088-00 CONNECTING ROD $19.31
215 5140016-81 O-RING $4.44
215 5140016-82 SCREW $1.12
216 5130305-00 GASKET SET $22.46
217 5130007-00 DIPSTICK $5.38
218 5130096-00 COVER $16.58
219 5130105-00 BOLT $1.80
220 SSF-953-ZN SCREW, MAC1200 $3.05
221 5130286-00 NEEDLE BEARING $25.31
222 5130287-00 CRANKSHAFT $114.51
223 5130288-00 KEY $1.35
224 5130289-00 BOLT $2.04
225 5130290-00 CYLINDER $74.64
226 5130291-00 CRANK CASE $64.10
227 5130292-00 SPACER $7.02
228 5130293-00 SCREW $1.09
229 5130294-00 SCREW $1.37
230 5130295-00 FAN $26.70
231 5130296-00 KEY $1.31
232 5130297-00 PLATE $17.21
233 5130298-00 MOUNT $64.71
234 5130299-00 BOLT $1.14
235 5130300-00 WASHER $0.89
238 5130303-00 FAN HOUSING $64.71
239 5130304-01 SEAL $24.42
250 5130102-00 PISTON ASSEMBLY $62.24
401 285800-01 GASKET $4.55
402 285802-02 ELEMENT $16.74
403 285802-03 FILTER $6.20
404 285802-04 COVER $38.33
405 285800-05 GROMMET $3.25
406 285802-06 COLLAR $4.00
407 285800-07 COLLAR $4.00
408 285802-08 ELBOW $46.90
409 285800-09 NUT $2.81
411 285800-11 WING NUT $3.71
412 285800-13 BOLT $1.12
413 285800-46 NUT $1.31
414 285802-10 CAMSHAFT $122.30
415 285802-11 PUSH ROD $6.80
416 285800-16 ARM $5.78
417 285800-17 LIFTER $11.45
418 285800-18 PIVOT $5.60
419 285800-19 SPRING $3.23
420 285802-12 VALVE $21.44
421 285802-13 VALVE $27.05
422 285800-22 SPRING $3.47
423 285800-23 RETAINER $8.99
424 285800-24 RETAINER $9.81
425 285800-25 ROTATOR VALVE $5.78
426 285802-14 PLATE $3.62
427 285800-27 BOLT $7.93
428 285800-28 NUT $4.27
429 285802-15 CONTROL ASSY $31.47
430 285800-30 ARM $14.83
431 285802-16 ROD $4.57
432 285802-17 SPRING $4.75
433 285802-18 SPRING $3.54
434 285802-19 LEVER $13.44
435 285800-35 SPRING $3.85
436 285800-36 WASHER $5.32
437 285800-37 HOLDER $4.83
438 285805-67 SPACER $5.12
439 285800-39 SPRING $4.82
440 285800-40 SPRING $2.36
441 285800-41 BOLT $2.16
442 285800-42 BOLT $3.16
443 285801-21 BOLT $2.94
444 285800-43 NUT $4.02
444 285800-44 SCREW $0.66
445 285800-44 SCREW $0.66
445 285800-45 SCREW & WASHER $1.12
446 285802-21 SCREW $0.82
447 285800-46 NUT $1.31
448 285800-47 GASKET SET $18.68
449 285800-48 VALVE SET $27.14
450 285800-49 FLOAT SET $22.16
451 285800-50 CHAMBER SET $26.42
452 285800-51 SET SCREW $19.48
453 285800-52 SET SCREW $10.10
454 285800-53 SET SCREW $12.66
455 285800-54 CHOKE SET $26.30
456 285802-22 CARBURETOR $113.00
457 285800-56 SCREW $14.10
458 285802-23 NOZZLE $20.20
459 285800-58 O-RING $7.16
460 285802-24 INSULATOR $17.09
461 285802-25 GASKET $2.65
462 285800-61 SPACER $7.98
463 285800-62 GASKET $1.67
464 285800-63 LEVER $10.17
465 285800-64 LEVER $9.57
466 285800-65 PLATE $3.54
467 285800-66 SPRING $3.67
468 285800-67 GASKET $4.40
469 285800-68 CUP $22.06
470 285800-69 SCREW $0.86
471 285800-70 PIN $1.60
472 285802-26 JET $7.93
472 285802-28 JET $7.93
472 285802-27 JET $8.74
473 285800-73 JET $21.44
474 285802-45 COVER ASSY. $119.29
475 285802-46 GASKET $8.91
476 285800-76 CAP ASSY. $6.35
477 285800-77 CAP ASSY. $6.42
478 285800-78 GASKET $3.31
479 285802-29 BOLT $2.88
480 285802-30 BALL BEARING $26.75
481 285802-31 SEAL $9.81
482 285800-80 PIN $1.72
483 285802-32 CRANKSHAFT $256.10
484 285800-84 KEY $13.92
485 285802-33 CYLINDER HEAD $203.86
486 285800-86 GUIDE $10.75
487 285800-87 GUIDE $8.74
488 285800-88 CLIP $1.60
489 285802-34 GASKET $10.52
490 285800-90 COVER $15.78
491 285800-91 GASKET $5.13
492 285800-92 TUBE $4.57
493 285800-41 BOLT $2.16
494 285800-94 BOLT $6.23
495 285800-95 BOLT $4.40
496 285800-96 PIN $2.13
497 285802-36 BOLT $2.00
498 285800-98 SPARK PLUG $4.57
499 285802-37 CYLINDER $521.48
500 285801-00 SWITCH ASSY. $63.31
501 285801-01 GOVERNOR ASSY. $23.53
502 285801-02 SLIDER $3.71
503 285801-03 SHAFT $12.38
504 285801-04 DRAIN PLUG $3.25
505 285801-05 WASHER $2.20
506 285801-06 WASHER $1.59
507 285801-07 CLIP $1.74
508 285802-30 BALL BEARING $26.75
509 285802-39 SEAL $8.69
510 285801-10 O-RING $2.75
511 285801-11 NUT $1.44
512 285801-12 WASHER $0.53
513 285801-13 LOCK PIN $1.12
514 285801-14 BOLT $1.15
515 285802-40 GROMMET $2.72
516 285802-41 COVER $65.93
517 285802-42 PLATE $10.77
518 285801-17 CLIP $2.07
519 285802-43 SHROUD $16.35
520 285801-19 SWITCH ASSY. $22.06
521 285801-31 WIRE $10.86
522 285800-41 BOLT $2.16
523 285801-21 BOLT $2.94
524 285801-23 BOLT $7.77
525 285801-22 OIL ALERT UNIT $58.79
526 285801-24 KEY $3.10
527 285802-47 FAN $21.66
528 285801-26 PULLEY $28.73
529 285802-48 FLYWHEEL $138.78
530 285801-28 NUT $7.26
531 285801-29 IGNITION COIL $99.04
532 285801-30 CAPACITOR ASSY $20.84
533 285801-32 BOLT $2.94
534 285801-33 RUBBER TUBE $4.83
535 285801-34 JOINT $11.08
536 285802-49 TANK $161.41
537 285801-36 CAP $15.78
538 285801-37 GASKET $3.70
539 285801-10 O-RING $2.75
540 285800-46 NUT $1.31
541 285801-40 HOSE $33.06
542 285801-41 CLIP $1.37
543 285801-42 BOLT $1.53
544 285806-79 STARTER ASSY. $134.89
545 285801-44 REEL $37.92
546 285801-45 RATCHET $8.15
547 285801-46 GUIDE $11.54
548 285801-47 SPRING $5.81
549 285801-48 SPRING $12.22
550 285801-49 SPRING $5.72
551 285801-50 KNOB $7.98
552 285805-10 ROPE $10.55
552 285801-51 ROPE $36.52
553 285801-52 SCREW $6.53
554 285801-53 BOLT $1.89
555 285802-52 RING SET $29.23
555 285802-53 RING SET $27.29
555 285802-50 RING SET $26.88
555 285802-51 RING SET $29.23
556 285802-56 PISTON $36.77
556 285802-57 PISTON $36.77
556 285802-54 PISTON $39.13
556 285802-55 PISTON $40.90
558 285802-58 PISTON PIN $7.02
559 285802-60 CON ROD ASSY $71.06
559 285802-59 CON ROD ASSY $94.81
560 285801-65 BOLT $3.31
561 285802-61 CLIP $1.44
567 285801-67 MUFFLER $82.35
568 285801-68 PROTECTOR $36.91
569 285801-69 SPARK ARRESTER $14.78
570 285801-70 GASKET $6.99
571 285801-71 SCREW $2.07
572 285801-72 SCREW $2.07
573 285801-73 NUT $1.05
574 285802-62 EMBLEM $7.93
575 285801-75 LABEL $4.52
576 285801-76 LABEL $2.20
578 285801-78 LABEL $5.06
579 285806-76 SEAL $8.37
581 285806-81 STARTER PULLEY $27.04
800 5130702-00 OIL $5.66
846 5140019-93 TUNE-UP KIT $35.46
846 5130305-00 GASKET SET $22.46
846 5130333-00 LABEL SET $10.51
