DeWalt D55167-Type-3 Compressor Parts

DeWalt D55167-Type-3 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

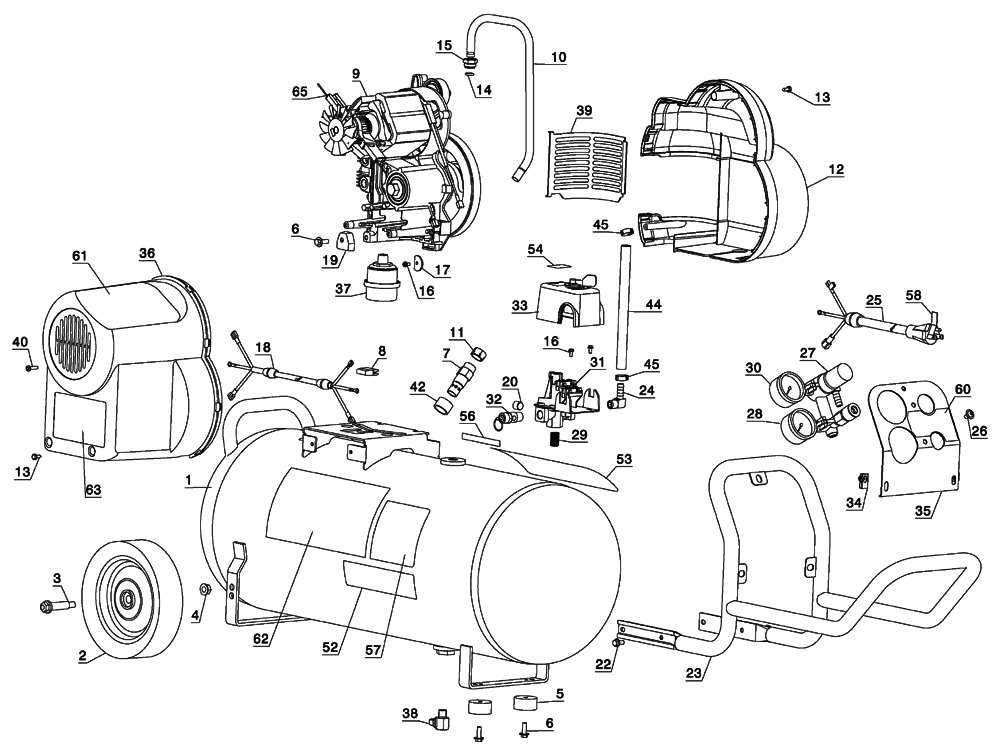

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	A16636SV	TANK ASSEMBLY	$245.77
6	91895680	SCREW 1/4-20.75, MAC2200	$2.76
7	1000002673	CHECK VALVE	$16.63
10	A14226	OUTLET TUBE	$14.51
12	A15533	SHROUD FRONT	$28.75
16	SUDL-9-1	GROUND SCREW, MAC500	$2.77
19	ACG-18	SADDLE MOUNT CUP, MAC2200	$3.05
23	N015595	HANDLE	$52.21
24	A10011	ELBOW	$8.21
27	N030566	REGULATOR/MANIFOLD	$92.65
27	N148120SV	REGULATOR BONNET	$2.41
27	N008792	REGULATOR RPR KIT	$19.18
27	5140067-14	KNOB	$5.23
28	A10691	GAUGE	$14.06
30	A14993	GAUGE	$15.55
31	A21107	PRESSURE SWITCH	$37.95
33	A17326	COVER PRESSURE SWITC	$7.89
34	5130010-00	NUT	$1.23
35	N012782	COVER	$14.12
36	A14807	SHROUD REAR	$42.61
38	N072023	BALL VALVE	$6.41
39	A14935	GRILL	$25.77
44	A18614	HOSE	$5.46
45	A20009	CLAMP	$2.03
52	A17566	LABEL	$4.26
53	N000231	LABEL	$3.41
54	5130055-00	LABEL, WARNING	$1.06
57	A19039	LABEL	$3.18
60	1000001552	PANEL LABEL	$2.71
61	1000000267	LABEL PERF	$5.69
62	A19040	WARNING LABEL	$9.96
63	N043049	NAME PLATE	$2.69
65	A10157SV	BRUSH SET	$30.90
69	A10157SV	BRUSH SET	$30.90
74	N011005	BELT	$24.62
84	N021229	KIT COMP RING REPLAC	$19.03
89	ACG-45	O-RING, MAC1200	$3.05
