DeWalt D55151-Type-1

2-1/2 Max HP 4 Gallo...

$228.68

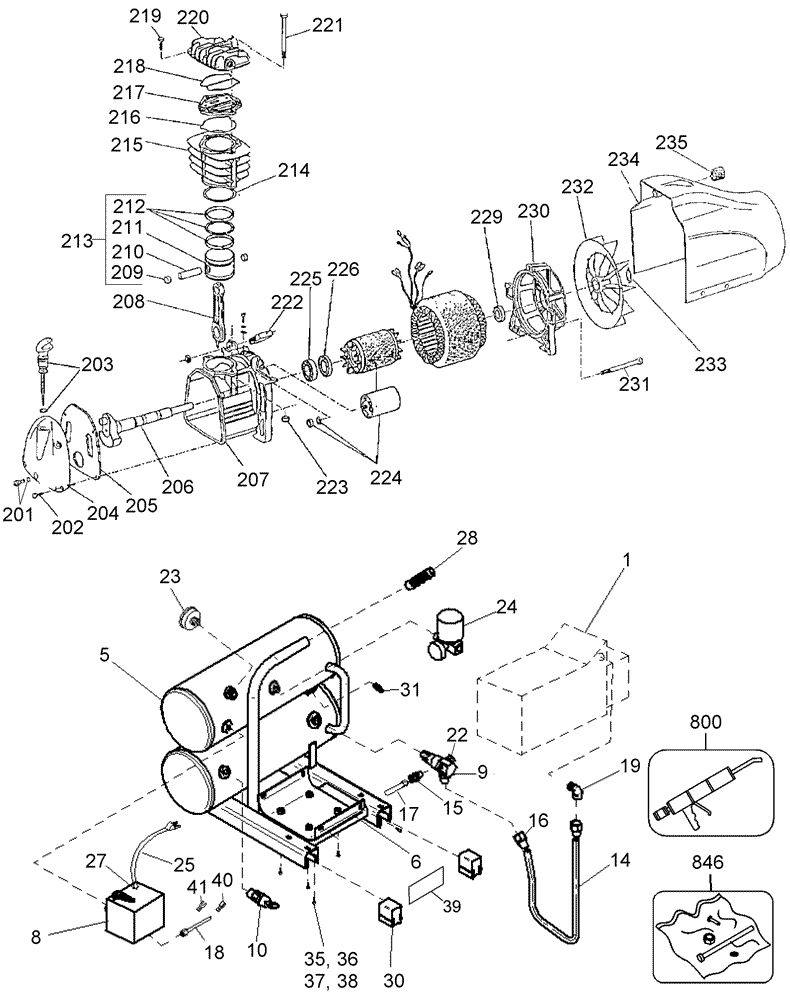

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	5135137-00	BARE COMPRESSOR	$252.42
5	5140028-07	TANK	$203.29
6	5130785-00	BASE PLATE	$11.68
8	5130028-01	PRESSURE SWITCH	$62.24
9	5140030-78	CHECK VALVE ASSY	$60.08
10	5130030-00	VALVE	$21.22
14	5133799-00	AFTERCOOLER	$18.60
15	5130963-00	COMPRESSION CONN.	$7.83
16	5130035-00	NUT	$2.04
17	5130034-00	SLEEVE	$1.23
18	5130356-00	UNLOADER TUBE ASY	$13.03
22	5130033-00	COLD START VALVE	$8.63
23	5130205-00	GAUGE	$10.87
24	5131722-00	REGULATOR	$29.06
25	5130315-00	CORD & PLUG	$26.55
27	605155-00	BUSHING	$1.15
28	5130582-00	HANDL GRIP	$4.49
30	5130628-00	FOOT	$4.82
31	A17038	DRAIN VALVE	$3.19
35	5130280-00	SCREW	$0.93
36	5130218-00	NUT	$1.12
37	5130832-00	FENDER WASHER	$1.36
38	5130635-00	WASHER, RUBBER	$4.64
40	450213-00	TERMINAL, FEMALE	$1.24
41	5130458-00	TERMINAL	$1.10
201	5134771-00	DRAIN PLUG	$35.56
202	5130097-00	SCREW	$1.31
203	5134770-00	DIPSTICK	$8.48
204	5134769-00	END COVER	$31.65
206	5137181-00	CRANKSHAFT	$121.95
207	5134772-00	CRANK CASE	$128.40
208	5130088-00	CONNECTING ROD	$19.31
209	5130087-00	RETAINING RING	$0.89
210	5130086-00	PIN	$8.40
211	5130085-00	PISTON	$47.03
212	5130084-00	PISTON RING SET	$47.29
213	5130102-00	PISTON ASSEMBLY	$62.24
214	5134599-00	CYLINDER GASKET, BOT	$2.04
215	5134778-00	CYLINDER	$161.91
216	5134664-00	GASKET SET	$43.22
217	5134783-00	VALVE PLATE ASSY	$24.00
218	5134664-00	GASKET SET	$43.22
219	5134634-00	HEAD BOLT	$1.78
220	5134782-00	HEAD	$48.62
221	5134616-00	HEAD BOLT	$23.53
222	5134583-00	CIRCUIT BREAKER	$19.86
223	330015-03	NUT, HEX	$1.36
224	5130089-00	CAPACITOR	$64.71
225	5136406-00	BEARING	$34.00
226	5134720-00	OIL SEAL	$8.67
229	5134652-00	BEARING	$17.86
230	5134773-00	END COVER	$62.77
231	5134696-00	BOLT, MOTOR	$1.84
232	5134774-00	FAN	$17.49
233	5134641-00	SNAP RING	$3.32
234	5134781-01	FAN HOUSING	$47.22
235	5134777-00	INTAKE ELEMENT	$8.05
235	5136844-00	FILTER ELEMENT	$10.77
800	5136804-00	OIL	$6.48
846	5134664-00	GASKET SET	$43.22
