Dewalt D55143 Compressor Parts

Dewalt D55143 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

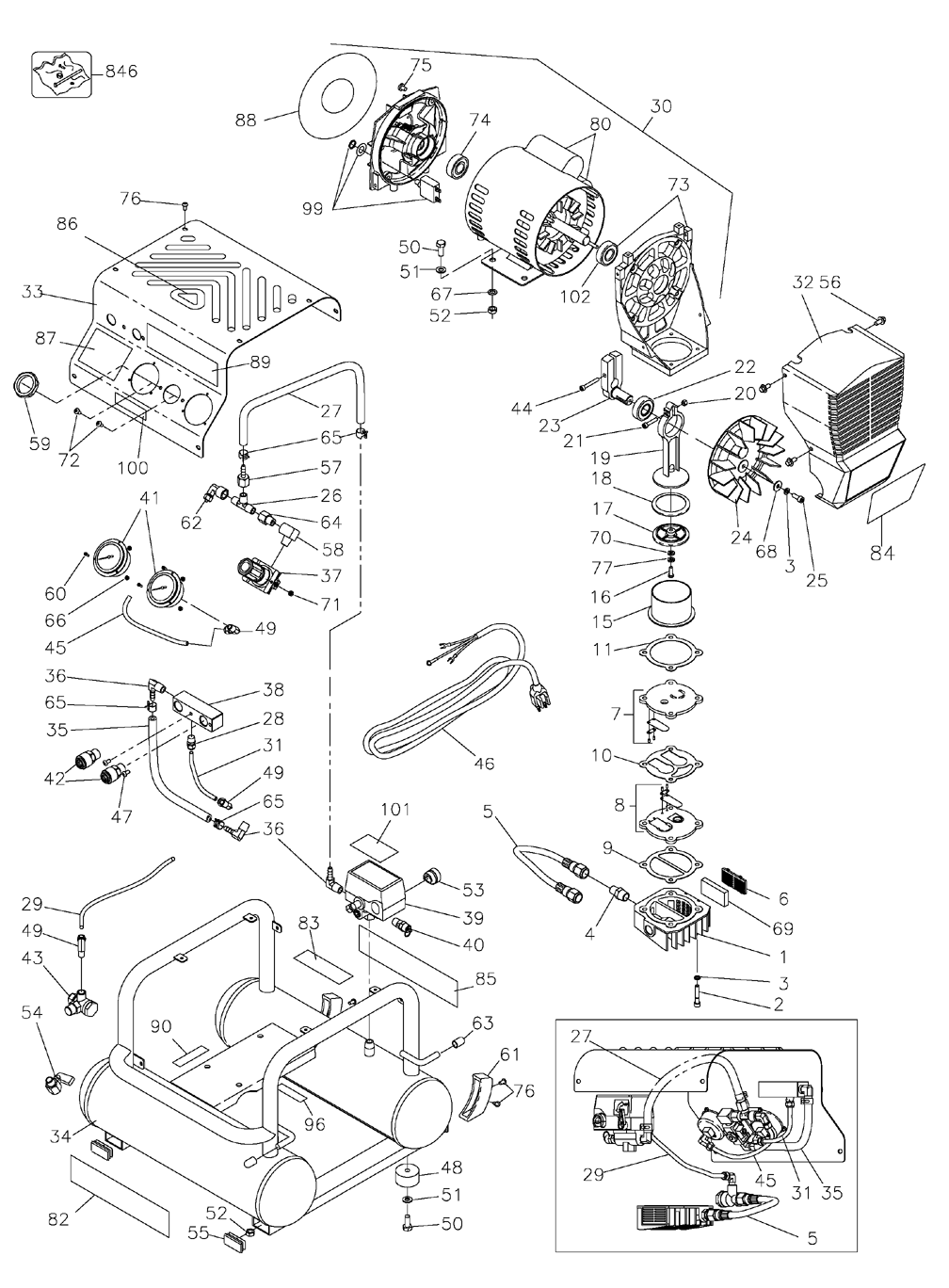

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	5140023-01	CYLINDER HEAD	$8.40
2	5140023-02	BOLT	$0.98
3	5140023-03	SPRING WASHER	$0.96
4	5140023-86	FITTING	$2.25
5	5140024-04	AFTERCOOLER	$12.96
6	5140023-06	FILTER	$1.10
7	5140025-89	VALVE PLATE ASSY	$9.41
8	5140025-88	VALVE PLATE ASSY	$10.87
9	5140023-09	GASKET	$1.10
10	5140023-10	GASKET	$1.10
11	5140023-11	GASKET	$1.10
15	5140023-15	CYLINDER	$15.80
16	5140023-16	BOLT	$1.10
18	5140023-87	PLATE	$8.40
19	5140024-40	PISTON KIT	$32.93
20	5140023-20	NUT	$1.10
21	5140023-21	BOLT	$1.10
22	5140023-22	BALL BEARING	$7.16
23	5140023-23	CRANKSHAFT	$12.69
24	5140023-24	FAN	$4.30
25	5140024-54	BOLT	$0.96
26	5140024-63	CONNECTOR	$3.74
27	N001066	AIR HOSE	$3.78
28	5140023-94	FITTING	$1.59
29	5140024-64	UNLOADER TUBE	$1.59
30	5140023-30	MOTOR	$267.85
31	5140024-69	UNLOADER TUBE	$1.59
32	5140023-32	FRONT COVER	$13.32
33	5140024-39	PANEL	$51.22
34	5140024-38	TANK	$155.59
35	5140024-66	UNLOADER TUBE	$2.69
36	5140023-95	ELBOW	$2.69
38	5140023-98	MANIFOLD	$7.98
39	5140023-39	PRESSURE SWITCH	$61.36
40	5140023-93	SAFETY VALVE	$13.32
41	5140024-00	PRESSURE GAUGE	$8.80
42	5140023-42	QUICK COUPLER	$6.78
44	5140024-60	BOLT	$2.34
45	5140024-65	UNLOADER TUBE	$1.28
46	5130046-00	CORD & PLUG	$27.70
47	5140025-90	SCREW	$1.13
48	5140023-90	FOOT	$1.59
49	5140023-49	ELBOW	$6.44
50	5140024-09	BOLT	$1.10
51	5140024-10	WASHER	$1.10
52	5140023-52	NUT	$1.10
53	SSW-7367	STRAIN RELIEF BUSHING, MAC1200	$3.05
54	5140023-54	DRAIN COCK	$8.80
55	5140023-55	PLUG	$1.10
56	5140024-50	BOLT	$1.10
57	5140024-55	NIPPLE	$1.39
58	5140024-48	ELBOW	$3.26
59	5140023-59	NUT & WASHER	$1.10
60	5140023-60	BOLT & NUT	$0.98
61	5140023-92	RUBBER BUMPER	$3.49
62	5140024-49	ELBOW	$1.10
63	5140023-91	RUBBER CUP	$0.98
64	5140024-56	NIPPLE	$1.62
65	5140023-96	HOSE CLAMP	$1.10
66	5140024-01	NUT	$0.98
67	5140024-11	SPRING WASHER	$0.98
68	5140024-58	WASHER	$0.96
69	5140024-59	FILTER	$1.10
70	5140024-68	WASHER	$1.10
71	5140024-70	HEX NUT	$0.96
72	5140024-53	SCREW	$0.96
73	5140024-76	CRANKCASE	$23.16
74	5140025-85	BALL BEARING	$5.52
75	5140023-27	BOLT	$1.10
76	5140024-02	BOLT	$1.10
77	5140011-65	LOCK WASHER	$1.18
80	5140024-44	CAPACITOR	$17.44
80	5140024-43	CAPACITOR	$26.08
82	626065-00	ID LABEL	$5.88
83	626064-00	NAMEPLATE	$0.98
84	626070-00	LABEL	$0.98
85	626073-00	WARNING LABEL	$1.97
86	626074-00	LABEL	$0.98
87	626098-00	INSTR. LABEL	$0.98
88	626099-00	LABEL	$0.98
89	626100-00	INSTR. LABEL	$0.98
90	626101-00	WARNING LABEL	$0.98
96	N018445	WARNING LABEL	$1.09
99	5140024-73	CIRCUIT BREAKER	$19.89
100	626439-00	LABEL	$0.98
101	5130055-00	LABEL, WARNING	$1.06
102	5140025-86	BALL BEARING	$5.52
846	5140025-87	CENTRIFUGAL SW ASSY	$13.67
846	5140024-40	PISTON KIT	$32.93
