DeWalt D55140-Type-2 Compressor Parts

DeWalt D55140-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

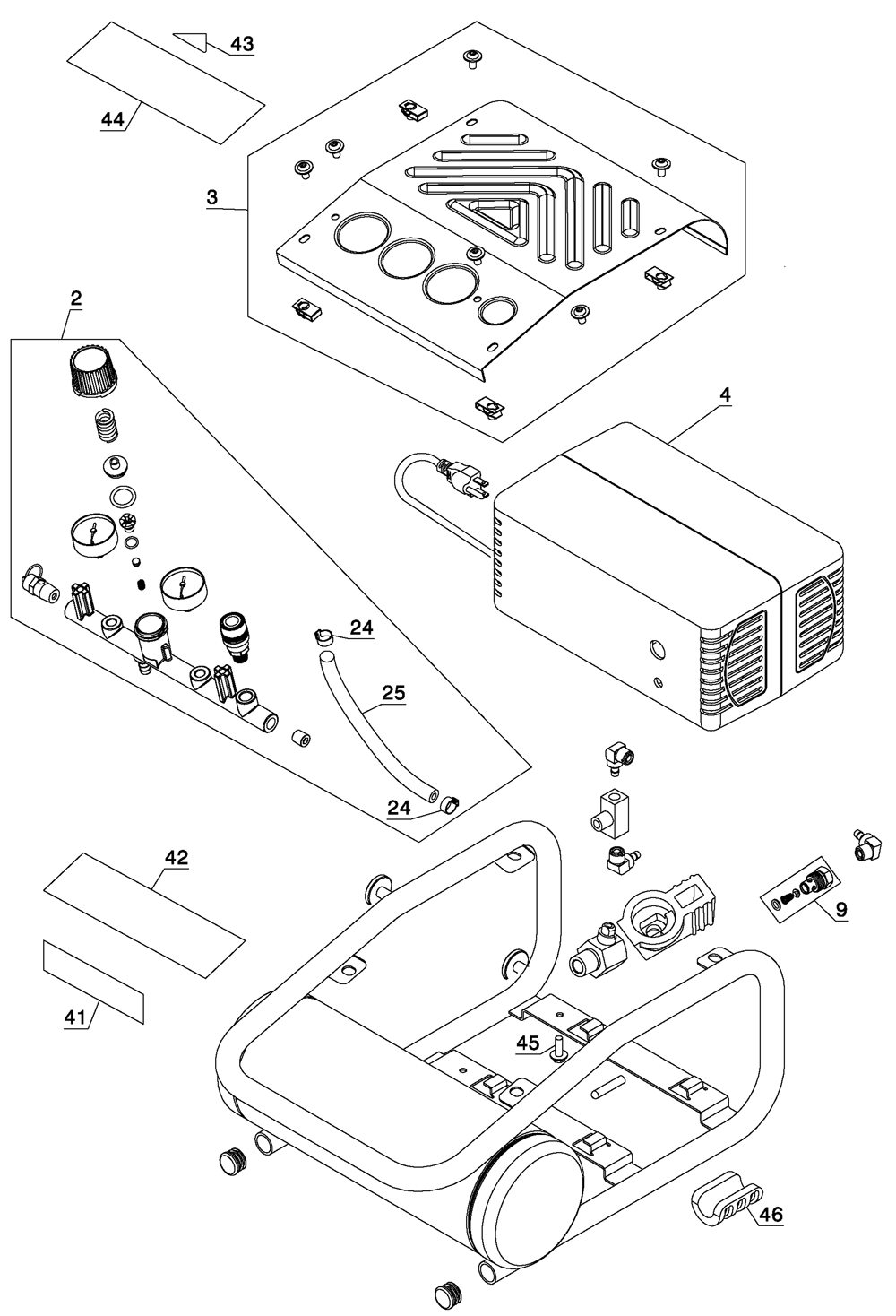

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	5140062-33	MANIFOLD ASSEMBLY	$52.21
3	5140062-34	CONTROL PANEL	$20.54
4	A15254	PUMP	$196.37
8	5140062-35	TUBE	$4.02
9	5140062-42	CONNECTOR ASSY	$12.85
15	5140062-36	O-RING	$1.16
16	5140062-37	CLAMP	$1.16
24	5140062-40	CLAMP	$4.33
25	5140062-41	HOSE	$3.38
26	5140040-28	SHROUD LEFT	$14.98
27	5140040-29	RUBBER BUSHING	$1.12
28	5140040-30	BUSHING	$1.98
29	5140040-31	SCREWS	$1.12
30	5140040-32	SCREWS	$1.12
31	5140040-33	SHROUD RIGHT	$8.05
32	5140040-34	SWITCH	$2.36
33	5140040-35	FAN	$1.62
34	5140040-36	CHECK VALVE	$4.42
35	5140040-37	FUSE	$1.62
36	5140040-38	PCB ASSY	$5.22
37	5140040-39	CORDSET	$9.13
38	5140062-38	PRESSURE SWITCH	$12.85
39	5140062-39	HOSE	$1.41
40	A17963	WARNING LABEL	$11.53
41	A17566	LABEL	$4.26
42	A17964	DECAL	$5.70
43	5130060-00	DECAL	$1.69
44	A17959	DECAL	$4.14
45	5140111-76	SCREW	$1.20
