DeWalt D51844-Type-1 Air Nailer & Stapler Parts

DeWalt D51844-Type-1 Air Nailer & Stapler Parts Image

DeWalt D51844-Type-1 Parts

Download Schematic

Time to buy a new tool?

DeWalt D51844-Type-1

Heavy Duty 20 Degree...

$224.99

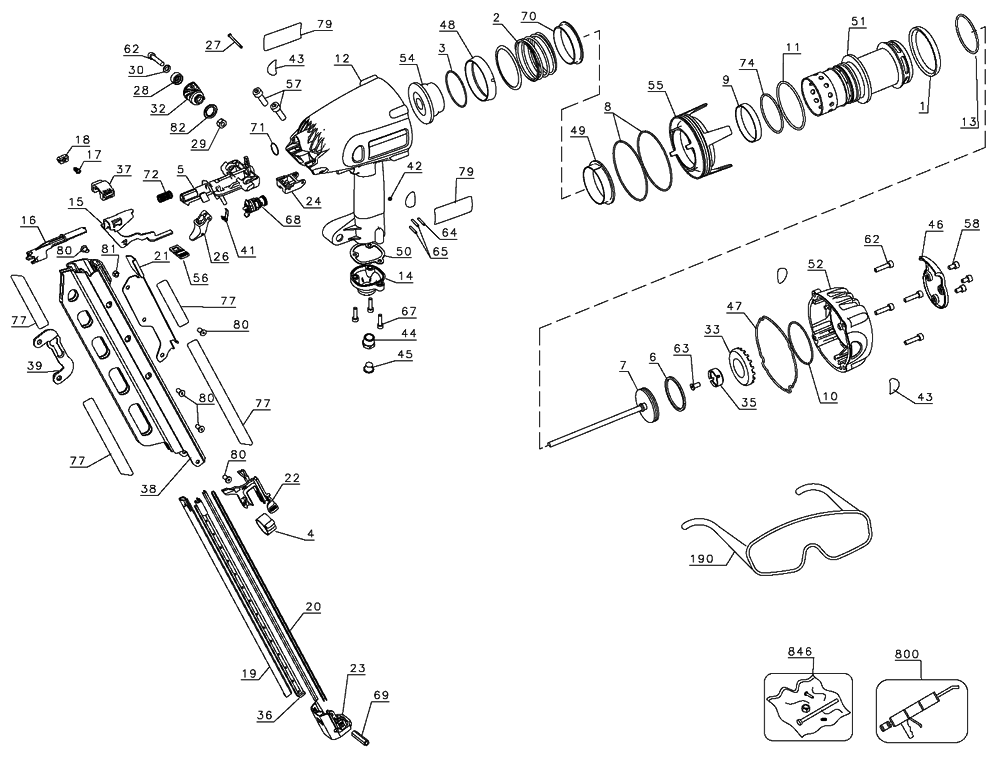

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	390140-00	SEAL	$3.01
2	603413-00	SPRING	$3.01
3	390146-00	O-RING	$1.94
4	390147-00	NEGATOR HUB	$20.43
5	610782-00	ROUND NOSE	$65.31
6	608611-00	O-RING	$1.83
7	610757-00SV	PISTON DRIVER ASSY.	$65.31
8	390156-00	O-RING	$3.01
9	390159-00	SEAL	$1.94
10	608615-00	O-RING	$1.29
11	N034172	O-RING	$3.95
12	5140026-53	FRAME KIT	$89.69
12	647261-00	FRAME	$99.12
13	608617-00	O-RING	$1.29
14	612132-00	END CAP	$13.27
15	N016232	CONTACT TRIP	$17.94
16	612139-00	CONTACT TRIP	$12.03
17	390724-00	SPRING	$1.94
18	391804-00	CAP	$9.41
19	391801-00	SHANK LINER	$2.44
20	391803-00	LINER	$8.27
21	606632-01	GUIDE	$8.45
22	391805-00	PUSHER	$37.80
23	610774-00SV	MAGAZINE CAP	$14.45
24	N000248	GUIDE	$2.10
26	390746-00	TRIGGER	$10.38
26	395198-00	TRIGGER	$10.12
27	395091-00	PIN	$2.04
28	612134-00	SPECIAL WASHER	$1.33
29	612149-00	MAGAZINE BRT WASHER	$2.84
30	098197-10	LOCKWASHER	$1.17
32	608603-00	LATCH	$2.60
33	610753-00	BUTTON	$1.31
35	391789-00	BUMPER	$3.01
36	391802-00	SHANK LINER	$2.44
37	391807-00	COVER	$1.94
38	5140012-03	MAGAZINE	$77.37
39	391788-00	BRACKET	$9.34
41	391813-00	SPRING	$1.15
42	391814-00	GROMMET	$1.89
43	616557-00	LABEL	$1.17
44	395195-00	BUSHING	$3.81
45	395196-00	PLUG	$1.15
46	5140026-36	DEFLECTOR	$4.30
47	608610-00	SEAL	$1.91
47	648243-00	GASKET	$3.39
48	N009190	COLLAR	$4.96
49	395204-00	SPRING RETAINER	$1.82
50	649365-00	GASKET	$1.36
51	610755-00	CYLINDER	$58.79
52	645503-00	TOP CAP	$33.64
54	395213-00	BUMPER	$34.36
54	610777-00	BUMPER	$7.81
55	395215-00	BULKHEAD	$8.83
56	603380-00	ADJUSTER	$7.50
57	603383-00	SCREW	$1.15
58	603384-00	SCREW	$1.15
62	603390-00	SCREW	$1.08
63	603391-00	SCREW	$1.08
64	603392-00	SPIRAL PIN	$1.15
65	650156-00	SPIRAL PIN	$1.21
67	603395-00	SCREW	$1.15
68	5140095-73	TRIGGER VALVE KIT	$41.40
69	610772-00	SPACER	$2.44
70	603561-00	BAND	$1.15
71	617161-00	O-RING	$1.12
72	390735-00	SPRING	$1.15
74	606640-00	O-RING	$2.55
77	5140056-59	LABEL SET	$1.62
79	610764-00	LABEL	$1.23
80	610779-00	SCREW	$1.17
81	389038-00	LOCKNUT	$1.23
82	608604-00	WEAR PLATE	$2.38
190	629042-00	SAFETY GLASSES	$11.92
800	429995-00	GREASE	$50.49
846	606132-00	TRIGGER VALVE ASY	$25.80
846	606131-00	MAGAZINE SPRING	$25.13
846	606130-00	BUMPER	$41.05
846	606134-00	TRIGGER	$24.83
846	609993-00	TRIGGER	$26.17
846	606130-01	BUMPER	$41.05
846	5140112-77	O-RING KIT	$30.29
846	606123-00	PISTON DRIVER ASSEMBLY	$68.27
