DeWalt D51823-Type-1 Air Nailer & Stapler Parts

DeWalt D51823-Type-1 Air Nailer & Stapler Parts Image

DeWalt D51823-Type-1 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

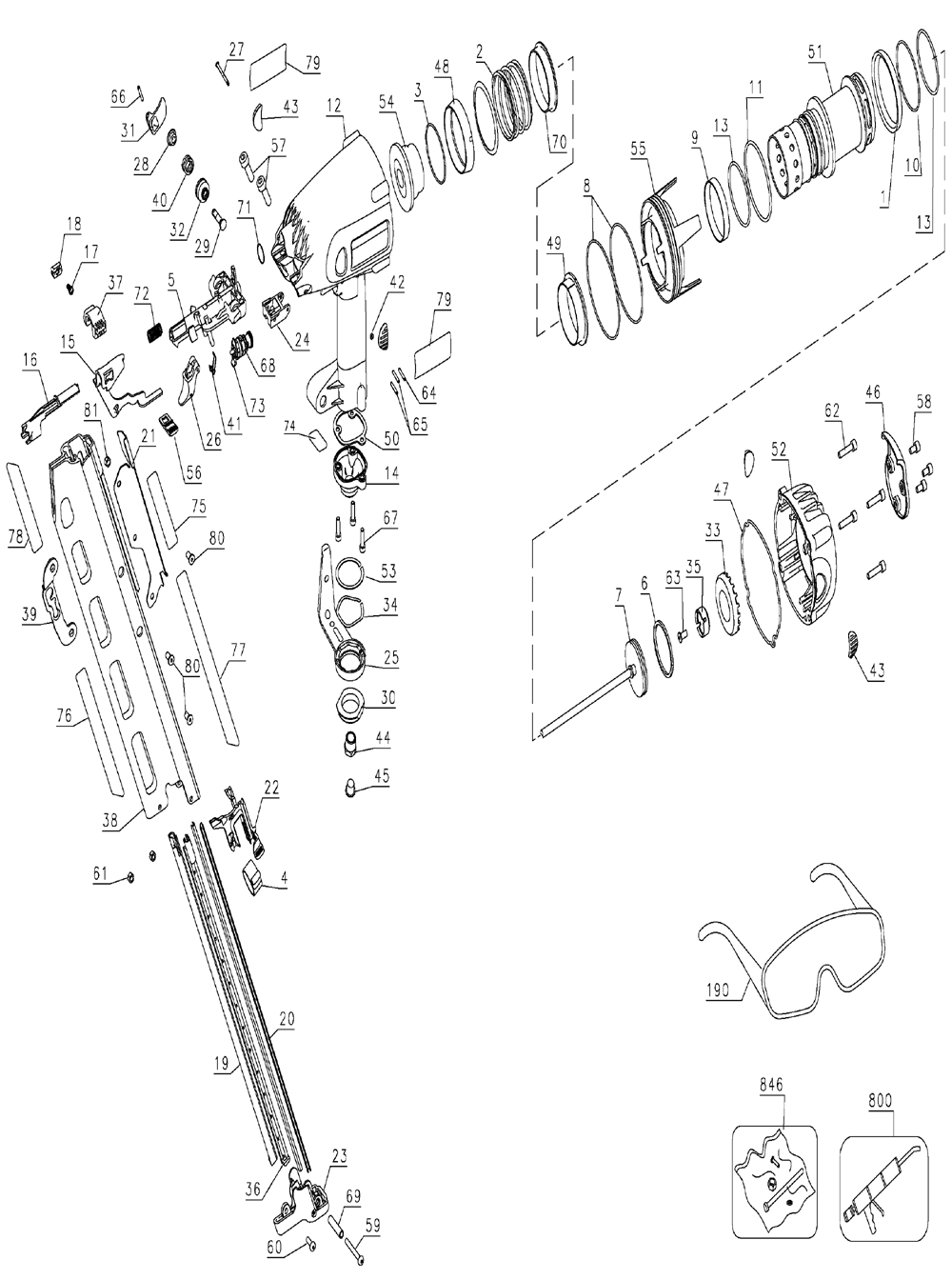

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	390140-00	SEAL	$3.01
2	603413-00	SPRING	$3.01
3	390146-00	O-RING	$1.94
4	390147-00	NEGATOR HUB	$20.43
6	608611-00	O-RING	$1.83
7	610756-00	PISTON DRIVER ASSY.	$70.20
8	390156-00	O-RING	$3.01
9	390159-00	SEAL	$1.94
10	390160-00	O-RING	$2.90
11	612096-00	O-RING	$2.90
13	390164-00	O-RING	$2.90
14	612105-00	END CAP	$5.40
15	N016232	CONTACT TRIP	$17.94
16	612139-00	CONTACT TRIP	$12.03
17	390724-00	SPRING	$1.94
18	391804-00	CAP	$9.41
19	390727-00	SHANK LINER	$2.44
20	390728-00	LINER	$7.31
21	606632-00	GUIDE	$7.71
22	390731-00	PUSHER	$37.80
24	N000248	GUIDE	$2.10
25	390744-00	BELT HOOK	$8.10
26	395198-00	TRIGGER	$10.12
26	390746-00	TRIGGER	$10.38
27	395091-00	PIN	$2.04
28	391781-00	WASHER	$3.81
29	391782-00	SHAFT	$11.21
30	5140005-30	END CAP	$17.53
31	391784-00	LATCH	$25.96
32	391785-00	BUSHING	$9.41
33	391786-00	BUTTON	$3.01
34	391787-00	WAVY WASHER	$1.94
35	391789-00	BUMPER	$3.01
36	391795-00	SHANK LINER	$2.44
37	391807-00	COVER	$1.94
39	5140058-66	BRACKET KIT	$10.41
40	391812-00	SPRING	$1.15
41	391813-00	SPRING	$1.15
42	391814-00	GROMMET	$1.89
43	616557-00	LABEL	$1.17
44	395195-00	BUSHING	$3.81
45	395196-00	PLUG	$1.15
46	5140026-36	DEFLECTOR	$4.30
47	395201-00	SEAL	$3.81
48	N009190	COLLAR	$4.96
49	395204-00	SPRING RETAINER	$1.82
50	649365-00	GASKET	$1.36
51	395207-00	CYLINDER	$84.05
53	395211-00	SPACER	$1.23
54	395213-00	BUMPER	$34.36
55	395215-00	BULKHEAD	$8.83
56	603380-00	ADJUSTER	$7.50
57	603383-00	SCREW	$1.15
58	603384-00	SCREW	$1.15
62	603390-00	SCREW	$1.08
63	603391-00	SCREW	$1.08
64	603392-00	SPIRAL PIN	$1.15
65	650156-00	SPIRAL PIN	$1.21
66	603394-00	SPIRAL PIN	$1.15
67	603395-00	SCREW	$1.15
68	5140095-73	TRIGGER VALVE KIT	$41.40
69	603397-00	SPACER	$1.15
70	603561-00	BAND	$1.15
71	617161-00	O-RING	$1.12
72	390735-00	SPRING	$1.15
73	5140095-73	TRIGGER VALVE KIT	$41.40
74	603401-00	NAMEPLATE	$2.19
79	603409-00	LABEL	$3.81
80	610779-00	SCREW	$1.17
81	389038-00	LOCKNUT	$1.23
190	629042-00	SAFETY GLASSES	$11.92
800	429995-00	GREASE	$50.49
846	606134-00	TRIGGER	$24.83
846	609993-00	TRIGGER	$26.17
846	606125-00	PISTON DRIVER ASSEMBLY	$73.21
846	606111-00	O-RING KIT	$33.05
846	606132-00	TRIGGER VALVE ASY	$25.80
846	606130-00	BUMPER	$41.05
846	606131-00	MAGAZINE SPRING	$25.13
