DeWalt D51321-Type-2 Air Nailer & Stapler Parts

DeWalt D51321-Type-2 Air Nailer & Stapler Parts Image

DeWalt D51321-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

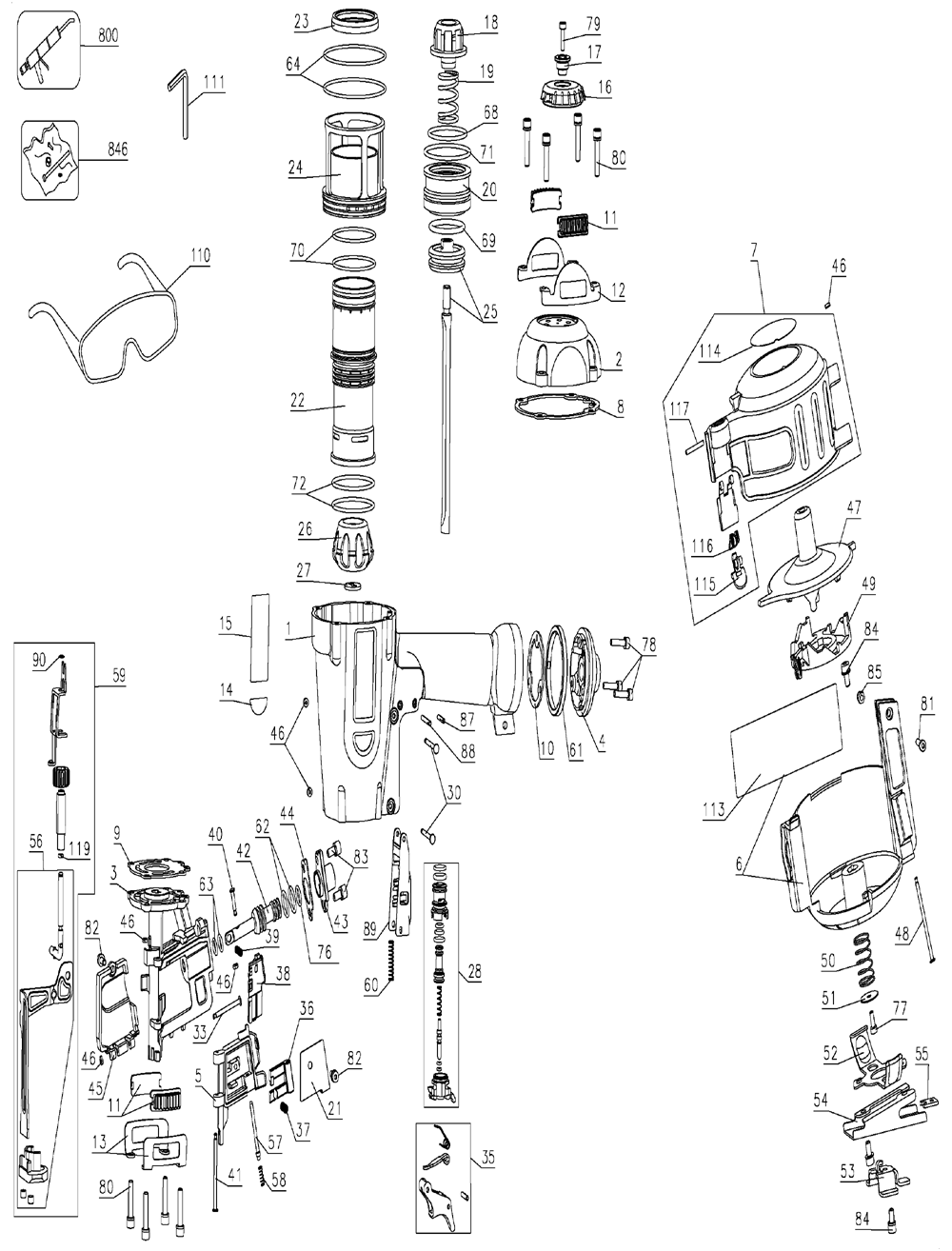

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	614947-00	FRAME	$69.57
2	614921-00	CAP	$30.75
3	614933-00	NOSE	$69.33
4	395433-00	END CAP	$5.66
5	614936-00	DOOR	$11.33
6	614948-00	CANISTER	$13.72
7	614945-00	COVER	$18.80
8	614922-00	GASKET	$4.02
9	614934-00	GASKET	$2.74
10	395430-00	GASKET	$1.23
11	614961-00	PAD	$3.15
12	614962-00	CAP	$4.44
13	614963-00	NOSE	$3.15
14	619131-00	LABEL	$1.12
15	613090-00	LABEL	$1.59
16	614985-00	DEFLECTOR	$1.89
17	619175-00	BUSHING	$1.12
18	N000596	BUMPER	$8.21
19	395064-00	SPRING	$3.01
20	N023263	HEAD VALVE	$20.48
21	614964-00	COVER	$2.30
22	614926-00	CYLINDER	$27.64
23	395065-00	SEAL	$5.66
24	631569-00	BULKHEAD	$4.30
25	N000724	PISTON DRIVER ASSY.	$52.21
26	631041-00	BUMPER	$9.22
27	631568-00	PLATE	$1.43
28	647956-00	TRIGGER VALVE ASSEMBLY	$12.63
30	641172-00	PIN	$1.34
33	395091-00	PIN	$2.04
35	398230-00	TRIGGER ASSY	$4.56
35	398219-00	TRIGGER ASSEMBLY	$3.81
36	614937-00	PAWL	$3.57
37	629583-00	SPRING	$1.16
38	614939-00	PAWL	$4.44
39	614941-00	SPRING	$1.12
40	614942-00	PIN	$1.12
41	614949-00	PIN	$1.12
42	614944-00	PISTON	$7.81
43	614993-00	PLATE	$4.44
44	614979-00	GASKET	$1.31
45	614946-00	COVER	$3.15
46	620635-00	GROMMET	$1.12
47	614954-00	HOLDER	$6.14
48	614955-00	PIN	$1.82
49	614956-00	CAM	$4.44
50	614957-00	SPRING	$1.12
51	614986-00	WASHER	$1.31
52	614959-00	WEAR PLATE	$6.14
53	632550-00	SHINGLE GAUGE	$8.53
54	614960-00	GUIDE	$8.67
55	632550-00	SHINGLE GAUGE	$8.53
56	614984-00	CONTACT TRIP	$26.47
57	614976-00	PIN	$2.74
58	620502-00	SPRING	$1.12
59	614987-00	ADJUSTER	$34.17
60	614972-00	SPRING	$1.12
61	614967-00	SPACER	$1.62
62	614981-00	O-RING	$1.31
63	614982-00	O-RING	$1.31
64	614983-00	O-RING	$1.31
68	646359-00	O-RING	$1.41
69	N023272	ORING	$1.48
70	398167-00	O-RING	$1.23
71	646361-00	O-RING	$1.41
72	631427-00	O-RING	$1.77
76	614994-00	O-RING	$1.12
77	98119-08	SCREW	$1.24
78	608178-00	SCREW	$1.23
79	98119-14	SCREW	$1.12
80	608181-00	SCREW&LOCKWASH	$1.12
81	608180-00	SCREW & WASHER	$1.23
82	608179-00	SCREW & WASHER	$1.23
83	614997-00	SCREW & WASHER	$1.12
84	614988-00	SCREW	$1.12
85	607156-00	ACORN NUT	$1.23
87	330036-19	ROLL PIN	$1.23
88	330036-20	ROLL PIN	$1.23
89	614968-00	GUIDE	$3.49
90	133825-00	RING	$1.24
110	629042-00	SAFETY GLASSES	$11.92
111	604407-02	HEX WRENCH	$1.23
111	98000-09	WRENCH, HEX-4MM	$7.34
113	N029642	WARNING LABEL	$1.39
114	614974-00	LABEL	$1.12
115	614950-00	LATCH	$4.44
116	614951-00	SPRING	$1.31
117	330036-24	ROLL PIN	$1.23
119	624940-00	O-RING	$1.12
800	429995-00	GREASE	$50.49
846	N029720	O-RING KIT	$30.56
846	N000824	PISTON DRIVER KIT	$81.09
846	621641-00	BUMPER	$30.75
846	623083-00	ANTI-SKID FOOT	$20.67
846	603415-00	TRIGGER ASSEMBLY	$14.90
