DeWalt D51257K-Type-2 Air Nailer & Stapler Parts

DeWalt D51257K-Type-2 Air Nailer & Stapler Parts Image

DeWalt D51257K-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

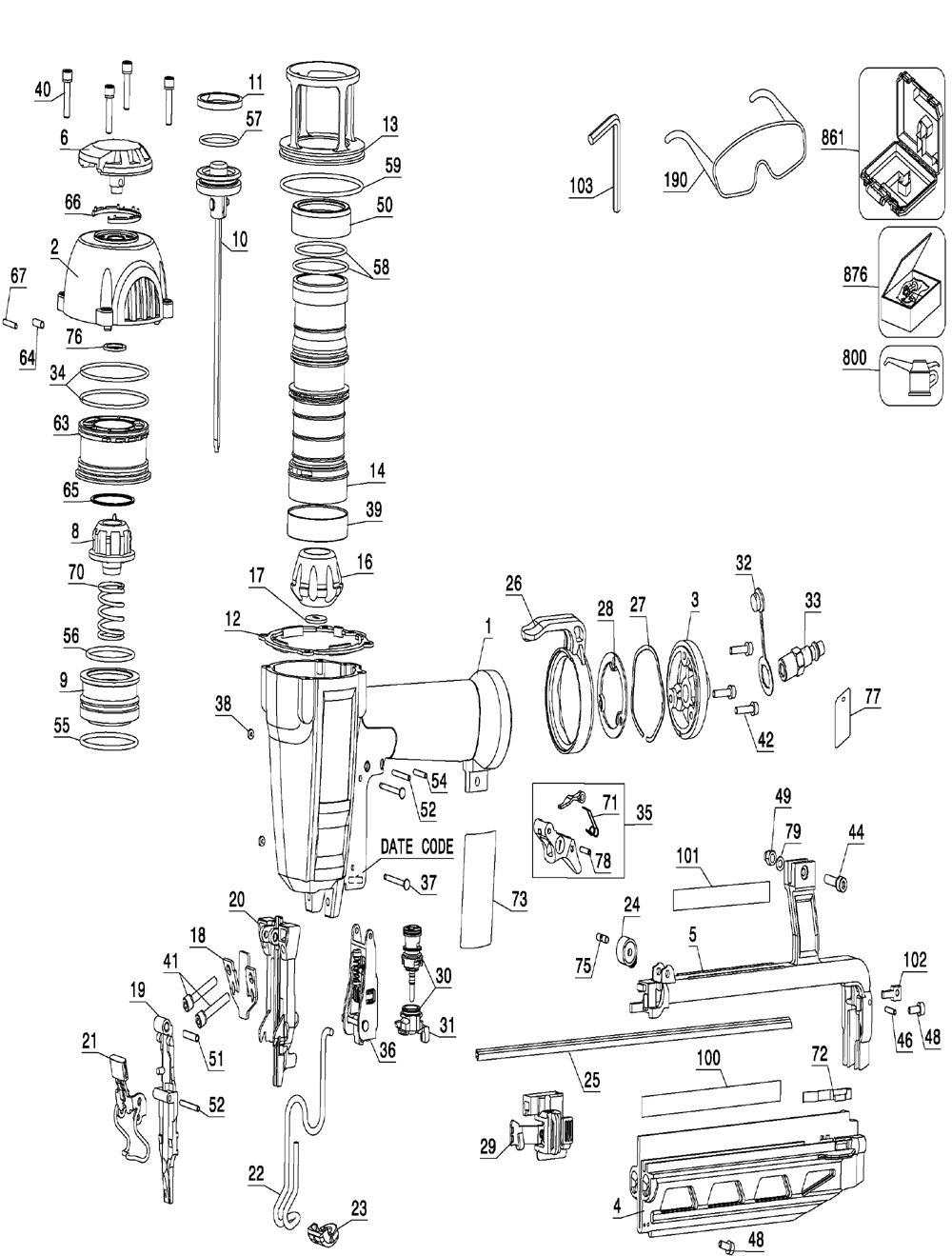

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	645891-00	FRAME	$57.70
2	646079-00	CAP	$26.94
3	647648-00	END CAP	$6.33
4	645884-00	MAGAZINE	$20.40
5	645883-00	MAGAZINE	$12.53
6	646416-00	DEFLECTOR	$2.98
8	651874-00	BUMPER	$1.76
9	N006892	HEAD VALVE	$6.56
10	647649-00	PISTON DRIVER ASSEMBLY	$30.28
11	647950-00	SEAL	$2.86
12	647954-00	GASKET	$1.56
13	652466-00	HOLD DOWN	$2.25
14	646281-00	CYLINDER	$4.62
16	652499-00	BUMPER	$5.04
17	646980-00	PLATE	$1.21
18	647065-00	DOOR	$1.56

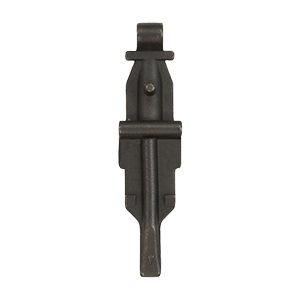

19	647073-00	DOOR	$18.64
20	N030812	NOSE	$28.32
21	653129-00	LATCH	$3.87

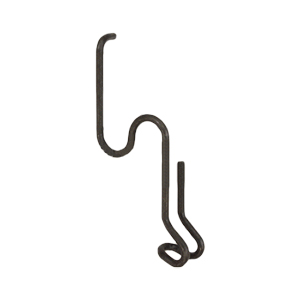

22	644274-00	CONTACT TRIP	$6.99
23	619944-00	NOMAR PAD	$2.69
24	647605-00	SPRING	$3.67
25	645872-00	LINER	$8.10
26	647607-00	BELT HOOK	$2.86
27	647608-00	SPRING	$1.21
28	N043700	GASKET	$1.39
29	647946-00	PUSHER	$7.00
30	647956-00	TRIGGER VALVE ASSEMBLY	$12.63
31	641011-00	CAP	$2.63
32	634066-00	CAP	$1.21
33	634059-00	FITTING	$2.72
34	647850-00	O-RING	$1.21
35	641209-00	TRIGGER ASSY.	$5.58
35	641188-00	TRIGGER ASSEMBLY	$10.13
36	N108466	ADJUSTER	$14.34
37	395091-00	PIN	$2.04
38	391814-00	GROMMET	$1.89
39	N000558	CYLINDER RING	$4.14
40	608174-00	SCREW	$1.23
41	608175-00	SCREW	$1.23
42	608178-00	SCREW	$1.23
44	N077883	SCREW & WASHER	$1.39
46	330036-11	ROLL PIN	$1.23
48	608179-00	SCREW & WASHER	$1.23
49	607156-00	ACORN NUT	$1.23
50	649695-00	SEAL	$1.21
51	330036-03	ROLL PIN	$1.21
52	650156-00	SPIRAL PIN	$1.21
54	650155-00	SPIRAL PIN	$1.21
55	651606-00	O-RING	$1.21
56	651607-00	O-RING	$1.21
57	647951-00	O-RING	$1.21
58	652467-00	O-RING	$1.21
59	398166-00	O-RING	$1.94
63	N021192	SLEEVE	$2.69
64	651982-00	SLEEVE	$1.21
65	651703-00	RING	$1.21
66	632495-00	O-RING	$1.21
67	632492-00	PIN	$1.21
70	395379-00	SPRING	$2.51
71	391813-00	SPRING	$1.15
72	649650-00	RETAINER	$1.21
73	647941-00	LABEL	$1.21
75	N004643	PIN	$1.21
76	632239-00	WASHER	$1.21
77	640766-00	HANG TAG	$2.86
78	603394-00	SPIRAL PIN	$1.15
79	330016-01	WASHER	$1.23
100	647817-00	WARNING LABEL	$1.21
101	646425-00	LABEL	$1.18
102	645873-00	LATCH	$2.10
103	604407-02	HEX WRENCH	$1.23
103	98000-09	WRENCH, HEX-4MM	$7.34
190	629042-01	SAFETY GLASSES	$9.73
800	429995-00	GREASE	$50.49
861	652411-00	KIT BOX	$27.34
876	N001079	BUMPER	$12.44
876	N001085	DRIVER BLADE	$41.83
876	N001065	O-RING KIT	$17.82
876	N003392	TRIGGER VALVE ASSEMBLY	$19.18
876	653322-00	TRIGGER	$6.12
876	N003391	TRIGGER	$18.56
876	N003390	TRIGGER	$17.82
