DeWalt D51180 Air Nailer & Stapler Parts

DeWalt D51180 Parts

Download Schematic

Time to buy a new tool?

DeWalt D51180

Heavy Duty Palm Nail...

$95.64

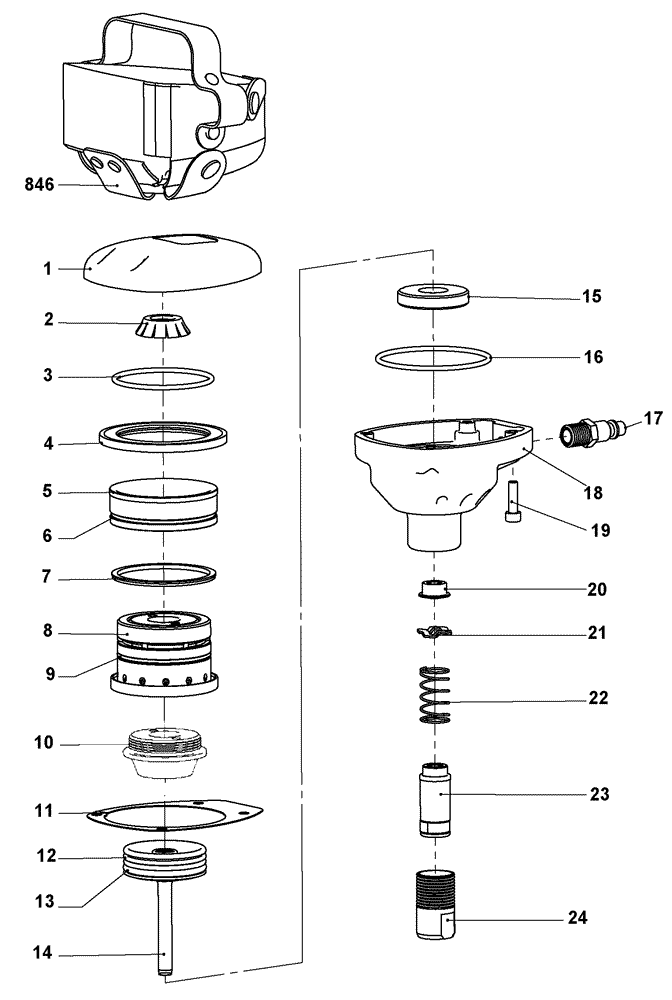

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	5140026-98	TOP COVER	$38.24
2	5140026-99	WASHER	$5.12
3	5140027-00	O-RING	$1.84
4	5140027-19	SEAL	$9.22
5	5140027-01	VALVE	$12.51
6	5140027-20	O-RING	$1.28
7	5140027-02	RUBBER RING	$1.84
8	5140027-31	CYLINDER ASSEMBLY	$36.95
9	5140027-21	O-RING	$1.28
10	5140027-31	CYLINDER ASSEMBLY	$36.95
11	5140027-05	GASKET	$3.49
12	5140027-06	O-RING	$1.28
13	5140027-07	O-RING	$1.28
14	5140027-08	PISTON DRIVER ASSEMBLY	$38.24
15	5140027-09	DAMPENER	$3.49
16	5140027-10	O-RING	$1.84
17	5140027-11	QUICK COUPLER	$3.49
18	5140027-12	BODY	$38.24
19	5140027-13	SCREW	$1.28
20	5140027-18	BUSHING	$3.49
21	5140027-14	WAVE WASHER	$1.10
22	5140027-15	SPRING	$1.10
23	5140027-16	GUIDE	$18.26
24	5140027-17	GUIDE	$10.87
846	5140027-28	LEATHER GLOVE	$15.82
