Dewalt D28770K

Heavy Duty Deep Cut ...

$307.99

Page-1

Page-2

Page-3

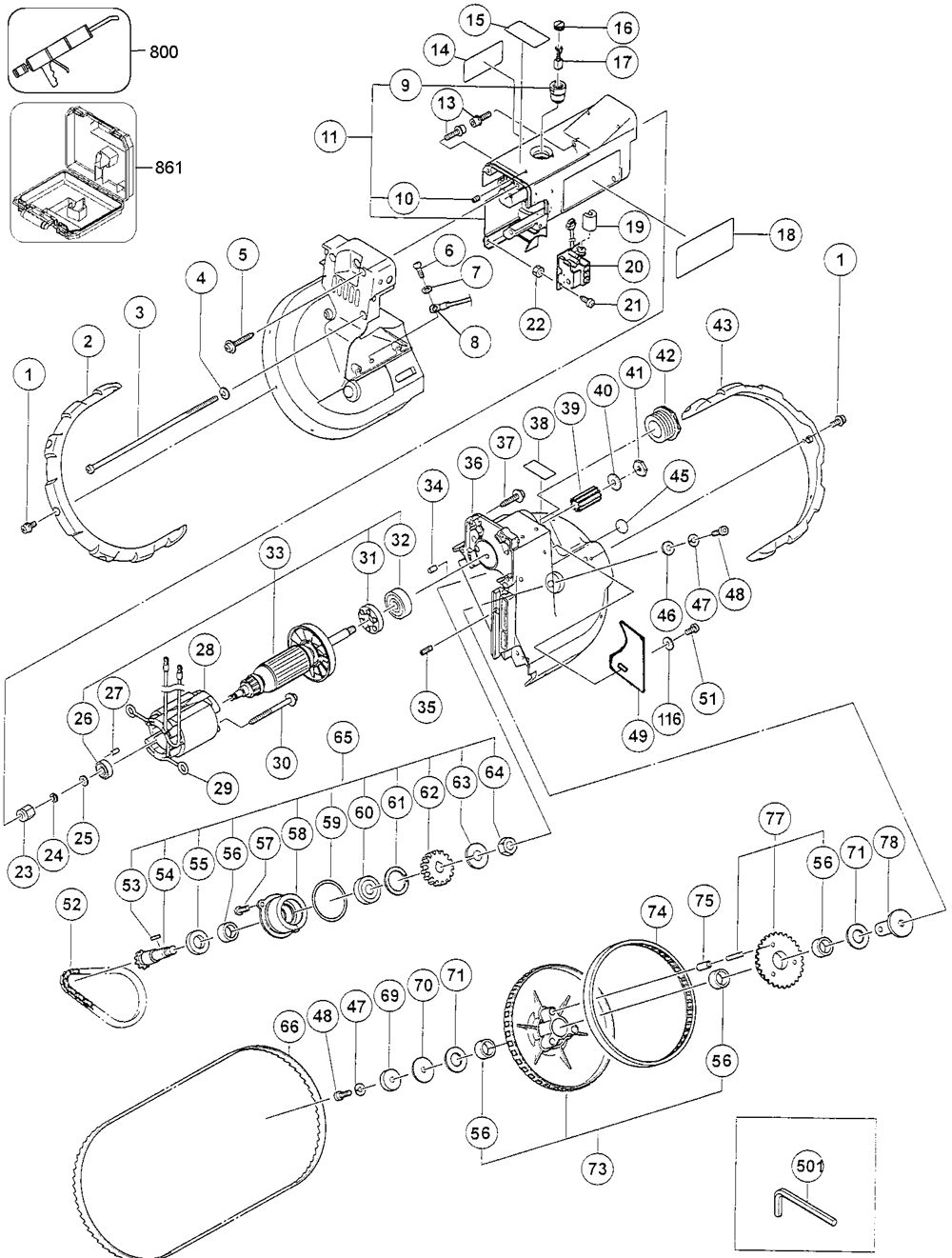

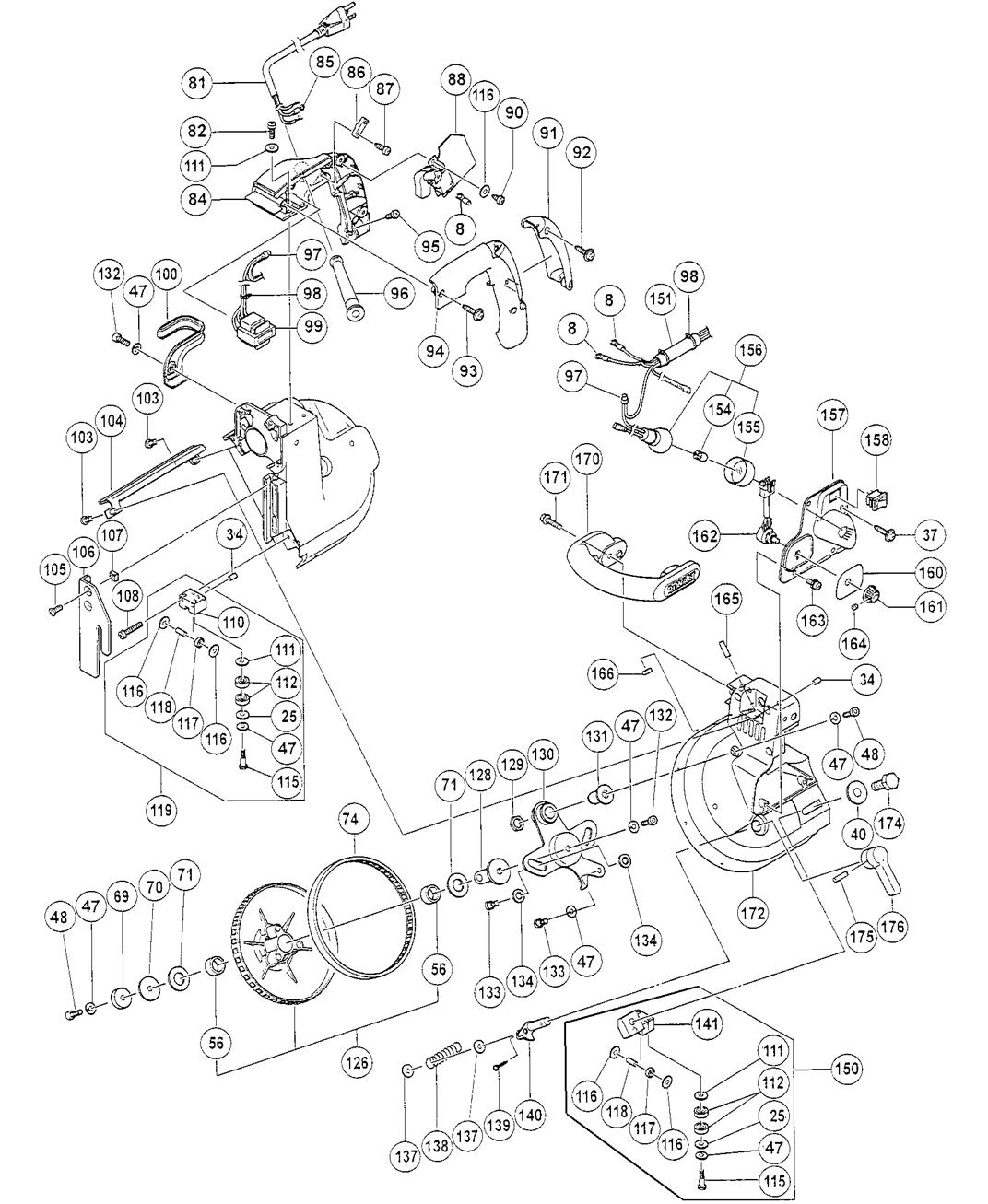

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	5140021-65	MACHINE SCREW	$1.12
2	5140021-64	BUMPER	$8.81
3	5140021-07	MACHINE SCREW	$2.76
4	5140021-11	SPRING WASHER	$1.44
5	5140021-08	SELF-TAP SCREW	$1.12
6	5140020-38	MACHINE SCREW	$1.12
7	5140020-39	"SPRING,WASHER"	$1.12
8	5140024-18	TERMINAL	$3.09
9	5140051-37	BRUSH HOLDER	$1.62
10	5140020-43	SET SCREW	$1.12
11	5140020-41	HOUSING ASSY.	$30.65
13	5140020-50	BOLT	$1.89
14	622608-00	NAME PLATE	$5.10
15	622602-00	CAUTION LABEL	$1.12
16	5140020-46	BRUSH CAP	$1.48
17	5140020-26	BRUSH	$5.61
18	622603-00	ID LABEL	$1.89
19	5140021-78	MOLTO PRANE	$1.31
20	5140020-28	CONTROLLER	$140.75
21	5140021-49	SELF-TAP SCREW	$1.12
22	5140021-50	LOCK NUT	$1.44
23	5140020-23	MAGNET	$22.99
24	5140020-25	LOCK WASHER	$1.12
25	5140020-24	WASHER	$1.44
26	5140003-46	BALL BEARING	$14.96
27	5140020-44	"LOCK,BEARING"	$1.12
28	5140020-21	FIELD ASSY.	$33.71
29	5140020-22	"TERMINAL,BRUSH"	$1.12
30	5140020-45	SELF-TAP SCREW	$1.48
31	5140020-51	OIL SEAL	$11.77
32	5140021-72	BALL BEARING	$18.02
33	5140020-20	ARMATURE ASSY.	$80.23
34	5140020-49	PIN	$4.04
35	5140020-76	SET SCREW	$1.12
36	5140051-44	COVER ASSEMBLY	$62.52
37	5140020-48	SELF-TAP SCREW	$1.12
38	622606-00	CAUTION LABEL	$1.12
39	5140020-52	WORM	$48.76
40	5140020-53	WASHER	$1.12
41	5140020-54	LOCK NUT	$1.12
42	5140020-55	OIL GAUGE	$20.55
43	5140021-63	BUMPER	$8.65
46	5140020-71	WASHER	$1.12
47	5140020-70	"SPRING,WASHER"	$1.58
48	5140020-69	BOLT	$3.45
49	5140051-36	PLATE	$5.57
51	5140021-59	MACHINE SCREW	$1.12
52	5140051-38	CHAIN	$23.06
53	5140020-60	KEY	$1.12
54	5140020-57	SHAFT	$12.22
55	5140020-65	OIL SEAL	$3.52
56	5140020-64	NEEDLE BEARING	$4.46
57	5140020-67	MACHINE SCREW	$1.39
58	5140020-66	HOLDER	$11.54
59	5140020-63	O-RING	$3.62
60	5140021-73	BALL BEARING	$12.94
61	5140020-58	RETAINING RING	$1.31
62	5140020-59	GEAR	$77.70
63	5140020-61	"SPRING,WASHER"	$3.92
64	5140020-62	LOCK NUT	$5.14
65	5140051-39	SPROCKET ASSY.	$119.83
69	5140020-82	WASHER	$1.89
70	5140020-81	WASHER	$1.12
71	5140020-72	WASHER	$1.12
73	5140020-77	PULLEY	$26.28
74	5140020-79	"TIRE,RUBBER"	$6.16
75	5140020-80	BUSHING	$1.31
77	5140051-40	SPROCKET ASSY.	$27.16
78	5140020-68	PULLEY SHAFT	$6.66
81	36480-98	CORD/10FT./18-3	$20.80
82	5140020-67	MACHINE SCREW	$1.39
84	5140020-94	"HANDLE, SWITCH"	$8.69
85	053650-00	TERMINAL	$1.24
86	5140021-04	CORD CLAMP	$1.48
87	5140051-41	SCREW	$1.12
88	5140020-27	SWITCH	$23.56
90	5140021-02	SELF-TAP SCREW	$1.12
91	5140020-96	GRIP PAD	$5.58
92	5140021-00	SELF-TAP SCREW	$1.12
93	5140021-06	SELF-TAP SCREW	$1.12
94	5140020-95	HANDLE COVER	$5.28
95	5140020-97	MACHINE SCREW	$1.62
96	330005-01	PROTECTOR, CORD	$4.63
96	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
97	5140021-61	CONNECTOR	$3.58
98	5140021-62	CABLE TIE	$1.12
99	5140020-35	TRANSFORMER	$49.67
100	5140021-67	HOOK	$7.83
103	330045-13	SCREW, TAPTITE	$1.23
104	5140021-53	BLADE GUARD	$3.58
105	5140021-56	SCREW	$4.64
106	5140021-55	"PLATE,GUIDE"	$4.46
107	5140021-57	NUT SQUARE	$1.12
108	5140021-75	MACHINE SCREW	$1.12
110	5140051-42	HOLDER	$6.64
111	5140020-90	WASHER	$1.44
112	5140021-76	ROLLER	$3.58
115	5140020-89	"PIN,BEARING"	$1.89
116	5140020-87	WASHER	$1.12
117	5140021-77	ROLLER	$2.54
118	5140020-88	"PIN,BEARING"	$1.31
119	5140020-85	BEARING ASSEMBLY	$20.54
126	5140021-32	PULLEY	$26.28
128	5140021-28	SHAFT	$7.00
129	5140021-14	NUT	$1.12
130	5140021-12	ARM	$20.68
131	5140021-13	SHAFT	$13.77
132	5140021-27	BOLT	$3.05
133	5140021-17	SCREW	$1.91
134	5140021-18	THRUST WASHER	$1.12
137	5140021-23	WASHER	$1.67
138	5140021-22	"SPRING,TENSION"	$1.12
139	5140021-24	PIN	$2.54
140	5140021-20	CAMSHAFT	$11.24
141	5140021-38	"HOLDER,BEARING"	$5.58
150	5140021-37	BEARING ASSEMBLY	$21.18
151	5140021-79	VINYL TUBE	$1.63
154	5140020-30	LAMP	$12.45
155	5140020-31	LIGHT COVER	$27.83
156	5140020-29	LIGHT	$43.82
157	5140021-46	"PLATE,SWITCH"	$4.96
158	5140020-32	SWITCH	$10.30
160	622607-00	"LABEL,SPEED"	$1.12
161	5140020-34	KNOB	$3.16
162	5140020-33	POTENTIOMETER	$41.00
163	5140021-47	MACHINE SCREW	$1.12
164	5140021-82	SET SCREW	$1.12
165	5140021-54	ROLL PIN	$1.12
166	5140021-83	ROLLER	$4.50
170	5140021-51	"HANDLE,FRONT"	$7.56
171	5140021-52	MACHINE SCREW	$1.12
172	5140021-84	PULLEY GUARD	$31.67
174	5140021-85	BOLT	$1.48
175	5140021-21	ROLL PIN	$4.99
176	5140021-19	"LEVER,TENSION"	$4.19
501	98000-09	WRENCH, HEX-4MM	$7.34
800	449562-01	LUBRICANT-6 OZ.	$26.65
800	286445-00	GREASE.14 OZ.	$11.08
800	5140021-86	OIL	$77.90
