DeWalt D28494N-Type-2 Electric Grinder Parts

DeWalt D28494N-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

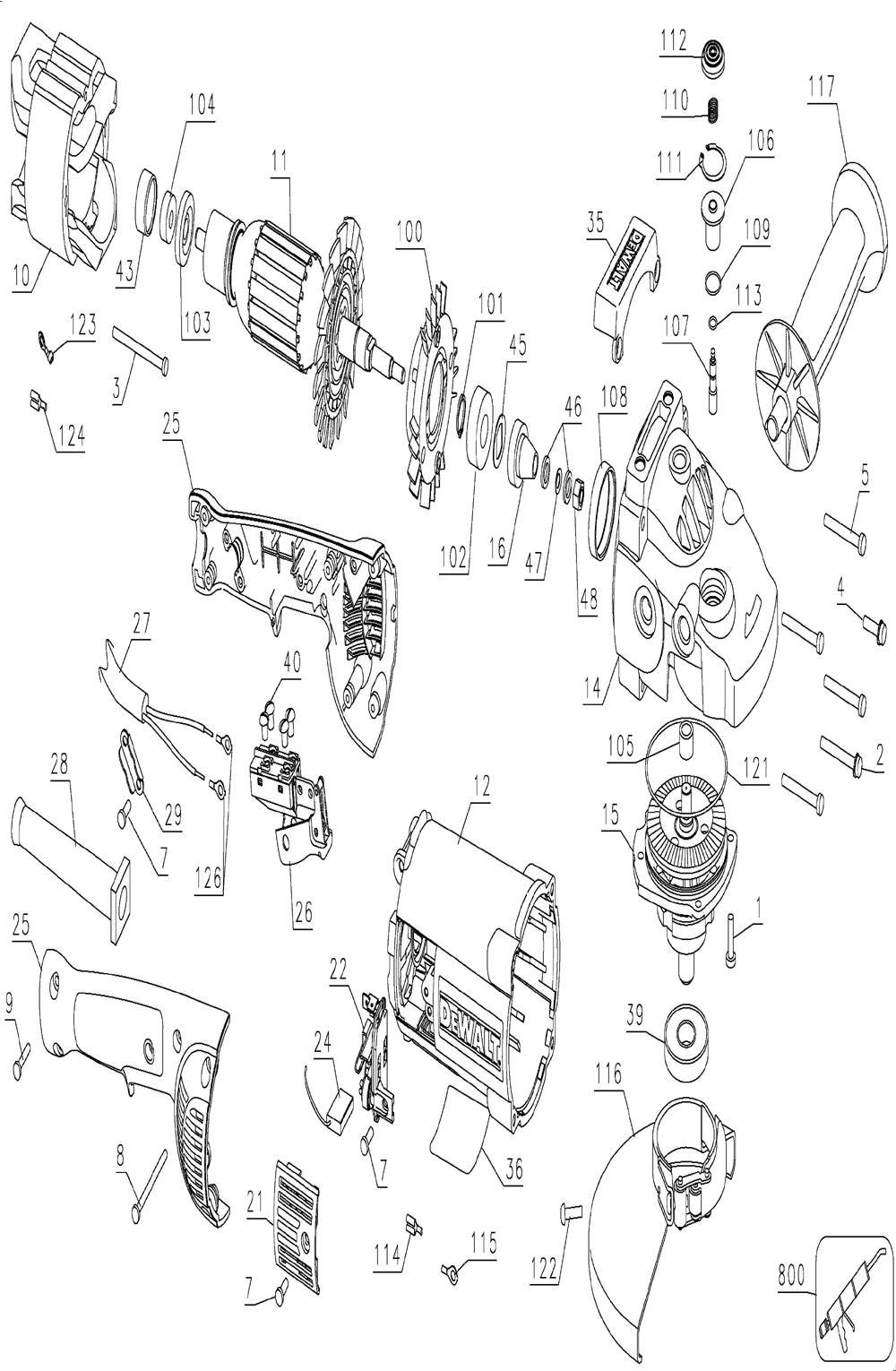

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	330045-15	SCREW, M5X20	$1.24
2	330019-26	SCREW	$1.23
3	330019-19	SCREW, PLASTITE	$1.24
4	330045-70	SCREW	$1.12
5	330045-67	SCREW	$1.18
7	330019-11	SCREW	$1.24
8	330019-18	SCREW, PLASTITE	$1.23
9	330019-32	SCREW	$1.23
10	614024-00SV	FIELD	$102.64
11	635998-01	ARMATURE KIT	$98.28
12	393239-00	FIELD CASE	$25.30
14	398618-00SV	GEAR CASE ASSEMBLY	$50.19
15	398621-09SV	GEAR CASE COVER ASSY	$59.74
16	603237-01	PINION ASSEMBLY	$23.21
21	394387-00	BRUSH DOOR	$1.91
22	617001-00	BRUSH HLDR.ASSY	$6.79
24	392574-01	BRUSH	$7.26
25	395184-00	HANDLE & COVER	$18.12
26	394375-04	SWITCH	$15.97
27	614838-00	CORD&PLUG	$22.87
28	330005-11	CORD PROTECTOR	$2.69
29	604119-00	CORD CLAMP	$1.91
35	620579-00	BUMPER	$3.16
36	606186-29	NAME PLATE	$0.99
39	445928-01	SOFT MOUNT	$7.54
40	384127-01	SCREW	$1.24
43	609970-00	BEARING CUP	$1.21
45	608568-00	WASHER	$1.91
46	607502-00	WASHER	$1.21
47	614045-00	SPRING WASHER	$1.18
48	609125-00	LOCK NUT	$1.21
100	393222-00	STATOR	$7.64
101	398605-00	RETAINING RING	$1.24
102	605040-27	BALL BEARING	$3.38
103	393238-00	DUST SHIELD	$10.91
104	330003-60	BEARING	$4.75
105	330004-06	BEARING, NEEDLE	$4.09
106	611213-00	SLEEVE	$2.11
107	611212-00	PIN	$1.82
108	609971-00	SLEEVE	$1.91
109	50049-00	O RING	$1.23
110	395029-00	SPRING	$1.21
111	603470-00	RETAINING RING	$1.21
112	610999-00	CAP	$1.21
113	603608-00	O RING	$1.21
114	398816-01	TERMINAL	$1.24
115	053650-00	TERMINAL	$1.24
116	393141-03	GUARD ASSEMBLY-9 INCH	$26.91
117	651858-00	SIDE HANDLE	$9.13
121	397031-00	O-RING	$1.21
122	606863-00	SCREW	$1.21
123	610057-00	TERMINAL	$1.21
124	612273-00	TERMINAL	$1.21
126	395716-00	TERMINAL	$1.09
800	429954-01	GREASE, 1 LB.	$87.14
800	429954-00	GREASE, 7LBS	$168.34
