DeWalt D28402-Type-2 Electric Grinder Parts

DeWalt D28402-Type-2 Electric Grinder Parts Image

DeWalt D28402-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

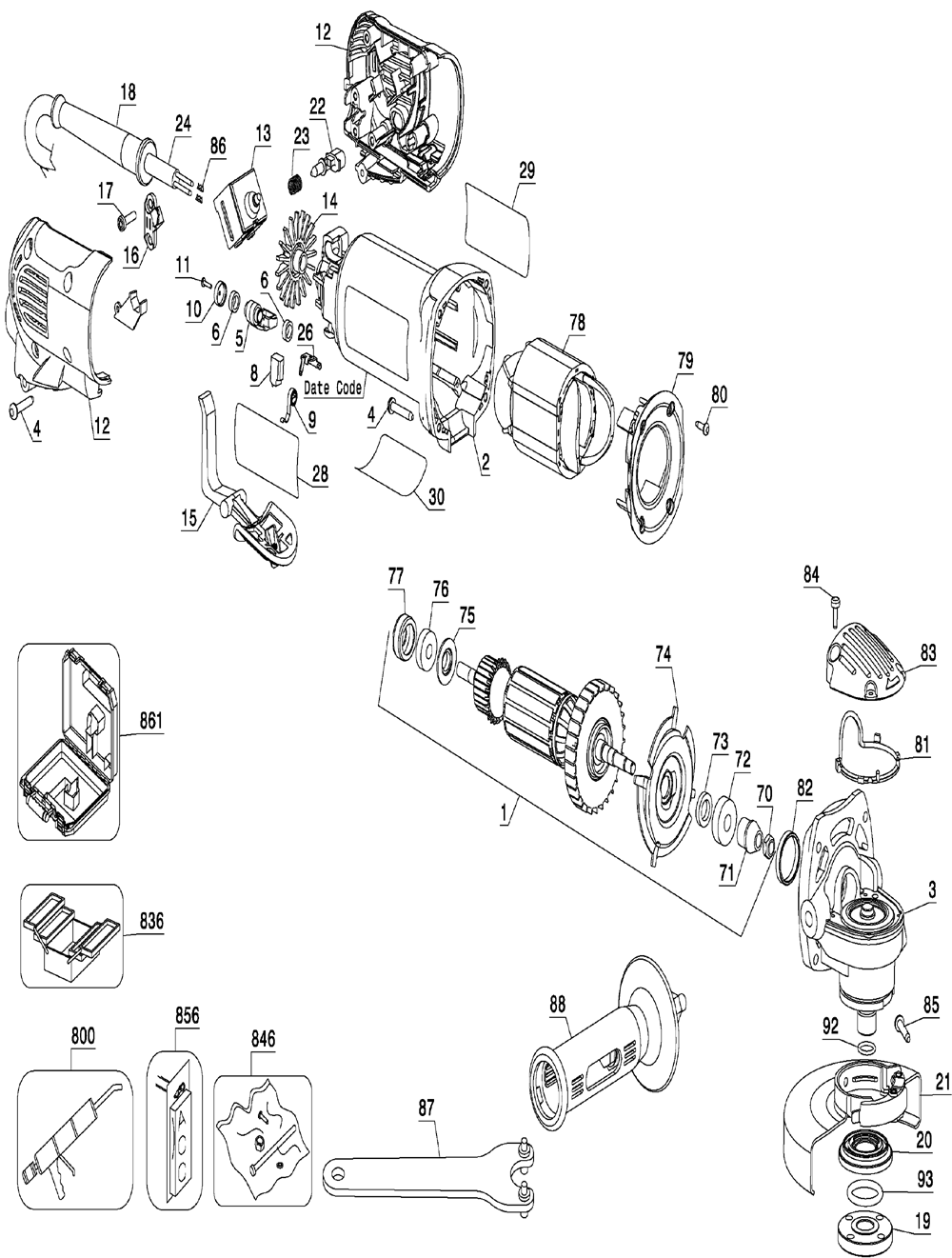

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	N127077	ARMATURE ASSY.	$32.54
2	623571-00	FIELD CASE	$8.44
3	N127078	GEAR CASE ASSY.	$26.81
3	657179-00	GEAR	$4.88
4	330065-31	SCREW	$1.10
5	648743-00	ARM	$1.33
6	623592-00	FELT SEAL	$1.10
8	650916-01	BRUSH	$5.58
8	M65	Carbon Brush Set	$8.19
9	623589-00	BRUSH SPRING	$1.10
10	623591-00	CAP	$1.10
11	593685-00	SCREW	$1.10
12	623576-00	HANDLE ASSEMBLY	$8.44
13	945614-02	SWITCH	$10.50
14	N055787	SEPARATOR	$1.20
15	623619-00S	PADDLE ASSEMBLY	$3.51
16	626006-00	CORD CLAMP	$1.10
17	330019-03	SCREW	$1.24
18	330005-01	PROTECTOR, CORD	$4.63
18	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
19	636226-00	NUT	$7.74
20	633257-00SV	BACKING FLANGE	$5.29
21	397661-01	GUARD	$15.84
22	625415-00	PLUG	$1.84
22	625323-00	LOCK-ON BUTTON	$1.10
23	562210-00	SPRING	$4.36
24	330072-98	CORD/8FT/18-2SJ	$11.53
24	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
26	623593-00	TERMINAL	$1.10
28	N115002	NAME PLATE	$1.39
29	628885-00	ID LABEL	$1.10
30	N119716	WARNING LABEL	$1.39
70	604484-00	NUT	$1.24
71	657180-00	PINION	$4.04
72	605040-11	BALL BEARING	$2.86
73	623617-00	FELT SEAL	$1.10
74	623580-00	BRG. RETAINER	$1.84
75	623613-00	SLINGER	$3.09
76	605040-02	BALL BEARING	$3.92
77	641823-00	BEARING CUP	$1.62
78	621220-02	FIELD	$30.73
79	623572-00	FAN BAFFLE	$1.10
80	330065-25	SCREW	$1.18
81	623618-00	GASKET	$1.10
82	611492-00	SLEEVE, RUBBER	$1.12
83	623562-00	GEAR CASE COVER	$5.98
84	385676-01	SCREW	$1.10
85	631609-02	SCREW	$1.39
86	444262-00	TERMINAL	$1.24
87	N079326	WRENCH	$2.51
88	N042463	SIDE HANDLE	$7.24
92	633044-00	O-RING	$1.33
93	633043-00	O-RING	$1.72
800	429954-01	GREASE, 1 LB.	$87.14
800	583534-00	GREASE	$61.97
800	30301914-01	GREASE	$86.88
800	429954-00	GREASE, 7LBS	$168.34
846	625415-00	PLUG	$1.84
846	5140030-98	SHIM	$1.23
856	643772-00	GUARD	$12.88
861	651196-00	KITBOX	$30.00
