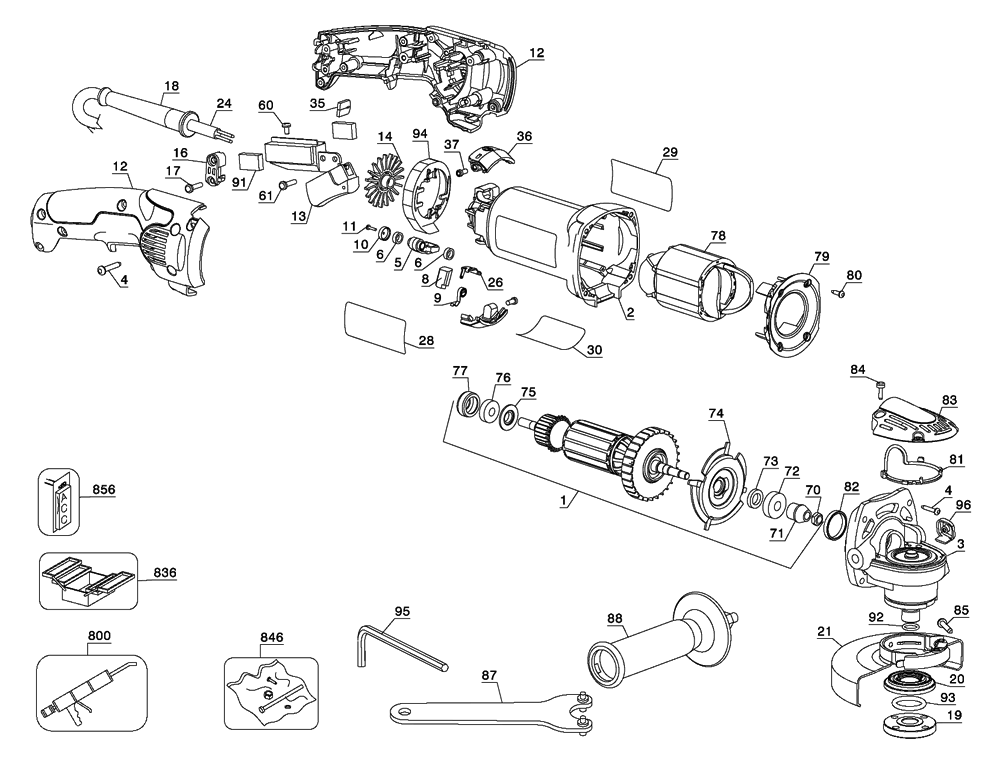

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	623584-09S	ARMATURE ASSY	$64.37
2	632180-01	FIELD CASE	$8.52
3	629447-07SV	GEAR CASE	$63.89
4	330065-31	SCREW	$1.10
5	648743-00	ARM	$1.33
6	623592-00	FELT SEAL	$1.10
8	650918-01	BRUSH	$6.26
9	648613-00	BRUSH SPRING	$1.33
10	623591-00	CAP	$1.10
11	593685-00	SCREW	$1.10
12	647727-02SV	HANDLE ASSY	$13.77
13	647715-00SV	SWITCH	$25.07
14	N055787	SEPARATOR	$1.20
16	643889-00	CORD CLAMP	$1.72
17	330019-03	SCREW	$1.24
18	330005-01	PROTECTOR, CORD	$4.63
18	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
19	636226-00	NUT	$7.74
20	633257-00SV	BACKING FLANGE	$5.29
21	397661-02	GUARD ASSEMBLY	$12.71
24	330081-19	CORD/10'/16-2SJ	$20.54
26	623593-00	TERMINAL	$1.10
28	657667-00	NAME PLATE	$1.21
29	628885-00	ID LABEL	$1.10
30	626891-01	WARNING LABEL	$1.18
35	646012-00	FELT SEAL	$1.26
36	646940-00	BRUSH DOOR	$1.50
37	648777-00	SCREW	$1.18
60	387746-00	SCREW	$1.24
61	330065-07	SCREW	$1.24
70	604484-00	NUT	$1.24
71	629797-00	PINION	$11.81
72	330003-03	BEARING, BALL	$4.96
73	623617-00	FELT SEAL	$1.10
74	623580-00	BRG. RETAINER	$1.84
75	623613-00	SLINGER	$3.09
76	605040-02	BALL BEARING	$3.92
77	641823-00	BEARING CUP	$1.62
78	627125-02	FIELD	$35.14
79	623572-00	FAN BAFFLE	$1.10
80	330065-25	SCREW	$1.18
81	632513-00	GASKET	$1.53
82	611492-00	SLEEVE, RUBBER	$1.12
83	627313-00	GEAR CASE COVER	$4.50
84	385676-01	SCREW	$1.10
85	631609-02	SCREW	$1.39
87	401680-00	WRENCH	$8.18
88	614796-00	SIDE HANDLE	$12.71
91	620051-00	PAD	$1.41
92	633044-00	O-RING	$1.33
93	633043-00	O-RING	$1.72
94	640723-00	BAFFLE	$1.72
800	429954-00	GREASE, 7LBS	$168.34
800	429954-01	GREASE, 1 LB.	$87.14
800	30301914-01	GREASE	$86.88
800	583534-00	GREASE	$61.97
846	5140030-98	SHIM	$1.23
856	643772-00	GUARD	$12.88
