DeWalt D28114 Electric Grinder Parts

DeWalt D28114 Electric Grinder Parts Image

DeWalt D28114 Parts

Download Schematic

Time to buy a new tool?

DeWalt D28114

Heavy-Duty 4-1/2 Inc...

$149.82

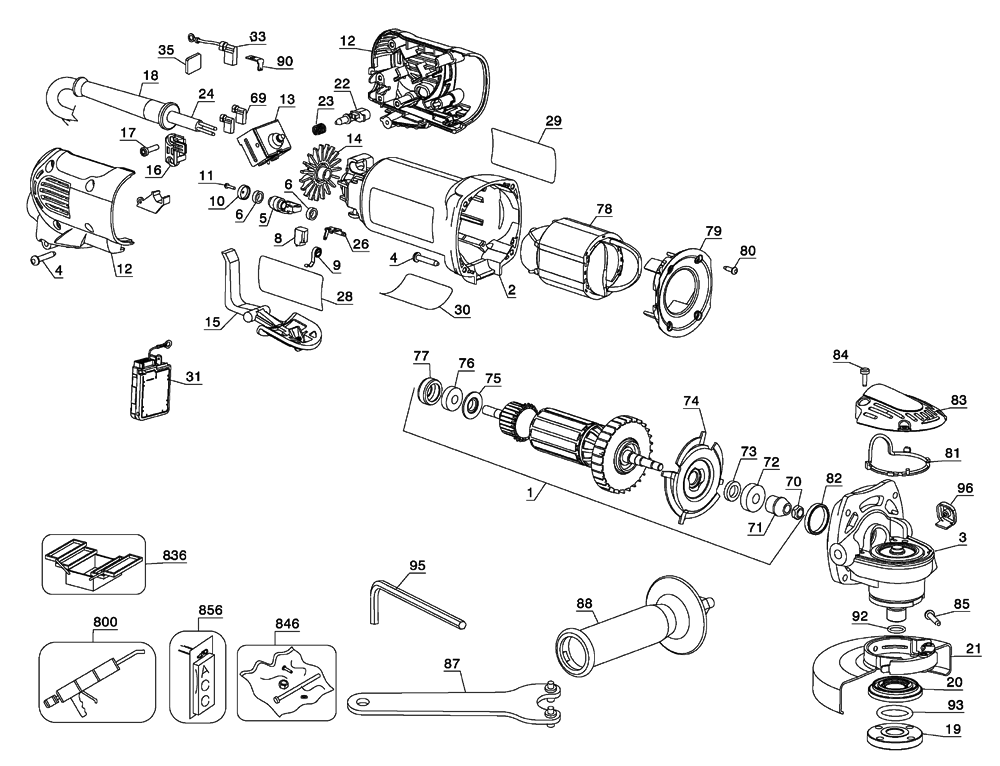

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	623584-06S	ARMATURE ASSEMBLY	$63.80
2	632180-01	FIELD CASE	$8.52
3	629447-00S	GEAR CASE ASSY	$52.17
4	330065-31	SCREW	$1.10
5	648743-00	ARM	$1.33
6	623592-00	FELT SEAL	$1.10
8	650917-01	BRUSH	$5.57
9	636760-00	BRUSH SPRING	$1.23
10	623591-00	CAP	$1.10
11	593685-00	SCREW	$1.10
12	633016-02S	HANDLE ASSY	$12.51
13	945614-02	SWITCH	$10.50
14	N055787	SEPARATOR	$1.20
15	623619-01S	PADDLE ASSEMBLY	$3.51
16	628398-00	CORD CLAMP	$1.23
17	330019-03	SCREW	$1.24
18	330005-01	PROTECTOR, CORD	$4.63
18	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
19	636226-00	NUT	$7.74
20	633257-00SV	BACKING FLANGE	$5.29
21	397661-02	GUARD ASSEMBLY	$12.71
22	625415-00	PLUG	$1.84
22	625323-00	LOCK-ON BUTTON	$1.10
23	562210-00	SPRING	$4.36
24	330081-14	CORD/8FT/16-2SJ	$15.74
24	EC162	Power Tools Replacement Electical Cords (SJO) 16...	$14.19
26	623593-00	TERMINAL	$1.10
28	639679-00	NAME PLATE	$1.23
29	628885-00	ID LABEL	$1.10
30	626891-00	WARNING LABEL	$1.10
31	642971-01	MODULE	$70.20
33	631028-01	TERMINAL	$1.44
35	633391-00	SEAL	$4.12
70	604484-00	NUT	$1.24
71	627465-00	PINION	$11.18
72	330003-03	BEARING, BALL	$4.96
73	623617-00	FELT SEAL	$1.10
74	623580-00	BRG. RETAINER	$1.84
75	623613-00	SLINGER	$3.09
76	605040-02	BALL BEARING	$3.92
77	641823-00	BEARING CUP	$1.62
78	627125-01	FIELD	$33.94
79	623572-00	FAN BAFFLE	$1.10
80	330065-25	SCREW	$1.18
81	632513-00	GASKET	$1.53
82	611492-00	SLEEVE, RUBBER	$1.12
83	627313-00	GEAR CASE COVER	$4.50
84	385676-01	SCREW	$1.10
85	631609-02	SCREW	$1.39
87	401680-00	WRENCH	$8.18
88	614796-00	SIDE HANDLE	$12.71
90	634599-00	TERMINAL	$0.65
92	633044-00	O-RING	$1.33
93	633043-00	O-RING	$1.72
800	429954-00	GREASE, 7LBS	$168.34
800	429954-01	GREASE, 1 LB.	$87.14
800	30301914-01	GREASE	$86.88
800	583534-00	GREASE	$61.97
846	625415-00	PLUG	$1.84
846	5140030-98	SHIM	$1.23
