DeWalt D259803-Type-2 Electric Hammer Drill Parts

DeWalt D259803-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

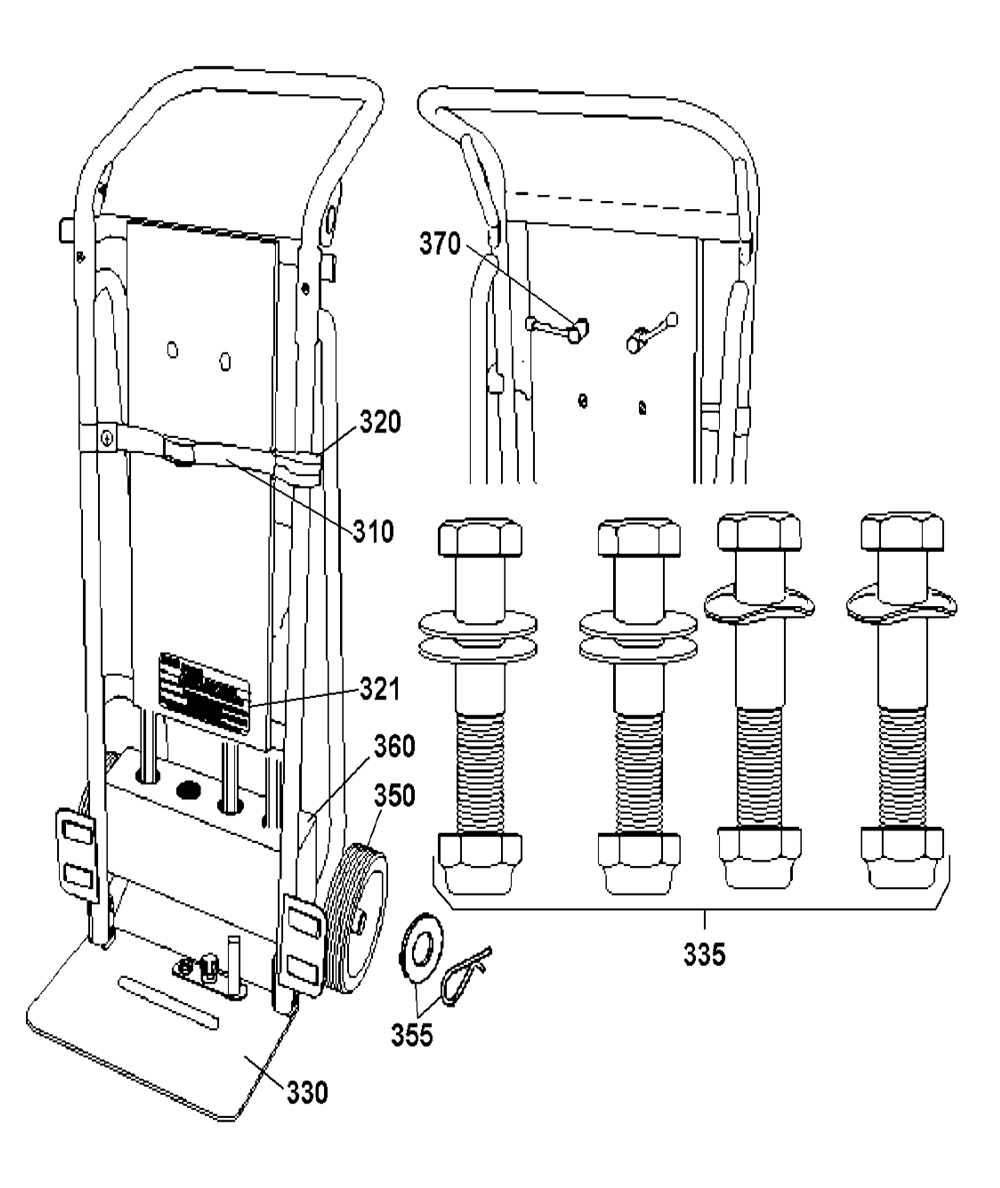

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
310	652939-00	BELT	$11.96
320	652941-00	HOOK	$2.10
321	652934-00	NAMEPLATE	$3.86
330	5140071-47	BASEPLATE ASSY	$52.21
335	654714-00	HARDWARE PACK	$3.38
350	5140071-46	WHEEL KIT	$86.88
355	5140071-28	PARTS KIT	$1.48
360	5140071-48	BIT HOLDER	$10.43
370	5140071-49	LEVER	$10.24
