DeWalt D25890K Electric Hammer Drill Parts

DeWalt D25890K Electric Hammer Drill Parts Image

DeWalt D25890K Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
DeWalt D25890K
Heavy-Duty 19LB SDS ...
$704.99
Page-1
Page-2
Page-3
Tool Diagram    (Click image to Zoom in) View larger Image

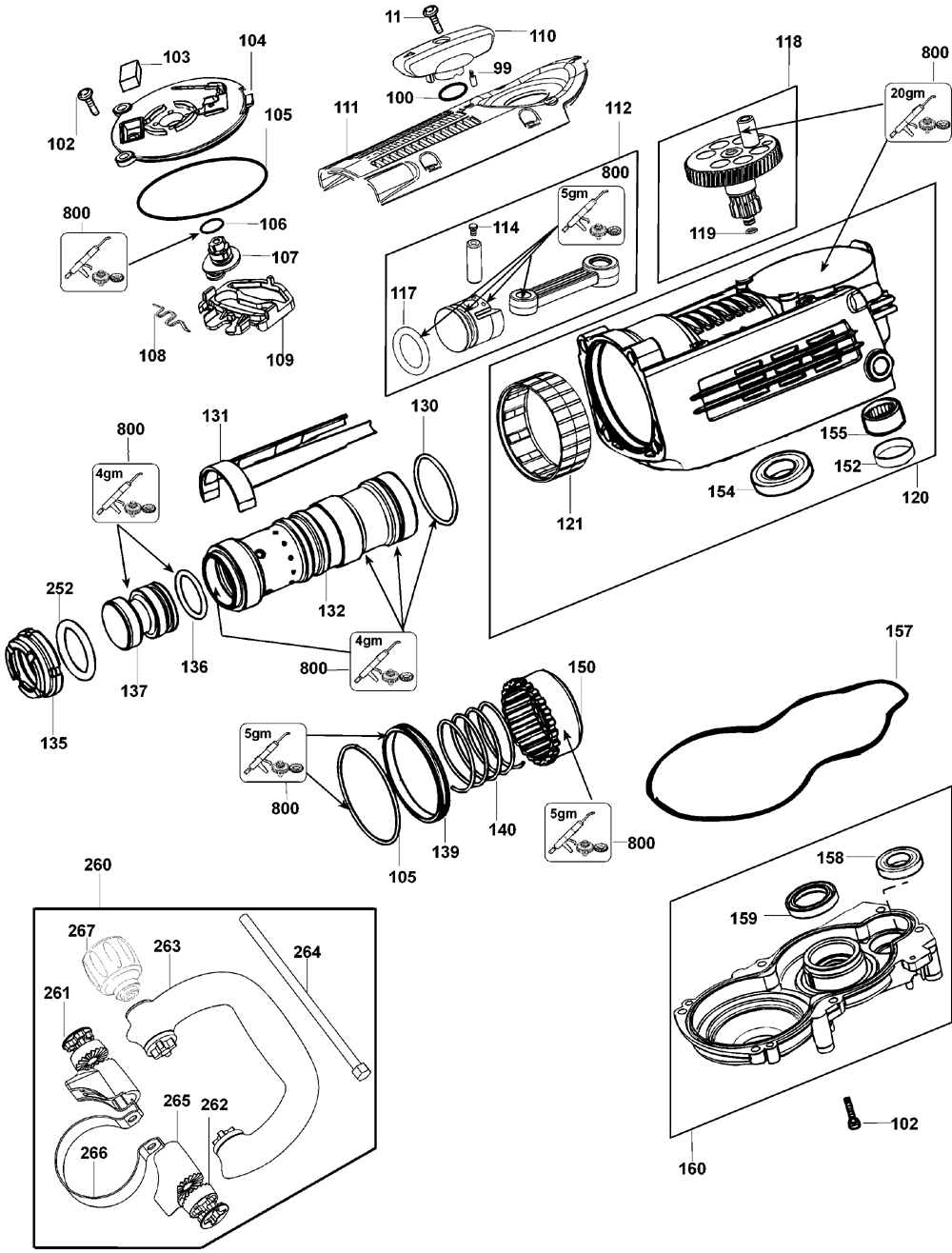

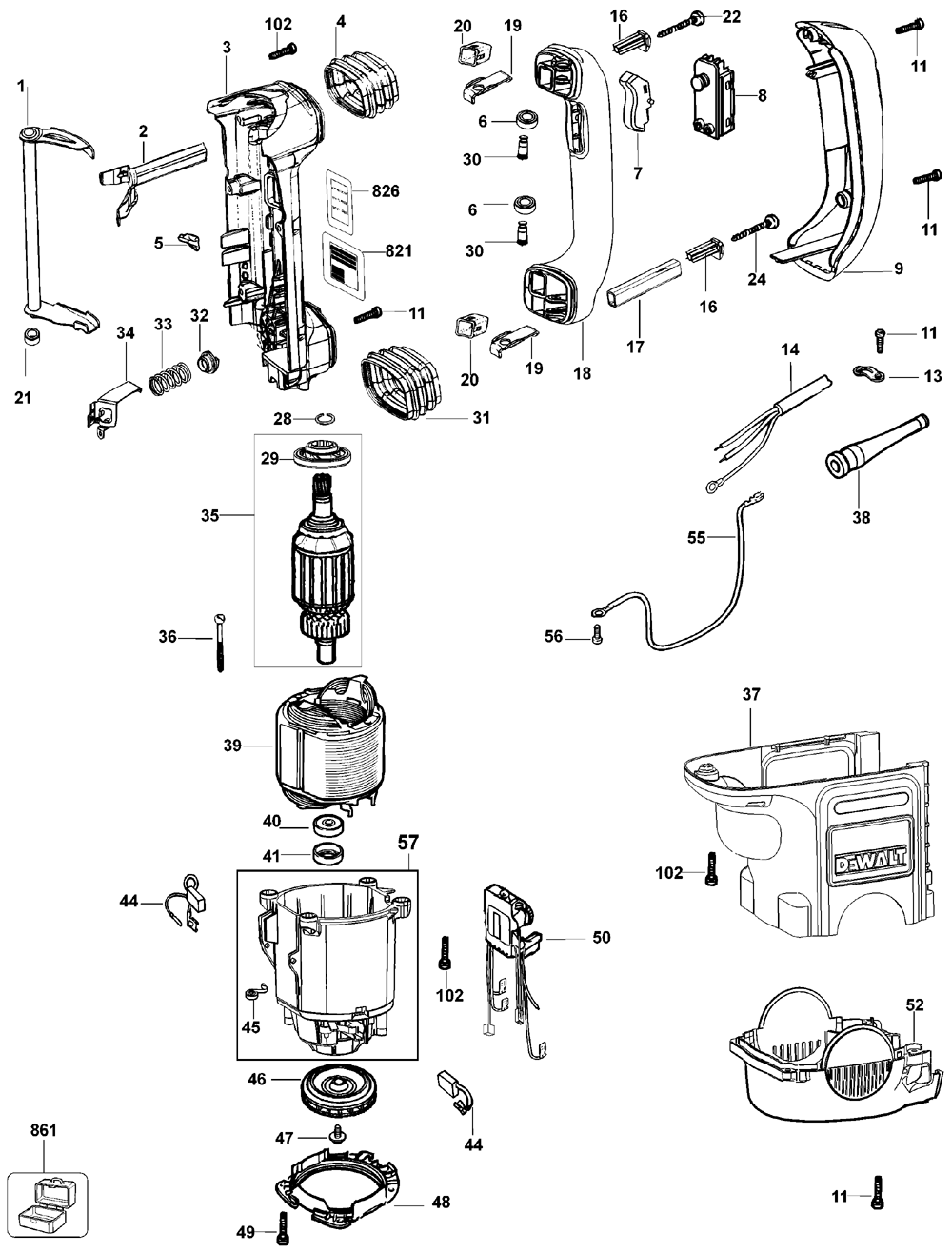

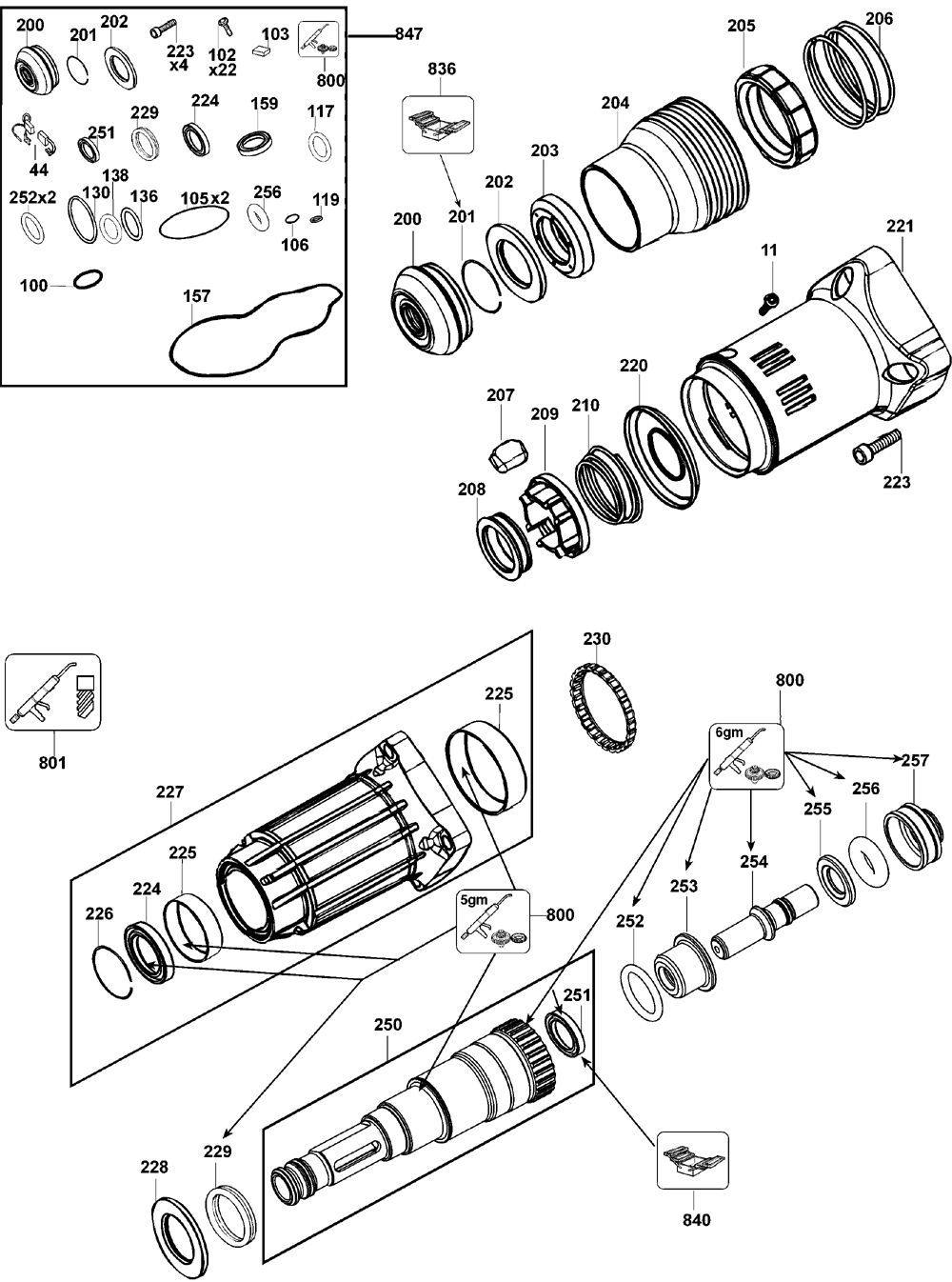

DeWalt D25890K Electric Hammer Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 N019871 REPAIR KIT $22.44
2 586415-00 GUIDE ASSEMBLY $23.26
3 585171-01 HANDLE COVER $12.20
4 588639-00 BELLOWS $7.61
5 586045-00 LENS $1.28
6 586411-00 ROLLER $2.58
7 488065-00 TRIGGER $2.66
8 581070-01 SWITCH $29.54
9 587090-00 HANDLE COVER $10.09
11 330065-08 SCREW $1.24
11 330065-08 SCREW $1.24
13 821070 CORD CLAMP $1.62
14 330100-03 CORD SET $30.73
13 821070 CORD CLAMP $1.62
16 494477-00 STOP $5.23
14 330100-03 CORD SET $30.73
17 586414-00 GUIDE ROD $8.44
18 587085-03 HANDLE $7.16
16 494477-00 STOP $5.23
19 586413-00 DRIVER $4.00
17 586414-00 GUIDE ROD $8.44
20 1005496-00 BUSHING $2.10
21 N019871 REPAIR KIT $22.44
18 587085-03 HANDLE $7.16
19 586413-00 DRIVER $4.00
22 949886-33 SCREW $1.36
24 330019-33 SCREW $1.24
20 1005496-00 BUSHING $2.10
28 577746-00 RING $1.37
21 N019871 REPAIR KIT $22.44
22 949886-33 SCREW $1.36
29 586597-00 GUARD ASSEMBLY $7.61
30 586412-00 AXLE $5.13
24 330019-33 SCREW $1.24
31 588640-00 BELLOWS $8.86
32 586423-00 CARRIER $1.28
33 586421-00 SPRING COMPRESSION $1.36
34 586422-00 RETAINER $4.25
28 577746-00 RING $1.37
35 492486-00 ARMATURE, 120V $153.04
29 586597-00 GUARD ASSEMBLY $7.61
36 330019-30 SCREW $1.24
30 586412-00 AXLE $5.13
37 585169-01 MOTOR COVER $10.32
38 403395-00 CORD PROTECTOR $2.75
31 588640-00 BELLOWS $8.86
39 492488-00 FIELD, 120V $51.54
32 586423-00 CARRIER $1.28
40 577745-00 BALL BEARING $9.36
33 586421-00 SPRING COMPRESSION $1.36
41 590191-00 SLEEVE, INSULATE $1.44
34 586422-00 RETAINER $4.25
35 492486-00 ARMATURE, 120V $153.04
44 489257-00 BRUSH, PAIR $23.26
45 487377-00 BRUSH SPRING $3.01
36 330019-30 SCREW $1.24
37 585169-01 MOTOR COVER $10.32
46 586611-00 FAN ASSEMBLY $14.21
38 403395-00 CORD PROTECTOR $2.75
47 324119-02 SCREW $1.24
39 492488-00 FIELD, 120V $51.54
48 586618-00 BAFFLE $7.16
40 577745-00 BALL BEARING $9.36
49 330019-30 SCREW $1.24
41 590191-00 SLEEVE, INSULATE $1.44
50 662695-08 ELECTRONIC MOD. $138.13
52 587082-00 END CAP $11.26
55 323635-47 LEAD $1.43
56 326619-00 SCREW $1.24
44 489257-00 BRUSH, PAIR $23.26
45 487377-00 BRUSH SPRING $3.01
57 586610-02 MOTOR HOUSING $47.35
99 326467-00 DETENT $1.24
46 586611-00 FAN ASSEMBLY $14.21
47 324119-02 SCREW $1.24
102 324007-11 SCREW $1.24
48 586618-00 BAFFLE $7.16
103 488067-00 FILTER $1.60
49 330019-30 SCREW $1.24
50 662695-08 ELECTRONIC MOD. $138.13
104 586031-00 COVER $4.31
105 323711-56 O-RING $2.25
106 323711-48 O-RING $2.42
52 587082-00 END CAP $11.26
107 586032-00 ECCENTRIC $1.28
108 586033-00 SPRING $4.25
55 323635-47 LEAD $1.43
109 586036-00 SLIDER $3.32
56 326619-00 SCREW $1.24
110 586038-00 SELECTOR $2.51
57 586610-02 MOTOR HOUSING $47.35
111 585168-01 TOP COVER $4.41
112 492489-00 PISTON KIT $40.50
114 581656-00 KNOB $1.53
117 584703-00 O-RING $5.13
118 492500-00 CRANK SHAFT ASSY $108.98
119 323711-26 RING, O $1.40
120 N043272 MAIN HOUSING $185.16
121 489244-00 BUSH $6.98
130 577744-07 O-RING $1.43
131 586034-00 SLIDER $2.58
132 492696-00 CYLINDER $105.64
135 584715-00 BUSH $2.92
136 584706-00 O-RING $3.73
137 492501-00 RAM $42.83
138 491004-00 O-RING $4.82
139 478650-00 BUSH $1.93
140 584726-00 SPRING $2.42
150 489181-01 SLEEVE $42.95
152 479974-00 SPACER $1.36
154 577745-02 BEARING BALL $6.79
155 489245-00 NEEDLE BEARING $11.72
157 586022-00 SEAL $2.58
158 330003-39 BEARING, BALL $8.54
159 327141-08 SEAL $5.98
160 490606-00 GEAR HOUSING $41.12
200 487238-01 SEAL $12.04
201 487205-00 RING $1.24
202 487241-00 WASHER $9.36
203 487244-00 RUBBER $4.37
204 487236-00 SLEEVE $11.24
205 579784-00 LOCKING RING $24.21
206 487218-00 SPRING $1.24
207 489672-00 KEY $10.24
208 487249-00 BUSH $9.36
209 590377-00 GUIDE BUSHING $1.36
210 487216-00 SPRING $1.24
220 584696-00 GUIDE $4.25
221 587081-00 COVER $7.74
223 949886-32 SCREW $1.21
224 327141-09 LIP SEAL $9.53
225 492502-00 BEARING SET $36.72
226 488787-00 RING $1.28
99 326467-00 DETENT $1.24
227 492697-00 FRONT HOUSING ASSEMBLY $91.54
228 584722-00 SHIM WASHER $3.72
229 589223-00 DAMPER $1.93
102 324007-11 SCREW $1.24
230 584727-00 BUSH $2.51
103 488067-00 FILTER $1.60
250 492698-00 SPINDLE ASSEMBLY $281.24
104 586031-00 COVER $4.31
105 323711-56 O-RING $2.25
252 488546-00 O-RING $4.25
253 1007543-00 BEARING BUSHING $31.30
106 323711-48 O-RING $2.42
254 579832-00 BEAT PIECE $34.50
107 586032-00 ECCENTRIC $1.28
255 492503-00 WASHER $13.44
108 586033-00 SPRING $4.25
256 487288-00 DAMPER $16.79
109 586036-00 SLIDER $3.32
110 586038-00 SELECTOR $2.51
257 492504-00 BUSH BEAT PIECE $34.67
260 496441-00 HANDLE ASSEMBLY $50.77
111 585168-01 TOP COVER $4.41
261 479319-00 CLAMPING INSERT $1.10
112 492489-00 PISTON KIT $40.50
262 479317-00 LOCK WASHER $1.28
114 581656-00 KNOB $1.53
263 487277-00 HANDLE $16.79
264 487343-00 BOLT $6.69
265 479320-00 WASHER $3.32
117 584703-00 O-RING $5.13
266 479318-00 CLAMP $11.72
267 487291-00 KNOB ASSY $7.54
118 492500-00 CRANK SHAFT ASSY $108.98
119 323711-26 RING, O $1.40
800 578970-04 GREASE $33.04
801 328771-07 GREASE $5.65
120 N043272 MAIN HOUSING $185.16
121 489244-00 BUSH $6.98
821 479945-04 NAME PLATE $3.02
826 487395-01 LABEL $1.28
847 493141-00 MAINTENANCE KIT $164.30
861 381297-94 KIT BOX $82.38
130 577744-07 O-RING $1.43
131 586034-00 SLIDER $2.58
132 492696-00 CYLINDER $105.64
135 584715-00 BUSH $2.92
136 584706-00 O-RING $3.73
137 492501-00 RAM $42.83
138 491004-00 O-RING $4.82
139 478650-00 BUSH $1.93
140 584726-00 SPRING $2.42
150 489181-01 SLEEVE $42.95
152 479974-00 SPACER $1.36
154 577745-02 BEARING BALL $6.79
155 489245-00 NEEDLE BEARING $11.72
157 586022-00 SEAL $2.58
158 330003-39 BEARING, BALL $8.54
159 327141-08 SEAL $5.98
160 490606-00 GEAR HOUSING $41.12
200 487238-01 SEAL $12.04
201 487205-00 RING $1.24
202 487241-00 WASHER $9.36
203 487244-00 RUBBER $4.37
204 487236-00 SLEEVE $11.24
205 579784-00 LOCKING RING $24.21
206 487218-00 SPRING $1.24
207 489672-00 KEY $10.24
208 487249-00 BUSH $9.36
209 590377-00 GUIDE BUSHING $1.36
210 487216-00 SPRING $1.24
220 584696-00 GUIDE $4.25
221 587081-00 COVER $7.74
223 949886-32 SCREW $1.21
224 327141-09 LIP SEAL $9.53
225 492502-00 BEARING SET $36.72
226 488787-00 RING $1.28
227 492697-00 FRONT HOUSING ASSEMBLY $91.54
228 584722-00 SHIM WASHER $3.72
229 589223-00 DAMPER $1.93
230 584727-00 BUSH $2.51
250 492698-00 SPINDLE ASSEMBLY $281.24
252 488546-00 O-RING $4.25
253 1007543-00 BEARING BUSHING $31.30
254 579832-00 BEAT PIECE $34.50
255 492503-00 WASHER $13.44
256 487288-00 DAMPER $16.79
257 492504-00 BUSH BEAT PIECE $34.67
260 496441-00 HANDLE ASSEMBLY $50.77
261 479319-00 CLAMPING INSERT $1.10
262 479317-00 LOCK WASHER $1.28
263 487277-00 HANDLE $16.79
264 487343-00 BOLT $6.69
265 479320-00 WASHER $3.32
266 479318-00 CLAMP $11.72
267 487291-00 KNOB ASSY $7.54
800 578970-04 GREASE $33.04
801 328771-07 GREASE $5.65
821 479945-04 NAME PLATE $3.02
826 487395-01 LABEL $1.28
847 493141-00 MAINTENANCE KIT $164.30
861 381297-94 KIT BOX $82.38
