DeWalt D25830K-Type-2 Electric Hammer Drill Parts

DeWalt D25830K-Type-2 Electric Hammer Drill Parts Image

DeWalt D25830K-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

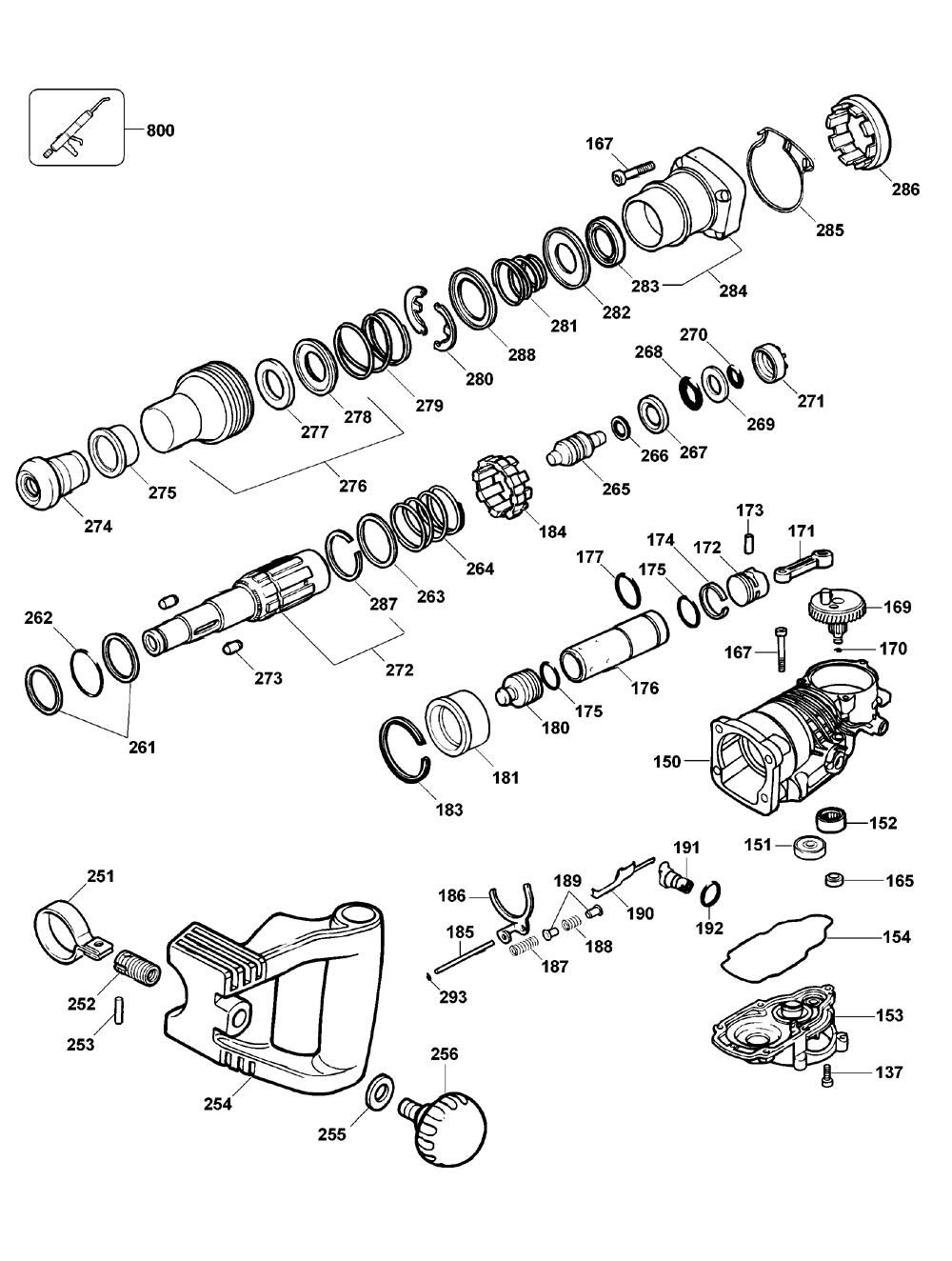

Page-1

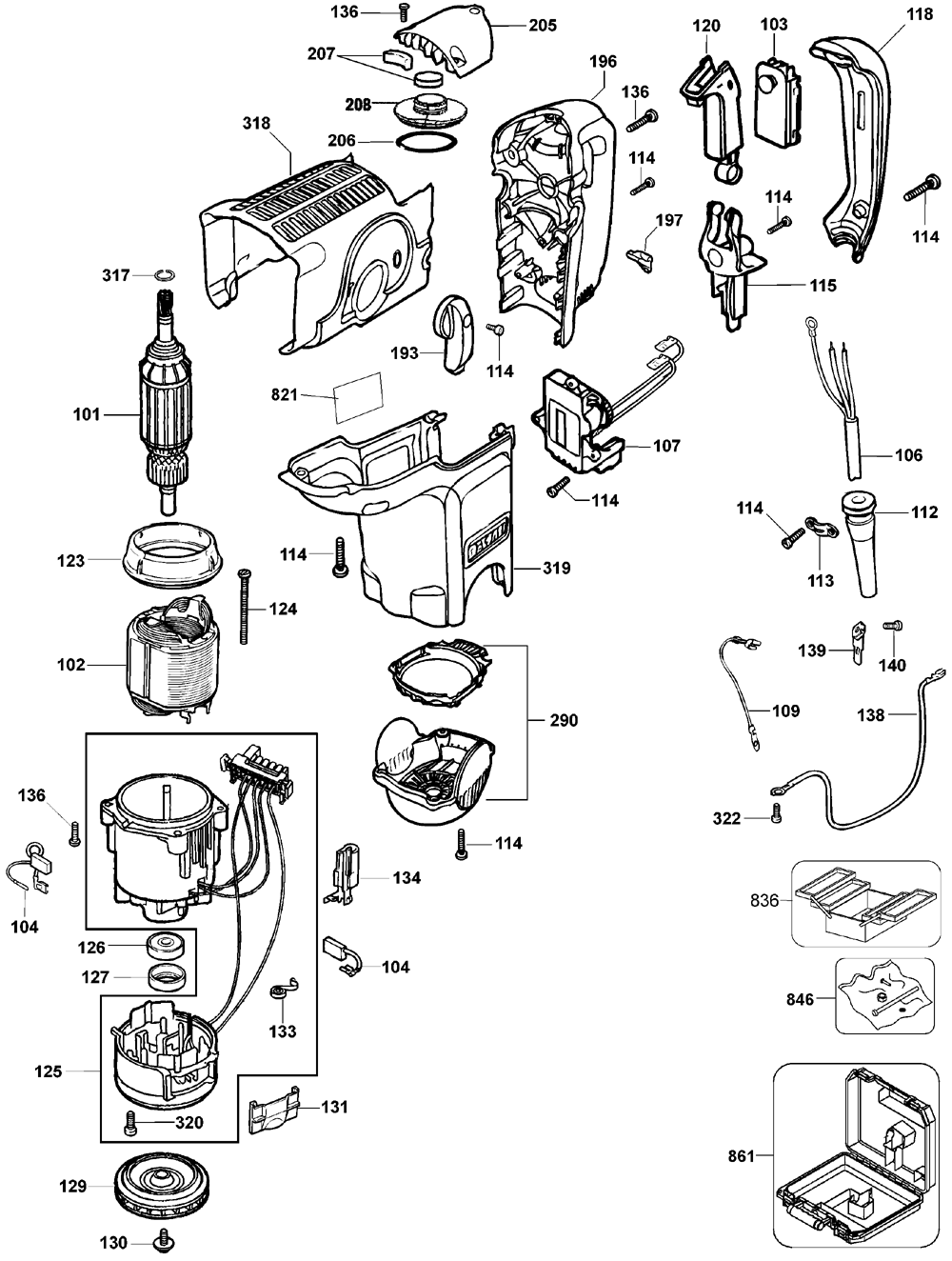

Page-2

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
101	N030721	ARMATURE	$102.91
102	327430-07	FIELD	$41.83
103	581070-00	SWITCH	$23.52
104	582620-00	BRUSH SET	$26.82
106	36495-98	CORD/15FT./16-3	$25.90
107	582574-02	ELECTRONIC	$68.45
109	323635-43	LEAD	$1.91
112	323091-01	PROTECTOR, CORD	$4.19
113	821070	CORD CLAMP	$1.62
114	330065-08	SCREW	$1.24
115	577716-00	CABLE GUIDE	$1.91
118	577712-00	HANDLE COVER	$16.32
120	327325-00	TRIGGER, LOCK-ON	$6.33
123	492073-00	BAFFLE	$1.36
124	330065-11	SCREW	$1.40
125	582577-00	FIELD CASE	$98.29
126	577745-00	BALL BEARING	$9.36
127	325279-00	SLEEVE	$2.21
129	577736-00	FAN	$16.32
130	324119-02	SCREW	$1.24
131	326579-00	SHUTTER	$1.88
133	326667-00	SPRING, BRUSH	$2.77
134	326933-01	HOLDER, CHOKE	$5.67
136	324007-11	SCREW	$1.24
137	324007-11	SCREW	$1.24
138	323635-42	LEAD	$1.91
139	326048-00	CONNECTOR	$3.16
140	326619-00	SCREW	$1.24
150	581914-02	GEAR CASE	$90.11
151	577745-01	BALL BEARING	$9.12
152	330004-33	BEARING, NEEDLE	$10.77
153	578486-01	GEAR CASE COVER	$50.19
154	325936-00	SEAL	$2.44
165	327141-05	SEAL	$6.49
167	918825-02	SCREW	$1.24
169	582431-00	CRANKSHAFT	$70.48
170	323711-26	RING, O	$1.40
171	325002-00	ROD, CONNECTING	$10.13
172	488669-00	PISTON	$10.75
173	330041-22	PIN	$4.09
174	325905-00	RETAINER	$1.80
175	576232-01	O RING	$4.73
176	582576-00	CYLINDER	$60.73
177	577744-00	O RING	$1.99
180	582575-00	RAM	$26.82
181	326008-00	INSERT	$5.40
183	323763-03	CIRCLIP	$1.40
184	1005697-00	SPINDLE LOCK	$16.10
185	325880-02	SHAFT	$3.81
186	325160-00	FORK, SELECTOR	$8.11
187	323395-08	SPRING	$1.24
188	323395-09	SPRING	$1.24
189	326093-00	SPACER	$1.24
190	577731-00	LINK	$1.99
191	577718-00	ECCENTRIC	$1.91
192	323711-07	SEAL	$1.40
193	578494-00	LEVER	$7.00
196	577711-00	HANDLE	$18.12
197	577735-00	LENS	$1.53
205	585379-01	COVER, GEAR	$5.85
205	577710-01	COVER	$10.91
206	323711-22	RING, O	$2.07
207	487229-00	FILTER	$1.20
207	581578-00	FILTER	$1.21
208	491348-01	COVER	$4.02
251	326555-00	COLLAR	$7.04
252	326552-00	BUSHING	$4.46
253	326775-00	PIN	$4.44
254	327146-00	HANDLE, SIDE	$25.89
255	323753-18	WASHER	$2.44
256	327351-00	KNOB	$14.12
261	323753-11	WASHER	$3.16
262	577744-05	O RING	$11.70
263	323753-14	WASHER	$3.16
264	323395-07	SPRING	$2.07
265	582432-01	BEAT PIECE	$65.55
266	577484-00	SEAL	$24.21
267	582381-00	WASHER	$4.59
268	577744-02	O RING	$2.09
269	323753-16	WASHER	$2.44
270	577744-01	O RING	$1.99
271	326044-01	CAP	$1.91
272	493133-00	SPINDLE ASSEMBLY	$199.24
273	325878-00	ROLLER	$3.81
274	329816-00	LIP SEAL	$5.67
275	326575-01	COLLAR	$3.71
276	479247-00	SLEEVE ASSY	$11.44
277	479247-00	SLEEVE ASSY	$11.44
278	479247-00	SLEEVE ASSY	$11.44
279	323395-06	SPRING	$1.40
280	325929-00	WASHER, HALF	$1.95
281	487118-00	SPRING	$2.07
282	325930-00	GUIDE, SPRING	$3.64
283	327141-00	SEAL, LIP	$4.28
284	578489-00	CASTING	$46.00
285	577727-01	GASKET	$3.61
286	588560-00	SPINDLE LOCK	$7.13
287	323763-04	RING	$1.24
288	327208-00	GUIDE	$2.44
290	578493-00	END CAP	$14.21
293	323711-27	O RING	$1.37
317	577746-00	RING	$1.37
318	577708-01	COVER, TOP	$9.53
319	577709-00	HOUSING, LOWER	$13.77
320	323924-08	SCREW, M3.5 X 12	$1.24
322	326619-00	SCREW	$1.24
800	328771-07	GREASE	$5.65
800	328771-07	GREASE	$5.65
821	585253-06	NAME PLATE	$1.48
846	589301-01	SERVICE KIT	$103.18
861	381297-78	KIT BOX	$82.38
