DeWalt D25701K-Type-2 Electric Hammer Drill Parts

DeWalt D25701K-Type-2 Electric Hammer Drill Parts Image

DeWalt D25701K-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

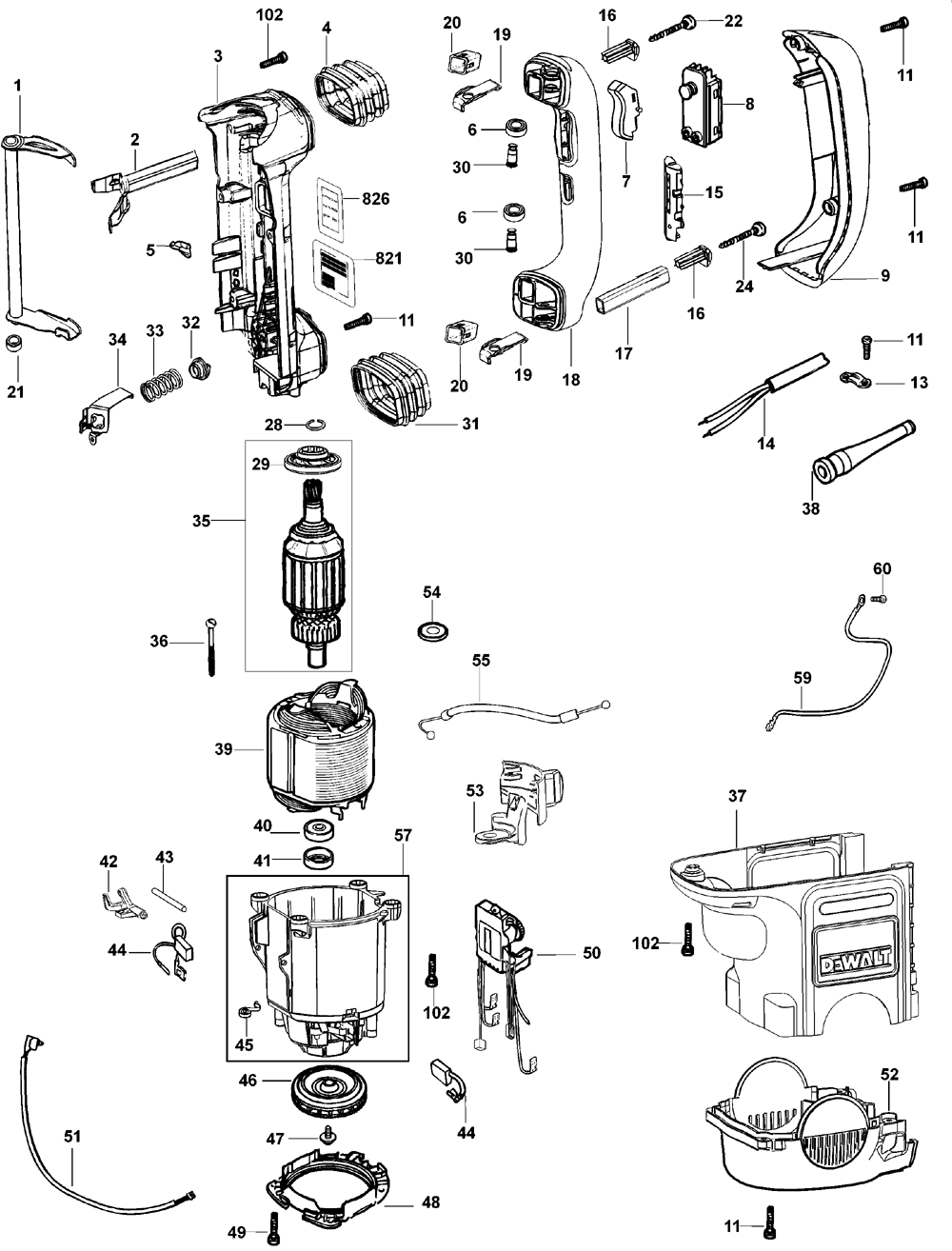

Page-1

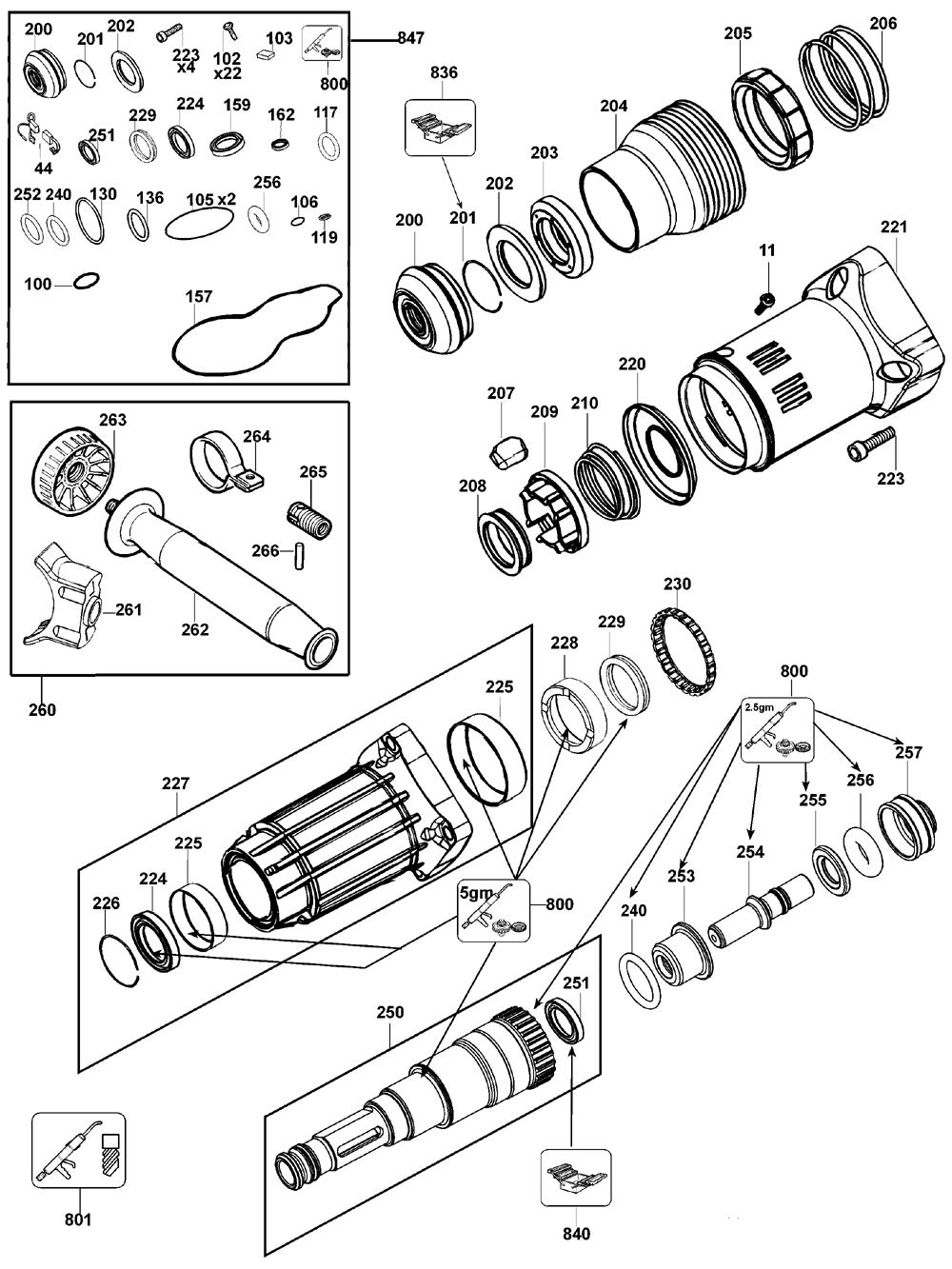

Page-2

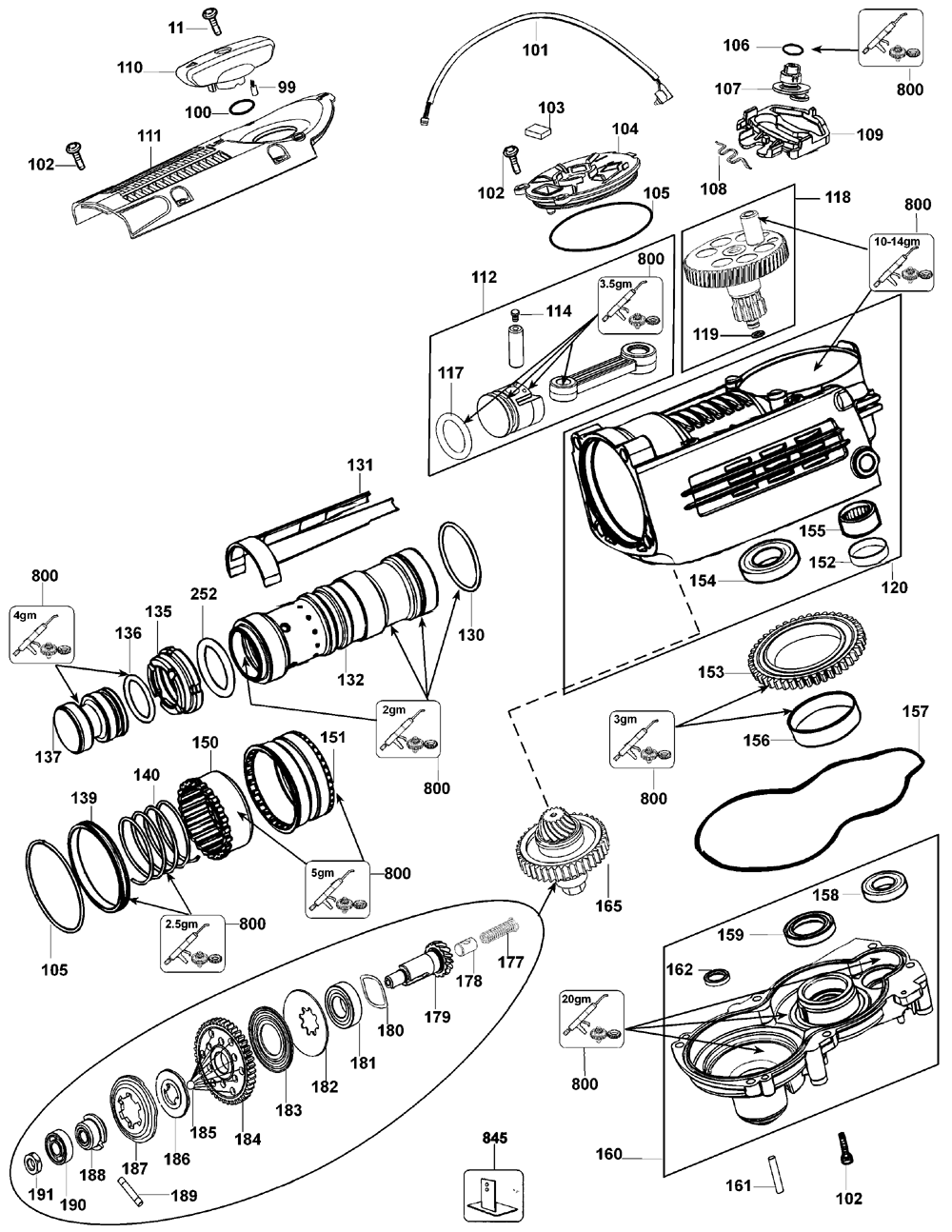

Page-3

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	N019871	REPAIR KIT	$22.44
2	586415-00	GUIDE ASSEMBLY	$23.26
3	585171-00	COVER HANDLE	$11.72
4	588639-00	BELLOWS	$7.61
5	586045-00	LENS	$1.28
6	586411-00	ROLLER	$2.58
7	587114-01	TRIGGER	$2.25
8	581070-00	SWITCH	$23.52
9	587090-00	HANDLE COVER	$10.09
11	330065-08	SCREW	$1.24
13	821070	CORD CLAMP	$1.62
14	330100-03	CORD SET	$30.73
15	477448-00	LOCK ASSY	$32.26
16	494477-00	STOP	$5.23
17	586414-00	GUIDE ROD	$8.44
18	587085-00	HANDLE	$8.44
19	586413-00	DRIVER	$4.00
20	1005496-00	BUSHING	$2.10
21	N019871	REPAIR KIT	$22.44
22	949886-33	SCREW	$1.36
24	330019-33	SCREW	$1.24
28	577746-00	RING	$1.37
29	586597-00	GUARD ASSEMBLY	$7.61
30	586412-00	AXLE	$5.13
31	588640-00	BELLOWS	$8.86
32	586423-00	CARRIER	$1.28
33	586421-00	SPRING COMPRESSION	$1.36
34	586422-00	RETAINER	$4.25
35	489252-00	ARMATURE	$116.38
36	330019-30	SCREW	$1.24
37	585169-00	MOTOR COVER	$11.72
38	403395-00	CORD PROTECTOR	$2.75
39	489255-00	FIELD	$42.95
40	577745-00	BALL BEARING	$9.36
41	590191-00	SLEEVE, INSULATE	$1.44
42	586435-00	LEVER	$1.43
43	586436-00	AXLE	$3.09
44	489257-00	BRUSH, PAIR	$23.26
45	487377-00	BRUSH SPRING	$3.01
46	586611-00	FAN ASSEMBLY	$14.21
47	324119-02	SCREW	$1.24
48	586614-00	BAFFLE	$5.13
49	330019-30	SCREW	$1.24
50	662695-01	ELECTRONIC MOD.	$215.61
51	477287-02	SWITCH, MICRO	$14.56
52	585170-00	END CAP	$8.02
53	586440-00	SLIDER	$8.44
54	479165-00	RETAINER	$1.12
55	586433-00	CABLE ASSEMBLY	$10.09
57	586609-04	HOUSING ASSEMBLY	$30.73
59	323635-47	LEAD	$1.43
60	326619-00	SCREW	$1.24
99	326467-00	DETENT	$1.24
101	477287-01	SWITCH, MICRO	$10.66
102	324007-11	SCREW	$1.24
103	488067-00	FILTER	$1.60
104	586031-00	COVER	$4.31
105	323711-56	O-RING	$2.25
106	323711-48	O-RING	$2.42
107	586032-00	ECCENTRIC	$1.28
108	586033-00	SPRING	$4.25
109	586036-00	SLIDER	$3.32
110	586038-00	SELECTOR	$2.51
111	585168-02	COVER, TOP	$3.29
112	488689-00	PISTON KIT	$30.73
114	581656-00	KNOB	$1.53
117	584703-00	O-RING	$5.13
118	488687-00	CRANKSHAFT	$90.04
119	323711-26	RING, O	$1.40
120	489243-00	HOUSING ASSEMBLY	$181.74
130	577744-07	O-RING	$1.43
131	586034-00	SLIDER	$2.58
132	1006528-00	CYLINDER KIT	$80.72
135	584715-00	BUSH	$2.92
136	584706-00	O-RING	$3.73
137	489180-00	RAM	$29.23
139	478650-00	BUSH	$1.93
140	584726-00	SPRING	$2.42
150	1007908-00	GEAR KIT	$150.12
151	1007908-00	GEAR KIT	$150.12
152	479974-00	SPACER	$1.36
153	488688-00	GEAR	$13.38
154	577745-02	BEARING BALL	$6.79
155	489245-00	NEEDLE BEARING	$11.72
156	489239-00	BEARING BUSH	$5.13
157	586022-00	SEAL	$2.58
158	330003-39	BEARING, BALL	$8.54
159	327141-08	SEAL	$5.98
160	489247-00	HOUSING ASSEMBLY	$38.38
161	586392-00	PIN	$2.58
162	586403-00	SEAL	$1.93
165	494607-00	CLUTCH ASSEMBLY	$207.48
177	491804-00	COMPRESSION SPRING	$4.34
178	491802-00	BOLT	$12.19
179	494609-00	SHAFT	$54.99
180	479947-00	WASHER SPRING	$1.28
181	323872-06	BEARING BALL	$16.67
182	586394-00	CUP	$10.09
183	586386-00	THRUST PLATE	$2.42
184	494610-00	GEAR	$60.46
185	368247-00	BALL	$1.60
186	491806-00	DISC	$12.19
187	586390-00	DISC	$9.68
188	586388-00	BEARING BUSH	$12.97
189	586393-00	PIN	$7.61
190	330003-26	BEARING, BALL	$8.77
191	586402-00	NUT	$1.84
200	487238-01	SEAL	$12.04
201	487205-00	RING	$1.24
202	487241-00	WASHER	$9.36
203	487244-00	RUBBER	$4.37
204	487236-00	SLEEVE	$11.24
205	579784-00	LOCKING RING	$24.21
206	487218-00	SPRING	$1.24
207	489672-00	KEY	$10.24
208	487249-00	BUSH	$9.36
209	590377-00	GUIDE BUSHING	$1.36
210	487216-00	SPRING	$1.24
220	584696-00	GUIDE	$4.25
221	585167-01	COVER	$7.77
223	949886-32	SCREW	$1.21
224	327141-07	SEAL, LIP	$3.32
225	488679-00	BEARING SET	$27.69
226	488787-00	RING	$1.28
227	488678-00	HOUSING, FRONT	$40.59
228	589096-00	BUSH	$2.85
229	589223-00	DAMPER	$1.93
230	584727-00	BUSH	$2.51
240	488546-00	O-RING	$4.25
250	488676-00	SPINDLE ASSEMBLY	$189.01
252	1005597-00	O-RING	$3.53
253	488685-00	BEARING	$24.92
254	488681-00	BEAT PIECE	$38.38
255	488680-00	WASHER	$11.72
256	577744-06	O-RING	$8.86
257	488686-00	BUSH	$26.16
260	489250-00	HANDLE ASSEMBLY	$27.69
261	491586-00	CLAMP	$3.84
262	N021120	HANDLE	$21.81
263	326553-00	RING, LOCKING	$9.94
264	479333-00	CLAMP	$9.68
265	326552-00	BUSHING	$4.46
266	326775-00	PIN	$4.44
800	578970-04	GREASE	$33.04
801	328771-07	GREASE	$5.65
821	479945-05	NAME PLATE	$2.45
826	488183-00	LABEL	$1.09
847	491211-00	SERVICE KIT	$107.40
861	381297-94	KIT BOX	$82.38
