DeWalt D25330K-Type-2 Electric Hammer Drill Parts

DeWalt D25330K-Type-2 Electric Hammer Drill Parts Image

DeWalt D25330K-Type-2 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

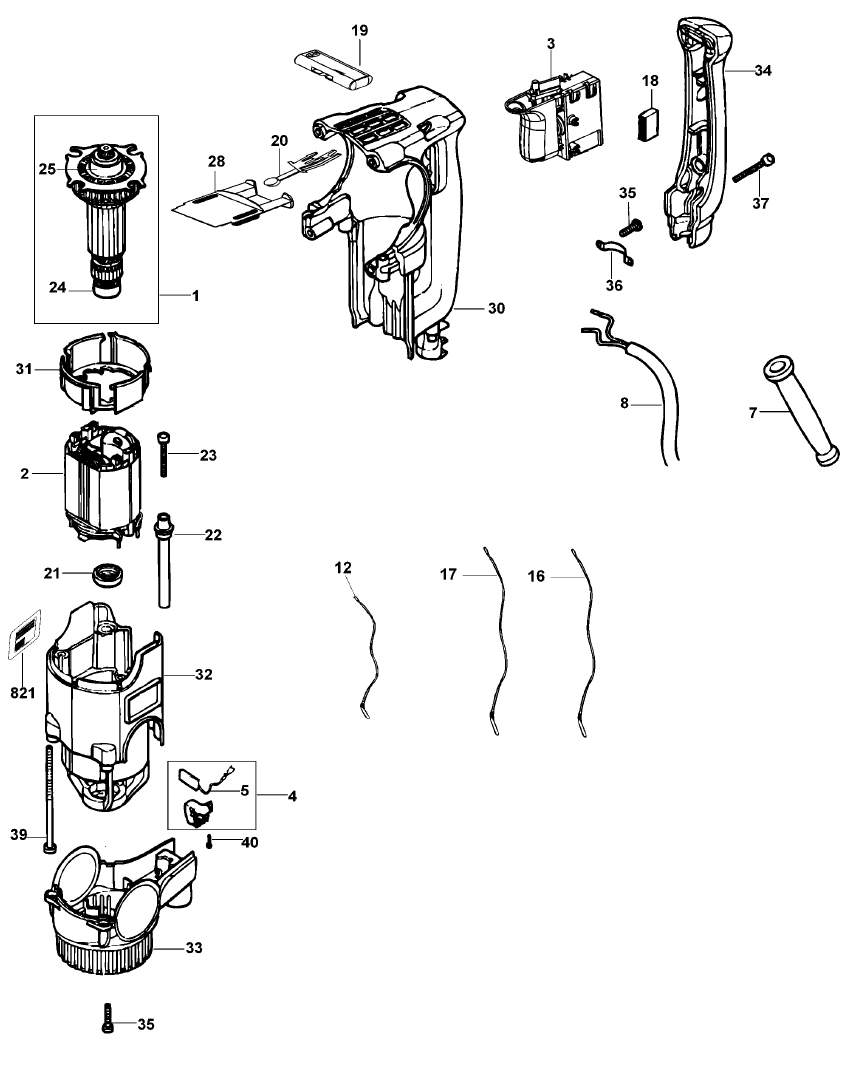

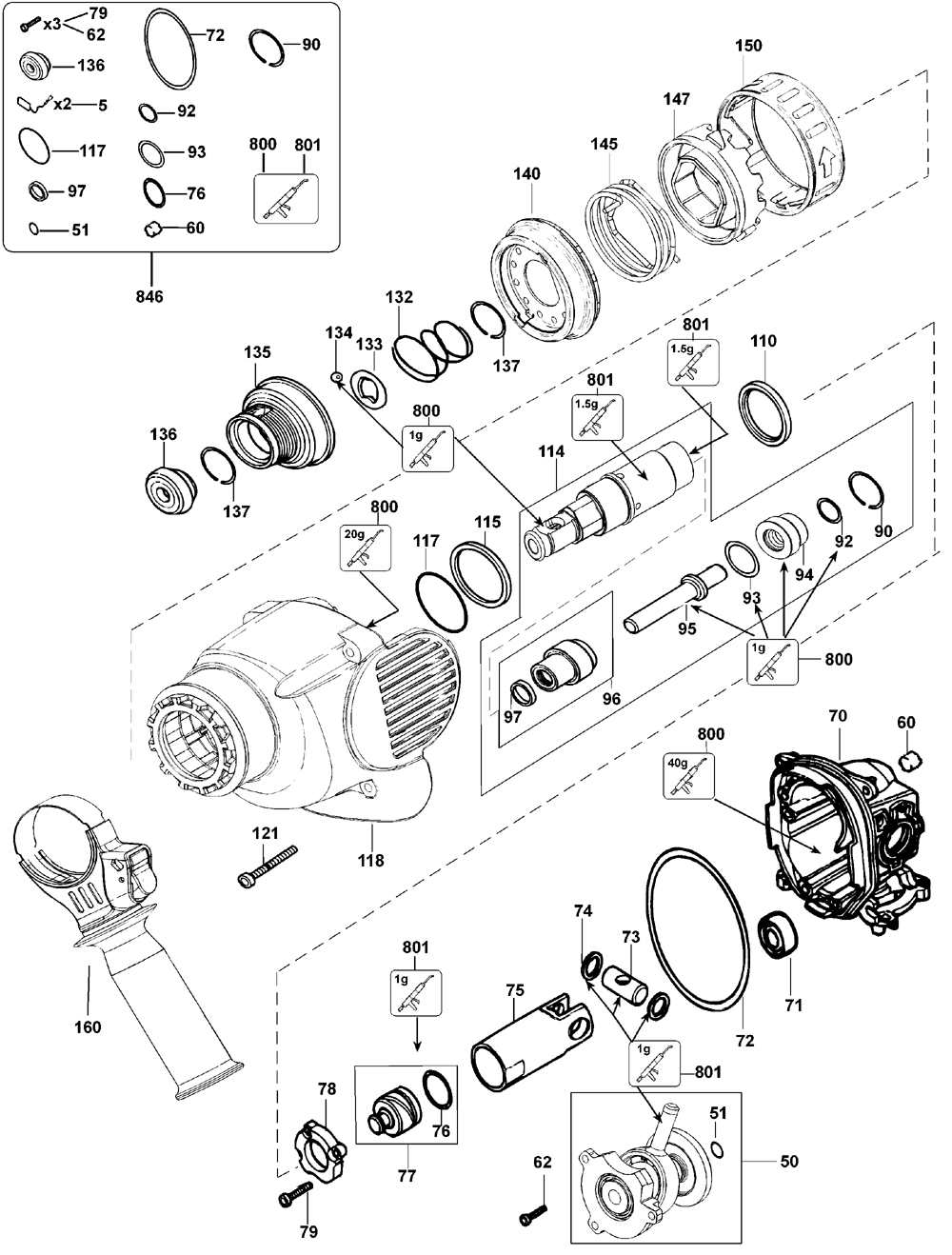

DeWalt D25330K-Type-2 Electric Hammer Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 477225-01 ARMATURE $116.38
2 576690-06 FIELD $40.61
3 588724-01 SWITCH $38.38
4 577805-04 BRUSH HOLDER $17.58
5 584429-01 BRUSH KIT $19.15
7 584090-00 CORD PROTECTOR $2.85
8 330076-20 CORD SET $22.79
12 584304-10 LEADWIRE $1.77
16 582064-16 LEAD, BLUE $1.89
17 589456-04 LEADWIRE $2.25
18 930026-01 BUMPER $1.40
19 588902-00 SLIDER $3.51
20 578220-00 LEVER $1.18
21 870052-00 BEARING COVER $1.24
22 579720-00 BUSH $1.87
23 326519-03 SCREW $1.18
24 330003-64 BALL BEARING $8.54
25 330003-19 BEARING, BALL $6.33
28 582877-00 INSERT $1.87
30 588696-01 HOUSING, HANDLE $13.38
31 581808-00 BAFFLE, FAN $1.89
32 577993-00 FIELD CASE $17.58
33 584041-00 END CAP $7.68
34 588675-00 HANDLE COVER $13.38
35 330065-08 SCREW $1.24
36 821070 CORD CLAMP $1.62
37 330065-09 SCREW $1.18
39 330065-26 SCREW $1.18
40 330065-25 SCREW $1.18
50 1006350-00 INTERSHAFT $146.35
51 580908-00 O-RING $1.18
60 582865-00 FILTER $1.87
62 583981-00 SCREW $1.18
70 477212-00 HOUSING, BEARING $38.38
71 330003-81 BEARING $5.50
72 578229-00 SEAL $2.20
73 577801-00 BEARING BLOCK $8.86
74 577802-00 SHIM WASHER $2.85
75 496246-00 PISTON $27.43
76 579699-00 O-RING $1.33
77 496245-00 RAM $22.79
78 N042808 BEARING BUSH $4.64
79 324006-15 SCREW $1.18
90 577793-00 CLIP $1.18
92 580990-00 O-RING $1.58
93 577135-00 O-RING $1.51
94 477215-00 BUSH $16.67
95 584424-01 BEAT PIECE $14.72
96 477216-00 BEARING & SEAL $22.43
97 577139-00 SEAL $2.85
110 577797-00 WASHER $2.40
114 477217-00 SPINDLE $109.12
115 577814-00 WASHER $2.85
117 589186-00 O RING $4.31
118 477218-00 GEAR CASE $19.97
121 330065-28 SCREW $1.18
132 871690-00 SPRING $1.24
133 578387-00 WASHER $1.95
134 583890-00 BALL $1.18
135 493965-00 TUBE $9.17
136 323489-00 CAP $4.09
137 579212-00 RING $1.18
140 586892-00 SLEEVE $12.55
145 586893-00 SPRING $2.25
147 586894-00 LOCKING RING $3.51
150 586891-00 SLEEVE $4.31
160 494661-00 SIDE HANDLE ASY $22.79
800 870889-02 GREASE $11.24
801 487130-04 GREASE $6.33
821 495161-18 NAME PLATE $1.62
846 477246-00 SERVICE KIT $46.00
