DeWalt D25324K Electric Hammer Drill Parts

DeWalt D25324K Electric Hammer Drill Parts Image

DeWalt D25324K Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

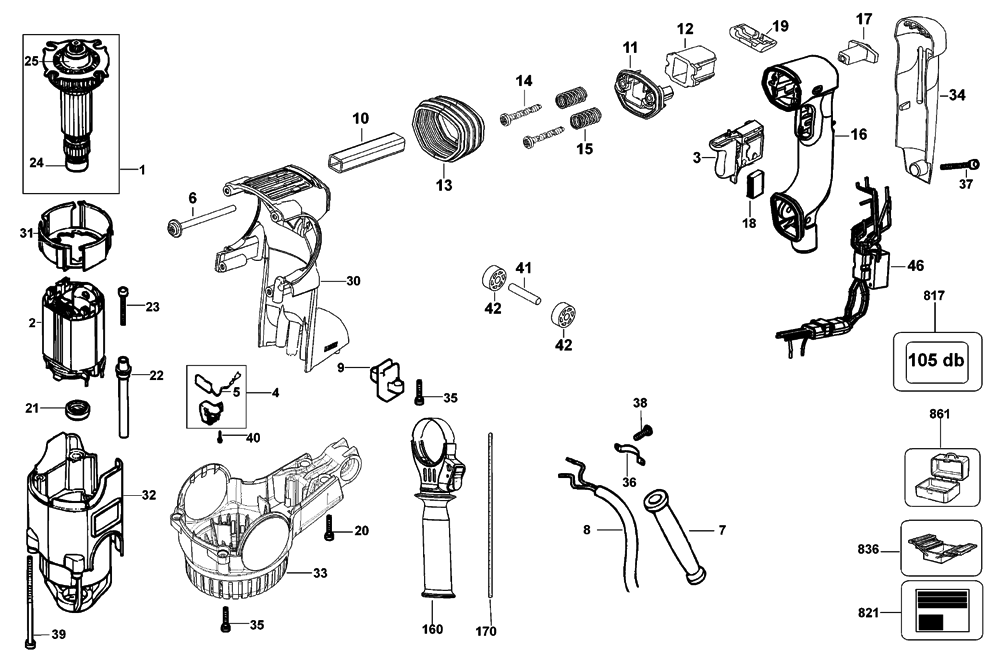

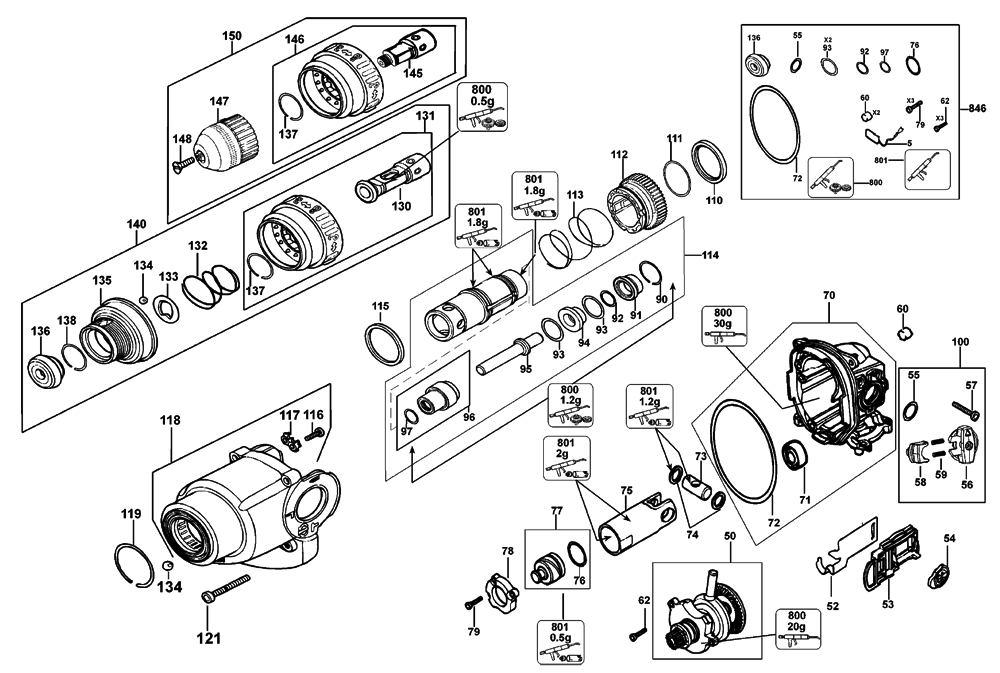

DeWalt D25324K Electric Hammer Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 496251-00 ARMATURE ASSEMBLY $131.08
2 496247-00 FIELD $31.65
3 1006749-01 SWITCH $32.62
4 577805-04 BRUSH HOLDER $17.58
5 584429-01 BRUSH KIT $19.15
6 324119-04 SCREW $1.09
7 584090-00 CORD PROTECTOR $2.85
8 330076-20 CORD SET $22.79
9 578222-00 PLUG $1.18
10 1006430-00 GUIDE $5.23
11 1007508-00 HOLDER, BEARING $2.10
12 1007502-00 GUIDE BUSHING $2.10
13 1006418-00 BELLOWS $1.28
14 330065-13 SCREW $1.24
15 1006421-00 SPRING $1.16
16 1006415-00 HANDLE $12.85
17 1007503-00 STOP NUT $4.64
18 930026-01 BUMPER $1.40
19 1006423-00 LEVER $1.28
20 N066799-00 SCREW $1.67
21 870052-00 BEARING COVER $1.24
22 579720-00 BUSH $1.87
23 326519-03 SCREW $1.18
24 330003-64 BALL BEARING $8.54
25 330003-19 BEARING, BALL $6.33
30 1006414-00 HOUSING $10.31
31 581808-00 BAFFLE, FAN $1.89
32 577993-00 FIELD CASE $17.58
33 N039637 END CAP ASSY $3.95
34 1006416-00 HANDLE COVER $11.01
35 330065-08 SCREW $1.24
36 821070 CORD CLAMP $1.62
37 330065-08 SCREW $1.24
38 330065-06 SCREW $1.24
39 330065-26 SCREW $1.18
40 330065-25 SCREW $1.18
41 1006419-00 AXLE $1.28
42 1006429-00 DAMPER $2.42
46 N031247 LEAD WIRE ASSY $26.08
50 584419-00 INTERSHAFT $97.41
52 578271-00 PLATE $5.36
53 579564-00 HOLDER $1.87
54 1006437-00 SELECTOR $3.06
55 584638-00 O-RING $1.18
56 1006434-00 KNOB $2.69
57 324007-15 SCREW $1.03
58 1006435-00 TRIGGER $1.41
59 1008957-00 SPRING $1.28
60 582865-00 FILTER $1.87
62 583981-00 SCREW $1.18
70 N031252 GEAR CASE ASSY $43.22
71 330003-81 BEARING $5.50
72 578229-00 SEAL $2.20
73 577801-00 BEARING BLOCK $8.86
74 577802-00 SHIM WASHER $2.85
75 496246-00 PISTON $27.43
76 579699-00 O-RING $1.33
77 496245-00 RAM $22.79
78 N042808 BEARING BUSH $4.64
79 324006-15 SCREW $1.18
90 577793-00 CLIP $1.18
91 584426-00 BUSH $17.68
92 580990-00 O-RING $1.58
93 577135-00 O-RING $1.51
94 584425-00 DAMPER $19.41
95 584424-01 BEAT PIECE $14.72
96 584423-01 BEARING & SEAL $11.61
97 577139-00 SEAL $2.85
100 N031251 LEVER ASSEMBLY $4.64
110 577797-00 WASHER $2.40
111 577744-00 O RING $1.99
112 587482-00 CLUTCH ASSEMBLY $29.48
113 579178-00 SPRING $1.87
114 584422-01 CYLINDER $100.36
115 577814-00 WASHER $2.85
116 330065-05 SCREW $1.24
117 580291-00 LOCKING DEVICE $3.61
118 584433-01 GEAR CASE COVER $39.00
119 577795-00 RING $1.18
121 N066799-00 SCREW $1.67
130 N031254 SPINDLE $25.83
131 584431-00 SLEEVE SA $51.04
132 871690-00 SPRING $1.24
133 578387-00 WASHER $1.95
134 583890-00 BALL $1.18
135 493965-00 TUBE $9.17
136 323489-00 CAP $4.09
137 579212-00 RING $1.18
138 579212-00 RING $1.18
140 496244-00 SPINDLE ASSEMBLY $82.38
145 584676-00 SPINDLE $32.52
146 584556-00 SPINDLE ASSEMBLY $63.74
147 582512-02 CHUCK, KEYLESS $27.74
148 605256-02 SCREW $1.03
150 584559-00 CHUCK & SPINDLE ASSY $115.76
160 1008956-00 SIDE HANDLE ASY $22.44
170 495699-00 DEPTH STOP $6.16
800 870889-02 GREASE $11.24
801 487130-04 GREASE $6.33
817 496620-00 LABEL $1.16
821 N018741 NAME PLATE $1.03
846 N031540 SERVICE KIT $47.29
861 578005-04 KIT BOX $35.56
