DeWalt D25313K-Type-2 Electric Drill & Driver Parts

DeWalt D25313K-Type-2 Electric Drill & Driver Parts Image

DeWalt D25313K-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

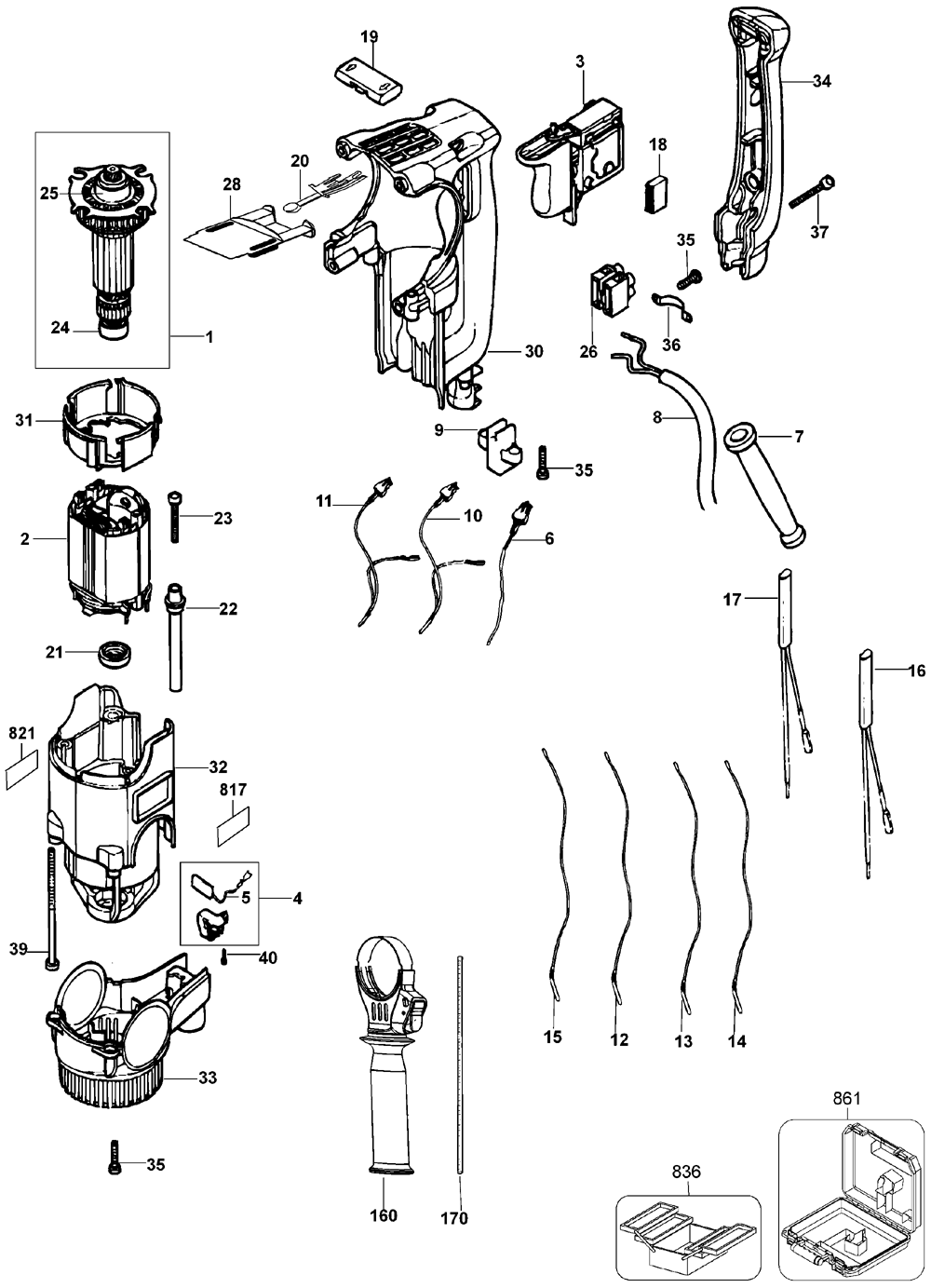

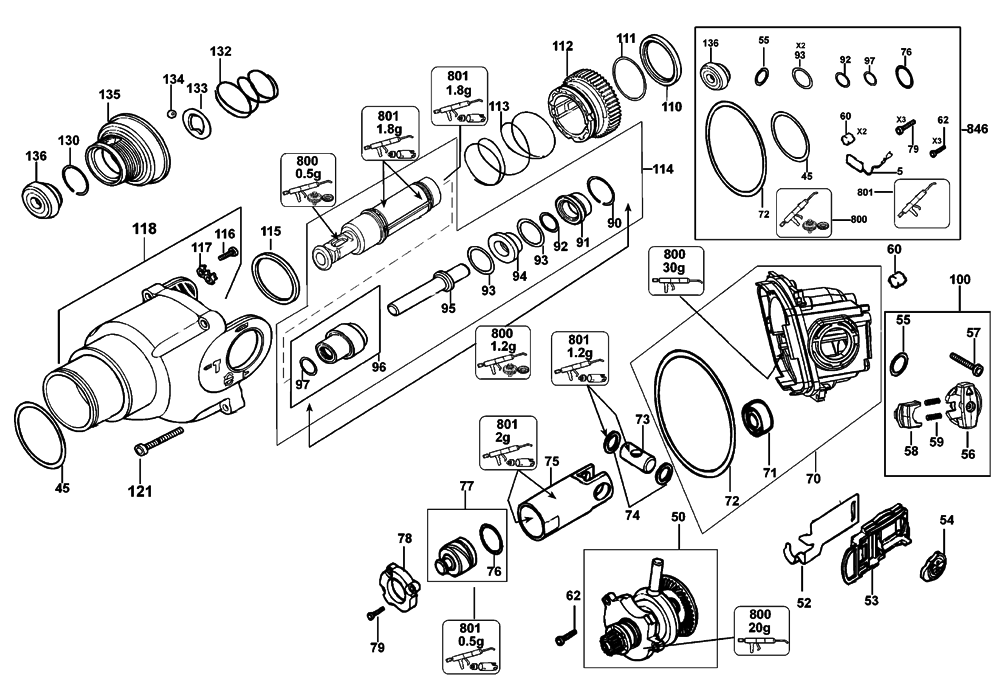

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	496251-00	ARMATURE ASSEMBLY	$131.08

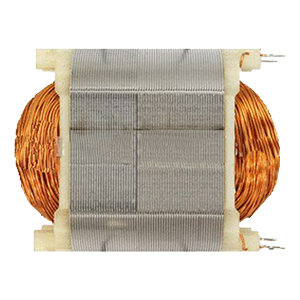

2	496247-00	FIELD	$31.65
3	583748-04	SWITCH	$30.73
4	577805-04	BRUSH HOLDER	$17.58
5	584429-01	BRUSH KIT	$19.15
6	489918-00	LEAD	$4.34
7	584090-00	CORD PROTECTOR	$2.85
8	330076-20	CORD SET	$22.79
9	578222-00	PLUG	$1.18
10	582064-23	LEAD	$3.23
11	582064-24	LEAD WIRE	$3.41
12	582064-15	LEAD, PURPLE	$1.89
13	582064-19	LEADWIRE, WHITE	$2.75
14	582064-16	LEAD, BLUE	$1.89
15	582064-20	LEAD, BLACK	$1.89
16	582064-18	LEAD, RED	$1.48
17	582064-17	LEAD, YELLOW	$1.89
18	930026-01	BUMPER	$1.40
19	578218-00	SLIDER	$2.40
20	578220-00	LEVER	$1.18
21	870052-00	BEARING COVER	$1.24
22	579720-00	BUSH	$1.87
23	326519-03	SCREW	$1.18
24	330003-64	BALL BEARING	$8.54
25	330003-19	BEARING, BALL	$6.33
26	323534-00	CONNECTOR	$3.01
28	582877-00	INSERT	$1.87
30	577986-20	HOUSING, HANDLE	$17.21
31	581808-00	BAFFLE, FAN	$1.89
32	577993-00	FIELD CASE	$17.58
33	584041-00	END CAP	$7.68
34	577987-10	HANDLE, COVER	$3.82
35	330065-08	SCREW	$1.24
36	821070	CORD CLAMP	$1.62
37	330065-13	SCREW	$1.24
39	330065-26	SCREW	$1.18
40	330065-25	SCREW	$1.18
45	577791-00	O-RING	$1.18
50	584419-00	INTERSHAFT	$97.41
52	578271-00	PLATE	$5.36
53	579564-00	HOLDER	$1.87
54	1006437-00	SELECTOR	$3.06
55	584638-00	O-RING	$1.18
56	1006434-00	KNOB	$2.69
57	324007-15	SCREW	$1.03
58	1006435-00	TRIGGER	$1.41
59	1008957-00	SPRING	$1.28
60	582865-00	FILTER	$1.87
62	583981-00	SCREW	$1.18
70	N031252	GEAR CASE ASSY	$43.22
71	330003-81	BEARING	$5.50
72	578229-00	SEAL	$2.20
73	577801-00	BEARING BLOCK	$8.86
74	577802-00	SHIM WASHER	$2.85
75	496246-00	PISTON	$27.43
76	579699-00	O-RING	$1.33
77	496245-00	RAM	$22.79
78	N042808	BEARING BUSH	$4.64
79	324006-15	SCREW	$1.18
90	577793-00	CLIP	$1.18
91	584426-00	BUSH	$17.68
92	580990-00	O-RING	$1.58
93	577135-00	O-RING	$1.51
94	584425-00	DAMPER	$19.41
95	584424-00	BEAT PIECE	$22.84
96	584423-00	BEARING & SEAL	$14.42
97	577139-00	SEAL	$2.85
100	N031251	LEVER ASSEMBLY	$4.64
110	577797-00	WASHER	$2.40
111	577744-00	O RING	$1.99
112	587482-00	CLUTCH ASSEMBLY	$29.48
113	579178-00	SPRING	$1.87
114	584422-00	CYLINDER ASSEMBLY	$100.36
115	577814-00	WASHER	$2.85
116	330065-05	SCREW	$1.24
117	580291-00	LOCKING DEVICE	$3.61
118	584433-00	HOUSING ASSEMBLY	$39.00
121	330065-28	SCREW	$1.18
130	579212-00	RING	$1.18
132	871690-00	SPRING	$1.24
133	578387-00	WASHER	$1.95
134	583890-00	BALL	$1.18
135	493965-00	TUBE	$9.17
136	323489-00	CAP	$4.09
160	494661-00	SIDE HANDLE ASY	$22.79
170	495699-00	DEPTH STOP	$6.16
800	870889-02	GREASE	$11.24
801	487130-04	GREASE	$6.33
817	496620-00	LABEL	$1.16
846	585149-00	SERVICE KIT	$48.73
861	578005-04	KIT BOX	$35.56
