DeWalt D25300D Dust Collector Parts

DeWalt D25300D Parts

Download Schematic

Time to buy a new tool?

DeWalt D25300D

Dust Extraction for ...

$160.99

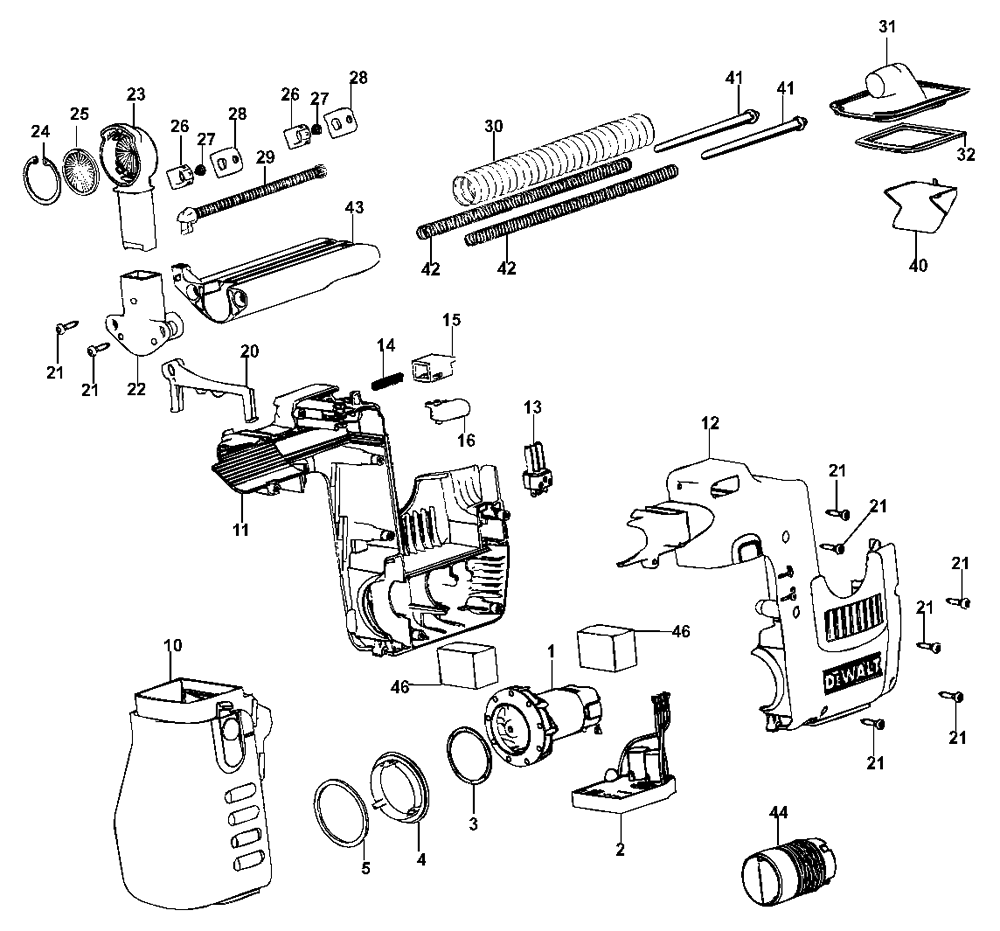

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	586770-00	MOTOR & FAN	$47.40
2	586771-02	MODULE	$101.86
3	584439-00	FAN COVER	$1.48
4	583105-00	WASHER	$1.12
5	580258-00	SEAL	$1.12
10	577898-00	FILTER ASSEMBLY	$36.46
11	580238-00	HOUSING	$22.17
12	580237-00	HOUSING	$22.17
13	580243-00	CONNECTOR	$1.89
14	329876-00	SPRING	$1.24
15	580249-00	LATCH	$1.12
16	580248-00	KNOB	$1.12
20	580252-00	HOLDER	$1.12
21	330065-08	SCREW	$1.24
22	580452-00	CAP	$1.89
23	580254-00	HEAD	$1.89
24	580256-00	RETAINING RING	$1.12
25	580255-00	BRUSH	$6.88
26	580261-00	KNOB	$1.12
27	584458-00	SPRING	$1.12
28	580262-00	HOUSING	$1.89
29	580259-00	ROD	$1.89
30	580257-00	TUBE	$5.70
31	580444-00	CAP	$2.75
32	580260-00	SEAL	$1.12
40	585208-00	GUIDE	$1.12
41	583839-00	PIN	$1.12
42	580253-00	SPRING	$1.89
43	580251-00	HOUSING	$8.69
44	585976-00	ADAPTER	$5.28
46	586551-00	PAD	$8.69
