DeWalt D25223K-Type-2 Electric Drill & Driver Parts

DeWalt D25223K-Type-2 Electric Drill & Driver Parts Image

DeWalt D25223K-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

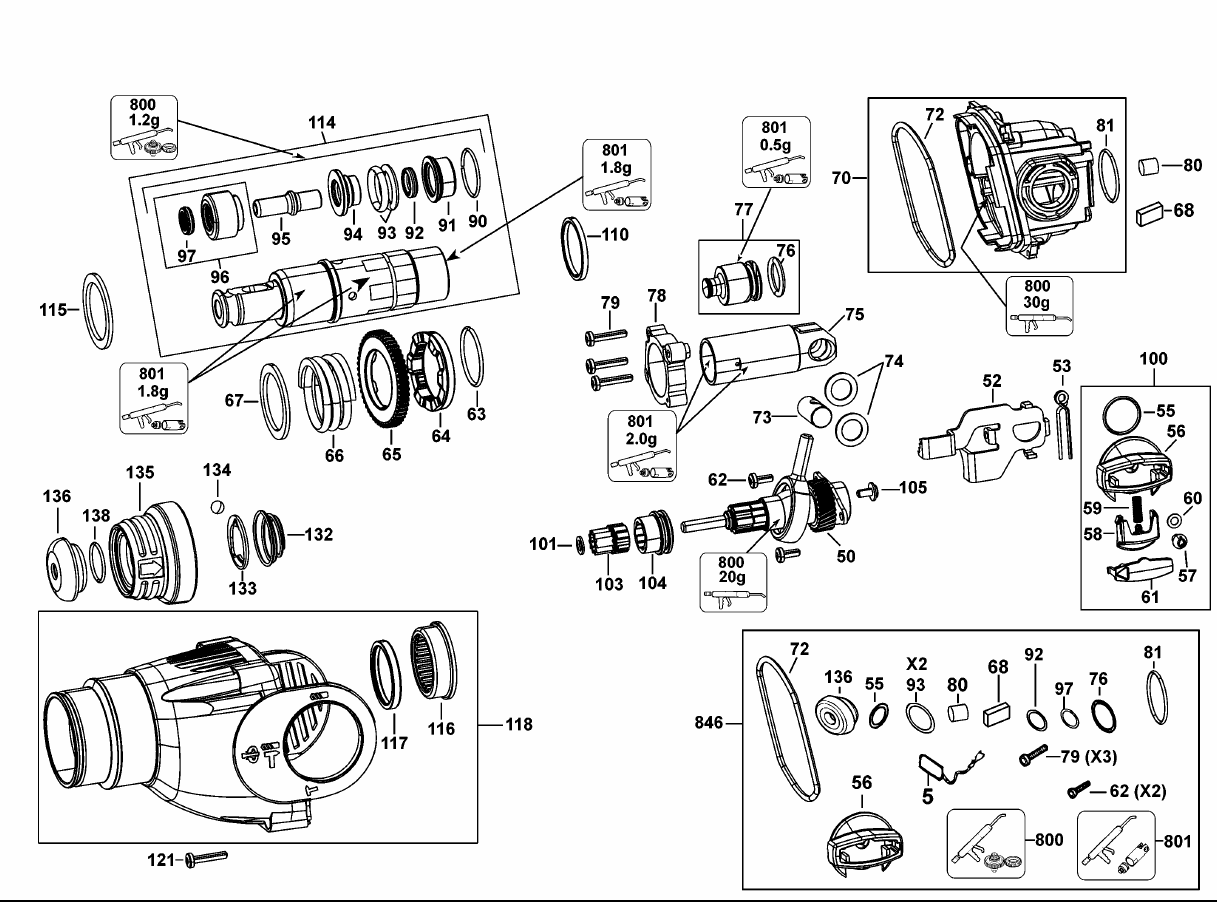

Page-1

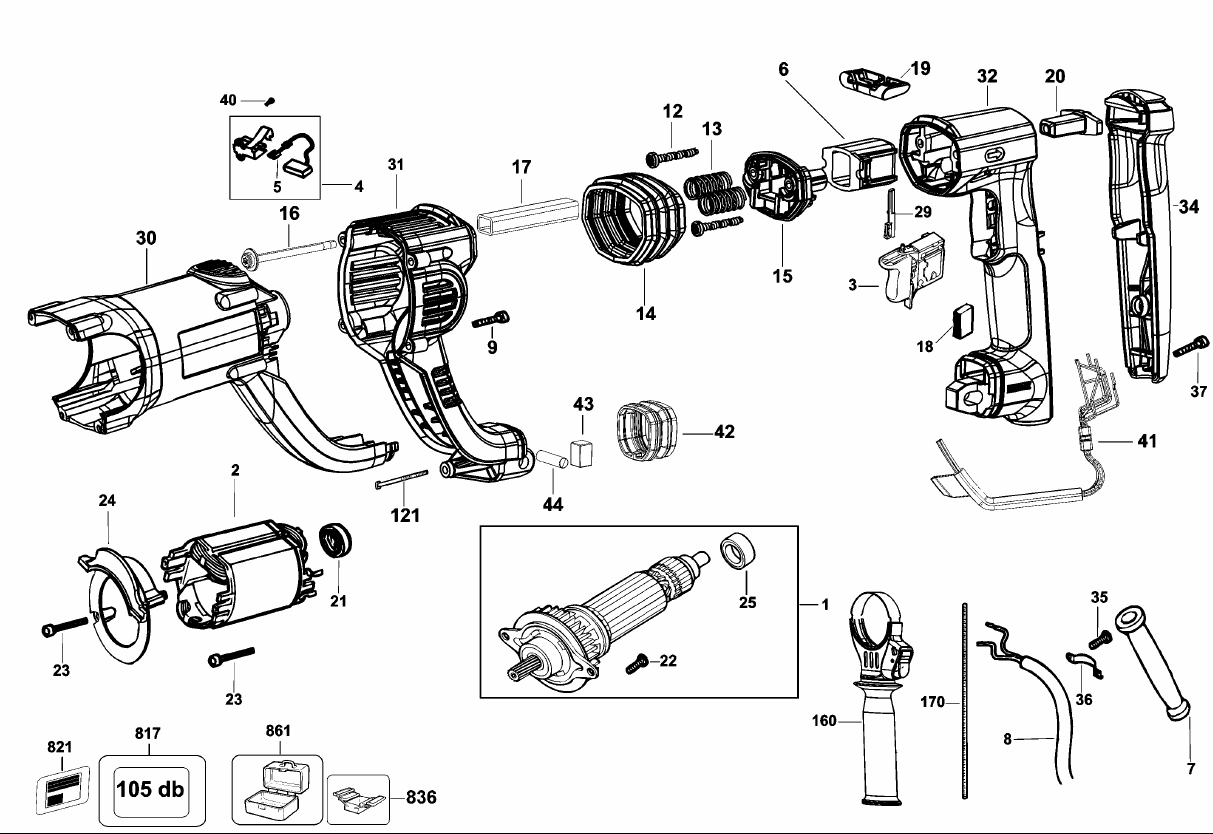

Page-2

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	N076031	ARMATURE ASSEMBLY	$80.63
2	N076097	FIELD	$35.21
3	1006749-01	SWITCH	$32.62
4	N028620	BRUSH HOLDER ASSY	$7.24
5	N058084	BRUSH, PAIR	$16.66
6	1007502-00	GUIDE BUSHING	$2.10
7	584090-00	CORD PROTECTOR	$2.85

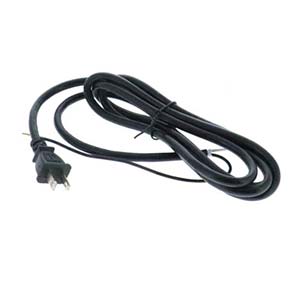

8	330076-23	CORDSET	$14.82
9	330065-09	SCREW	$1.18
12	330065-13	SCREW	$1.24
13	1006421-00	SPRING	$1.16
14	1006418-00	BELLOWS	$1.28
15	1007508-00	HOLDER, BEARING	$2.10
16	324119-04	SCREW	$1.09
17	1006430-00	GUIDE	$5.23
18	930026-01	BUMPER	$1.40
19	1006423-00	LEVER	$1.28
20	1007503-00	STOP NUT	$4.64
21	870052	BEARING COVER	$1.03
22	324006-14	SCREW	$1.18
23	326519-03	SCREW	$1.18
24	582144-00	BAFFLE	$3.70
25	330003-19	BEARING, BALL	$6.33
29	584551-00	INSERT	$1.50
30	1007092-00	MOTOR HOUSING	$16.66
31	1007135-00	HOUSING, HANDLE	$9.73
32	1007136-00	HANDLE	$11.57
34	1007137-00	HANDLE COVER	$10.38
35	330065-08	SCREW	$1.24
36	821070	CORD CLAMP	$1.62
37	330065-08	SCREW	$1.24
40	330065-25	SCREW	$1.18
41	N031249	LEAD WIRE ASSY	$22.12
42	1007890-00	BELLOWS	$1.48
43	1008355-00	DAMPER	$1.48
44	1007869-00	AXLE	$1.48
50	N076098	INTERSHAFT	$54.98
52	N029727	PLATE	$2.74
53	N042799	SPRING	$1.03
55	N104814	LEVER ASSEMBLY	$7.24
56	N104814	LEVER ASSEMBLY	$7.24
57	330065-05	SCREW	$1.24
58	N034136	TRIGGER	$1.48
59	N074923	SPRING	$1.03
60	1005811-00	SEAL	$1.48
61	N034134	COVER	$2.10
62	324006-14	SCREW	$1.18
63	581836-00	SNAP RING	$1.28
64	N076101	CLUTCH RING	$12.28
65	N076102	GEAR WHEEL	$17.68
66	N029717	SPRING	$4.02
67	577814-00	WASHER	$2.85
68	N081515	FELT	$1.03
70	N076103	HOUSING ASSY.	$25.49
72	578229-00	SEAL	$2.20
73	577801-00	BEARING BLOCK	$8.86
74	577802-00	SHIM WASHER	$2.85
75	496246-00	PISTON	$27.43
76	579699-00	O-RING	$1.33
77	496245-00	RAM	$22.79
78	N029731	BEARING BUSH	$5.28
79	324006-15	SCREW	$1.18
80	582865-00	FILTER	$1.87
81	N042496	O RING	$2.10
90	577793-00	CLIP	$1.18
91	584426-00	BUSH	$17.68
92	580990-00	O-RING	$1.58
93	577135-00	O-RING	$1.51
94	584425-00	DAMPER	$19.41
95	584424-00	BEAT PIECE	$22.84
96	584423-00	BEARING & SEAL	$14.42
97	577139-00	SEAL	$2.85
100	N099541	LEVER KIT	$7.24
101	1005844-00	WASHER	$1.16
103	N029726	PINION BUSH	$9.73
104	N029725	SHIFT COLLAR	$3.38
105	329794-00	SCREW	$1.04
110	N059509	WASHER	$1.03
114	N076105	CYLINDER ASSEMBLY	$73.06
115	577814-00	WASHER	$2.85
116	577813-00	NEEDLE BEARING	$7.19
117	577812-00	SEAL	$2.74
118	N076107	HOUSING ASSY.	$32.91
121	330065-28	SCREW	$1.18
132	871690	SPRING	$1.03
133	578387-00	WASHER	$1.95
134	583890-00	BALL	$1.18
135	493965-00	TUBE	$9.17
136	323489-00	CAP	$4.09
138	579212-00	RING	$1.18
160	1008956-00	SIDE HANDLE ASY	$22.44
170	495699-00	DEPTH STOP	$6.16
800	870889-02	GREASE	$11.24
801	487130-04	GREASE	$6.33
817	496620-00	LABEL	$1.16
821	N075054	NAMEPLATE	$1.03
836	1003925-99	SERVICE TOOL	$137.01
836	1003926-99	SERVICE TOOL	$48.34
836	1003924-99	SERVICE TOOL	$141.89
846	N104815	SERVICE KIT	$7.24
861	577646-06	KIT BOX	$25.62
