DeWalt D25213K-Type-10 Electric Drill & Driver Parts

DeWalt D25213K-Type-10 Electric Drill & Driver Parts Image

DeWalt D25213K-Type-10 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

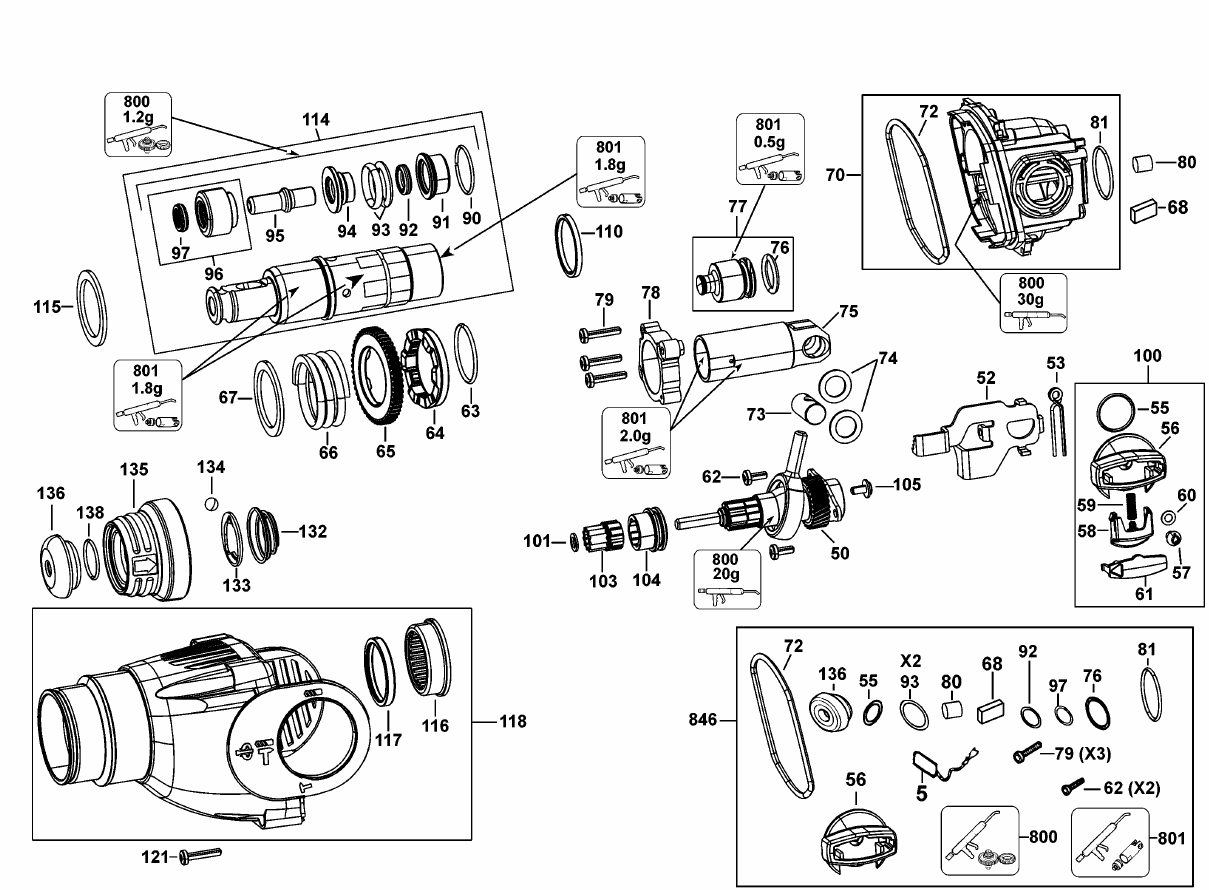

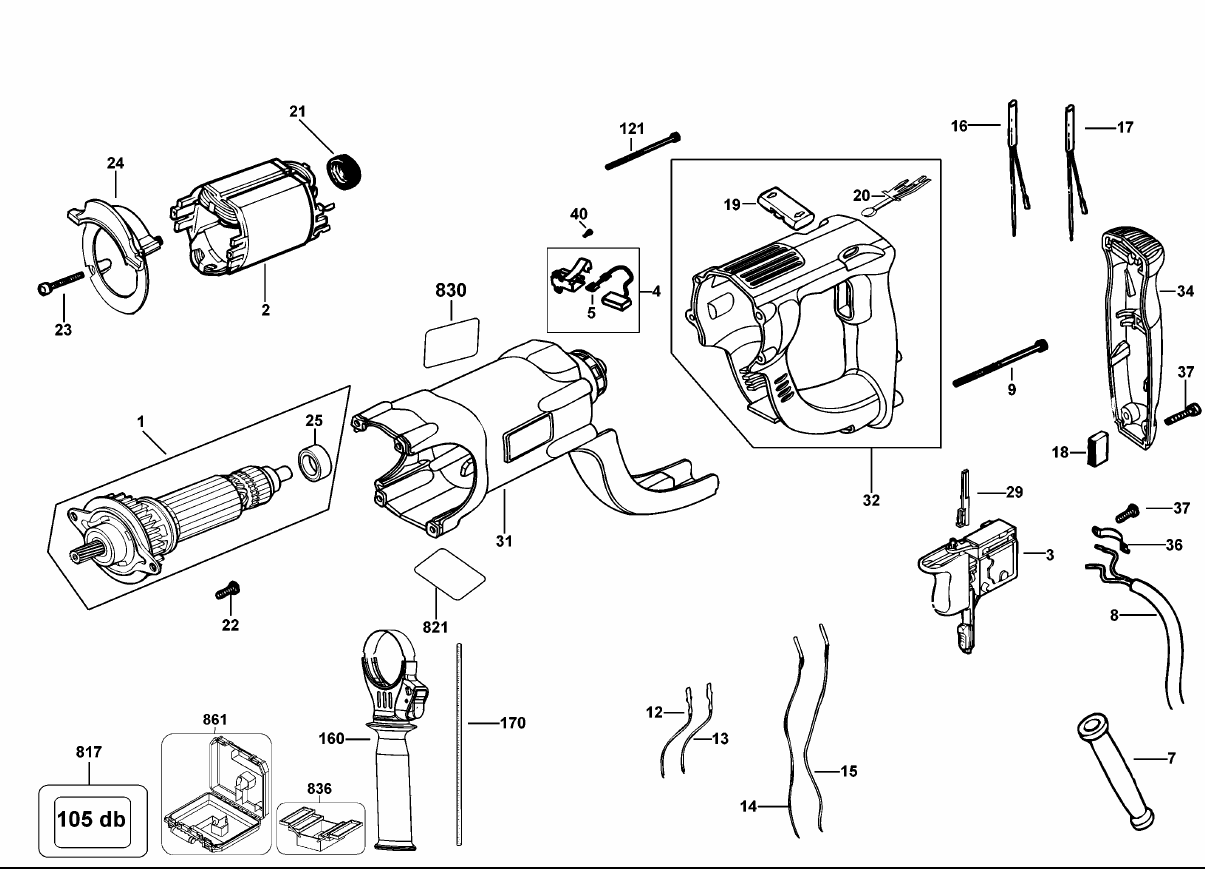

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	N081738	ARMATURE ASSEMBLY	$92.65
2	N081741	FIELD	$20.91
3	583748-04	SWITCH	$30.73
4	N081987	BRUSH HOLDER ASSY	$15.39
5	N081989	BRUSH,PAIR	$8.48
7	584090-00	CORD PROTECTOR	$2.85
8	330076-19	CORD SET	$25.73
9	330065-26	SCREW	$1.18
12	584467-00	LEAD	$1.94
13	584467-01	LEAD	$1.94
14	584467-04	LEAD	$1.94
15	584467-05	LEAD	$1.94
16	584467-06	LEAD	$1.94
17	584467-07	LEAD	$1.94
18	930026-01	BUMPER	$1.40
19	479818-00	LEVER	$2.45
20	578220-00	LEVER	$1.18
21	870052	BEARING COVER	$1.03
22	324006-14	SCREW	$1.18
23	326519-05	SCREW	$1.28
24	582144-00	BAFFLE	$3.70
25	330003-19	BEARING, BALL	$6.33
29	584551-00	INSERT	$1.50
31	578277-01	MOTOR HOUSING	$18.64
32	N082146	HANDLE	$11.33
34	578278-10	HANDLE COVER	$7.74
36	821070	CORD CLAMP	$1.62
37	330065-08	SCREW	$1.24
40	330065-25	SCREW	$1.18
50	N081985	INTERSHAFT	$63.76
52	N029727	PLATE	$2.74
53	N042799	SPRING	$1.03
55	N093371	LEVER ASSEMBLY	$1.97
56	N093371	LEVER ASSEMBLY	$1.97
57	330065-05	SCREW	$1.24
58	N034136	TRIGGER	$1.48
59	N074923	SPRING	$1.03
60	1005811-00	SEAL	$1.48
61	N034134	COVER	$2.10
62	324006-14	SCREW	$1.18
63	581836-00	SNAP RING	$1.28
64	N081742	CLUTCH RING	$7.19
65	N081984	GEAR	$12.60
66	N029717	SPRING	$4.02
67	577814-00	WASHER	$2.85
68	N081515	FELT	$1.03
70	N081983	HOUSING ASSY.	$21.18
72	578229-00	SEAL	$2.20
73	577801-00	BEARING BLOCK	$8.86
74	N074454	SHIM WASHER	$1.28
75	N081750	PISTON	$12.85
76	579699-00	O-RING	$1.33
77	N081751	RAM	$8.14
78	N029731	BEARING BUSH	$5.28
79	324006-15	SCREW	$1.18
80	N038257	FILTER	$1.28
81	N042496	O RING	$2.10
90	577793-00	CLIP	$1.18
91	N082141	BUSHING	$4.96
92	580990-00	O-RING	$1.58
93	577135-00	O-RING	$1.51
94	N082144	DAMPER	$4.64
95	N082142	BEAT PIECE	$4.33
96	N082145	BEARING & SEAL	$6.56
97	577139-00	SEAL	$2.85
100	N093350	LEVER KIT	$3.46
101	1005844-00	WASHER	$1.16
103	N029726	PINION BUSH	$9.73
104	N029725	SHIFT COLLAR	$3.38
105	329794-00	SCREW	$1.04
110	N059509	WASHER	$1.03
114	N081753	CYLINDER ASSEMBLY	$51.26
115	577814-00	WASHER	$2.85
116	N082143	NEEDLE BEARING	$4.96
117	577812-00	SEAL	$2.74
118	N081754	HOUSING ASSY.	$23.72
121	330019-81	SCREW	$1.16
132	871690	SPRING	$1.03
133	578387-00	WASHER	$1.95
134	583890-00	BALL	$1.18
135	493965-00	TUBE	$9.17
136	323489-00	CAP	$4.09
138	579212-00	RING	$1.18
160	1008956-00	SIDE HANDLE ASY	$22.44
170	495699-00	DEPTH STOP	$6.16
800	870889-02	GREASE	$11.24
801	487130-04	GREASE	$6.33
817	496620-00	LABEL	$1.16
821	N074444	NAMEPLATE	$1.16
830	N074584	ID LABEL	$1.16
836	1003925-99	SERVICE TOOL	$137.01
836	1003926-99	SERVICE TOOL	$48.34
836	1003924-99	SERVICE TOOL	$141.89
846	N093352	SERVICE KIT	$32.71
861	577646-06	KIT BOX	$25.62
