Delta CP503-Type-0 Compressor Parts

Delta CP503-Type-0  Compressor Parts Image

Delta CP503-Type-0 Parts
Time to buy a new tool?

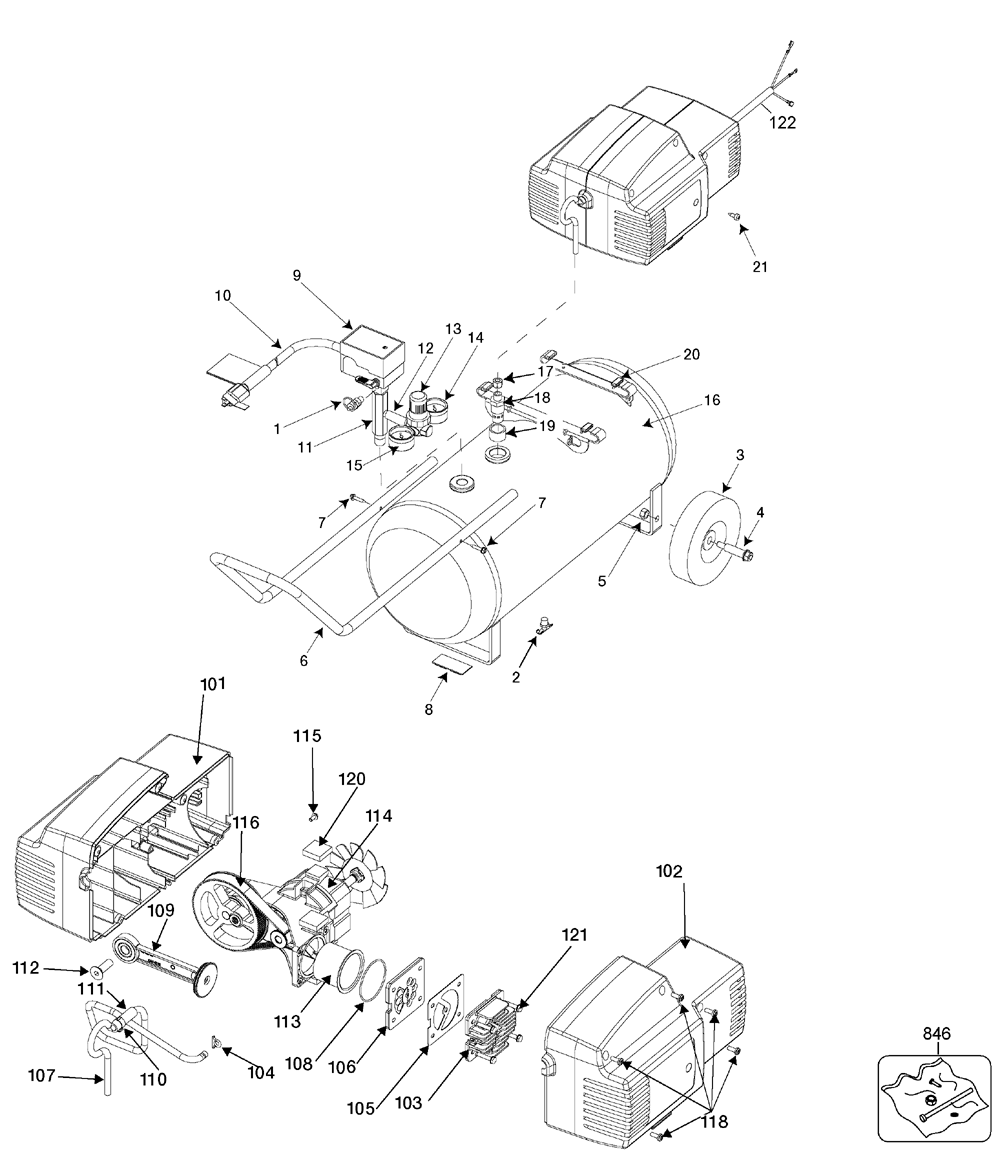

Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1 97503734 VALVE SAFETY 150 .12 $0.00Disc
2 N286039 Replaces A17038 - DRAIN VALVE $3.19
3 D23138 WHEEL 9 BLACK SEMI-P $0.00Disc
4 CAC-60 BOLT .375-16X2.25 UN $0.00Disc
5 SSF-8080-ZN NUT .375-16 UNC-2B H $0.00Disc
8 AC-0364 FOOT MOLDED BUMPER $0.00Disc
9 CAC-1283 COVER SWITCH UMC $0.00Disc
10 SUDL-413-2 ASSY CORD POWER ST $0.00Disc
11 AC-0027-2 STANDPIPE BRASS MALE $0.00Disc
12 SSP-480 NIPPLE, MAC1200 $4.48
13 N008792 REGULATOR RPR KIT $19.18
13 D27256 REGULATOR 4PORT P1P2 $0.00Disc
14 Z-AC-0009-1 GAUGE RIGHT HAND $0.00Disc
15 Z-AC-0010-1 GAUGE LEFT HAND $0.00Disc
17 SSP-473 NUT/SLEEVE ASS'Y,MAC500 $3.14
18 D24879 VALVE CHECK 1/2NPT X $0.00Disc
19 SSP-490-1 BUSHING FACE 3/4 X 1 $0.00Disc
20 CAC-1254 ISOLATOR PUMP $0.00Disc
21 SSF-621 SCREW .250-14X.625 F $0.00Disc
22 D26889 ADAPTER .25 NPT X .2 $0.00Disc
101 A06436 SHROUD KIT $0.00Disc
102 A06438 SHROUD $0.00Disc
103 CAC-1196 CYLINDER HEAD, MAC500 $8.75
104 N044359 TUBE SEAL $1.28
105 Z-D24819 GASKET HEAD UMC GRAP $11.26
106 N017592SV VALVE PLATE ASSY $6.56
107 AC-0161 TUBE OUTLET .3125OD $0.00Disc
108 SSG-8169 ORING 2.132/2.096ID $0.00Disc
109 N036518 CON ROD ASSY $25.37
110 CAC-1206-1 CLAMP HOSE .250 ID H $0.00Disc
111 AC-0206 TUBE ISOLATOR $0.00Disc
112 A19123 SCREW $0.00Disc
115 SUDL-9-1 GROUND SCREW, MAC500 $2.77
116 AC-0815 BELT TIMING DAYCO $0.00Disc
118 SSF-3156 SCREW, MAC500 $2.77
120 D25731 ISOLATOR PUMP $0.00Disc
121 SSF-995 SCREW, MAC500 $2.77
846 KK-4929 KIT FASTENER $0.00Disc
856 N102531 PUMP KIT $0.00Disc
856 N096857 SHROUD KIT $0.00Disc
