Delta 43-431X-Type-1 Shaper Parts

Delta 43-431X-Type-1  Shaper Parts Image

Delta 43-431X-Type-1 Parts
Time to buy a new tool?

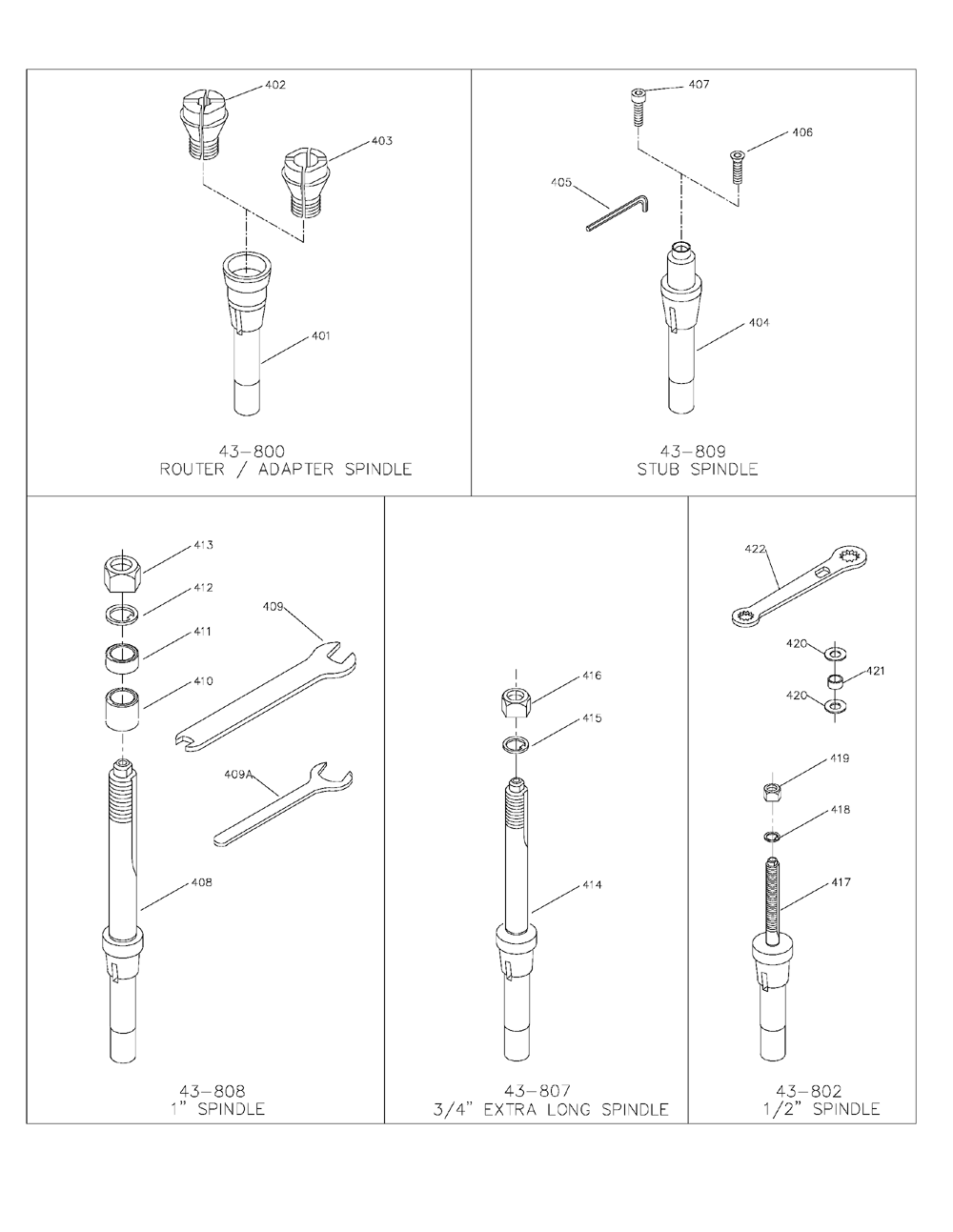

http://www.toolpartspro.com/image/43-431X-Type-1/43-431X-Delta-T1-PB Breakdown Diagram
Page-1

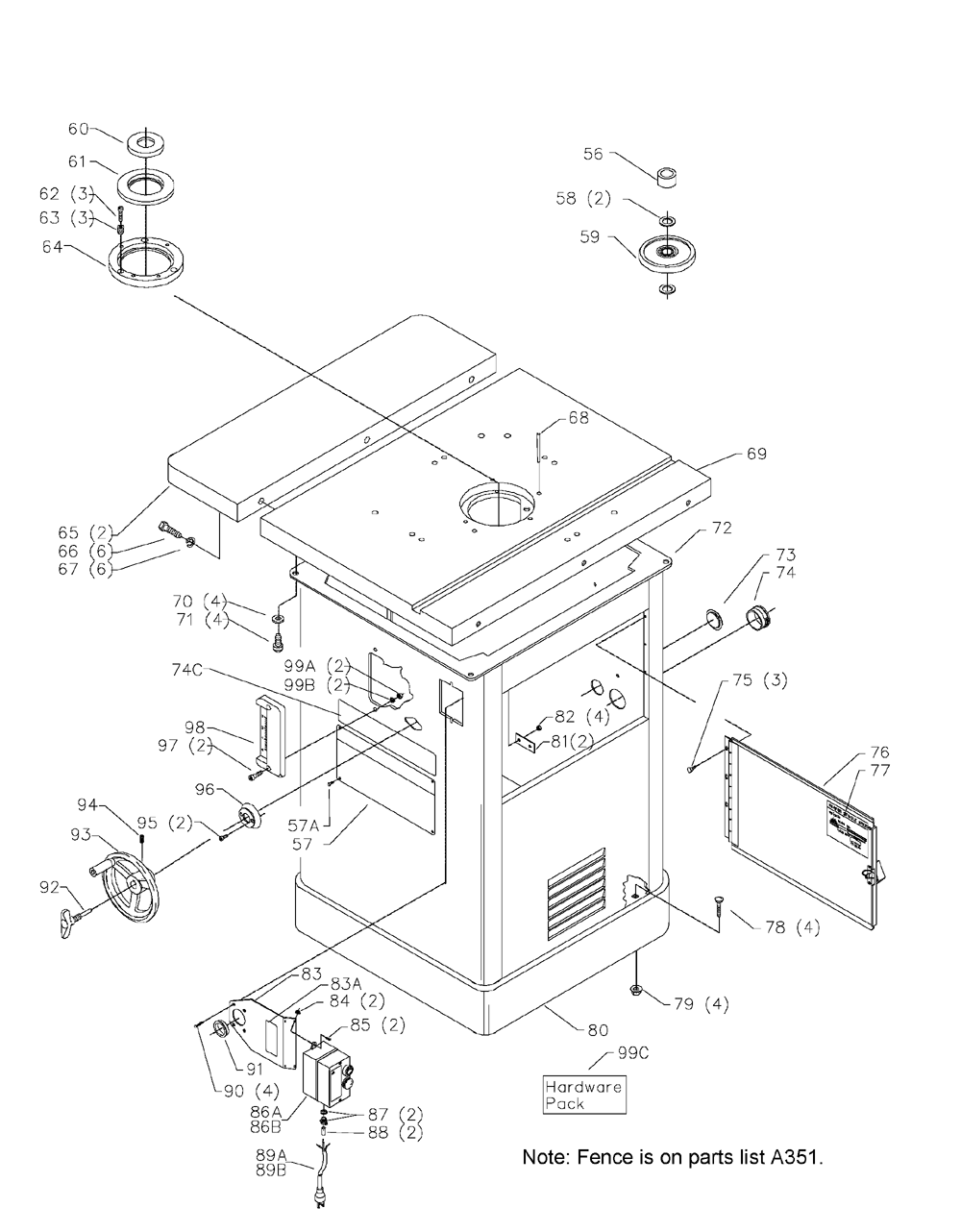

43-431X-Delta-T1-PB-1 Breakdown Diagram
Page-2

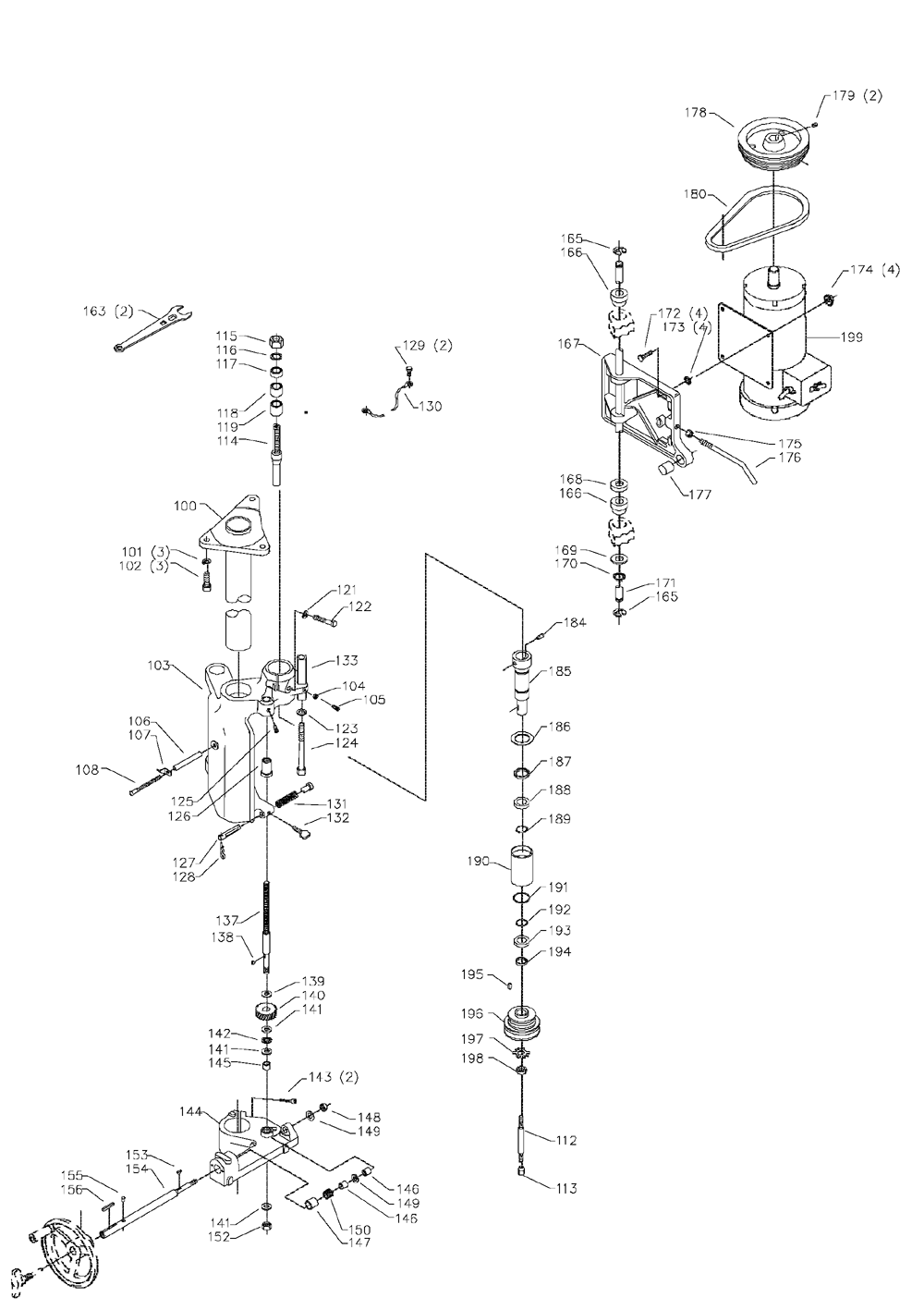

43-431X-Delta-T1-PB-2 Breakdown Diagram
Page-3
Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
56 432020170004
$9.40
57 432021370010
$19.63
57 1087794
$1.46
58 432021040008
$20.48
59 A22429
$102.29
59 432096280002
$78.28
60 432020630004
$3.02
61 432020630002
$31.50
62 901020500725
$1.46
63 432021120002
$7.91
64 432020630003
$35.85
65 A24617S
$284.47
66 901010609964
$1.36
67 904100312097S
$2.47
68 905030131493
$5.70Disc
70 904100312097S
$2.47
71 901030101487
$2.74Disc
73 438010110065
$0.84
74 438010110020
$2.53
75 901052131498
$1.11
77 A26471
$2.32
78 901110200834S
$1.46
79 902015031514
$1.05
80 422043050001
$24.41Disc
82 902011331529S
$0.22
83 432020140017
$22.75
83 422047520185
$3.53
84 902012931513S
$1.46
85 901024531123S
$1.31
86 438013170154
$160.30Disc
86 438013170153
$164.00Disc
87 438010040007S
$4.61
88 438010110054S
$4.97
89 438013022013
$23.84
89 438013022004
$33.62
90 901024031131S
$41.65
91 438010110051
$1.25
92 422044120011
$16.94
93 422044000007
$36.85
94 901041500206
$2.33
95 901030103318S
$1.39
96 432020315002
$25.69
97 901030103345S
$1.46
98 432020140001
$12.28
99 489026-00
$0.28
99 904030301757S
$1.46
99 432026260009
$277.46
100 432024030002
$160.63
101 904020201705
$1.46
102 901010600672
$3.46
103 432020120008
$158.55
104 902010101300S
$1.46
105 901041931403
$3.88
106 432021045001
$3.41
107 422040755001S
$15.15
108 901020131813
$1.05
112 432021120003
$26.00
113 902012012584
$10.86
114 432020850005S
$82.97
115 902011313082
$20.97Disc
116 904050106662S
$7.99
117 904100314506
$25.86
118 904100314507
$26.36
119 904100314508
$30.34
121 904020201704S
$1.31
122 901010600646S
$2.00
123 904010312905S
$2.80
124 901010600685
$6.76
125 901041500206
$2.33
126 432021055002S
$28.86
128 905050402106S
$1.46
129 901030103318S
$1.39
130 438013200258
$5.12
131 432021220001S
$2.52
132 901042601528S
$3.99
133 432021105001
$36.73
137 432021120001
$35.21
138 927010102633
$1.46
139 904010312905S
$2.80
140 432020510002
$52.98
141 920760331392S
$1.34
142 920450131412S
$3.74
143 901030100760
$2.47
144 432023140010
$313.29
145 920750131524
$6.09
146 920750131523
$6.09
147 920750112784
$5.22
148 902-01-213-1635
$0.00Disc
149 920760331391
$4.53Disc
150 432020510001
$37.31Disc
152 902012817295S
$4.75
153 927010102631
$1.46
154 432021060002
$58.62
155 422040740001S
$1.18
156 927030102650S
$1.46
163 955010501467S
$39.06
165 904150607443
$1.25
166 932010102860
$8.93
168 432020795001
$6.55
169 904010101611
$1.96
170 928070107378
$25.12
171 432021060001
$23.50
172 901110200830S
$1.46
173 904030301656S
$1.46
174 902015031514
$1.05
175 902012012579
$2.74
177 432020165001
$4.35
178 432024300004
$50.72
179 901041500206
$2.33
180 432021330001
$10.99
184 432020710003S
$5.25
185 432021050003S
$95.45
185 432023850011
$216.71
186 432021030002S
$2.80
187 432020790002S
$23.44
188 920040331821S
$8.33
189 904150131819S
$2.25
190 432020770001S
$48.06
191 904040131820S
$4.40
192 904150131819S
$2.25
193 920040331821S
$8.33
194 432021040012S
$7.35
195 927011002606S
$0.48
196 432021300006S
$57.38
197 432020790001S
$3.53
198 902070307171S
$2.01
199 438023146207
$717.63Disc
199 438023146207
$717.63Disc
401 43-800
$0.00Disc
402 698799
$37.52
403 698800
$45.15Disc
403 698800
$45.15Disc
405 955030100010
$4.40
409 955010401485S
$36.65
409 404011015001
$14.84
410 432021050005
$28.61
411 432021050004
$28.61
412 904050106674
$17.49
413 902012018553
$28.76
414 432020850005S
$82.97
414 43-807
$0.00Disc
415 904050106662S
$7.99
416 902011313082
$20.97Disc
418 904050131834S
$11.89
419 902012012575
$12.08
420 432021040008
$20.48
421 432020170004
$9.40
422 955010200023
$0.93
