Delta 28-276-Type-1 Saw Parts

Delta 28-276-Type-1  Saw Parts Image

Delta 28-276-Type-1 Parts
Time to buy a new tool?

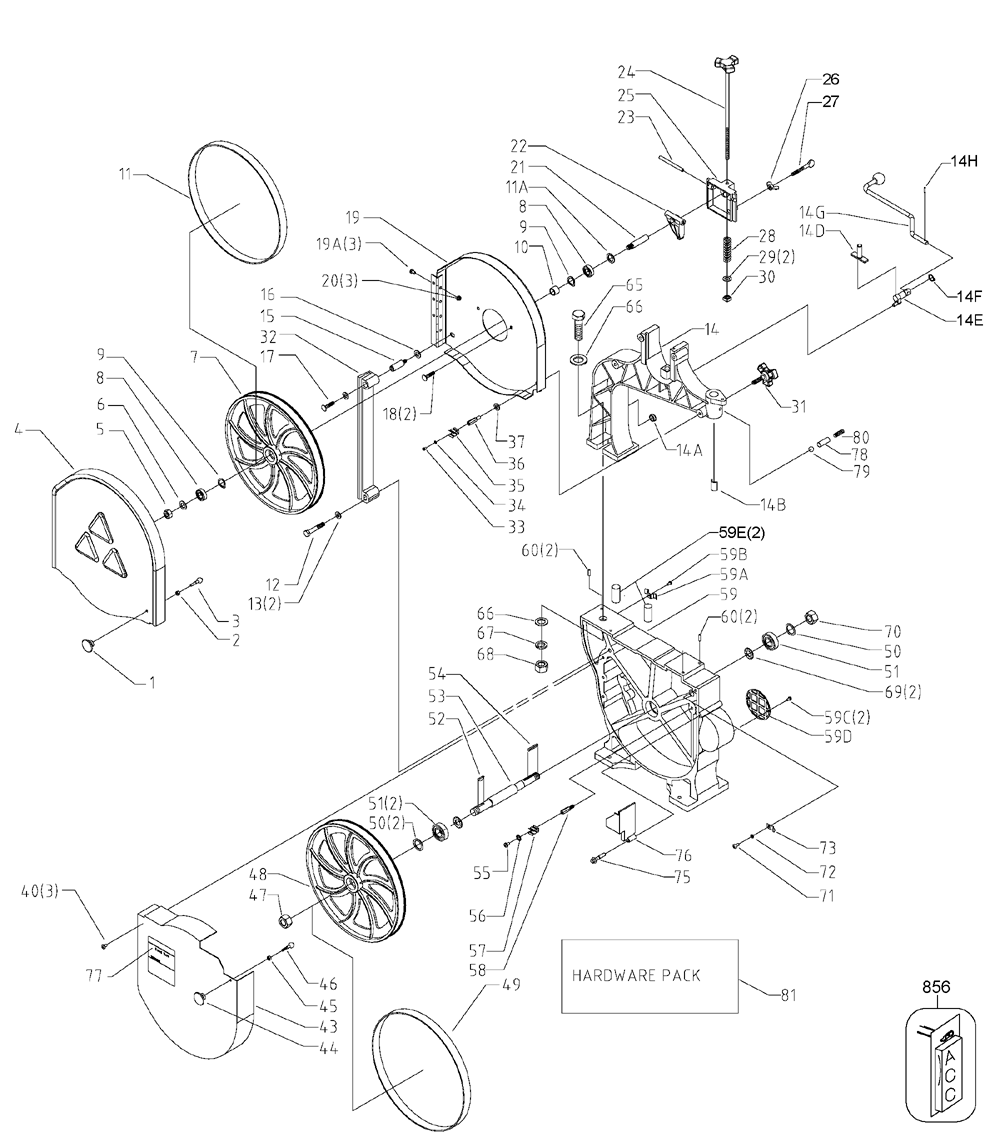

http://www.toolpartspro.com/image/28-276-Type-1/28-276-Delta-T1-PB Breakdown Diagram
Page-1

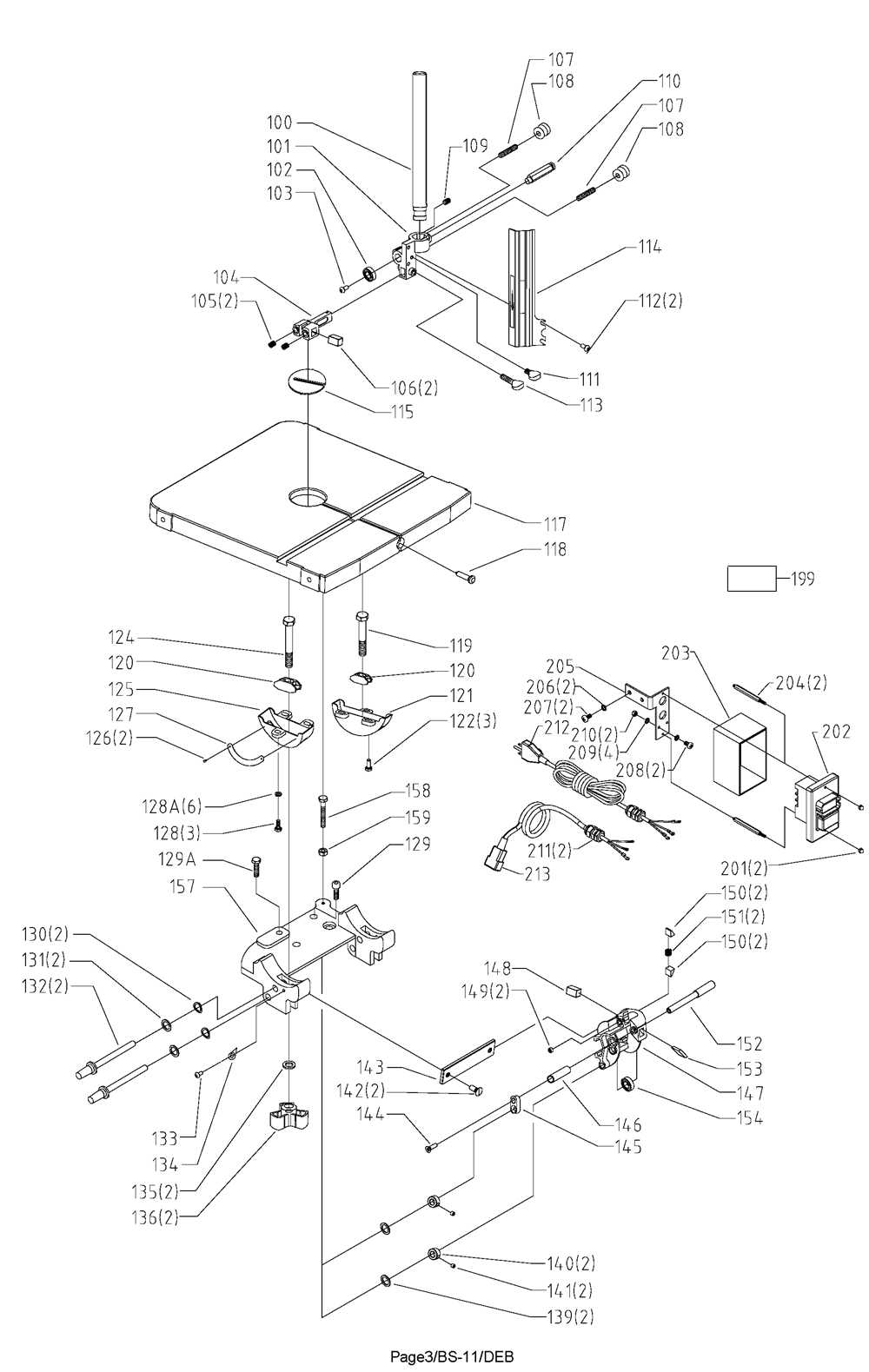

Delta-28-276-Type-1-Parts-1927-PB Breakdown Diagram
Page-2

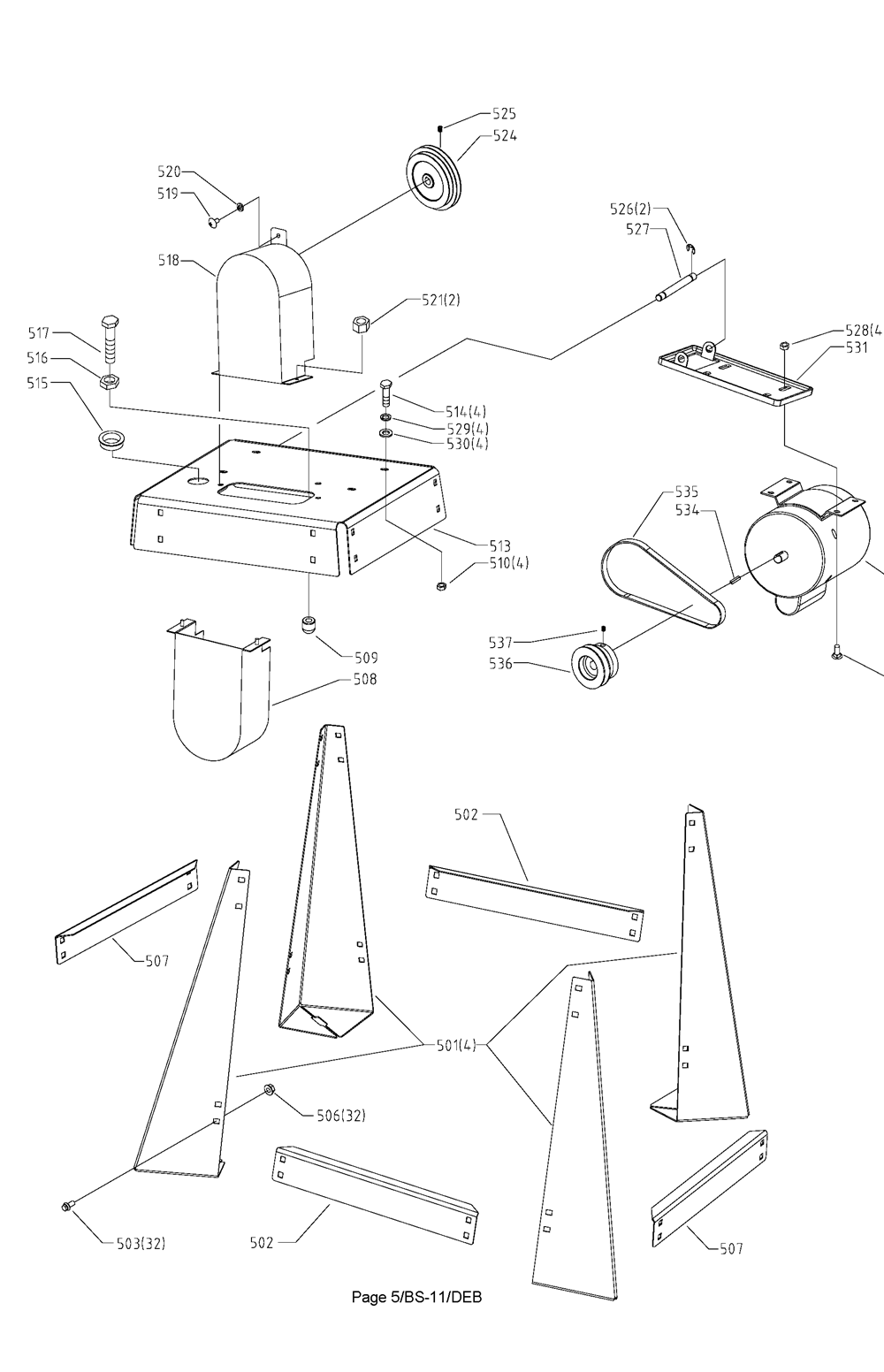

Delta-28-276-Type-1-Parts-1928-PB Breakdown Diagram
Page-3
Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1 905139 KNOB $2.24
2 905140 NUT $1.82
3 905141 STUD $1.82
4 905142 GUARD $37.60
5 1348294 HEX NUT $3.56
6 1348917 M12 FLAT WASHER $2.24
7 907238 WHEEL $52.90
8 920040107272 BEARING $24.11
9 907019 SPRING CLIP $1.51
10 905144 SPACER $1.82
11 905145 REPLACES 426020940003S - TIRE $24.73
11 905146 WASHER $1.51
12 1246036 CAP SCREW $7.58
13 1243502 WASHER $2.18
14 905147 FRAME $126.63
14 1234908 INSULATOR $1.05
14 905162 LIFT SHOE $9.98
14 905161 TENSION CRANK $10.67
14 1346071 EXT RET RING $1.21
14 905163 HANDLE $9.98
14 907360 ROLL PIN $1.82
15 905149 STUD $5.08
16 488822-00 FLAT WASHER $0.26
17 905150 SCREW $1.82
18 905150 SCREW $1.82
19 905151 GUARD $35.19
19 330045-22 SCREW $1.29
20 1345893 NUT $3.31
21 905152 SHAFT $6.10
22 905153 HINGE $9.98
23 905154 PIN $2.24
24 905155 No Longer Available - KNOB $10.99Disc
25 905156 SLIDING BRACKET $18.22Disc
26 1344333 WING NUT $1.61
27 905157 THUMB SCREW $2.24
28 905158 SPRING $3.47
29 904070115711 FIBER WASHER $2.85
30 905160 NUT $2.24
31 905164 KNOB $8.20
32 905165 GUARD $9.98
33 1347527 SCREW $4.38
34 1310210 LOCKWASHER $1.29
35 905166 DOOR CATCH $2.24
36 905167 HEX STUD $2.24
37 1340637 WASHER $1.41
40 1243321 SCREW $2.76
43 905168 GUARD $39.41
44 905139 KNOB $2.24
45 905140 NUT $1.82
46 905141 STUD $1.82
47 1343859 NUT $2.72
48 905169 LOWER WHEEL $64.38
49 905145 REPLACES 426020940003S - TIRE $24.73
50 905170 WASHER $1.82
51 920040205348 BEARING $44.99
52 905171 KEY $2.24
53 905172 LOWER DRIVE SHAFT $14.87
54 905173 KEY $1.82
55 1347527 SCREW $4.38
56 1310210 LOCKWASHER $1.29
57 905166 DOOR CATCH $2.24
58 905167 HEX STUD $2.24
59 905174 BASE $268.24
59 905175 WIRE CLIP $1.51
59 1342455 SCREW $1.36
59 1342455 SCREW $1.36
59 907018 GUARD $6.72
59 901808 WIRE SLEEVE $0.38
60 905176 DOWEL PIN $1.51
65 905177 SCREW $6.72
66 905178 WASHER $2.24
67 905179 WASHER $1.91
68 905180 HEX NUT $2.85
69 905181 SPRING $1.82
70 1343859 NUT $2.72
71 1243321 SCREW $2.76
72 488874-00 LOCK WASHER $1.06
73 905182 SPRING CLIP $1.82
75 905183 SCREW $2.24
76 907017 GUARD $3.47
77 A16208 WARNING LABEL $1.11
78 911315 PLUG $1.45
79 911316 BALL $1.45
80 1246133 SET SCREW $2.68
81 642226-00 HARDWARE PACKAGE $26.15
100 905186 GUIDE POST $12.15
101 905188 BRACKET $10.99
102 920080205352S BEARING 6200ZZ $2.32
103 1345859 SCREW $2.91
104 905189 BRACKET $6.72
105 1340565 SCREW $2.99
106 905190 GUIDE BLOCK $4.78
107 905191 SCREW $2.24
108 905192 SERRATED NUT $1.51
109 1330200 SCREW $2.69
110 905193 SHAFT $4.17
111 905194 THUMB SCREW $2.85Disc
112 1345859 SCREW $2.91
113 905195 THUMB SCREW $1.51
114 905196 BLADE GUARD $6.72
115 905197 INSERT-24SS ONLY REPLACES 426020630001S $8.16
117 907240 TABLE $153.48
118 905199 PIN $2.24
119 1246199 SCREW $3.80
120 905200 CLAMP SHOE $5.08
121 426023950005 TRUNNION ASSY $27.47
122 1246014 CAP SCREW $0.61
124 1246087 CAP SCREW $5.96
125 426020950002S TRUNNION $7.91
126 905203 RIVET $1.51
127 905204 SCALE $2.24
128 1246014 CAP SCREW $0.61
128 1310062 WASHER $1.91
129 1246053 CAP SCREW $3.78
129 1246017 CAP SCREW $2.69
130 905205 WASHER $1.51
131 904070115711 FIBER WASHER $2.85
132 905206 SCREW $5.49
133 1342455 SCREW $1.36
134 905207 POINTER $1.82
135 1348917 M12 FLAT WASHER $2.24
136 905208 KNOB $8.91
139 904070115711 FIBER WASHER $2.85
140 905209 COLLAR ASSY $2.24
141 1310055 SET SCREW $0.38
142 1341856 SCREW $3.07
143 905210 RAIL $5.08
144 905211 SCREW $1.51
145 905212 LINK $6.10
146 905213 SPACER $2.24
147 905214 BRACKET $16.47
148 905190 GUIDE BLOCK $4.78
149 907361 SCREW $1.82
150 905215 WEDGE $1.82
151 905216 COIL SPRING $1.51
152 905217 SHAFT $3.47
153 905218 ANGLE GUIDE BLOCK $1.82
154 920080205352S BEARING 6200ZZ $2.32
157 905219 TRUNNION SUPPORT ASS $33.10Disc
158 905220 SCREW $2.24
159 491964-00 REPLACED BY 330015-03 - NUT $1.06
199 A16502 NAMEPLATE $0.61
201 907013 NUT $1.51
202 905224 SWITCH $56.67
203 905221 SWITCH BOX $9.98
204 907014 SCREW $0.73
205 905223 SUPPORT $8.75
206 1313361 STAR WASHER $1.29
207 1243321 SCREW $2.76
208 1342455 SCREW $1.36
209 488983-00 LOCK WASHER $1.23
210 1243395 HEX NUT $2.30
211 907016 BUSHING $4.78
212 905228 CORD $12.63
213 905227 CORD $9.37
501 905235 LEG $22.38
502 905237 BRACE $9.98
503 1349177 SCREW $2.69
506 1348301 NUT $3.16
507 905236 BRACE $9.98
508 905245 GUARD $14.73
509 907010 WASHER $1.51
510 1348301 NUT $3.16
513 905231 BRACKET $85.96
514 489303-00 HEX HEAD SCREW $1.30
515 907011 INSULATOR $1.51
516 1243496 NUT-STEEL $2.69
517 1246020 CAP SCREW $11.61
518 907012 GUARD $29.06
519 1243321 SCREW $2.76
520 1341945 FLAT WASHER $0.26
521 1348301 NUT $3.16
524 905239 PULLEY $21.02
525 905240 SCREW $1.82
526 1246058 EXT RET RING $3.94
527 905243 SHAFT $6.72
528 1348301 NUT $3.16
529 488813-00 LOCK WASHER $1.03
530 488822-00 FLAT WASHER $0.26
531 905244 BRACKET $15.81
533 1349177 SCREW $2.69
534 1342579 KEY $3.38
535 905241 BELT $13.25
536 905242 PULLEY $12.16
537 905240 SCREW $1.82
629 488813-00 LOCK WASHER $1.03
856 5140063-53 SLIDE GUIDES $0.00Disc
