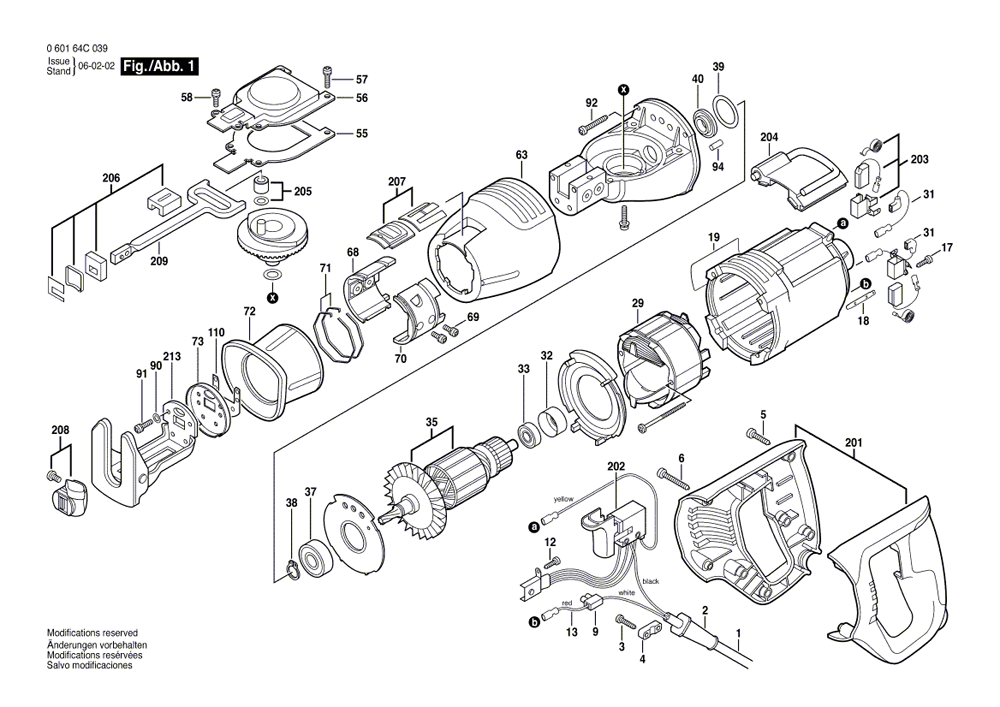

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	2-610-921-075	Cord	$11.58
2	2-610-938-453	Grommet	$1.57
3	2-610-923-220	Screw	$0.89
4	2-610-921-077	Clamp	$0.89
5	2-610-923-221	Screw	$0.89
6	2-610-923-222	Screw	$0.89
9	2-610-353-428	Terminal	$1.57
12	2610998574	SCREW	$0.89
13	2-610-921-102	Cable	$0.89
17	2-610-923-223	Screw	$0.89
18	2-610-921-103	Connector	$0.89
29	2-610-921-072	Field 100V	$14.23
31	2-610-921-081	Cable	$0.89
32	2-610-921-082	Rubber Bushing	$0.89
33	2-610-921-079	Ball Bearing	$4.00
35	2-610-921-073	Armature 100V	$24.95
37	2-610-921-080	Ball Bearing	$4.00
38	2-610-380-120	Retaining snap ring	$0.89
39	2-610-921-084	Washer	$0.89
40	2-610-921-085	Seal	$0.89
55	2-610-921-088	Base Plate	$1.91
56	2-610-921-089	Cover Plate	$2.79
57	2-610-923-217	Screw	$0.89
58	2-610-923-218	Screw	$0.89
63	2-610-921-091	Cover	$10.27
68	2-610-921-093	Collar	$1.34
69	2-610-923-216	Screw	$0.89
70	2-610-921-094	Collar	$1.34
71	2-610-921-095	Locating ring	$0.89
72	2-610-921-096	Collar	$6.03
73	2-610-921-097	End Plate	$1.34
90	2-610-921-101	Washer	$0.89
91	2-610-923-219	Screw	$0.89
92	2-610-923-222	Screw	$0.89
94	2-610-923-225	Rubber Plug	$0.89
110	2-610-941-383	Shim Plate	$1.34
201	2-610-921-083	Handle	$11.58
202	2-610-921-074	On-Off Switch	$20.28
203	2-610-921-078	Carbon-Brush Set	$4.60
204	2-610-921-104	Hook	$4.60
205	2-610-921-086	Needle-Roller Assembly	$3.17
206	2-610-921-090	Seal Bushing	$3.17
207	2-610-921-092	Locking Lever	$1.34
208	2-610-921-098	Blade Holder	$10.27
209	2-610-921-099	Plunger Bar	$9.11
213	2-610-933-676	Supporting foot	$9.11
