Bosch RH228VC Electric Rotary Hammer Parts

Bosch RH228VC Electric Rotary Hammer Parts Image

Bosch RH228VC Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Bosch RH228VC
1-1/8 Inch SDS-plus ...
$259.00
Page-1

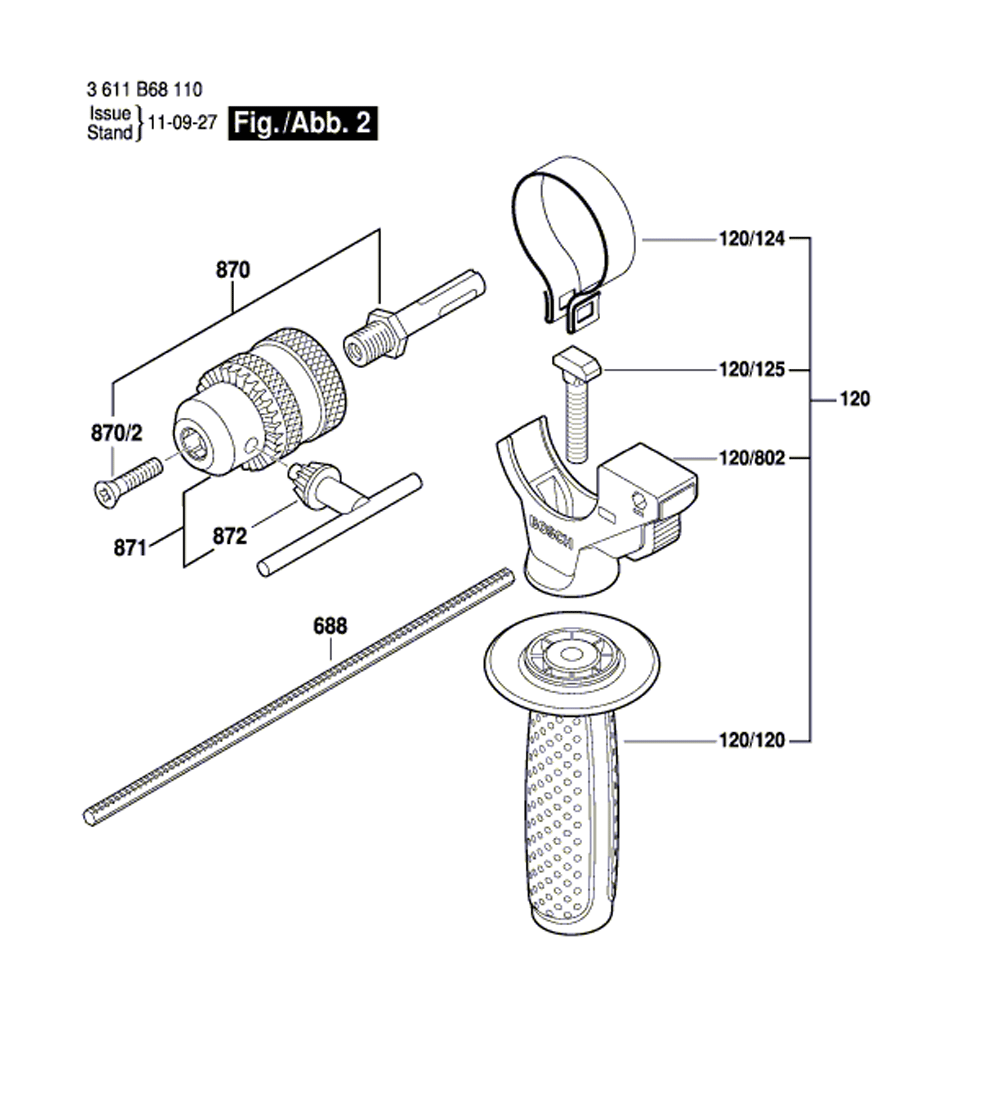

Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

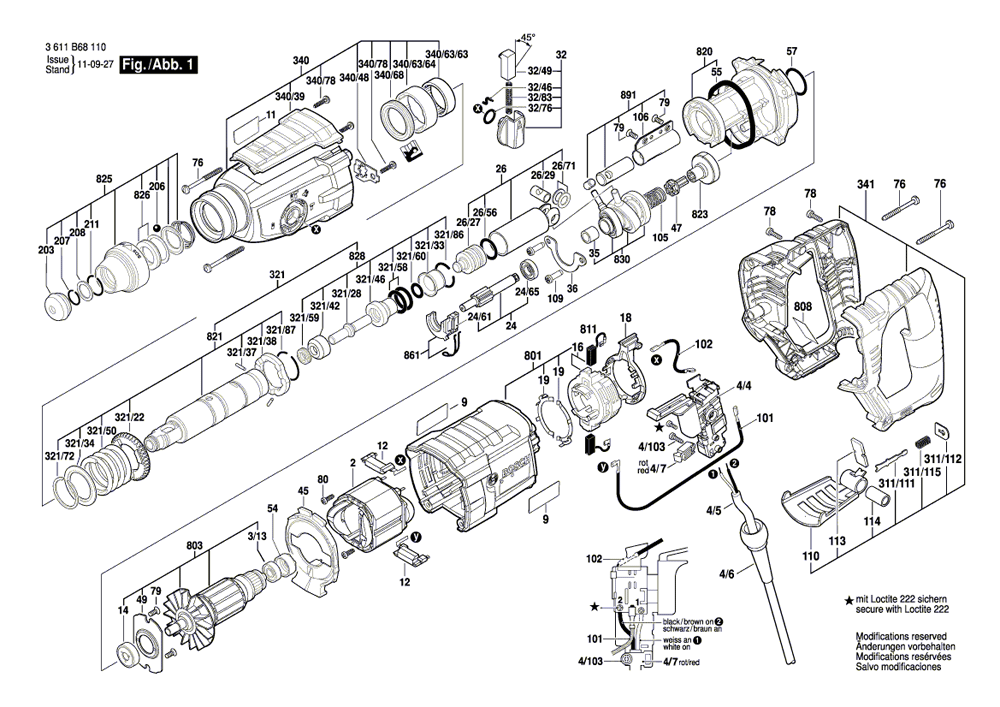

Bosch RH228VC Electric Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
3/13 1-610-905-032 Deep-Groove Ball Bearing $4.00
4/6 1-600-703-034 Grommet $1.91
4/7 1-601-035-008 Cable Clip $1.34
4/103 1-613-435-034 Lens Head Screw 3x10 ST $0.89
12 1614465012 ADAPTER MODULE $2.24
16 1-614-336-064 Brush Plate $15.38
18 1-610-290-183 Clutch Sleeve $1.57
19 1611329024 SWITCH CONTACT $1.34
24/61 1-615-820-097 Switching Element $2.79
24/65 1-610-905-016 Deep-Groove Ball Bearing $7.90
26 1-617-000-6A5 Hammer Piston $40.54
26/27 1-610-311-019 Striker $16.59
26/29 1-613-105-020 Piston Pin $4.00
26/56 1-610-210-121 O-Ring 3x17 MM GREEN $1.91
26/71 1610100016 GUIDE DISC $1.34
32 1-612-026-037 Clamp Handle BLACK $10.27
32/46 1-614-690-002 Driver Pin $1.34
32/49 1612026035 SWITCH BUTTON $1.34
32/76 1610210046 O-RING $1.34
32/83 1614611006 COMPRESSION SPRING $2.79
35 1-610-202-024 Plain bearing $4.00
49 1-615-700-044 End Shield $1.57
57 1-610-210-208 O-Ring $1.34
76 1-613-435-022 Thread-forming tap. Screw $0.89
78 2603490022 TORX OVAL-HEAD SCREW $0.89
79 1613435023 THREAD-FORMING TAP. SCREW $0.89
80 1-613-435-038 Lens Head Screw $1.34
101 1-614-449-018 Connecting Cable $1.57
102 1-614-449-019 Connecting Cable $1.57
109 1-613-435-029 Thread-forming tap. Screw $0.89
110 1-615-510-007 Strap $4.00
113 1-611-015-057 Stop Plate $0.89
114 1-610-301-006 Bushing $1.57
120 1612025057 AUXILIARY HANDLE $15.38
120/120 1612025058 AUXILIARY HANDLE $5.26
120/124 1611316021 CLAMPING BAND $2.24
120/125 1613490002 T-HEAD BOLT $1.91
120/802 1617000475 SUPPORT CLAMP $6.91
203 1610508047 PROTECTIVE CAP $1.57
206 1-613-230-003 Ball Ø 7,3 MM $1.34
207 1614601027 RETAINING RING $0.89
208 1610101629 RETAINING WASHER $0.89
211 2916540012 RETAINING RING $1.91
311/111 1-611-016-004 Tappet $0.89
311/112 1-611-010-008 Pressure Plate $0.89
311/115 1-614-643-017 Compression Spring $0.89
321/22 1-616-312-004 Cylindrical Gear $10.27
321/33 1-610-590-020 Holding Jacket $5.26
321/37 1-613-100-019 Straight Pin DIN6325-2,5x12-RIKO $1.34
321/38 1-610-190-065 Catch Disk $5.26
321/42 1-610-102-084 Thrust Ring $6.91
321/46 1-610-390-068 Guide Bushing $14.23
321/50 1-614-615-008 Compression Spring $4.60
321/58 1-610-210-105 O-Ring 3,5x18 MM $1.91
321/59 1-610-283-039 Rotary shaft lip seal $4.00
321/60 1-610-210-209 O-Ring $1.34
321/72 1604601027 RETAINING RING $0.89
321/86 1-614-601-034 Retaining ring $1.57
321/87 1-604-601-028 Retaining ring A22 DIN 7993 $0.89
340/48 1-611-098-008 Tab Washer $1.57
340/63/63 1-610-910-063 Needle bush Ø30xØ37x12 MM $4.60
340/63/64 1-610-390-069 Bushing $1.34
340/68 1-610-283-036 Rotary shaft lip seal $6.03
340/78 2603490022 TORX OVAL-HEAD SCREW $0.89
808 1601106035 $1.91
811 1617000525 CARBON-BRUSH SET $9.11
828 1-617-000-697 Striker Pin $40.54
861 1-615-820-097 Switching Element $2.79
871 1-608-571-069 "Chuck Ø 1,5-13 MM, 1/2"" " $24.95
872 2607950007 CHUCK WRENCH $4.60
