Bosch JS470E

7.0A Top-Handle Jigs...

$158.99

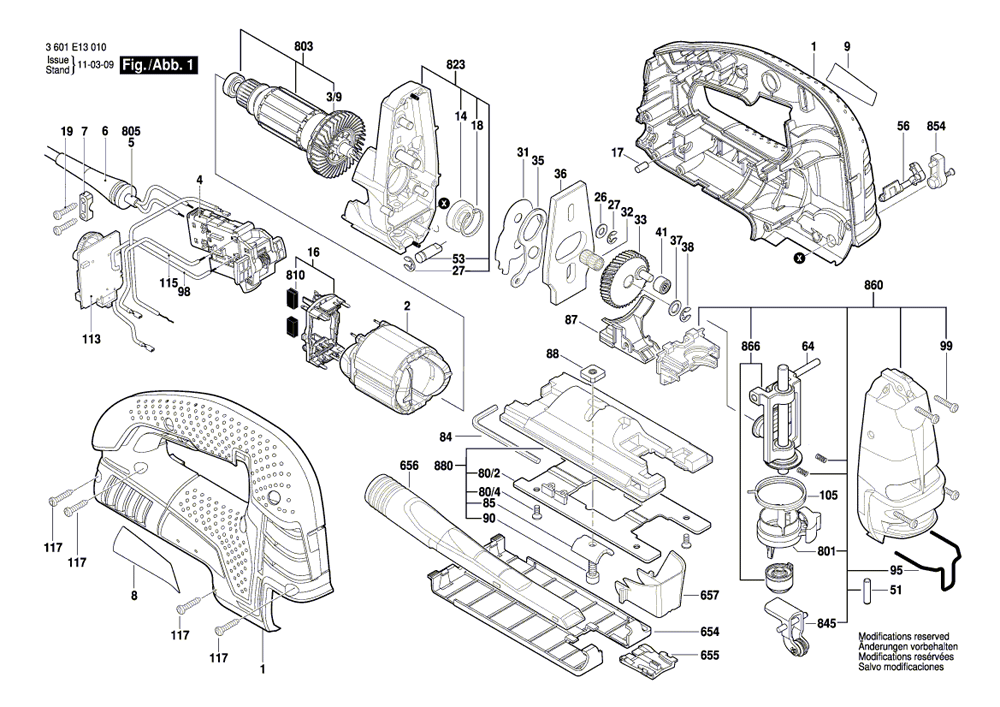

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	2-605-105-128	Housing Section BLUE	$27.31
2	2-604-220-589	Field 100V	$15.38
3/9	2-606-610-089	Fan	$4.00
4	2-607-200-670	Switch	$15.38
5	2604460270	POWER SUPPLY CORD	$14.23
6	2600703018	GROMMET	$1.91
7	2601035001	CABLE CLIP	$1.34
8	2-601-111-461	Nameplate	$1.91
9	2-601-111-379	Manufacturer's Nameplate	$1.91
16	2605807110	BRUSH PLATE	$15.38
17	1-603-100-036	Rubber Buffer	$1.34
18	2-916-660-008	Spring retaining ring DIN 472-24x1,2 MM	$0.89
19	2603490022	TORX OVAL-HEAD SCREW	$0.89
26	2-600-100-040	Shim	$1.34
31	2-600-101-119	Shim	$1.91
32	2600913040	NEEDLE-ROLLER ASSEMBLY	$4.60
33	2-606-320-099	Eccentric Cog Wheel	$18.08
35	2-601-923-015	Fork Lever	$2.24
36	2-601-098-117	Counterweight	$9.11
37	2600101047	SHIM	$1.34
38	2-916-080-909	Locking Washer DIN 6799-6-FST	$0.89
41	2600917900	NEEDLE BUSH	$6.91
51	2-603-105-131	Bearing bolt	$1.57
56	2-602-026-158	Rotary Knob BLACK	$1.57
64	2-601-322-035	Straight Pin	$0.89
80/2	2-601-099-198	Work Board	$6.03
80/4	2-603-421-017	Thread-forming tap. Screw	$0.89
84	1907950006	OFFSET SCREWDRIVER	$2.79
85	2-601-030-022	Profile Beading	$1.34
87	2-605-500-203	Air Eliminator BLACK	$2.24
88	2-600-040-004	Fastening Plate	$2.24
90	2-910-141-201	Hex Socket Head Cap Screw DIN 912-M6x20-8.8	$1.91
95	2-603-101-056	Protecting Cover	$1.57
98	2-604-448-335	Connecting Cable	$1.34
99	2603410051	THREAD-FORMING TAP. SCREW	$0.89
105	2-604-690-056	Torsion Spring	$1.57
113	2-607-230-127	Electronics Module 100-127V	$32.38
115	2-604-448-336	Connecting Cable	$1.34
117	2603490023	LENS HEAD SCREW	$0.89
654	2-601-099-183	Pad	$5.26
655	2-601-016-093	Splintering Protector	$1.91
656	2-605-730-055	Suction Nozzle	$3.17
657	2-605-510-293	Covering hood	$1.57
801	2-602-026-908	Cap-Handle BLACK	$4.00
810	2604320913	CARBON-BRUSH SET	$6.91
823	2-605-806-881	Gear Housing	$60.55
845	2-601-321-908	Roller Lever	$10.27
854	2-602-026-909	Rotary Knob BLACK	$1.91
860	2-605-808-934	Gear Cover	$92.70
866	2-600-780-164	Lifting Rod	$55.35
880	2-601-016-905	Base Plate	$22.70
