Bosch HD19-2 Electric Drill & Driver Parts

Bosch HD19-2 Electric Drill & Driver Parts Image

Bosch HD19-2 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Bosch HD19-2
1/2 Inch Hammer Dril...
$150.99
Tool Diagram    (Click image to Zoom in) View larger Image

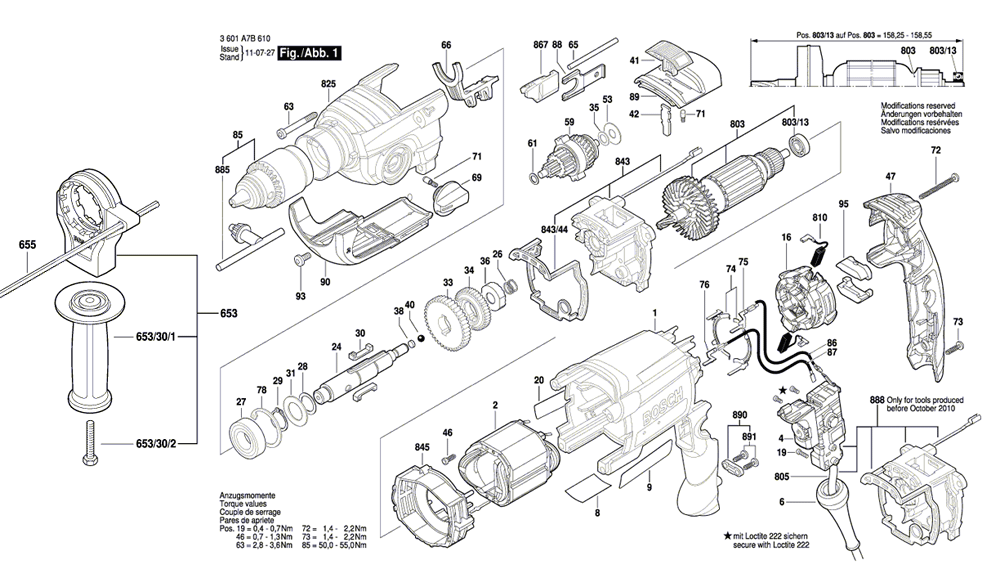

Bosch HD19-2 Electric Drill & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 2-605-105-133 Motor Housing $18.08
2 2-604-220-732 Field 110-120V $18.08
6 2600707074 GROMMET $2.79
8 2-601-115-592 Nameplate $1.57
9 2-601-115-690 Nameplate HD 19-2 $1.57
16 1614336061 BRUSH PLATE $16.59
19 2603490017 TORX OVAL-HEAD SCREW $0.89
20 2-601-115-550 Reference Plate $1.57
24 2-606-135-138 Drilling Spindle $14.23
26 2604616006 COMPRESSION SPRING $1.34
27 1900905163 DEEP-GROOVE BALL BEARING $32.38
28 2600100695 SHIM $1.34
29 2916650008 SPRING RETAINING RING $1.57
30 2602300032 $2.79
31 2600101671 RETAINING WASHER $1.34
33 2606317084 CYLINDRICAL GEAR $11.58
34 2606317085 CYLINDRICAL GEAR $7.90
35 2600101047 SHIM $1.34
36 2-600-190-105 Catch Disk $2.79
38 2600000021 SHIM RING $1.34
  2600000030 SHIM RING $1.34
  2600000031 SHIM RING $1.34
40 1903230009 BALL $0.89
  1903230010 BALL $0.89
  2603230007 BALL $0.89
41 2-602-319-029 Slide Switch RED $0.89
42 2-601-074-008 Pressure Plate $0.89
47 2-605-132-067 Housing Cover DARK BLUE $7.90
53 2600550008 DISC SPRING $1.34
59 2606309933 TRANSMISSION $27.31
61 2600100607 SHIM $1.34
63 2603435085 HEADLESS SCREW $0.89
65 2-603-105-200 Straight Pin $0.89
66 2-601-099-180 Adjusting Slide BLACK $1.34
69 2-602-026-157 Rotary Knob BLACK $1.57
71 2600590006 RATCHET CAP $1.34
72 2-603-490-027 Torx Oval-Head Screw 4x40 $0.89
73 2603490022 TORX OVAL-HEAD SCREW $0.89
74 2-601-324-062 Switch Contact $1.34
75 2-601-099-259 Contact $0.89
76 2-601-099-260 Contact $0.89
78 2916660014 SPRING RETAINING RING $1.91
85 2608571060 KEY CHUCK $36.72
86 2-604-448-331 Connecting Cable $0.89
87 2-604-448-330 Connecting Cable 72 mm $1.57
88 2-601-328-081 Holding Plate $1.57
89 2-605-510-266 Bulb Shield BLACK $2.79
90 2-605-510-283 Bulb Shield $6.03
93 2-914-491-411 Thread-forming tap. Screw $0.89
95 2-601-329-118 Clip BLACK $0.89
653 2-602-025-175 Auxiliary Handle BLACK $14.23
653/30/1 2-602-025-180 Handle BLACK $4.00
653/30/2 2-911-061-252 Hex Screw M8x45 $1.34
803 2-604-011-916 Armature 120V $40.54
803/13 2-600-905-103 Deep-Groove Ball Bearing $4.60
805 2-604-460-911 Power supply cord USA/CND 4,15 3x0,82 SJ 18/3 $18.08
810 1617000525 CARBON-BRUSH SET $9.11
825 2-605-806-884 Gear Housing $32.38
843 2-605-807-947 Bearing Bracket $36.72
843/44 2-601-015-099 Seal $4.60
845 2-600-148-012 Air-Deflector Ring $6.03
867 2-602-033-900 Toothed rack BLACK $4.00
885 2607950007 CHUCK WRENCH $4.60
888 2-607-030-903 Bearing Bracket $46.86
890 2607001305 FASTENING PARTS KIT $2.24
891 2603410046 CROSS RECESSED-HEAD SCREW $1.57
