Bosch GCM12SD Electric Saw Parts

Bosch GCM12SD Parts

Download Schematic

Time to buy a new tool?

Bosch GCM12SD

12 Inch Dual-Bevel G...

$787.99

Page-1

Page-2

Page-3

Page-4

Page-5

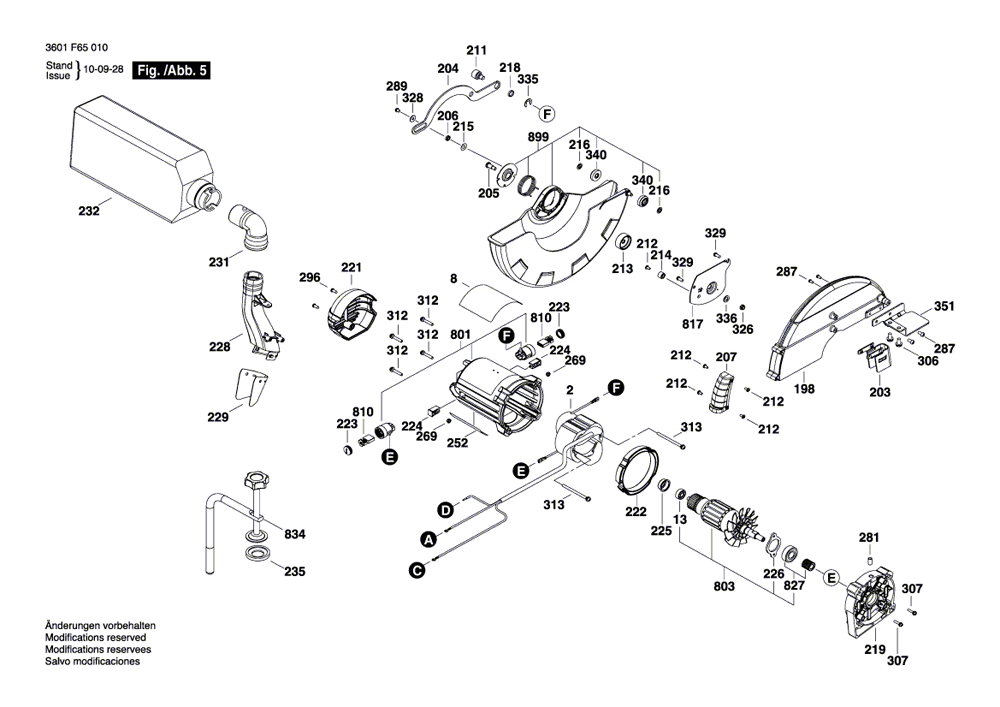

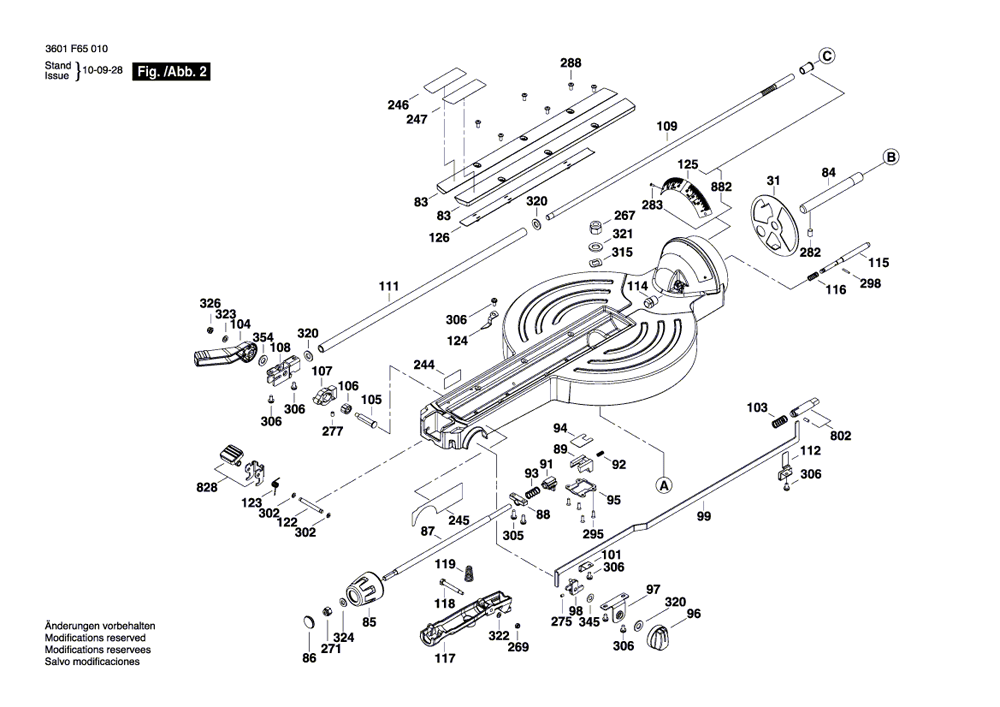

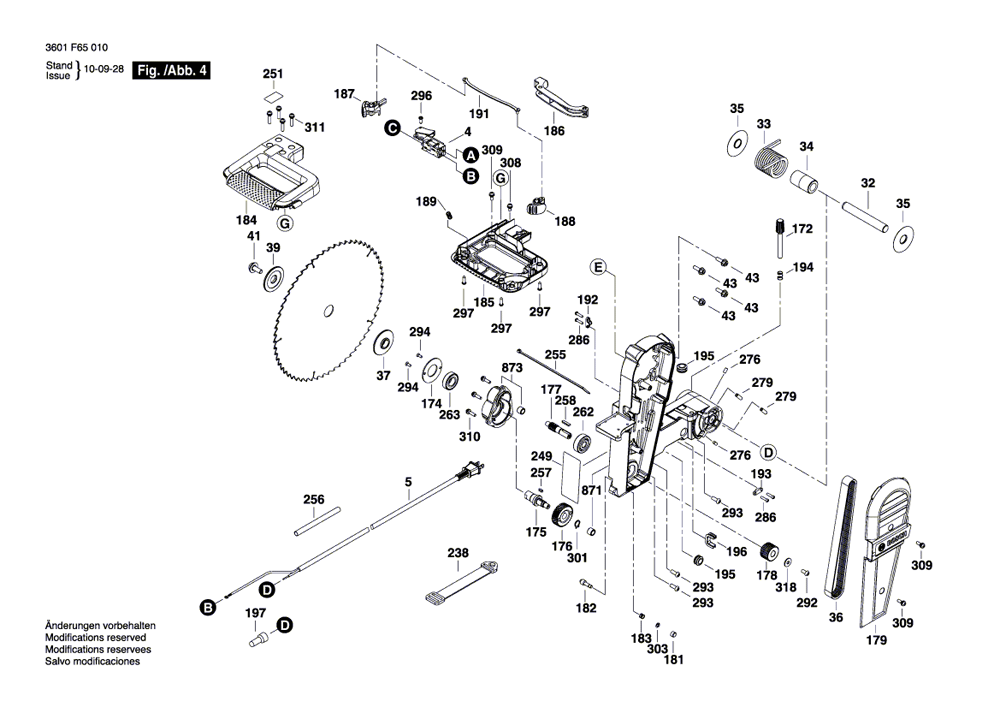

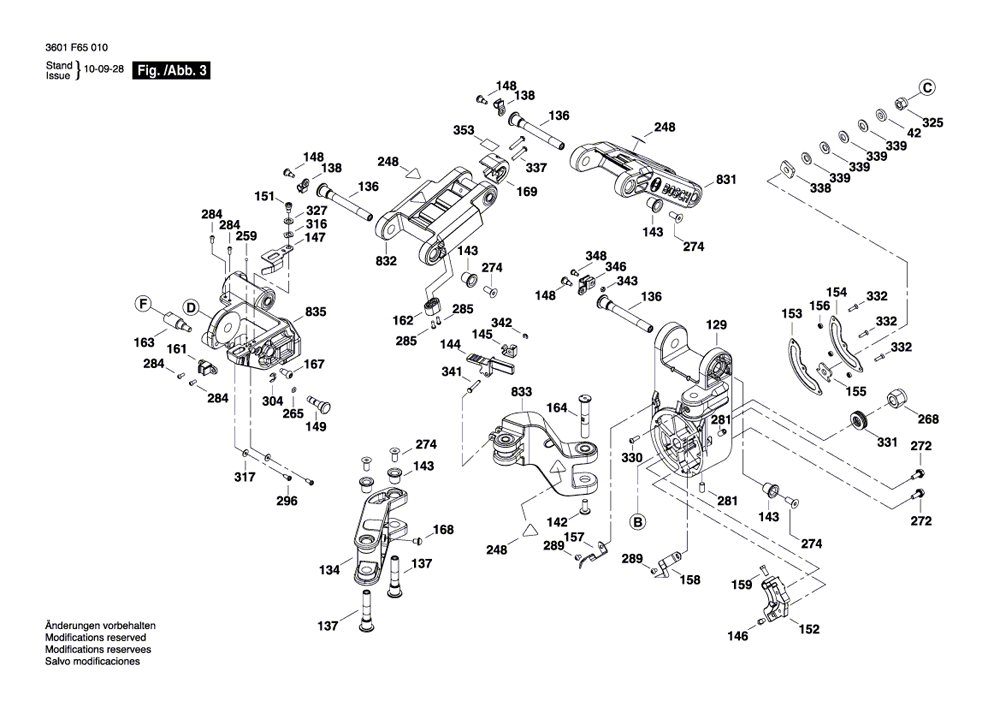

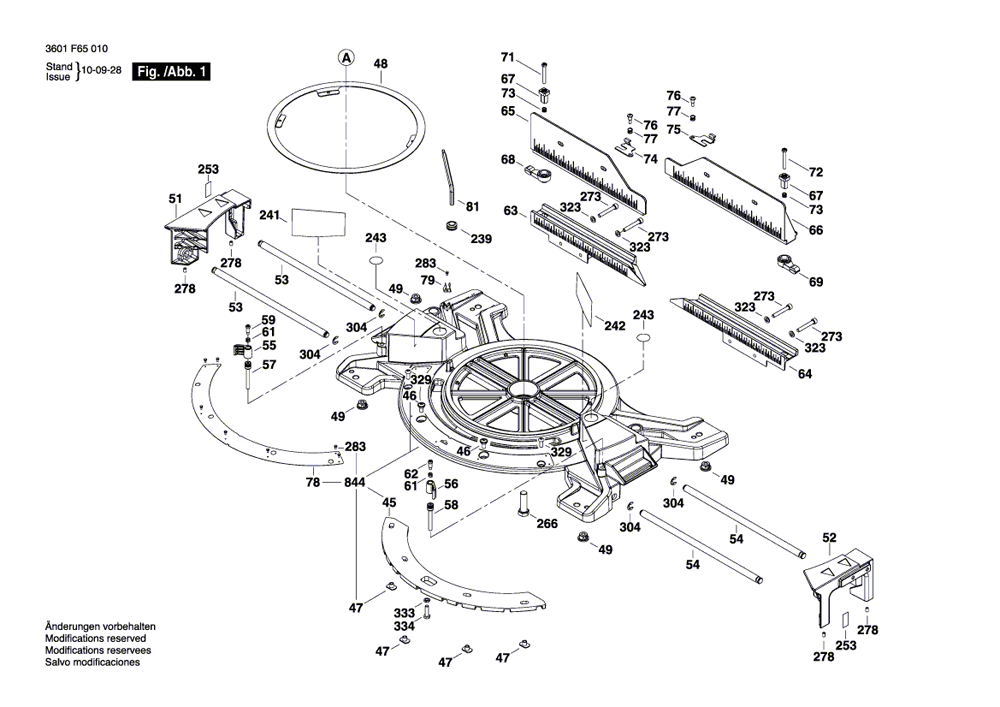

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	1-609-B00-474	Field	$50.33
4	2-610-950-336	Switch	$14.23
5	1-609-B00-400	Power supply cord	$20.28
8	1-609-B00-552	Nameplate	$1.34
13	1-609-B00-597	Bearing	$3.17
31	1-609-B00-201	Wear Plate	$4.60
32	1-609-B00-203	Pivot	$2.24
33	1-609-B00-204	Torsion Spring	$7.90
34	1-609-B00-205	Bushing	$0.89
35	1-609-B00-206	Wear Plate	$1.34
36	1-609-B00-207	Belt	$16.59
37	1-609-B00-208	Flange	$2.79
39	1-609-B00-210	Flange	$2.79
41	1-609-B00-211	Flange Bolt	$3.17
42	1-609-B00-212	Washer	$0.89
43	1-609-B00-213	Flange Bolt	$0.89
45	1-609-B00-222	Sliding Plate	$6.03
46	1-609-B00-223	Screw	$1.34
47	1-609-B00-225	Nut	$2.79
48	1-609-B00-226	Sliding Plate	$1.91
49	1-609-B00-227	Rubber Bushing	$0.89
51	1-609-B00-228	Extension Stand	$18.08
52	1-609-B00-229	Extension Stand	$16.59
53	1-609-B00-230	Extension Shaft	$4.60
54	1-609-B00-231	Extension Shaft	$4.60
55	1-609-B00-232	Locking Lever	$0.89
56	1-609-B00-233	Locking Lever	$0.89
57	1-609-B00-234	Screw	$3.17
58	1-609-B00-235	Screw	$3.17
59	1-609-B00-236	Shoulder Screw	$0.89
61	1-609-B00-237	Compression Spring	$0.89
62	1-609-B00-238	Shoulder Screw	$0.89
63	1-609-B00-240	Mitre Fence	$24.95
64	1-609-B00-241	Mitre Fence	$24.95
65	1-609-B00-242	Parallel-Guide	$27.31
66	1-609-B00-243	Parallel-Guide	$27.31
67	1-609-B00-244	Clamping Sleeve	$1.57
68	1-609-B00-245	Locking Lever	$1.34
69	1-609-B00-246	Locking Lever	$1.34
71	1-609-B00-247	Bolt	$0.89
72	1-609-B00-248	Bolt	$0.89
73	1-609-B00-249	Compression Spring	$0.89
74	1-609-B00-250	Plate	$0.89
75	1-609-B00-251	Plate	$0.89
76	1-609-B00-252	Shoulder Screw	$1.34
77	1-609-B00-253	Compression Spring	$0.89
78	1-609-B00-254	Scale	$20.28
79	1-609-B00-255	Clamp Spring	$0.89
81	1-609-B00-256	Socket wrench	$1.34
83	1-609-B00-272	Support Plate	$2.79
84	1-609-B00-273	Shaft	$3.17
85	1-609-B00-274	Knob	$5.26
86	1-609-B00-275	Cover	$1.34
87	1-609-B00-276	Rod	$5.26
88	1-609-B00-277	Bracket	$1.34
89	1-609-B00-278	Sliding Block	$2.79
91	1-609-B00-279	Sliding Block	$6.91
92	1-609-B00-280	Compression Spring	$0.89
93	1-609-B00-281	Compression Spring	$0.89
94	1-609-B00-282	Sliding Plate	$0.89
95	1-609-B00-283	Cover	$1.34
96	1-609-B00-284	Knob	$1.34
97	1-609-B00-285	Bracket	$1.34
98	1-609-B00-286	Cam	$4.00
99	1-609-B00-287	Linkage	$6.91
101	1-609-B00-289	Guide Bracket	$0.89
103	1-609-B00-291	Compression Spring	$0.89
104	1-609-B00-292	Locking Lever	$7.90
105	1-609-B00-293	Lever Shaft	$3.17
106	1-609-B00-294	Cam	$1.34
107	1-609-B00-295	Bracket	$4.60
108	1-609-B00-296	Bracket	$2.24
109	1-609-B00-297	Tension Rod	$7.90
111	1-609-B00-298	Tube	$9.11
112	1-609-B00-299	Guide Bracket	$0.89
114	1-609-B00-301	Cover	$0.89
115	1-609-B00-302	Detent Pin	$1.91
116	1-609-B00-303	Compression Spring	$0.89
117	1-609-B00-304	Locking Lever	$3.17
118	1-609-B00-305	Bolt	$1.34
119	1-609-B00-306	Compression Spring	$0.89
122	1-609-B00-308	Pin	$0.89
123	1-609-B00-309	Torsion Spring	$0.89
124	1-609-B00-310	Pointer	$0.89
125	1-609-B00-311	Scale	$1.57
126	1-609-B00-312	Plate	$1.34
129	1-609-B00-331	Hinge	$65.75
134	1-609-B00-335	Hinge	$29.17
136	1-609-B00-337	Shaft	$6.91
137	1-609-B00-338	Shaft	$5.26
138	1-609-B00-339	Cable Clip	$0.89
142	1-609-B00-342	Bolt	$1.34
143	1-609-B00-343	Bushing	$3.17
144	1-609-B00-345	Locking Lever	$6.91
145	1-609-B00-346	Clamp Spring	$0.89
146	1-609-B00-347	Adjusting bolt	$0.89
147	1-609-B00-348	Plate	$1.91
148	1-609-B00-349	Shoulder Screw	$1.34
149	1-609-B00-350	Knob	$1.34
151	1-609-B00-351	Shoulder Screw	$0.89
152	1-609-B00-352	Detent	$9.11
153	1-609-B00-353	Retaining Plate	$0.89
154	1-609-B00-354	Retaining Plate	$1.34
155	1-609-B00-355	Brake Plate	$0.89
156	1-609-B00-356	Spacer	$0.89
157	1-609-B00-357	Pointer	$1.34
158	1-609-B00-358	Pointer	$1.34
159	1-609-B00-359	Adjusting bolt	$1.34
161	1-609-B00-361	Bracket	$0.89
162	1-609-B00-362	Bumper	$1.34
163	1-609-B00-363	Shoulder Screw	$3.17
164	1-609-B00-364	Shaft	$4.60
167	1-609-B00-367	Screw	$1.34
168	1-609-B00-368	Rubber Plug	$0.89
169	1-609-B00-369	Rubber Plug	$0.89
172	1-609-B00-382	Knob	$3.17
174	1-609-B00-384	Gear Cover	$1.34
175	1-609-B00-385	Output Shaft	$6.03
176	1-609-B00-386	Gear	$14.23
177	1-609-B00-387	Pinion	$10.27
178	1-609-B00-388	Pulley	$6.03
179	1-609-B00-389	Belt Cover	$12.80
181	1-609-B00-390	Button	$0.89
182	1-609-B00-391	Locking Pin	$1.34
183	1-609-B00-392	Compression Spring	$0.89
184	1-609-B00-393	Handle Cover	$11.58
185	1-609-B00-394	bottom handle	$11.58
186	1-609-B00-395	Trigger	$1.34
187	1-609-B00-396	Button	$0.89
188	1-609-B00-397	Button	$0.89
189	1-609-B00-398	Compression Spring	$0.89
191	1-609-B00-399	Linkage	$1.34
192	1-609-B00-401	Clamp	$0.89
193	1-609-B00-405	Clamp	$0.89
194	1-609-B00-417	Compression Spring	$0.89
195	1-609-B00-418	Sleeve	$0.89
196	1-609-B00-419	Rubber Pad	$0.89
197	1-609-B00-430	Connector	$0.89
198	1-609-B00-441	Safety Cover	$40.54
203	1-609-B00-445	Safety Cover	$2.79
204	1-609-B00-447	Linkage	$7.90
205	1-609-B00-448	Shoulder Screw	$1.34
206	1-609-B00-449	Bushing	$0.89
207	1-609-B00-450	Cover	$1.34
211	1-609-B00-453	Screw	$2.24
212	1-609-B00-454	Screw	$0.89
213	1-609-B00-455	Bushing	$0.89
214	1-609-B00-456	Bumper	$0.89
215	1-609-B00-457	Washer	$0.89
216	1-609-B00-458	Quick-Lock	$0.89
218	1-609-B00-460	Bushing	$0.89
219	1-609-B00-471	Mounting Plate	$20.28
221	1-609-B00-473	Housing Cover	$5.26
222	1-609-B00-476	Baffle	$1.91
223	1-609-B00-478	Brush-Cover	$0.89
224	1-609-B00-479	Insert	$0.89
225	1-609-B00-480	Rubber Bushing	$1.34
226	1-609-B00-483	Bearing Plate	$1.34
228	1-609-B00-501	Chute	$6.91
229	1-609-B00-502	Rubber Plate	$1.91
231	1-609-B00-505	Connector	$6.03
232	1-609-B00-506	Dust Bag	$6.03
235	1-609-B00-523	Rubber Pad	$1.34
238	1-609-B00-532	velcro loop	$1.34
239	1-609-B00-533	Rubber Bushing	$0.89
241	1-609-B00-541	Warning Label	$0.89
242	1-609-B00-542	Warning Plate	$0.89
243	1-609-B00-543	Warning Plate	$0.89
244	1-609-B00-544	Label	$0.89
245	1-609-B00-546	Label	$0.89
246	1-609-B00-547	Sticker	$0.89
247	1-609-B00-548	Sticker	$0.89
248	1-609-B00-549	Warning Plate	$0.89
249	1-609-B00-550	Sticker	$0.89
251	1-609-B00-551	Label	$0.89
252	1-609-B00-553	Sticker	$0.89
253	1-609-B00-554	Label	$0.89
255	1-609-B00-582	Clip	$0.89
256	1-609-B00-583	Shrinkable Tube	$0.89
257	1-609-B00-592	Key	$0.89
258	1-609-B00-593	Key	$0.89
259	1-609-B00-594	Ball	$0.89
262	1-609-B00-599	Bearing	$7.90
263	1-609-B00-596	Bearing	$6.03
265	1-609-B00-601	O-Ring	$0.89
266	1-609-B00-602	Bolt	$0.89
267	1-609-B00-603	Lock Nut	$0.89
268	1-609-B00-604	Lock Nut	$0.89
269	1-609-B00-605	Lock Nut	$0.89
271	1-609-B00-608	Lock Nut	$0.89
272	1-609-B00-609	Bolt	$0.89
273	1-609-B00-610	Screw	$0.89
274	1-609-B00-612	Screw	$1.34
275	1-609-B00-614	Set screw	$0.89
276	1-609-B00-615	Set screw	$0.89
277	1-609-B00-616	Set screw	$0.89
278	1-609-B00-617	Set screw	$0.89
279	1-609-B00-618	Set screw	$1.34
281	1-609-B00-620	Set screw	$1.34
282	1-609-B00-621	Set screw	$1.34
283	1-609-B00-622	Rivet	$0.89
284	1-609-B00-623	Screw	$0.89
285	1-609-B00-624	Screw	$0.89
286	1-609-B00-625	Screw	$0.89
287	1-609-B00-628	Screw	$0.89
288	1-609-B00-627	Screw	$1.34
289	1-609-B00-630	Screw	$0.89
292	1-609-B00-631	Screw	$0.89
293	1-609-B00-632	Screw	$0.89
294	1-609-B00-633	Screw	$0.89
295	1-609-B00-634	Screw	$0.89
296	1-609-B00-636	Tapping Screw	$0.89
297	1-609-B00-637	Tapping Screw	$0.89
298	1-609-B00-638	Spring Pin	$0.89
301	1-609-B00-641	Retaining ring	$0.89
302	1-609-B00-642	Retaining ring	$0.89
303	1-609-B00-643	Retaining ring	$0.89
304	1-609-B00-644	Retaining ring	$0.89
305	1-609-B00-645	Screw	$0.89
306	1-609-B00-647	Screw	$0.89
307	1-609-B00-649	Screw	$0.89
308	1-609-B00-650	Screw	$0.89
309	1-609-B00-652	Screw	$0.89
310	1-609-B00-653	Screw	$0.89
311	1-609-B00-654	Screw	$0.89
312	1-609-B00-655	Screw	$0.89
313	1-609-B00-656	Screw	$1.34
315	1-609-B00-658	Spring Washer	$0.89
316	1-609-B00-660	Spring Washer	$0.89
317	1-609-B00-661	Washer	$0.89
318	1-609-B00-662	Washer	$0.89
320	1-609-B00-664	Washer	$0.89
321	1-609-B00-665	Washer	$0.89
322	1-609-B00-667	Washer	$0.89
323	1-609-B00-669	Washer	$0.89
324	1-609-B00-670	Washer	$0.89
325	1-609-B00-672	Lock Nut	$0.89
326	1-609-B00-673	Lock Nut	$0.89
327	1-609-B00-674	Washer	$0.89
328	1-609-B00-675	Washer	$0.89
329	1-609-B00-678	Screw	$0.89
330	1-609-B00-680	Screw	$0.89
331	1-609-B00-681	Thrust Bearing	$2.79
332	1-609-B00-682	Screw	$0.89
333	1-609-B00-685	Nut	$0.89
335	1-609-B00-687	Retaining ring	$0.89
336	1-609-B00-688	Washer	$0.89
337	1-609-B00-689	Screw	$0.89
338	2-610-919-073	Brake Plate	$4.00
339	2-610-919-281	Washer	$0.89
340	1-609-BP7-124	Roller	$0.89
341	1-609-B00-370	Shaft	$0.89
342	1-609-B00-690	Retaining ring	$0.89
343	1-609-B00-691	Nut	$0.89
345	1-609-B00-288	Washer	$0.89
346	1-609-B00-344	Clamping Band	$1.34
348	1-609-B00-371	Shoulder Screw	$1.57
351	1-609-B00-446	Cord guard	$1.91
353	1-609-B00-406	Sticker	$1.34
354	1-609-B00-676	Washer	$0.89
801	1-609-B02-302	Motor Housing	$22.70
802	1-609-B02-310	Detent Pin	$3.17
803	1-609-B02-313	Armature	$83.45
810	1-609-B02-314	Carbon-Brush Set	$6.03
817	1-609-B02-301	Plate	$6.03
827	1-609-B02-316	Bearing	$10.27
828	1-609-B02-311	Button	$1.91
831	1-609-B02-303	Hinge	$46.86
832	1-609-B02-304	Hinge	$36.72
833	1-609-B02-305	Hinge	$40.54
834	1-609-B02-315	Adjustable screw clamp	$15.38
835	1-609-B02-306	Hinge	$60.55
844	1-609-B02-312	Base	$156.61
871	1-609-B02-308	Arm	$73.20
873	1-609-B02-307	Gear Box	$20.28
882	1-609-B02-309	Table	$133.82
