Bosch CET4-20

4 Gallon 2 HP Twin A...

$297.99

Page-1

Page-2

Page-3

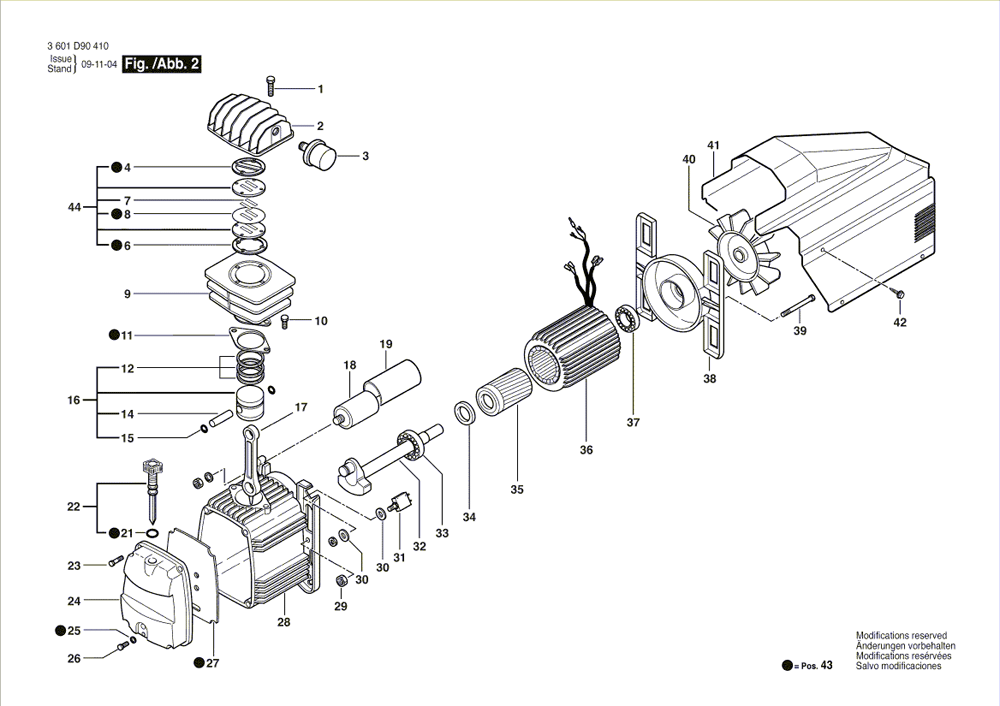

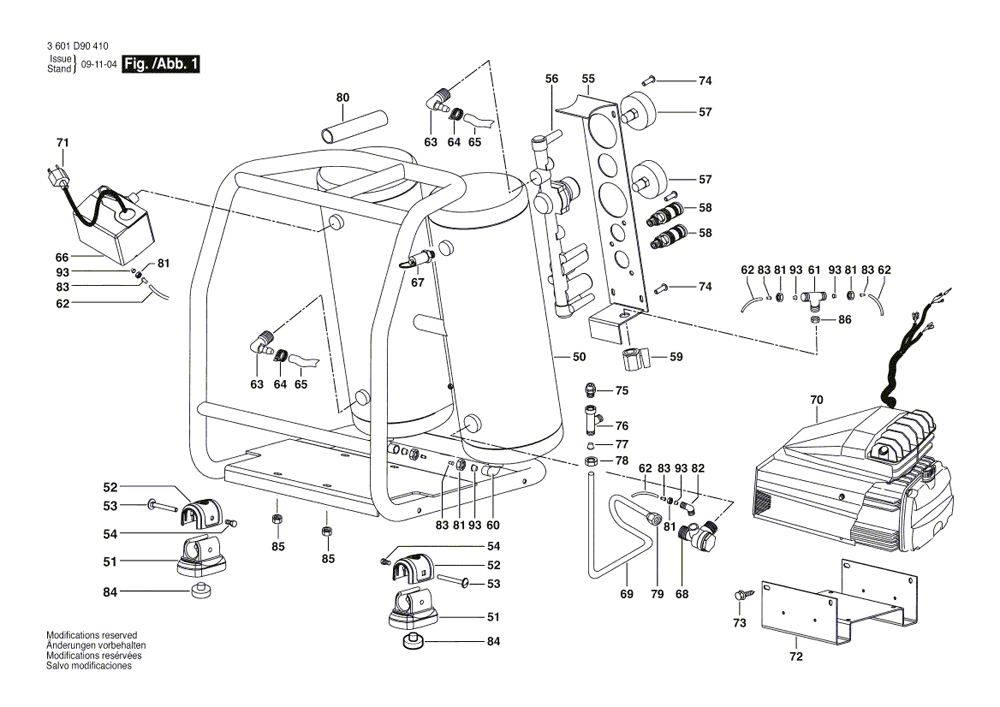

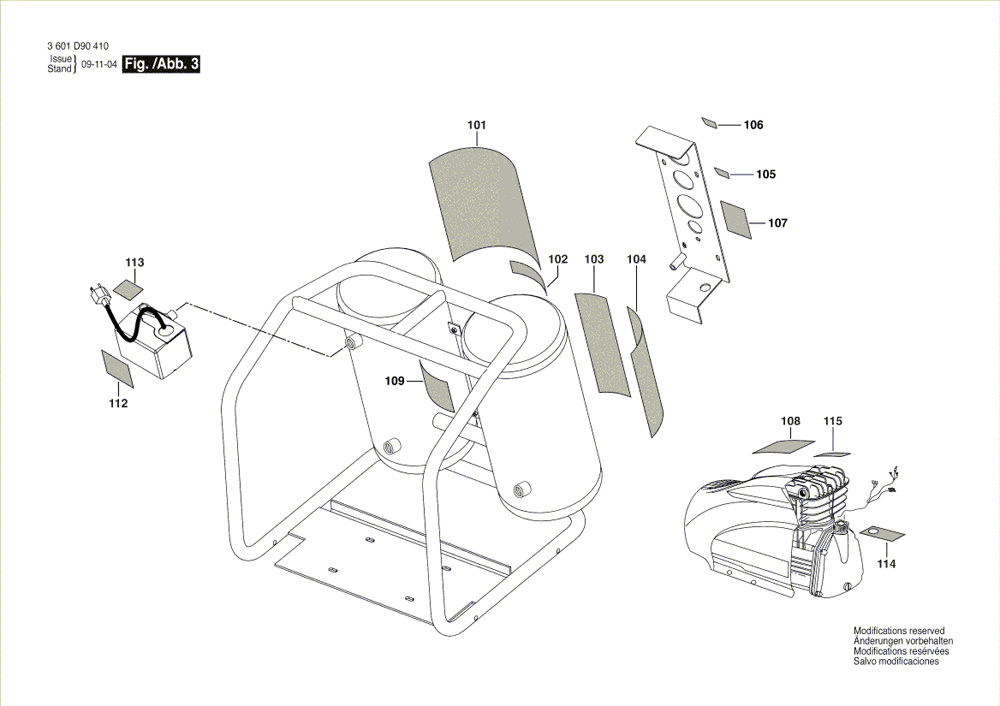

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	1-619-P03-119	Screw	$0.89
2	1-619-P03-120	Cover	$7.90
3	1-619-P05-882	Filter	$3.17
4	1-619-P03-122	Gasket	$1.34
6	1-619-P03-124	Gasket	$1.34
7	1-619-P05-884	Blade	$0.89
8	1-619-P03-125	Gasket	$0.89
9	1-619-P03-126	Cylinder	$12.80
10	1-619-P03-127	Screw	$0.89
11	1-619-P03-128	Gasket	$1.34
12	1-619-P05-889	Ring	$5.26
14	1-619-P05-891	Piston Pin	$1.34
15	1-619-P05-892	Retaining clip	$0.89
16	1-619-P03-129	Piston	$6.91
17	1-619-P03-130	Connecting Rod	$3.17
18	1-619-P03-131	Condenser	$16.59
19	1-619-P03-132	Cover	$1.91
21	1-619-P03-134	Ring	$0.89
22	1-619-P05-850	Oil Dipstick	$0.89
23	1-619-P03-135	Screw	$0.89
24	1-619-P03-136	Cover	$6.03
25	1-619-P05-853	Ring	$0.89
26	1-619-P05-852	Screw	$0.89
27	1-619-P03-137	Gasket	$1.57
28	1-619-P03-138	Crankcase	$20.28
29	1-619-P03-139	Nut	$0.89
30	1-619-P03-140	Washer	$0.89
31	1-619-P03-141	Overload Switch	$12.80
32	1-619-P03-142	Crankshaft	$18.08
33	1-619-P03-143	Bearing	$5.26
34	1-619-P03-144	Sealing ring	$1.34
35	1-619-P03-145	Rotor	$32.38
36	1-619-P03-146	Stator	$116.60
37	1-619-P05-868	Bearing	$4.60
38	1-619-P03-147	Cover	$9.11
39	1-619-P03-148	Screw	$0.89
40	1-619-P03-149	Fan	$4.60
41	1-619-P03-150	Shroud	$14.23
42	1-619-P03-151	Screw	$0.89
43	1-619-P03-152	Sealing ring	$4.00
44	1-619-P03-153	Valve	$6.03
50	1-619-P03-154	Tank	$192.99
51	1-619-P03-155	Damper	$12.80
52	1-619-P05-895	Cover	$1.57
53	1-619-P05-896	Screw	$0.89
54	1-619-P05-897	Screw	$0.89
55	1-619-P03-156	Panel	$15.38
56	1-619-P03-157	Folder	$40.54
57	1-619-P03-158	Gauge	$6.91
58	1-619-P05-901	Multi-Coupler	$7.90
59	1-619-P05-902	Valve	$6.03
60	1-619-P05-903	Joint	$3.17
61	2-610-009-714	Joint	$6.03
62	1-619-P05-905	Tube	$1.57
63	1-619-P05-906	Joint	$2.79
64	1-619-P05-908	Clamp	$1.34
65	1-619-P05-909	Tube	$4.00
66	1-619-P05-910	Pressure Switch	$20.28
67	1-619-P05-911	Safety Valve	$10.27
68	1-619-P05-912	Valve	$6.91
69	1-619-PA0-379	Pipe	$7.90
70	1-619-P03-159	Pump	$304.78
71	1-619-P05-915	Power Cable	$10.27
72	1-619-P03-160	Plate	$11.58
73	1-619-P05-917	Tapping Screw	$0.89
74	1-619-P03-161	Screw	$0.89
75	1-619-P03-162	Valve	$4.00
76	1-619-P03-163	Fitting	$3.17
77	1-619-P05-921	Ring	$0.89
78	1-619-P05-922	Locking nut	$1.57
79	1-619-P05-929	Locking nut	$1.34
80	1-619-P03-164	Knob	$7.90
81	1-619-P05-932	Locking nut	$3.17
82	1-619-PA0-375	Joint	$2.24
83	1-619-P05-919	Compass	$0.89
84	1-619-P05-923	Cushion	$1.34
85	1-619-PA0-376	Locking nut	$0.89
86	2-610-009-715	Nut	$1.34
88	2-610-009-244	Bushing	$0.89
93	2-610-009-244	Bushing	$0.89
101	1-619-P05-936	Warning Label	$11.58
102	1-619-P05-937	Label	$1.34
103	1-619-P05-939	Label	$4.00
104	1-619-P05-940	Label	$6.91
105	1-619-P05-941	Label	$0.89
106	1-619-P05-942	Label	$0.89
107	1-619-P05-943	Warning Label	$1.34
108	1-619-P05-944	Warning Label	$1.91
109	1-619-P05-964	Nameplate	$0.89
112	1-619-P03-332	Label	$0.89
113	1-619-P03-333	Label	$0.89
114	1-619-P03-334	Label	$0.89
115	1-619-P03-335	Label	$0.89
