Bosch 5312 Electric Saw Parts

Bosch 5312 Electric Saw Parts Image

Bosch 5312 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Bosch 5312
12 Inch Dual-Bevel S...
$607.99
Page-1
Page-2
Page-3
Tool Diagram    (Click image to Zoom in) View larger Image

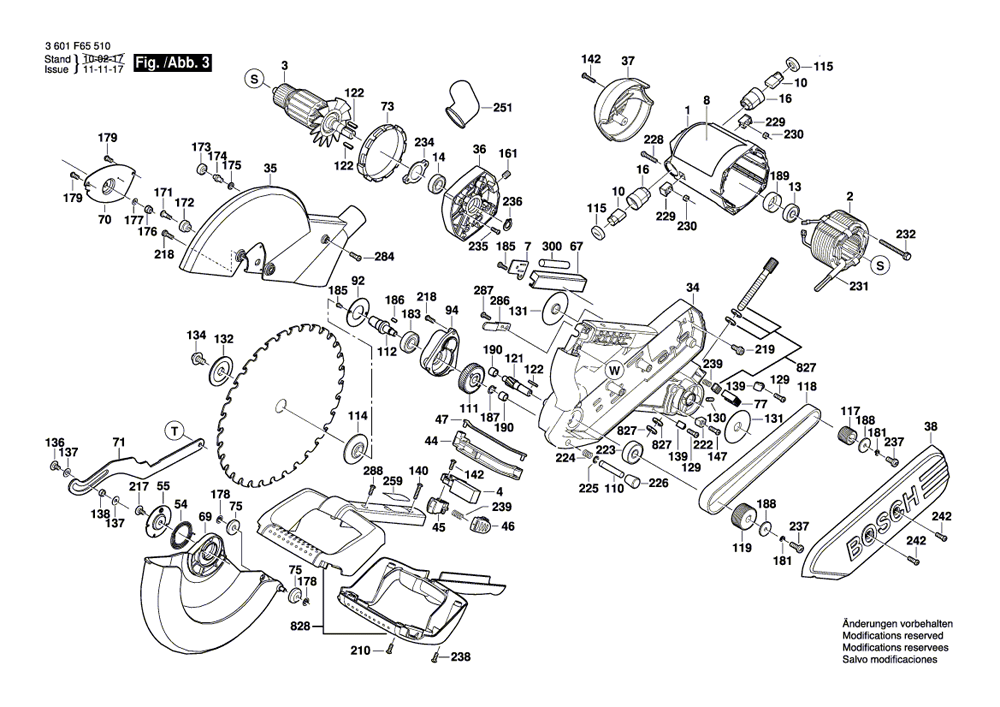

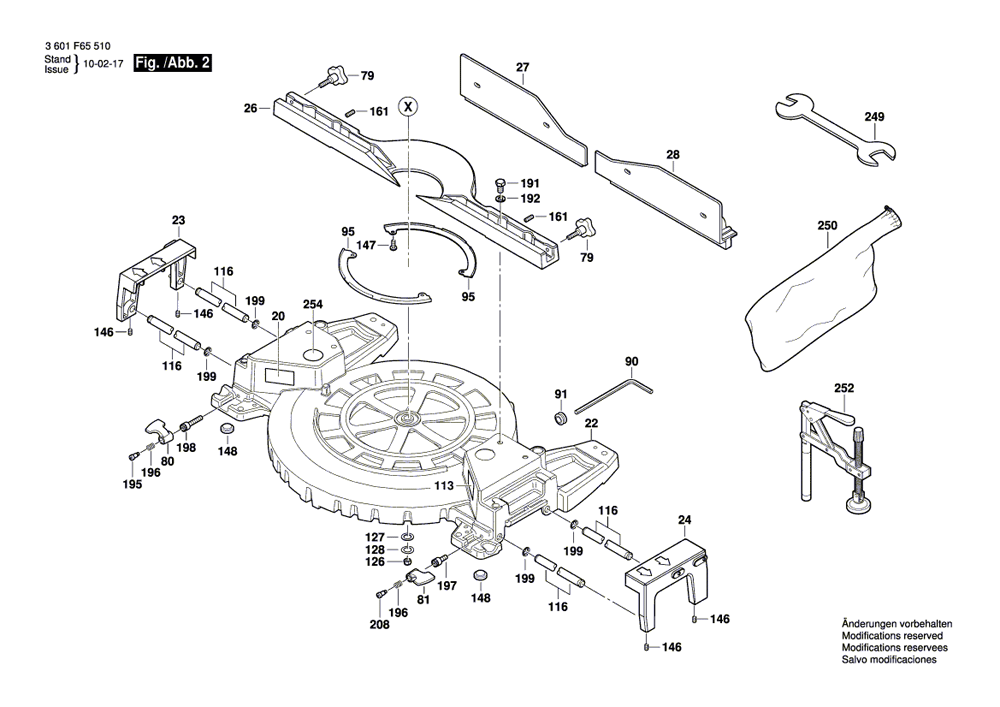

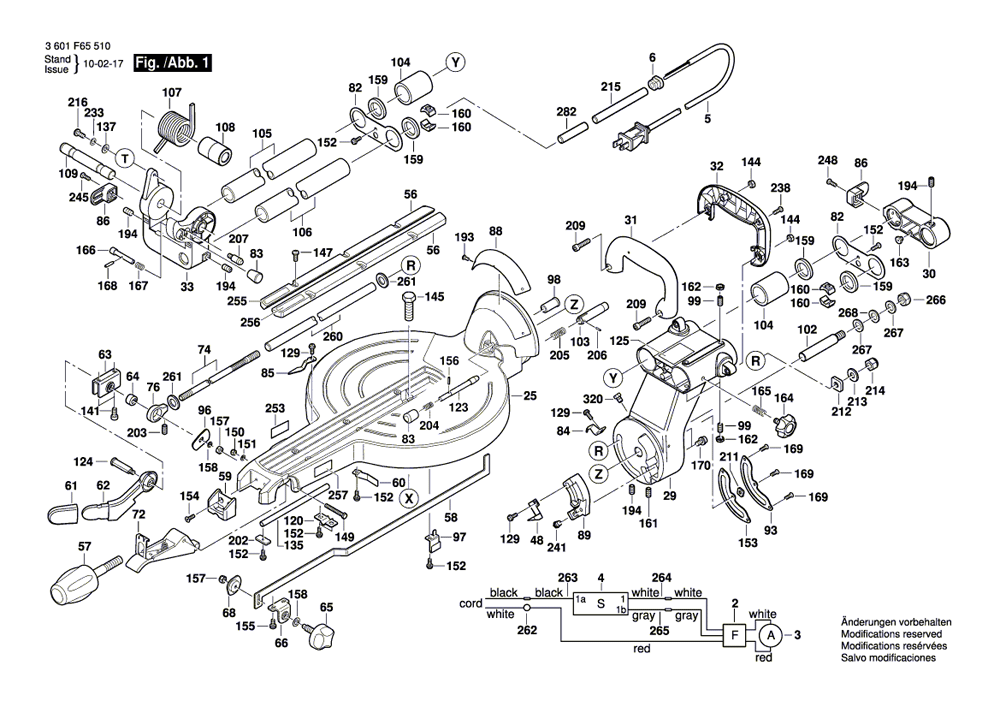

Bosch 5312 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 2-610-915-750 Motor Housing $27.31
2 2-610-915-751 Stator $29.17
3 2-610-915-752 Armature 115V $73.20
4 2-610-950-336 Switch $14.23
5 2-610-915-754 Cord $20.28
6 2-610-915-755 Cord guard $0.89
7 2-610-915-749 Clamping Plate $0.89
8 2-610-009-604 Nameplate $1.34
10 2610997207 CARBON-BRUSH SET $7.90
13 2-610-911-928 Ball Bearing $7.90
14 2610911927 BALL BEARING $10.27
16 2-610-915-761 Brush Holder $2.24
20 2-610-915-762 Warning Label $1.57
22 2-610-009-618 Base $101.08
23 2-610-915-764 Extension Stand $22.70
24 2-610-915-765 Extension Stand $22.70
25 2-610-915-766 Table $92.70
26 2-610-915-767 Mitre Fence $40.54
27 2-610-915-768 Parallel-Guide $16.59
28 2-610-915-769 Parallel-Guide $16.59
29 2-610-915-770 Bearing Pedestal $55.35
30 2-610-919-267 Support $12.80
31 2-610-915-772 Handle $6.91
32 2-610-915-727 Handle $6.91
33 2-610-915-728 Bearing Pedestal $27.31
34 2-610-010-413 Gear Housing $46.86
35 2-610-915-730 Guard Profile $32.38
36 2-610-915-731 Intermediate Layer $16.59
37 2-610-915-732 Housing Cover $4.60
38 2-610-915-733 Housing Cover $5.26
44 2-610-915-739 Trigger $1.91
45 2-610-915-740 Button $1.91
46 2-610-915-741 Button $1.91
47 2-610-915-742 Linkage part $1.57
48 2-610-915-743 Pointer $0.89
54 2-610-949-175 Torsion Spring $3.17
55 2-610-915-704 Plate $1.91
56 2-610-915-705 Support Plate $2.24
57 2-610-915-706 Knob $7.90
58 2-610-915-707 Linkage $2.79
59 2-610-915-708 Holding Fixture $3.17
60 2-610-915-709 Leaf Spring $0.89
61 2-610-915-710 Cover $2.24
62 2-610-915-711 Lever $5.26
63 2-610-915-712 Bracket $1.34
64 2-610-915-713 Cam $1.34
65 2-610-915-714 Knob $2.79
66 2-610-915-715 Bracket $0.89
67 2-610-915-716 Insulator $1.34
68 2-610-915-717 Bracket $1.34
69 2-610-927-694 Wheel Guard $12.80
70 2-610-915-719 Plate $2.24
71 2-610-915-720 Linkage $2.79
72 2-610-911-936 Locking Lever $10.27
73 2-610-915-722 Baffle $1.34
74 2-610-915-723 Tension Rod $4.60
75 2-610-915-724 Roller $0.89
76 2-610-915-725 Cam Ring $6.03
77 2-610-915-726 Push-Button $0.89
79 2-610-915-687 Knob $2.79
80 2-610-915-688 Locking Lever $3.17
81 2-610-915-689 Locking Lever $3.17
82 2-610-915-690 Retaining Plate $0.89
83 2-610-915-691 Cover $0.89
84 2-610-915-692 Pointer $0.89
85 2-610-915-693 Pointer $0.89
86 2-610-915-694 Cable Cleat $4.00
88 2-610-915-696 Scale $1.91
89 2-610-915-697 Cable Cleat $6.91
90 2-610-009-616 Hexagon Socket Wrench $1.34
91 2-610-911-210 Rubber Bushing $0.89
92 2-610-915-700 Bearing Cover Plate $0.89
93 2-610-915-701 Retaining Plate $1.57
94 2-610-915-702 Gear Cover $11.58
95 2-610-911-863 Sliding Plate $5.26
96 2-610-916-458 Stop Plate $0.89
97 2-610-916-459 Guide Bracket $0.89
98 2-610-916-460 Bushing $1.34
99 2-610-921-843 Screw $2.24
102 2-610-915-756 Shaft $2.24
103 2-610-915-759 Detent Pin $2.79
104 2-610-915-760 Sliding Bearing $36.72
105 2-610-916-792 Sliding Rail $36.72
106 2-610-916-793 Sliding Rail $32.38
107 2-610-916-794 Torsion Spring $6.03
108 2-610-916-795 Sleeve $0.89
109 2-610-916-796 Shaft $1.91
110 2-610-916-797 Locking Pin $0.89
111 2-610-916-798 Toothed Gear $10.27
112 2-610-935-017 Spindle $9.11
113 2-610-916-800 Sticker $1.57
114 2-610-916-801 Inner Disc $4.60
115 2-610-916-802 Brush-Cover $0.89
116 2-610-916-803 Extension Shaft $2.79
117 2-610-916-804 Drive disk $3.17
118 2-610-916-805 Wide V-Belt $16.59
119 2-610-916-806 Pulley $6.03
120 2-610-903-744 Strap $1.34
121 2-610-916-808 Counter Shaft $10.27
122 2-610-916-809 Wedge $0.89
123 2-610-916-810 Detent Pin $2.79
124 2-610-916-811 Lever Shaft $2.79
125 2-610-916-812 Sticker $1.57
126 2-610-911-886 Self-locking nut $1.34
127 2-610-911-887 Plain Washer $1.34
128 2-610-911-868 Spring Washer $1.34
129 2-610-911-907 Screw and washer assembly $0.89
130 2-610-911-908 Set screw $1.91
131 2-610-911-937 Shim $4.00
132 2-610-911-909 Flange $5.26
134 2-610-009-617 Bolt $1.34
135 2-610-917-669 Tension Rod $1.34
136 2-610-911-598 Shoulder Screw $1.34
137 2-610-911-599 Plain Washer $0.89
138 2-610-911-850 Spacer $1.34
139 2-610-911-872 Cable Clip $1.34
140 2-610-911-458 Screw $0.89
141 2610998572 SCREW $0.89
142 2610950117 SCREW $0.89
144 2610911896 NUT $0.89
145 2-610-911-861 Hex Screw $2.79
146 2-610-356-437 Set screw $0.89
147 2-610-911-899 Screw $1.34
148 2610358846 RUBBER BUSHING $1.34
149 2-610-911-918 Screw $2.24
150 2610911901 SELF-LOCKING NUT $1.57
151 2610347092 PLAIN WASHER $0.89
152 2-610-911-897 Screw $0.89
153 2-610-919-287 Retaining Plate $0.89
154 2-610-911-900 Screw $0.89
155 2610910784 SCREW $0.89
156 2610997274 PIN $0.89
157 2610355332 SQUARE NUT $1.34
158 2-610-921-458 Washer $0.89
159 2-610-911-589 Seal $7.90
160 2-610-919-102 Clamping Block $0.89
161 2-610-911-914 Set screw $2.24
162 2610358149 NUT $0.89
163 2-610-911-584 Rubber Pad $1.34
164 2-610-911-583 Knob $6.91
165 2-610-911-582 Spring $1.34
166 2-610-947-520 Bolt $2.24
167 2-610-911-576 Compression Spring $1.34
168 2-610-911-577 Retaining Pin $0.89
169 2-610-358-848 Screw $0.89
170 2-610-327-859 Screw 18,9 MM $0.89
171 2-610-911-911 Shoulder Screw $0.89
172 2-610-911-921 Round Rubber $1.34
173 2-610-911-938 Ball Bearing $4.00
174 2-610-911-883 Shoulder Screw $2.24
175 2-610-911-906 Washer $1.34
176 2-610-911-570 Hex Nut $1.34
177 2-610-029-234 Plain Washer $0.89
178 2610990521 SPRING RETAINING RING $0.89
179 2-610-004-925 Screw $4.00
181 2610355325 SPRING WASHER $0.89
183 2-610-327-846 Ball Bearing $6.91
186 2610993102 KEY $1.34
187 2610997281 SPRING RETAINING RING $0.89
188 2-610-029-674 Washer $0.89
189 2-610-911-925 Ring $2.24
190 2-610-358-922 Needle-Roller Bearing $5.26
191 2-610-355-277 Screw $2.79
192 2-610-015-011 Washer $0.89
193 2-610-913-862 Screw $1.34
194 2-610-910-786 Set screw $0.89
195 2-610-919-060 Shoulder Screw $0.89
196 2-610-919-061 Compression Spring $0.89
197 2-610-919-063 Screw $1.91
198 2-610-919-062 Screw $1.91
199 2610912556 RETAINING SNAP RING $0.89
202 2-610-919-066 Plate $0.89
203 2610355295 SCREW $1.57
204 2-610-919-067 Compression Spring $0.89
205 2-610-919-068 Compression Spring $0.89
206 2-610-919-069 Spring Pin $0.89
207 2-610-911-873 Stop Screw $2.24
208 2-610-919-070 Shoulder Screw $0.89
209 2-610-919-071 Stop Screw $0.89
210 2-610-320-304 Screw $0.89
211 2-610-919-072 Brake Plate $0.89
212 2-610-919-073 Brake Plate $4.00
213 2610912587 SPRING WASHER $0.89
214 2-615-297-331 Nut $0.89
215 2-610-948-208 Pvc Tube $0.89
216 2-610-919-075 Shoulder Screw $0.89
217 2-610-919-076 Shoulder Screw $0.89
218 2-610-327-867 Screw $0.89
219 2-610-998-575 Screw $0.89
222 2-610-919-078 Pad $0.89
223 2-610-919-079 Ball Bearing $7.90
224 2-610-919-080 Compression Spring $0.89
225 2-610-358-869 Retaining snap ring $1.34
226 2-610-919-081 Cover $0.89
228 2-610-358-928 Screw $1.34
229 2610911569 INSERT $1.57
230 2-610-327-868 Nut $1.34
231 2-610-921-464 Sleeve $0.89
232 2610911929 SCREW $1.34
233 2610911450 WASHER $1.34
234 2610911566 BEARING COVER $2.79
235 2-610-318-812 Screw $0.89
236 2-610-919-083 Retaining snap ring $0.89
237 2-610-919-084 Screw $0.89
238 2-610-320-330 Screw $0.89
239 2-610-919-085 Compression Spring $0.89
241 2-610-351-178 Hex Screw $0.89
242 2610945488 SCREW $0.89
245 2-610-358-519 Screw $0.89
248 2-610-913-100 Screw $0.89
249 2-610-917-658 Adjusting Wrench $6.03
250 2-610-917-670 Dust container $11.58
251 2-610-919-088 Suction Tube $4.00
252 2-610-919-089 Quick-Clamping Device $20.28
253 2-610-917-098 Label $0.89
254 2-610-911-658 Warning Plate $2.79
255 2-610-917-099 Label $0.89
256 2-610-917-096 Label $0.89
257 2-610-917-101 Label $0.89
259 2-610-917-097 Label $0.89
260 2-610-919-090 Tube $9.11
261 2-610-308-959 Plain Washer $1.34
262 2610911933 CABLE CLIP $1.34
263 2-610-919-091 Cable $0.89
264 2-610-919-092 Cable $0.89
265 2-610-919-093 Cable $0.89
266 2-610-910-791 Nut $2.24
267 2-610-910-792 Washer $0.89
268 2-610-004-578 Plain Washer $0.89
282 2-610-919-074 Pvc Tube $0.89
284 2-610-921-481 Screw $0.89
286 2-610-010-403 Plate $0.89
287 2610950071 SCREW $0.89
288 2-610-010-404 Screw $0.89
300 2-610-919-082 Pvc Tube $0.89
320 2-610-906-037 Bolt $1.57
827 1-619-P03-312 Assembly Of Service Parts $4.60
828 2-610-021-345 Service Kit $13.19
