Bosch 22614 Electric Impact Wrench Parts

Bosch 22614 Parts

Download Schematic

Time to buy a new tool?

Bosch 22614

Impact Wrench 14V 1/...

$263.99

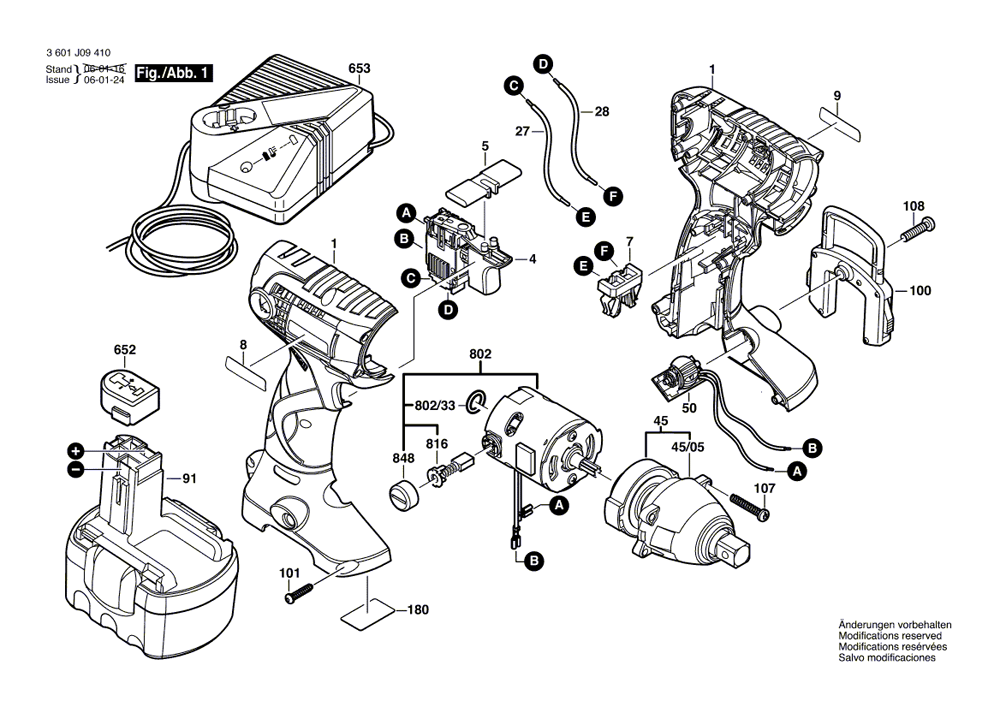

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	2-609-100-307	Housing BLUE	$29.17
4	2-607-200-489	On-Off Switch	$22.70
5	2-609-100-273	Button	$1.91
7	2-609-100-297	Contact retainer	$7.90
8	2-609-130-720	Warning Plate 9,6V	$1.91
9	2-609-130-748	Manufacturer's Nameplate 14,4V USA	$2.79
27	2-609-120-146	Connecting Cable 50 MM LONG,BLACK	$1.34
28	2-609-120-147	Connecting Cable 60 MM,LONG,RED	$1.34
45	2-609-199-104	Gear Box	$83.45
45/05	2-609-170-025	Protective Ring	$6.03
50	2-609-199-069	Light-Emitting-Diode	$14.23
91	2607335669	ACCUMULATOR BATTERY	$55.35
100	2-609-199-027	Holder	$6.91
101	2609110201	TORX FLAT-HEAD SCREW	$0.89
107	2-609-110-327	Screw	$1.34
108	2-609-110-309	Screw	$1.34
180	2-609-131-166	Nameplate	$2.79
652	2609100101	COVER	$0.89
653	2607225033	BATTERY CHARGER	$50.33
802	2-609-199-047	Motor 14,4V	$50.33
802/33	2-609-170-030	O-Ring	$1.34
816	2-609-199-048	Carbon-Brush Set	$7.90
848	2-609-199-049	Sealing cap	$3.17
