bosch 1944LCDK Heat Gun Parts

bosch 1944LCDK Parts

Download Schematic

Time to buy a new tool?

bosch 1944LCDK

Programmable Electro...

$139.99

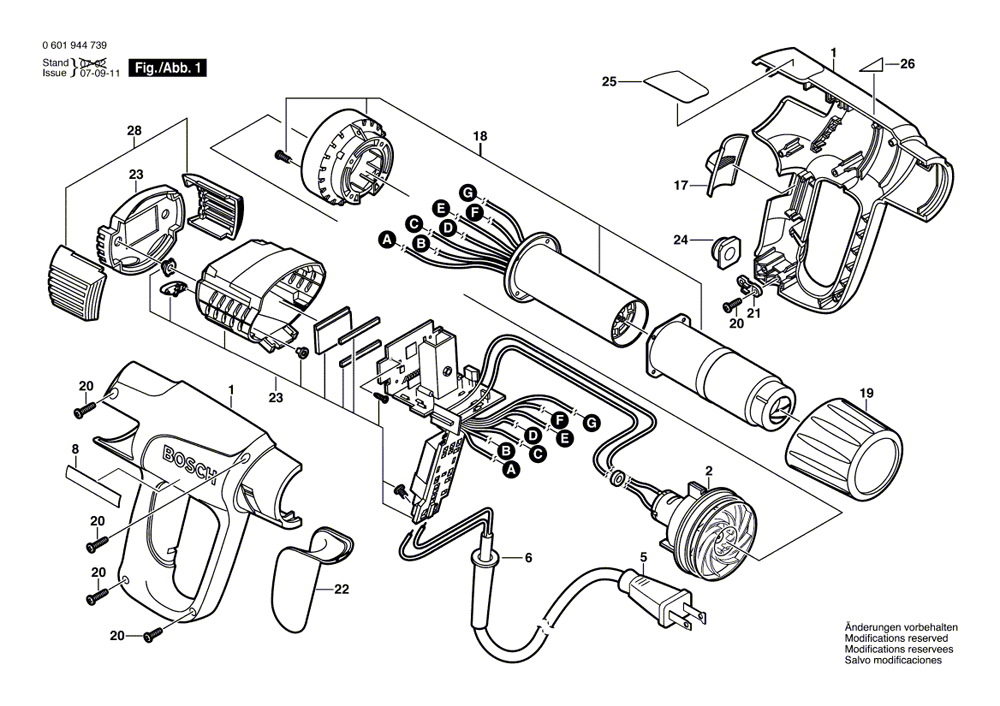

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	1609203K50	HOUSING SECTION	$22.70
2	1609202611	DC MOTOR	$20.28
5	1609203U36	POWER SUPPLY CORD	$1.91
6	1609203U37	GROMMET	$12.80
8	1609203U38	NAMEPLATE	$2.79
17	1609203H72	SWITCH BUTTON	$5.26
18	1609203M60	HEATING ELEMENT	$55.35
20	2910615407	TAPPING SCREW	$0.89
21	1609203102	FASTENING CLAMP	$1.34
22	1609203H62	CAP-HANDLE	$15.38
23	1609203L52	CONNECTING BLOCK	$116.60
24	1609203H65	RUBBER BASE	$1.34
25	1609203U40	WARNING PLATE	$2.79
28	1609203H78	FILTER ELEMENT	$3.17
