Tool Diagram    (Click image to Zoom in) View larger Image

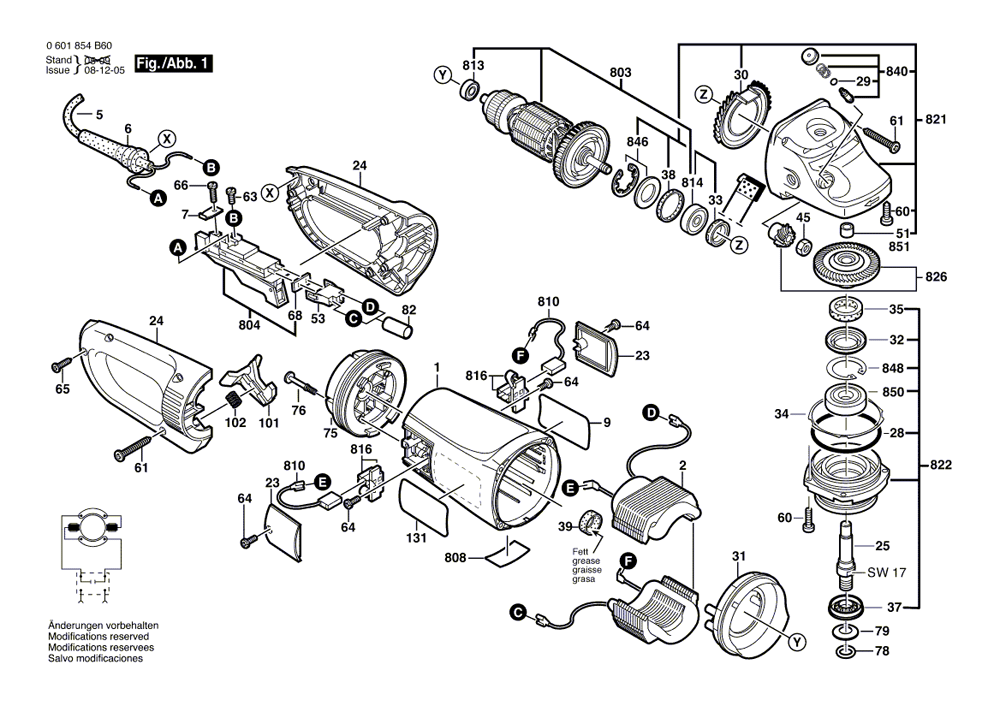

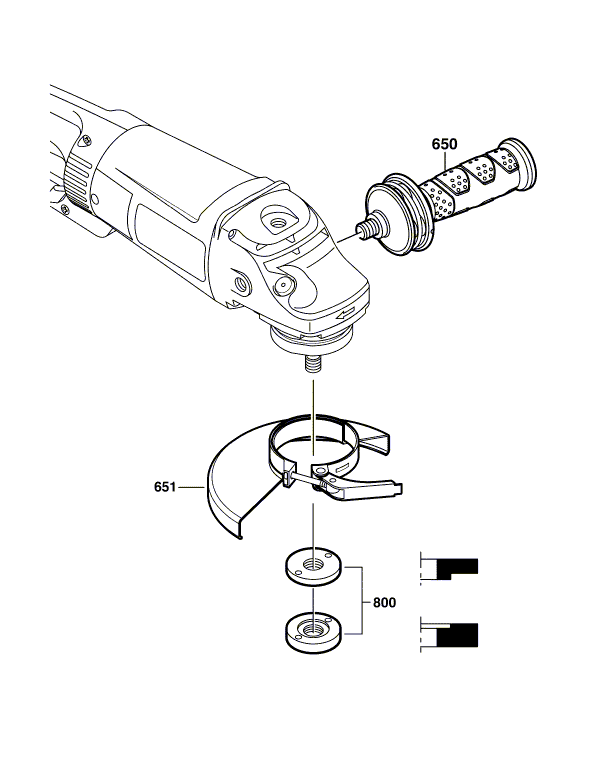

Bosch 1894-6 Electric Grinder Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 1-605-108-239 Motor Housing BLUE $15.38
2 1604220387 FIELD $40.54
6 1600703023 GROMMET $1.34
7 1601302018 FASTENING CLAMP $1.34
9 1-601-118-F42 Manufacturer's Nameplate $2.79
23 1-605-500-206 Sealing cap BLUE $3.17
24 1-605-132-130 Handle BLUE $11.58
25 1-603-523-117 "Grinding Spindle 5/8"" " $18.08
28 1600210033 O-RING $1.34
29 1-600-210-045 O-Ring 8x1 MM $1.34
30 1-600-591-029 Air Distributor $1.91
31 1-600-591-028 Air-Deflector Ring $1.91
32 1600290019 RETAINING SNAP RING $1.34
33 1600290013 ROTARY SHAFT LIP SEAL $1.91
34 1600190020 SHIM $1.34
  1600190021 SHIM $1.34
  1600190022 SHIM $1.34
  1600190037 SHIM $0.89
  1-600-190-038 Shim 0,25 MM $0.89
  1-600-190-039 Shim 0,35 MM $0.89
  1-600-190-040 Shim 0,40 MM $0.89
35 1600205034 FELT WASHER $1.34
37 1-600-290-036 Sealing ring BLACK $1.57
38 1600206020 RUBBER RING $1.34
39 1600206030 RUBBER RING $1.34
45 1603300019 HEX NUT $1.34
51 1600200031 PLAIN BEARING $1.34
53 1-605-190-068 Socket Housing $1.34
60 1603435023 THREAD-FORMING TAP. SCREW $1.34
61 2912401038 TAPPING SCREW $0.89
63 1603410014 PAN HEAD SCREW $1.34
64 1603435042 PLASTIC-CUTTING SCREW $1.34
66 2910211019 TAPPING SCREW $0.89
68 1-601-006-011 Sealing Plate $1.34
75 1-600-290-057 Damper $16.59
76 1-603-414-016 Collar Screw TORX-PLUS-20-IP $1.34
78 1-900-210-111 O-Ring 12x3 MM $1.91
79 1-600-171-001 Locking Washer $1.34
82 1-600-406-004 Hose $1.34
101 1-601-990-004 Catch Slide $1.91
102 1-604-616-022 Compression Spring $1.34
131 1-601-118-G67 Reference Plate $2.79
650 1-602-025-051 Auxiliary Handle M 14 BLACK $22.70
651 1-605-510-354 Protective Cover $32.38
800 1-607-000-380 Parts Set $12.80
803 1-604-011-181 Armature 100-120V $116.60
804 1-607-000-704 On-Off Switch $32.38
808 1601106032 $1.91
810 1607014175 CARBON BRUSH $11.58
814 1-600-905-028 Deep-Groove Ball Bearing $9.11
816 1-604-336-048 Brush Holder $5.26
821 1-607-000-C03 Gear Housing $40.54
822 1-607-000-C05 Bearing Flange Ø 230 MM $24.95
826 1-607-000-383 Bevel Gear Set $27.31
840 1-607-000-354 Push-Button $1.57
846 1607000342 RETAINING WASHER $1.57
848 1600119010 SPRING RETAINING RING $1.34
850 1-600-905-026 Deep-Groove Ball Bearing 6203-2 RS C3 17x40x12 $6.03
851 2600910001 NEEDLE BUSH $2.24
