Bosch 1521 Shear Parts

Bosch 1521 Parts

Download Schematic

Time to buy a new tool?

Bosch 1521

Shear 16 Gauge 5,000...

$312.99

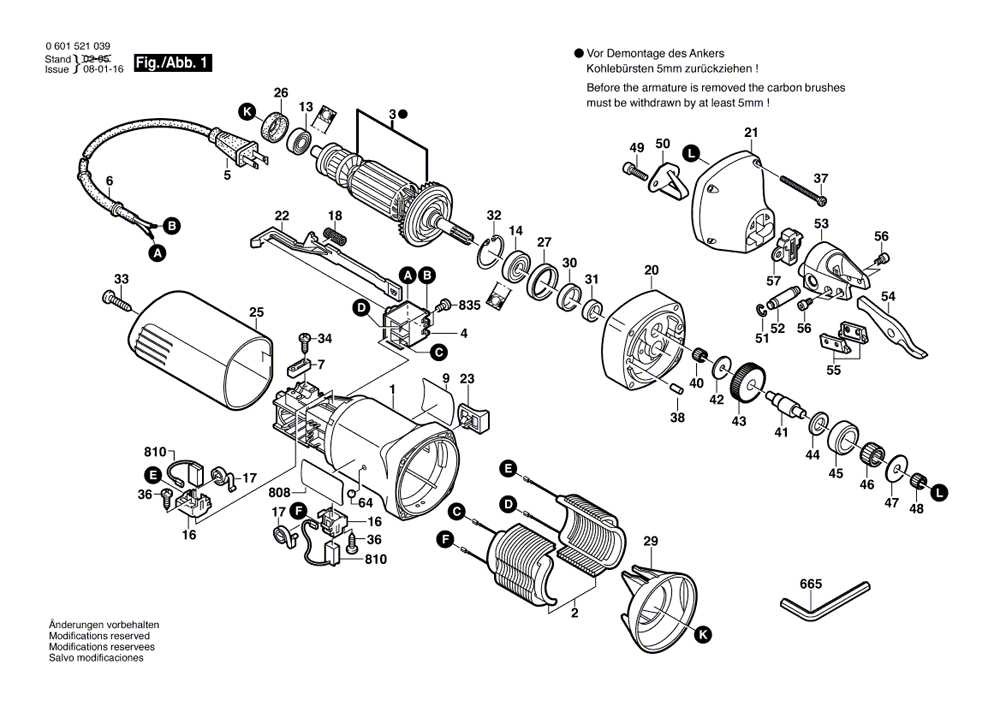

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	3-605-102-090	Motor Housing	$12.80
2	2-609-160-012	Field 110-120V	$22.70
3	2-609-160-018	Armature 110-120V	$46.86
4	1-607-200-146	Switch	$10.27
6	2600703013	GROMMET	$1.34
7	2601035001	CABLE CLIP	$1.34
13	2600905032	DEEP-GROOVE BALL BEARING	$2.79
14	2-600-905-021	Deep-Groove Ball Bearing 9 MM	$7.90
16	1-604-336-035	Brush Holder	$1.34
17	1604652013	SPIRAL SPRING	$1.34
18	1-604-611-031	Compression Spring	$1.91
20	3-605-700-160	Intermediate Flange	$32.38
21	3-605-806-191	Gear Housing	$36.72
22	1-602-319-009	Adjusting Slide	$1.91
23	1-602-026-080	Switch Handle	$1.57
25	3-605-500-163	Housing Cover	$7.90
26	1-600-502-024	Intermediate Ring	$1.34
27	3-600-206-015	Rubber Ring	$1.57
29	1-600-591-023	Air-Deflector Ring	$1.91
30	3-600-929-037	Rotary shaft lip seal	$1.57
31	2-600-300-047	Seal Bushing	$1.91
32	3-600-283-046	Spring retaining ring	$1.57
33	2603490021	TORX OVAL-HEAD SCREW	$0.89
34	2603490022	TORX OVAL-HEAD SCREW	$0.89
36	1-613-435-034	Lens Head Screw 3x10 ST	$0.89
37	2-603-490-026	Lens Head Screw 4x32	$0.89
38	2-917-510-094	Straight Pin DIN 7-4 M6x10-ST	$0.89
40	2600914010	NEEDLE BUSH	$2.24
41	3-606-110-008	Eccentric Shaft	$32.38
42	3-600-200-050	Shim ring	$1.91
43	3-606-320-022	Cylindrical Gear	$15.38
44	3-600-200-049	Thrust ring	$3.17
45	3-600-200-052	Track-Supporting Roller	$16.59
46	3-600-917-019	Needle bush	$10.27
47	3-600-200-051	Shim ring	$1.57
48	2-600-910-006	Needle bush Ø 7 MM	$2.79
49	2-910-405-166	Socket head cap screw DIN 912-M5x30-12.9	$0.89
50	3-607-233-014	Shaped Spring	$15.38
51	2-916-550-002	Retaining ring 8x0,8MM	$1.34
52	3-607-233-015	Bolt	$14.23
53	3-607-233-016	Cutting Head	$73.20
54	3-608-635-005	Cutting Knife 1-1,6 MM	$60.55
56	2-910-140-116	Socket head cap screw DIN 7984-M4x6-8.8	$1.34
57	3-607-233-020	Seal	$3.17
665	1-907-950-003	Offset Screwdriver DIN 911 SW2,5	$2.24
808	3-601-110-451	Nameplate	$2.79
810	1-607-014-144	Carbon-Brush Set	$7.90
835	2-910-641-082	Pan head screw	$0.89
