Bosch 1462VS
3/8 Inch Tapper w/ A...
$442.99
Tool Diagram    (Click image to Zoom in) View larger Image

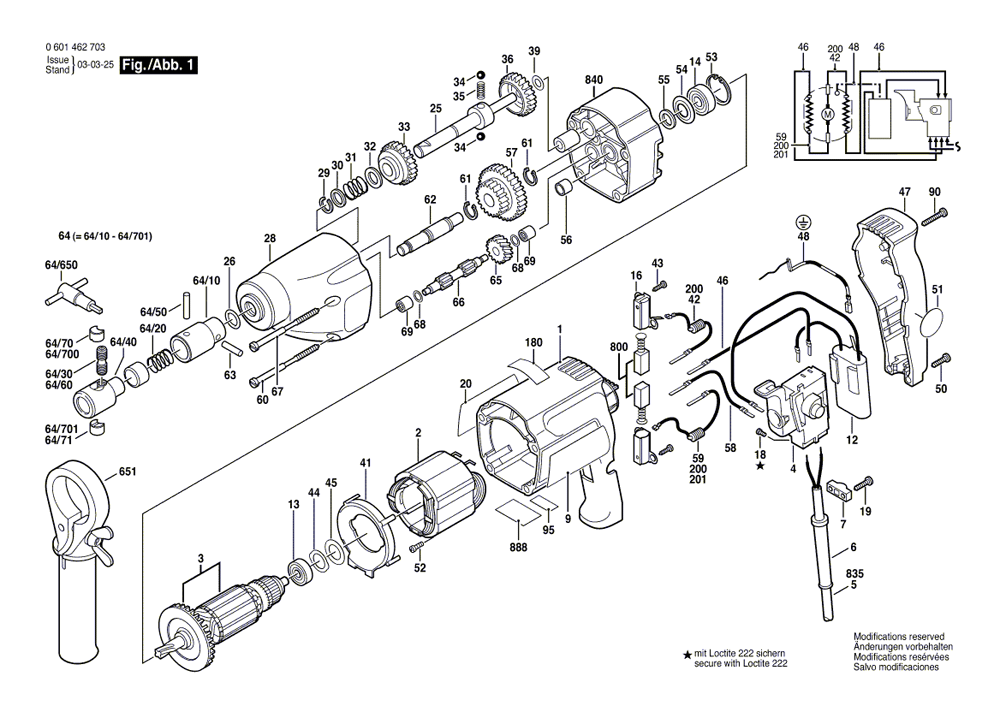

Bosch 1462VS Electric screw driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
2 2604220440 FIELD $20.28
3 2-604-010-702 Armature 115V $55.35
6 2600703013 GROMMET $1.34
7 2601035001 CABLE CLIP $1.34
13 1900905018 DEEP-GROOVE BALL BEARING $9.11
14 2-600-905-021 Deep-Groove Ball Bearing 9 MM $7.90
16 2604337003 BRUSH HOLDER $1.57
18 2603410001 SOCKET HEAD CAP SCREW $1.34
19 2910211019 TAPPING SCREW $0.89
26 1-900-210-009 O-Ring 12x2 MM $1.57
29 1-600-224-025 Retaining ring $1.34
30 2-600-101-513 Plain Washer $1.34
34 1-903-230-011 Ball DIN 5401-6 G28 $0.89
35 3-604-610-018 Compression Spring $1.57
36 3-606-316-020 Cylindrical Gear Z=42 $73.20
39 2-600-100-505 Shim 0,5 MM $1.34
43 2603490017 TORX OVAL-HEAD SCREW $0.89
44 2-600-150-004 Shim $1.34
45 2-600-101-023 Shim 0.3mm $1.34
  2-600-101-022 Shim 0.2mm $1.34
  2-600-101-020 Shim 0,5 MM $1.34
46 2604448005 CONNECTING CABLE $1.34
50 2-910-211-021 Tapping Screw DIN 7971-ST3,9x22-F $0.89
52 2-603-435-015 Recessed-Head Screw DIN 7981-ST3,5x9,5-F $1.34
53 2-916-660-008 Spring retaining ring DIN 472-24x1,2 MM $0.89
54 2-600-500-002 Cupped Washer $1.34
55 2-600-108-077 Felt Washer $1.34
56 2-600-400-008 Receptacle $1.34
57 3-606-328-000 Cylindrical Gear Z=33/56 $92.70
61 2-916-650-003 Spring retaining ring DIN 471-12x1-FSt $0.89
62 3-603-124-000 Axle $40.54
64 2-608-573-000 Two-Jaw Drill Juck M4-M12 $116.60
64/10 1-600-328-021 Carrier $60.55
64/20 1-604-617-002 Compression Spring $3.17
64/30 1-600-506-000 Spring Retainer $6.91
64/40 1-603-219-006 Carrier $116.60
64/50 1-613-100-012 Straight Pin $1.34
64/60 1-603-502-000 Stud bolt $18.08
64/70 1-600-390-002 Clamping jaws M 12x1,5 $22.70
64/71 1-600-390-003 Clamping jaws M 12x1,5 LEFTHAND THREADS $22.70
65 3-606-316-021 Cylindrical Gear Z=28 $40.54
66 3-606-337-062 Spindle With Gear Z=11 $40.54
67 2-603-435-012 Tapping Screw 79 MM $1.34
68 2-600-100-613 Shim 0,50 MM $1.34
69 9-001-140-359 Needle bush $5.26
90 2-910-211-022 Tapping Screw DIN 7971-BZ3,9x25 $0.89
200 2604448100 CONNECTING CABLE $1.34
840 3-605-700-054 Intermediate Flange $133.82
888 1601106032 $1.91
