Bosch 1436VSR Electric Impact Wrench Parts
Bosch 1436VSR Parts
Download Schematic
Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com

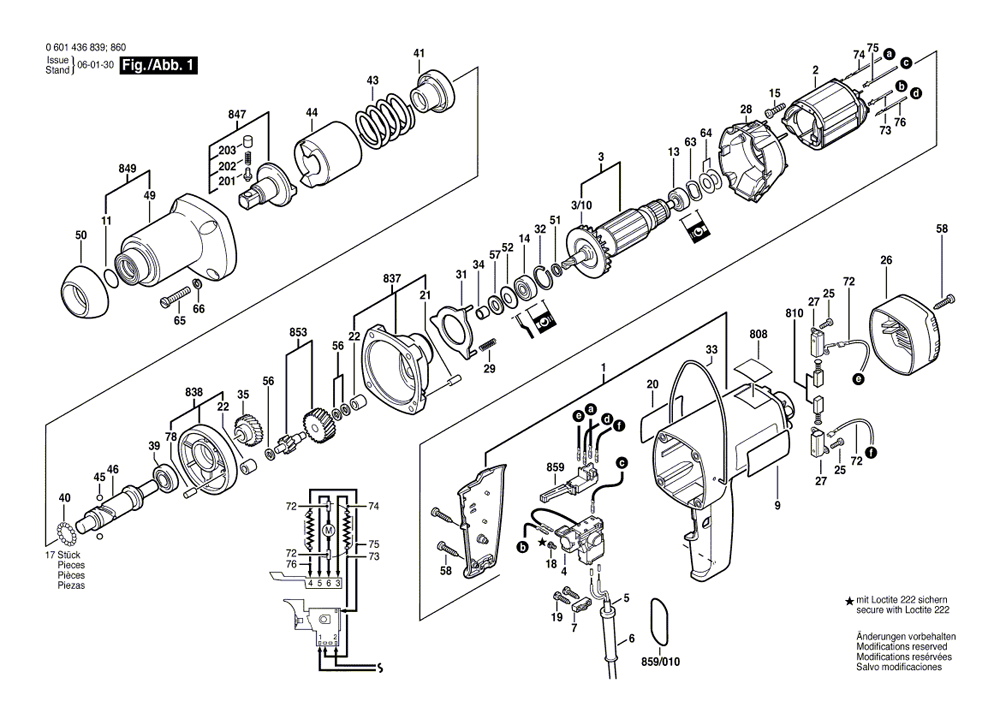

Tool Diagram
(Click image to Zoom in)
View larger Image
ToolspartsPro
Fig.
Part #
Part Name
Price
Qty.
2
2-604-220-428
Field 110-120V
$22.70
3/10
2606610049
FAN
$1.57
6
2600703013
GROMMET
$1.34
7
2601035001
CABLE CLIP
$1.34
13
1900905018
DEEP-GROOVE BALL BEARING
$9.11
14
2-600-905-021
Deep-Groove Ball Bearing 9 MM
$7.90
15
2-603-435-015
Recessed-Head Screw DIN 7981-ST3,5x9,5-F
$1.34
18
2603410001
SOCKET HEAD CAP SCREW
$1.34
19
2603490022
TORX OVAL-HEAD SCREW
$0.89
22
2600914010
NEEDLE BUSH
$2.24
25
1-613-435-034
Lens Head Screw 3x10 ST
$0.89
26
3-605-500-018
Housing Cover BLACK
$6.03
27
2604337003
BRUSH HOLDER
$1.57
32
2-916-660-008
Spring retaining ring DIN 472-24x1,2 MM
$0.89
34
2-600-400-008
Receptacle
$1.34
39
1-900-900-287
Deep-Groove Ball Bearing 6001 DIN 625
$16.59
40
1-903-230-007
Ball DIN 5401-4 MM-III-ST
$0.89
45
1903230013
BALL
$0.89
52
2-600-500-002
Cupped Washer
$1.34
56
2600100569
SHIM
$1.34
57
2-600-108-077
Felt Washer
$1.34
63
2-600-150-004
Shim
$1.34
64
2-600-101-023
Shim 0.3mm
$1.34
64
2-600-101-022
Shim 0.2mm
$1.34
64
2-600-101-020
Shim 0,5 MM
$1.34
66
2-916-690-004
Spring Lock Washer DIN 128-A5-FST
$1.34
201
1-603-124-085
Detent Pin
$1.57
202
1-604-611-019
Compression Spring
$1.34
203
1-600-506-009
Guide Sleeve
$4.00
859
1-617-200-042
Switch
$11.58
859/010
2600210019
O-RING
$1.34
