bosch 1274DVSK Sander & Polisher Parts

bosch 1274DVSK Sander & Polisher Parts Image

bosch 1274DVSK Parts

Download Schematic

Time to buy a new tool?

bosch 1274DVSK

3 Inch x 21 Inch Bel...

$207.99

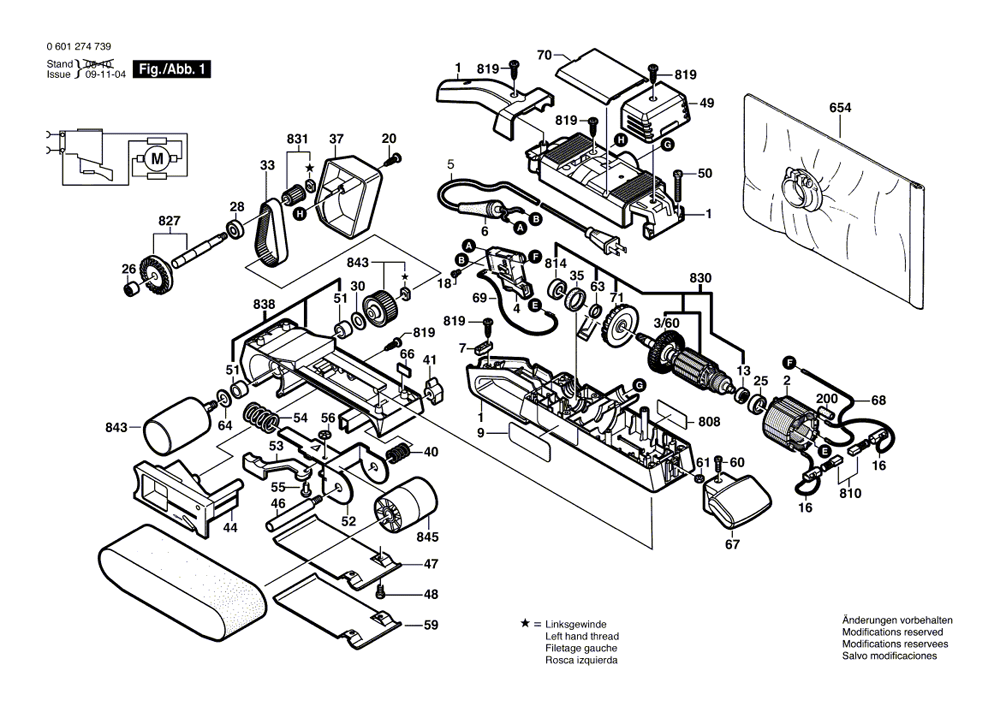

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	2605104549	MOTOR HOUSING	$27.31
2	2604220704	FIELD	$18.08
3/60	2606610049	FAN	$1.57
6	2600703017	GROMMET	$1.34
7	2601035001	CABLE CLIP	$1.34
9	2610991968	MANUFACTURER'S NAMEPLATE	$2.79
13	2605805008	FLANGED BEARING	$4.00
16	2604449026	BRUSH HOLDER	$1.34
18	2603410001	SOCKET HEAD CAP SCREW	$1.34
20	2603490023	LENS HEAD SCREW	$0.89
26	2600910001	NEEDLE BUSH	$2.24
30	2600100099	SHIM	$1.34
33	2604736010	TOOTHED BELT	$10.27
35	1600206024	INTERMEDIATE RING	$1.34
37	1605510150	COVERING HOOD	$3.17
40	2604630002	COMPRESSION SPRING	$1.34
41	2603339005	WING NUT	$1.91
44	1608005004	BASE	$11.58
46	1603521027	AXLE	$7.90
47	2601098040	BASE PLATE	$6.03
48	2603410045	SOCKET HEAD CAP SCREW	$1.34
49	1605500122	BRUSH-COVER	$4.60
50	2910011170	SOCKET HEAD CAP SCREW	$1.34
51	1900301018	SINTERED-METAL BUSHING	$9.11
52	1605807013	BEARING BRACKET	$6.91
53	1602098006	TENSIONING LEVER	$1.91
54	1604619017	COMPRESSION SPRING	$1.57
55	2917030710	BUTTON-HEAD RIVET	$0.89
56	1600146001	LOCKING WASHER	$1.34
59	2601098037	SLIDING PLATE	$4.00
60	2910021126	SOCKET HEAD CAP SCREW	$0.89
61	2915011005	HEX NUT	$0.89
63	2600290033	SEALING RING	$2.79
64	1600101618	SHIM	$1.34
66	1601010007	CERAMIC PLATE	$1.91
67	1605133036	HANDLE	$6.03
68	1604438018	CONNECTING CABLE	$1.34
69	1604448000	CONNECTING CABLE	$1.34
70	1605500120	HOUSING COVER	$1.91
71	1606610120	FAN	$1.91
200	1610712034	SHRINKABLE TUBE	$1.34
654	2605411170	DUST BAG	$20.28
808	2601115650	NAMEPLATE	$1.91
814	1610905011	DEEP-GROOVE BALL BEARING	$12.80
819	2603490022	TORX OVAL-HEAD SCREW	$0.89
827	2606333900	CROWN GEAR	$16.59
830	2604010934	ARMATURE	$73.20
831	2606625907	TOOTHED BELT WHEEL	$2.24
838	2605190900	HOUSING	$40.54
843	2606625904	ROLLER	$29.17
845	2606625908	ROLLER	$29.17
