bosch 11536C-2 Cordless Rotary Hammer Parts

bosch 11536C-2 Cordless Rotary Hammer Parts Image

bosch 11536C-2 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
bosch 11536C-2
36V Litheon Compact ...
$509.99
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

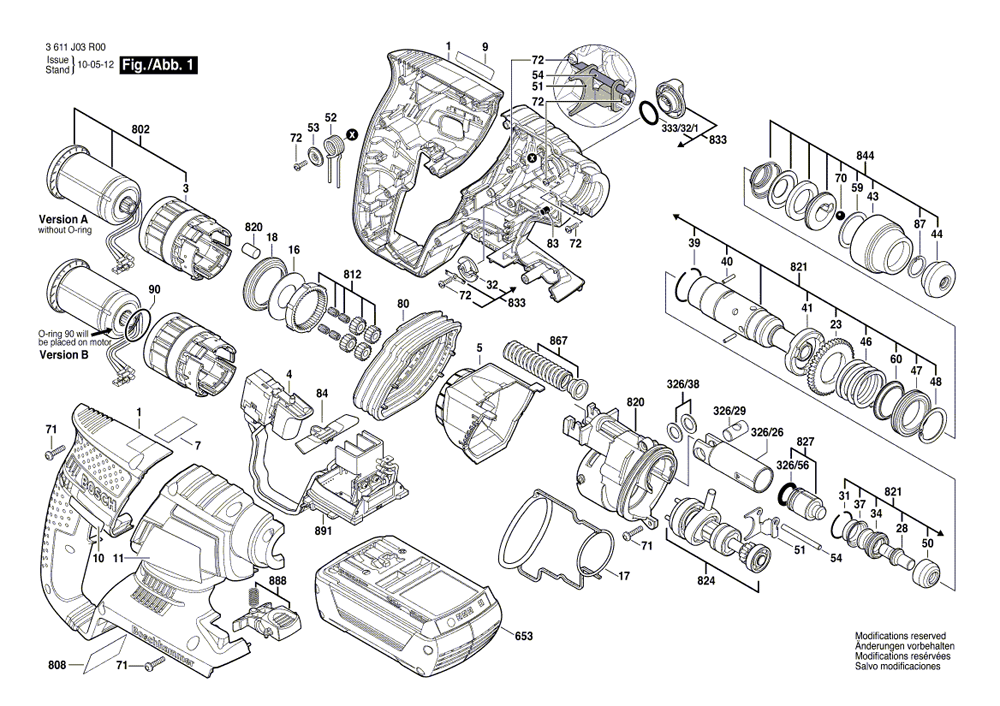

bosch 11536C-2 Cordless Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 1615104057 HOUSING SECTION $24.95
3 1610499067 CENTERING SLEEVE $6.03
4 1607233316 ELECTRONIC MODULE $116.60
5 1610591044 AIR PATH $2.79
7 1611110Z32 STICKER $1.91
9 1611110Z22 MANUFACTURER'S NAMEPLATE $1.91
10 1611110Z18 MANUFACTURER'S NAMEPLATE $1.91
11 1611110Z31 WARNING PLATE $1.91
16 1610102637 SUPPORTING DISC $0.89
17 1611015060 SEALING FRAME $4.60
18 1610290090 SEALING RING $3.17
23 1616317084 CYLINDRICAL GEAR $15.38
25 1616409023 COUPLING HUB $2.24
28 1613124084 STRIKER PIN $3.17
31 1614601053 RETAINING RING $0.89
32 1612026114 SWITCH BUTTON $0.89
34 1610508051 RUBBER BUSHING $3.17
35 1610322014 SWITCHING ELEMENT $3.17
36 1610905034 DEEP-GROOVE BALL BEARING $5.26
37 1610551008 HOLDING PLATE $1.34
39 1614601055 RETAINING RING $0.89
40 1613100032 STRAIGHT PIN $0.89
41 1610102072 RATCHET DISC $4.60
44 1610508052 PROTECTIVE CAP $1.34
46 1614630003 COMPRESSION SPRING $1.57
47 1610905039 DEEP-GROOVE BALL BEARING $4.60
48 1614601054 RETAINING RING $1.34
49 1619P00829 RETAINING RING $0.89
50 1610400039 GUIDE BUSHING $4.00
51 1613231014 SHIFT PLATE $2.79
52 1614690005 COILED SPRING $1.34
53 1619P00828 PRESSURE DISC $0.89
54 1613100033 GUIDE ROD $1.34
59 1610102045 FRICTION WASHER $0.89
60 1610190054 SUPPORT DISC $1.34
70 1903230013 BALL $0.89
71 1613435036 TORX OVAL-HEAD SCREW $0.89
72 2603490017 TORX OVAL-HEAD SCREW $0.89
73 1603435074 TORX OVAL-HEAD SCREW $0.89
80 1610415002 BELLOWS $10.27
83 2603100056 RUBBER BUFFER $1.34
84 1613231023 SWITCH SLIDE $1.34
87 3600224038 SPRING RETAINING RING $1.34
90 1600210047 O-RING $0.89
326/26 1618700083 HAMMER PISTON $10.27
326/29 1613100034 PISTON PIN $2.24
326/38 1610100016 GUIDE DISC $1.34
326/56 1610210186 O-RING $1.57
333/32/1 1610210185 O-RING $0.89
653 2607336007 ACCUMULATOR BATTERY $133.82
802 1617000664 DC MOTOR $133.82
808 1601106035 $1.91
812 1617000665 PLANETARY GEAR TRAIN $14.23
820 1617000666 HAMMER PIPE $29.17
821 1617000667 HAMMER PIPE $55.35
824 1617000668 JACK SHAFT $60.55
827 1617000669 STRIKER $15.38
833 1617000670 $9.11
844 16170006D3 $9.11
867 1617000671 COMPRESSION SPRING $5.26
888 1617000672 PUSH-BUTTON $2.24
891 1609280425 CONTACT RETAINER $12.80

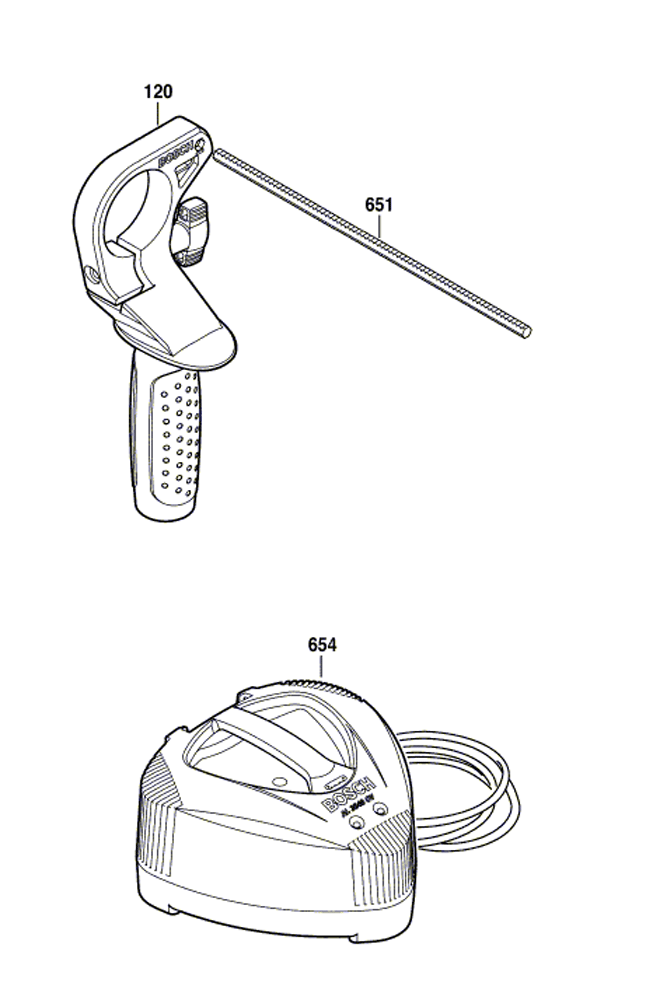

120 1612025078 AUXILIARY HANDLE $16.59
651 2603001009 DEPTH-GAUGE $4.00
654 2607225105 FAST CHARGER $92.70
